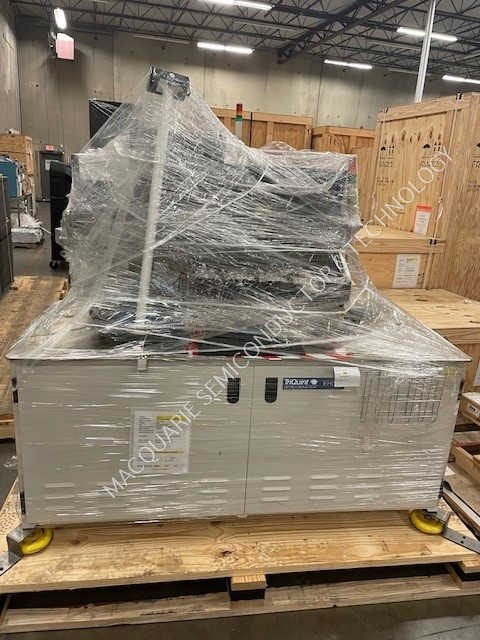

EXATRON 904

Equipment details:

Date of Manufacture:

Currently Configured for: N/A

Current Equipment Status: Available

Location of Equipment: Grand Prairie, United States

Available date: Currently Available

Audit to verify

============================= OEM Feature for reference =============================

The Exatron Model 900 pick and place handler automates IC testing, programming, transfer, laser marking, and inspection of devices in any engineering or small-to-medium volume production environment. Adaptable to all of Exatron’s standard building blocks and easily customized to meet any need, the Model 900 is a versatile, dependable workhorse.

• 24"-81" gantry
• 1-6 JEDEC trays (also fits custom trays as needed)
• 1-2 Z cars with up to 16 pickup tips each
• 1-32 test/program sites
• -55°C to +155°C (-80°C to +175°C hardware capability) thermal IC test capability, with Exaton's Wide Range Thermal Head (WRTH)
• - Can perform Hot, Cold, and Ambient tests with one socket insertion.
• Windows 10 operator GUI
• Extensive built-in diagnostics software generated in-house at Exatron
• Job data logs come standard
• Fully enclosed on all sides, doors electrically and mechanically locked.
• Heavy duty welded steel frame.
• CE marked. RoHS compliant. Meets all ESD requirements.

Vision:

Pocket occupation

Device orientation

OCR/OCV

2D/3D lead/ball inspection

1D/2D data matrix read/verification

Top and/or bottom-side vision

Pocket occupation/orientation inspection standard

with output tape

Laser:

Mark in tray, no additional tooling

Wide selection of OEM laser markers

- Solid-state, fiber, diode, and CO2

CDRH Class 1

Table/Cabinet:

• Standard or customized floor-mount cabinet
• Hydraulic lift option

Test Site and Contactor:

• Particle Interconnect test contacts
• Gerber and photo plots
• Device guide for Particle Interconnect or pogo pin
• Pogo pin test sockets
• DUT boards
• Air cylinder DUT in test socket clamp assembly
• Direct dock to Exatron Peregrine Programmer or Exatron open/short testers (all models)
• Memory test applications - 8 to 16 test sites
• Large test head docking hardware

POSITIONING SYSTEM:

X-Y Drive System: Servo motor-driven lead screws*

X-Y Axis Resolution: 0.1mm (0.003”)

X-Y Axis Max. Velocity: 122cm/s (48”/s)

Z Plunger: Servo motor-driven lead screws

Z Axis Resolution: +/- 0.1mm (0.003”)

Z Axis Repeatability: +/- 0.1mm (0.003”)

Placement Force: Up to 10kg (20 lb) force with standard pickup heads

Theta Drive System: Precision stepper motors

Theta Axis Resolution: 0.1°

Theta Axis Repeatability: +/- 0.1mm (0.003")

SPECIFICATIONS:

Power Required: 100-240 VAC, 50/60Hz (current depends on options)

Air Pressure Required: 80 psi clean dry, air at 5 CFM (typical, add 2 CFM per each venutri added)
