Etch/Ash/Clean - Plasma Processing
Date of Manufacture: 2021-11-09
Currently Configured for: 300mm
Current Equipment Status: Incoming
Asset HDD not included
Location of Equipment: Hiroshima, Japan
Available date: Currently Available
Tool config is based on original PO, please verify tool details at tool inspection
MiCAP Number: 1521228
Micron MISTI/LID #: MHXTK6SU00

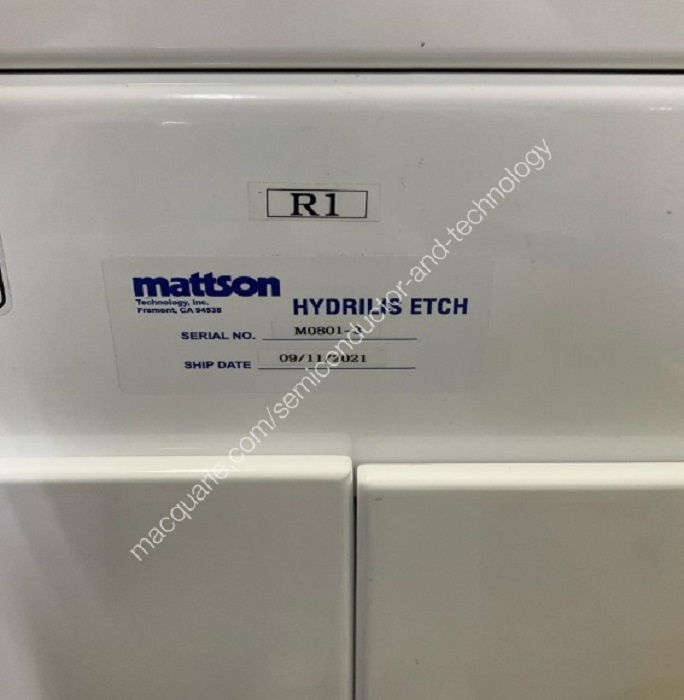

Vendor Tool Serial #: MT801-3
Any modification/ conversion/ refrofit was perform to the tool? No
Any defective or missing parts: No
OEM: MTSN
Tool Model: HYDRXT
Software Version (include revision #): 2.0b16
System Power Rating: 200 AC 3-Phase

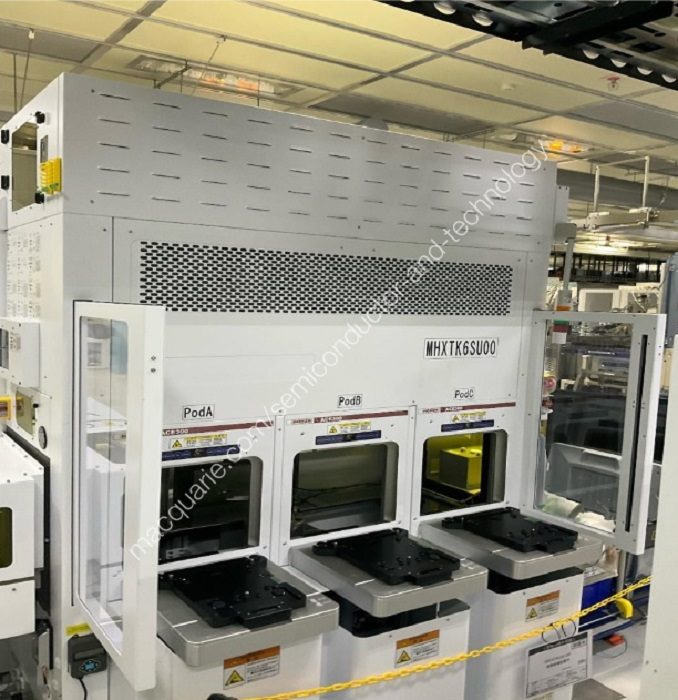

Loading Configuration: 3 load ports
Tool under OEM service contract? Yes
Retrofit Part Type 1: Center RF Matcher
Retrofit Part Description 1: Flipping Fan of Center RF Match
Retrofit Part Number 1: NA
Retrofit Date of Change 1: 2024-06-02T15:00:00Z
Retrofit Qty 1: 8
Retrofit Remark 1: F15 Special Flipping fan of Center RF Match

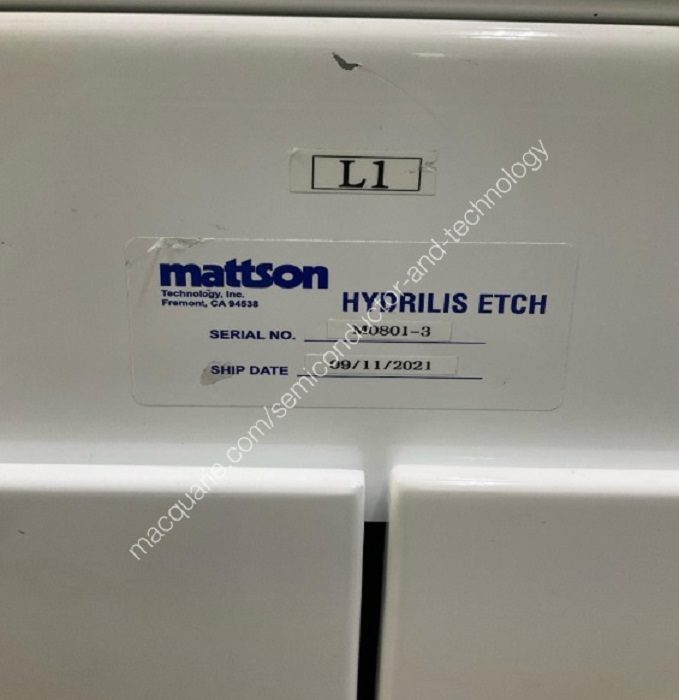

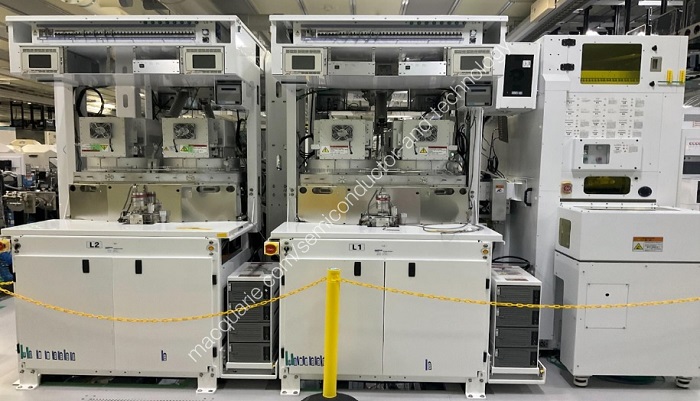

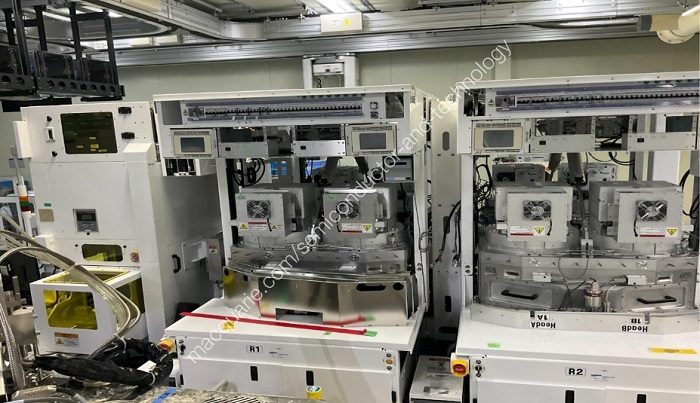

Chamber Name 1: L1

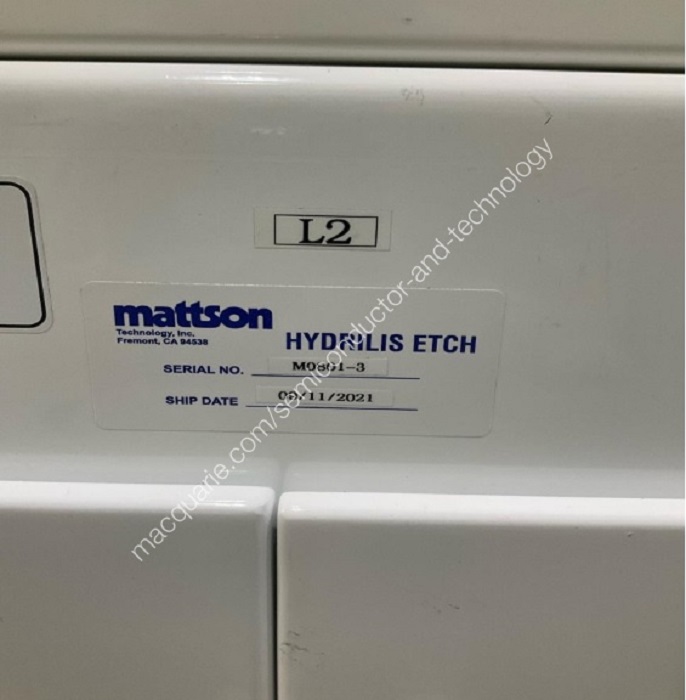

Chamber Name 2: L2

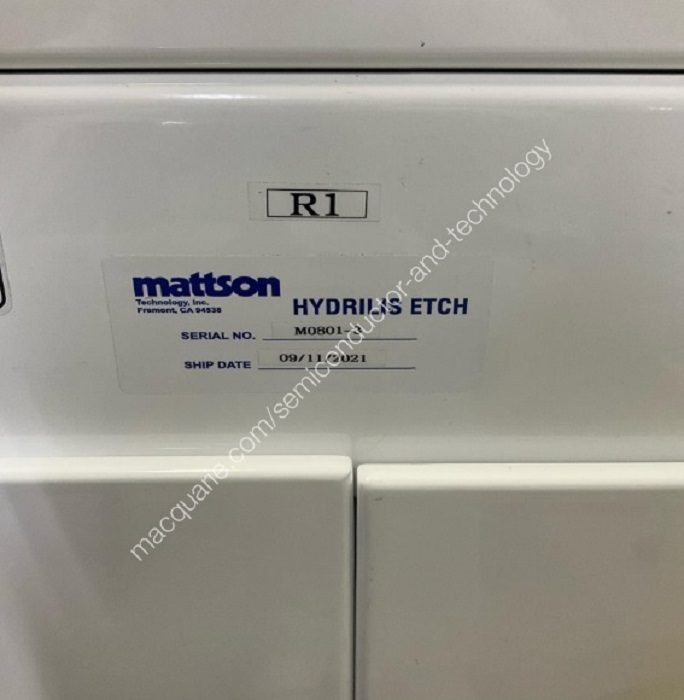

Chamber Name 3: R1

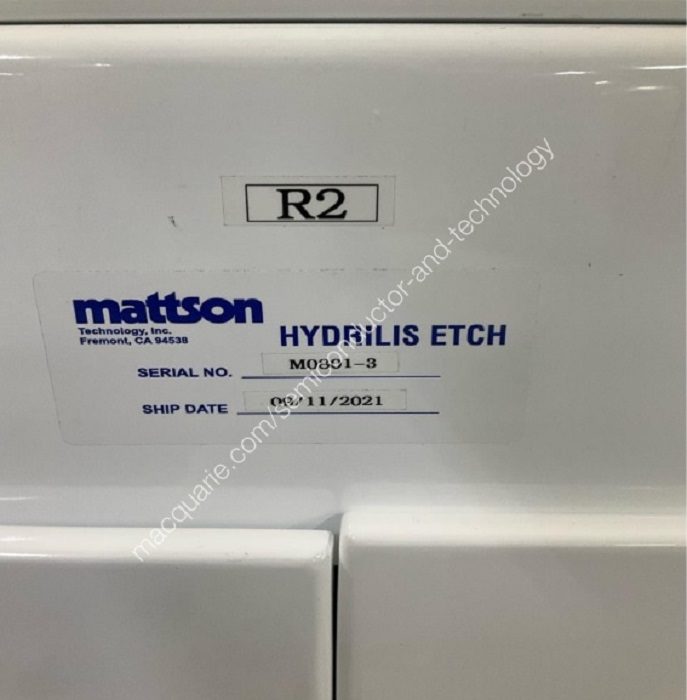

Chamber Name 4: R2
Chamber 1 Description: XT
Chamber 2 Description: XT
Chamber 3 Description: XT
Chamber 4 Description: XT
Chamber 1 Chemicals Gases Used: He, O2, N2, Ar, CHF3, NF3, CF4, CH2F2, SF6, H2, CO, C4F8
Chamber 2 Chemicals Gases Used: He, O2, N2, Ar, CHF3, NF3, CF4, CH2F2, SF6, H2, CO, C4F8
Chamber 3 Chemicals Gases Used: He, O2, N2, Ar, CHF3, NF3, CF4, CH2F2, SF6, H2, CO, C4F8
Chamber 4 Chemicals Gases Used: He, O2, N2, Ar, CHF3, NF3, CF4, CH2F2, SF6, H2, CO, C4F8
OEM Cable 1: Remote PDU
OEM Cable 2: UPI
OEM Cable Length 1: 15000
OEM Cable Length 2: 15000
N2 Load Port Exists 1: Yes
N2 Load port Vendor 1: Santa Phoenix
N2 OEM Stage Available 1: No
N2 Load Port Exists 2: Yes
N2 Load port Vendor 2: Santa Phoenix
N2 OEM Stage Available 2: No
N2 Load Port Exists 3: Yes
N2 Load port Vendor 3: Santa Phoenix
N2 OEM Stage Available 3: No
Custom Gas Lines 1: He 500sccm STEC MFC
Custom Gas Lines 2: O2 2000sccm STEC MFC
Custom Gas Lines 3: O2 100sccm STEC MFC
Custom Gas Lines 4: N2 500sccm STEC MFC
Custom Gas Lines 5: Ar 2500sccm STEC MFC
Custom Gas Lines 6: CHF3 1000sccm STEC MFC
Custom Gas Lines 7: NF3 500sccm STEC MFC
Custom Gas Lines 8: CF4 1200sccm STEC MFC
Custom Gas Lines 9: CH2F2 600sccm STEC MFC
Custom Gas Lines 10: SF6 450sccm STEC MFC
Custom Gas Lines 11: H2 500sccm STEC MFC
Custom Gas Lines 12: CO 1000sccm STEC MFC
Custom Gas Lines 13: blanket
Custom Gas Lines 14: C4F8 500sccm STEC MFC
Gas TOR 1: He 500sccm
Gas TOR 2: O2 2000sccm
Gas TOR 3: O2 100sccm
Gas TOR 4: N2 500sccm
Gas TOR 5: Ar 2500sccm
Gas TOR 6: CHF3 1000sccm
Gas TOR 7: NF3 500sccm
Gas TOR 8: CF4 1200sccm
Gas TOR 9: CH2F2 600sccm
Gas TOR 10: SF6 450sccm
Gas TOR 11: H2 500sccm
Gas TOR 12: CO 1000sccm
Gas TOR 13: NA
Gas TOR 14: C4F8 500sccm
Damage/Missing parts list
Please inspect tool to reconfirm
Dry pumps and customer provided items not included on sales
