Date of Manufacture:
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Rio Rancho, United States
Available date: Currently Available

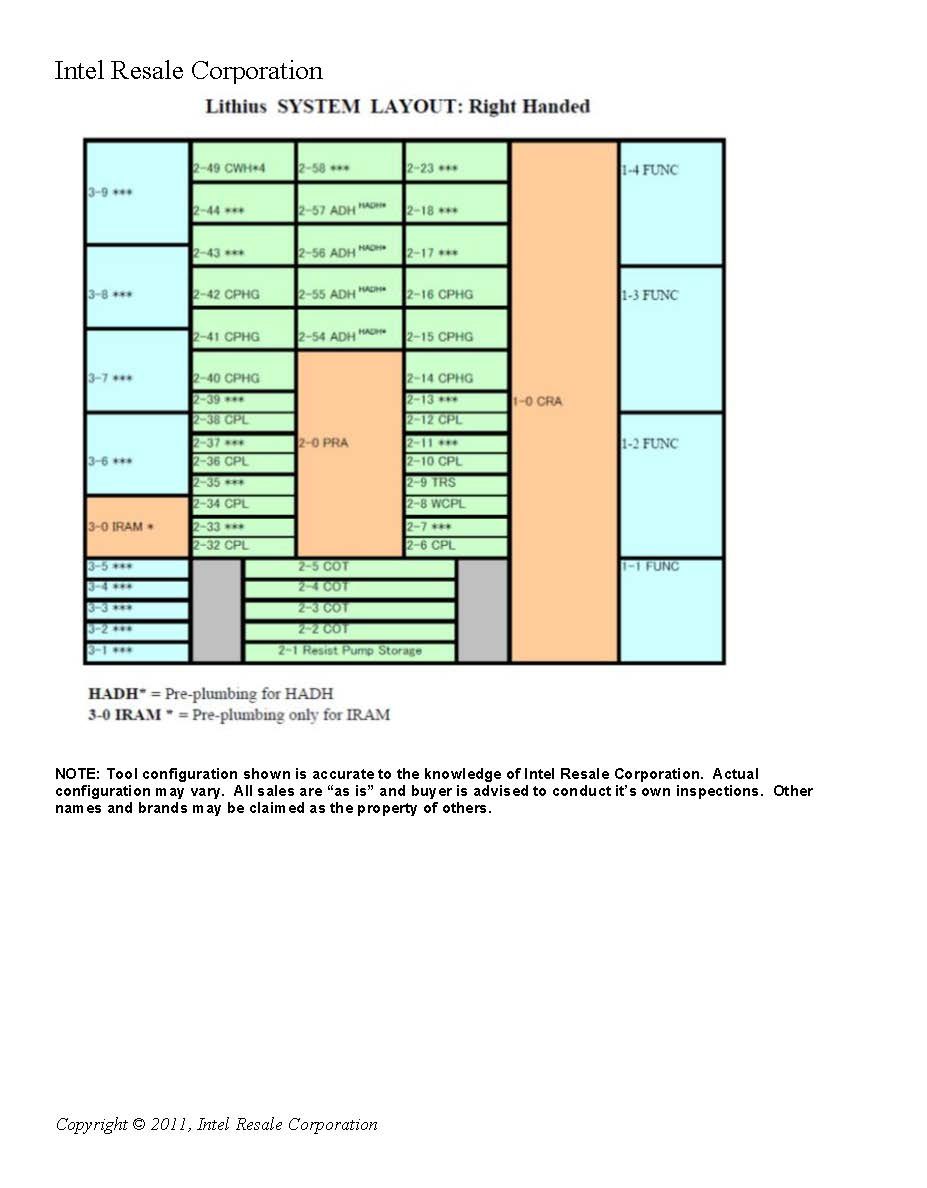

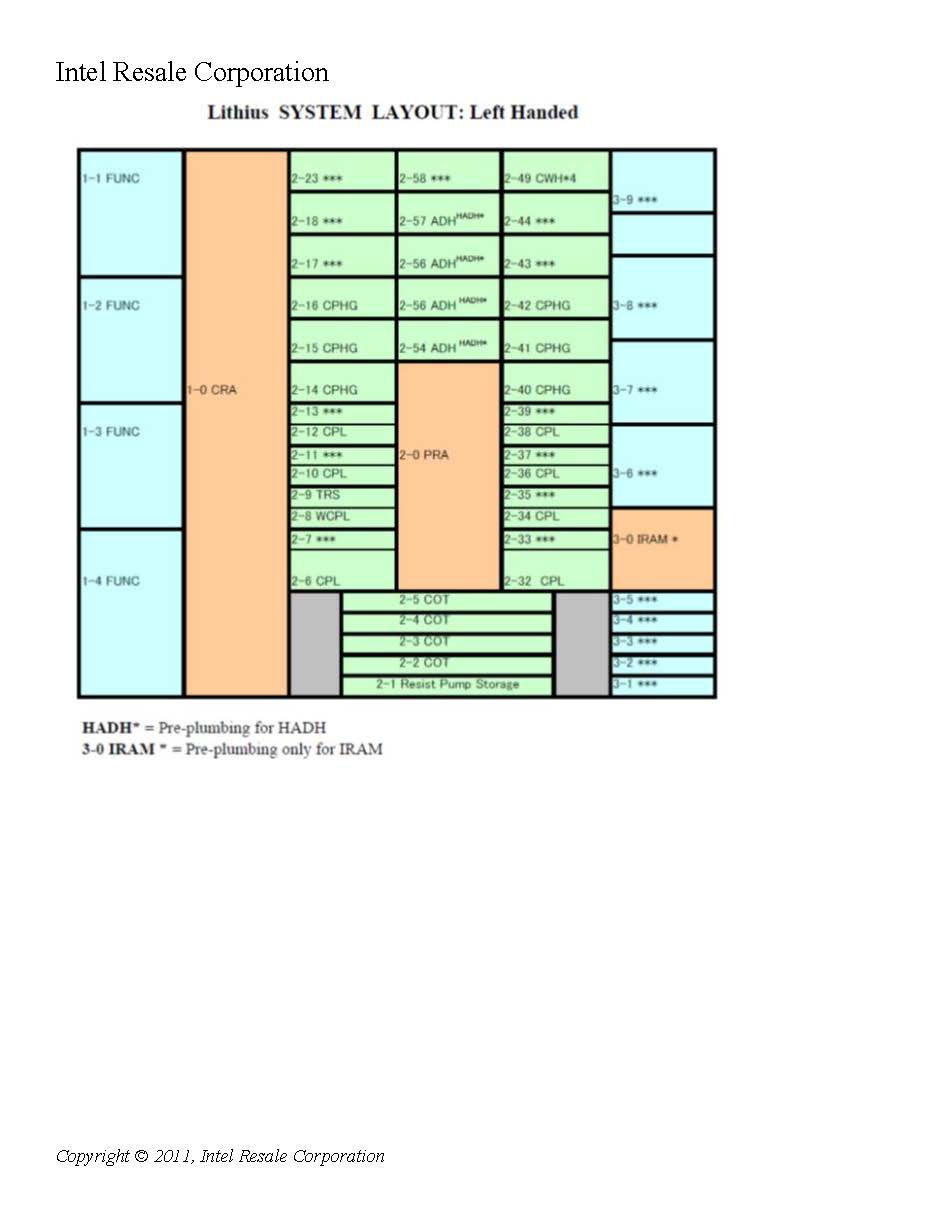

General:
· Block 1: Carrier w/ Wafer Transfer Arm
· Block 2: Process w/ Wafer Transfer Arm
· Block 3: Stepper Interface Main (Dummy)
· AC Power Box
o With Noise filter: CE Mark Type
o 208volt, 3-phase, star, 50/60Hz compatible
· Carrier Block (CSB)
· (4) FOUP Loadports
· Carrier RFID capability
· CSB Pressure Sensor
· Process Block
· Coater (COT) Qty=4
o (8) 1.2mm BARC nozzles with Temp control per Coater
o Dual Bottle Supply for R1-R8, 4 COT supply for R7,R8
o (1) RRC nozzles with separate Pump Chemical Supply System
o E-Bath (Nozzle Bath for each COT cup)
o 6ml Tube phram pumps
o 4L or 1L Nowpak bottle insert
o EBR angle adjustment capability
o Bulk-FSI system for solvent dispense
o Exhaust Pressure Control (EPC) per coater module inside track
o Exhaust duct and drain case cleaning function
o Multi-Rapid Thermo Controller System
o PP Molded Cups
· Adhesion Processing Station (ADH) Qty=4
o Wafer Wedging function using Plate Temperature sensor SW
· Chill Plate Process Station (CPL) Qty=7
o Wafer wedging function using optical detection sensor
· Transfer Chill Plate (WCPL) Qty=1
· Precision Chilling Hot Plate Station (CPHG) Qty=6
o Wafer Wedging function using Plate Temperature sensor SW
· Interface Block (Dummy) Qty=1
· TEL Temp and Humidity Controller Qty=1
o (1) Shinwa unit for system COT,Dev T/H control
· Chemical Cabinets Qty=1
o (1) HMDS Canister
o (2) solvent auto supply with 2-Pump Solvent chemical supply system
o (1) Sub operation panel
o Top side facility connection
· (1) AC Power Box
