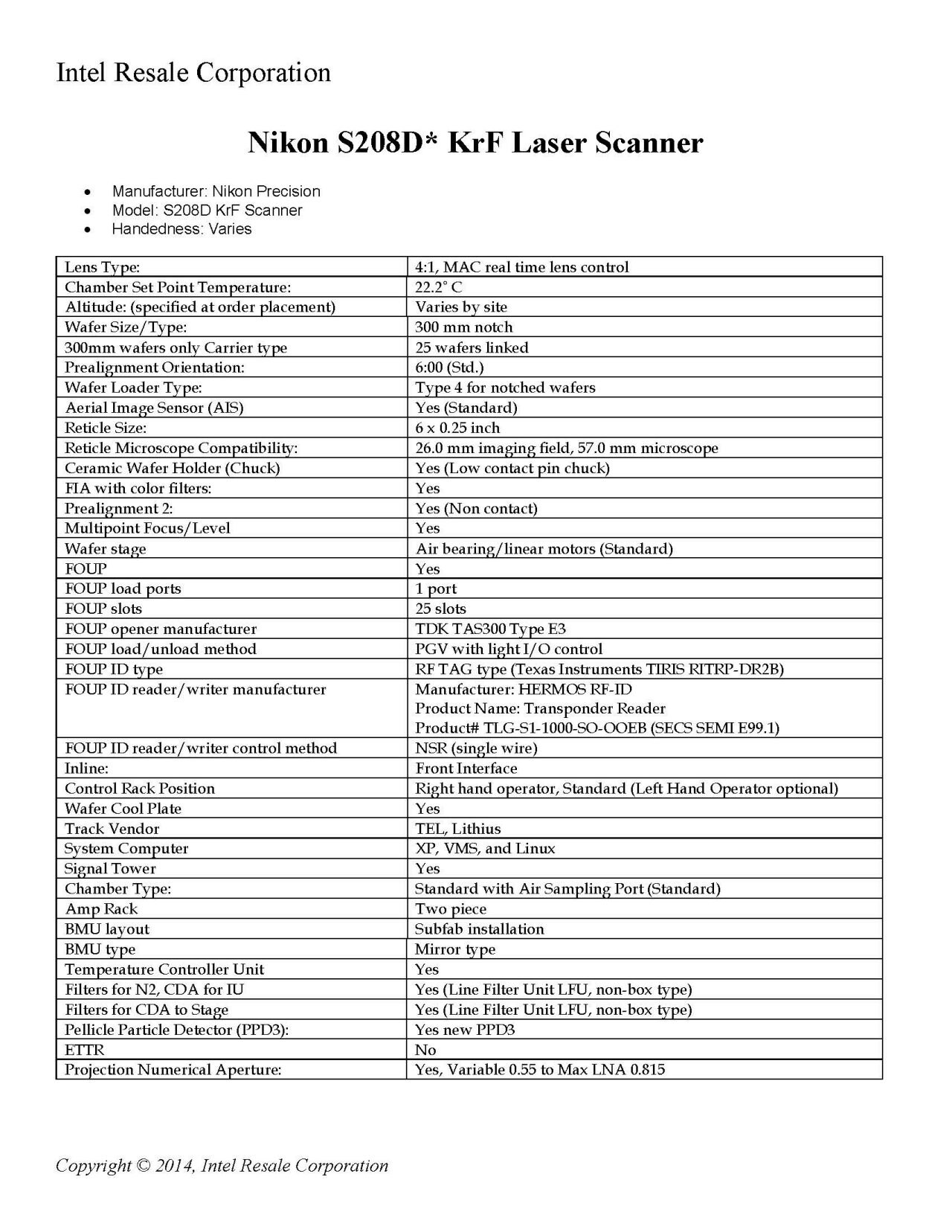

Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Chandler, United States
Available date: Currently Available
Handedness: Varies
Lens Type: | 4:1, MAC real time lens control |
ChamberSet Point Temperature: | 22.2˚ C |
Altitude: (specified at order placement) | Varies by site |
Wafer Size/Type: | 300 mm notch |
300mm wafers only Carrier type | 25 wafers linked |
Prealignment Orientation: | 6:00 (Std.) |
Wafer Loader Type: | Type 4 for notched wafers |
Aerial ImageSensor (AIS) | Yes (Standard) |
Reticle Size: | 6 x 0.25 inch |
Reticle Microscope Compatibility: | 26.0 mm imaging field,57.0 mm microscope |
Ceramic WaferHolder (Chuck) | Yes (Low contact pin chuck) |
FIA with colorfilters: | Yes |
Prealignment 2: | Yes (Non contact) |
Multipoint Focus/Level | Yes |
Wafer stage | Air bearing/linear motors (Standard) |
FOUP | Yes |
FOUP load ports | 1 port |
FOUP slots | 25 slots |
FOUP opener manufacturer | TDK TAS300 Type E3 |
FOUP load/unload method | PGV with lightI/O control |
FOUP ID type | RF TAG type (TexasInstruments TIRIS RITRP-DR2B) |
FOUP ID reader/writer manufacturer | Manufacturer: HERMOS RF-ID Product Name: Transponder Reader Product# TLG-S1-1000-SO-OOEB (SECSSEMI E99.1) |
FOUP ID reader/writer control method | NSR (single wire) |
Inline: | Front Interface |
Control Rack Position | Right hand operator, Standard (Left Hand Operator optional) |
Wafer Cool Plate | Yes |
Track Vendor | TEL, Lithius |
System Computer | XP, VMS, and Linux |
Signal Tower | Yes |
Chamber Type: | Standard withAir Sampling Port (Standard) |
Amp Rack | Two piece |
BMU layout | Subfab installation |
BMU type | Mirror type |
Temperature Controller Unit | Yes |
Filters for N2, CDA for IU | Yes (Line FilterUnit LFU, non-box type) |
Filters for CDA to Stage | Yes (Line FilterUnit LFU, non-box type) |
Pellicle Particle Detector (PPD3): | Yes new PPD3 |
ETTR | No |
Projection Numerical Aperture: | Yes, Variable 0.55to Max LNA 0.815 |

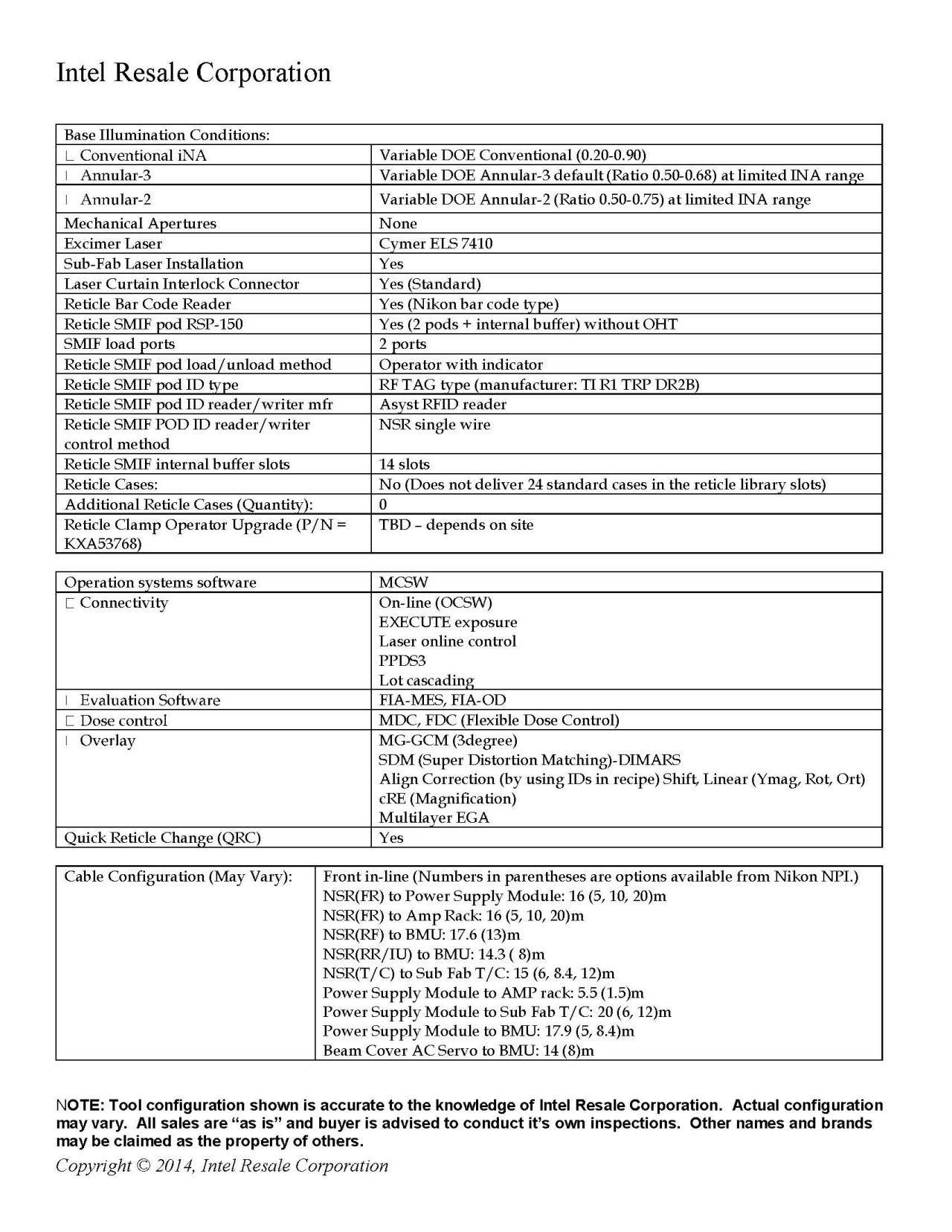

Base Illumination Conditions: | |
(Conventional iNA) | Variable DOE Conventional (0.20-0.90) |
| Variable DOE Annular-3 default (Ratio 0.50-0.68) at limited INA range |
| Variable DOE Annular-2 (Ratio0.50-0.75) at limitedINA range |
Mechanical Apertures | None |
Excimer Laser | Cymer ELS 7410 |
Sub-Fab Laser Installation | Yes |
Laser Curtain Interlock Connector | Yes (Standard) |
Reticle Bar Code Reader | Yes (Nikon bar code type) |
ReticleSMIF pod RSP-150 | Yes (2 pods + internal buffer) without OHT |
SMIF loadports | 2 ports |
Reticle SMIF pod load/unload method | Operator with indicator |
ReticleSMIF pod ID type | RF TAG type (manufacturer: TI R1 TRP DR2B) |
Reticle SMIF pod ID reader/writer mfr | Asyst RFID reader |
Reticle SMIF POD ID reader/writer control method | NSR single wire |
Reticle SMIF internal buffer slots | 14 slots |
Reticle Cases: | No (Does not deliver 24 standard cases in the reticle library slots) |
Additional Reticle Cases (Quantity): | 0 |
Reticle ClampOperator Upgrade (P/N = KXA53768) | TBD – dependson site |
Operation systems software | MCSW |
| On-line (OCSW) EXECUTE exposure Laser online control PPDS3 Lot cascading |
FIA-MES, FIA-OD | |
MDC, FDC (Flexible Dose Control) | |
MG-GCM (3degree) SDM (SuperDistortion Matching)-DIMARS Align Correction (by using IDs in recipe) Shift, Linear (Ymag,Rot, Ort) cRE (Magnification) Multilayer EGA | |
Quick Reticle Change (QRC) | Yes |
Cable Configuration (May Vary): | Front in-line (Numbers in parentheses are options available from Nikon NPI.) NSR(FR) to Power Supply Module: 16 (5, 10, 20)m NSR(FR) to Amp Rack:16 (5, 10, 20)m NSR(RF) to BMU: 17.6 (13)m NSR(RR/IU) to BMU: 14.3 ( 8)m NSR(T/C) to Sub FabT/C: 15 (6, 8.4, 12)m Power Supply Module to AMP rack: 5.5 (1.5)m Power Supply Moduleto Sub Fab T/C: 20 (6, 12)m Power Supply Module to BMU: 17.9 (5, 8.4)m Beam Cover AC Servo to BMU: 14 (8)m |
