Macquarie Semiconductor and Technology on behalf of Micron Technology, Inc. (VA)

Tokyo Electron Ltd. (TEL) Telius SP 305 DRM

Disclaimer

The images and data contained herein is owned by Macquarie and is intended for use only by potential purchasers of goods shown herein. Except for such permitted usage, no other use of the images and data is permitted and such images and data shall not be exhibited or shown in any websites or social media or for any commercial purposes without Macquarie’s written permission. Therefore, no seller of goods like the goods shown herein has any right or authority to show or exhibit any images or data shown herein.


Asset ID: 205590

Enquire about this product Print spec sheet

Tokyo Electron Ltd. (TEL)

Telius SP 305 DRM

Dielectric Etch

Etch/Ash/Clean - Plasma Processing

Equipment details:

Date of Manufacture: 2007-01-01

Currently Configured for: 300mm

Current Equipment Status: Available

Asset HDD not included

Location of Equipment: Manassas, United States

Available date: Currently Available

Tool config is based on original PO, please verify tool details at tool inspection


Tool is configured with 3 chamber


Standard Specification

Software Revision: Linux Ver6.75-Rev000-VSTD6.75a

OEE WPH Software: SW only for OEE throughput upgrade

Wafer Size: Diameter 300+/- 0.05mm(SEMI M1.15, Notch

Carrier: FOUP (Comply with SEMI E47.1 (25wafers))

Inter Face: 5 carrier stage (Continuous flow operation) with Semi compiant MENV and FIMS assemblies

Online Connection: GEM / CIM GJG (Hardware Interface : Ethernet 100Base-Tx)

Utility Box: Regulator : Air/AR2500(SMC), N2/SQ-420E(VERIFLO), He/SQMICRO(VERIFLO)

Utility Box: Manual Valve :OGD20V-6RM-K / OGD10V-4RM-K (CKD)

Utility Box: Pressure Gauge : Bourdon Gauge

Loader Module: SUS Parts, Ball screw & Liner guide : PTFE Coating

Load Lock Pressure Monitor: Pressure Switch : VSA100A (INFICON)

Load Lock Pressure Monitor: Pirani gauge : TTR216S LEYBOLD)

Load Lock Pressure Monitor: CM : 626A01TDE (MKS)

Maintenance Monitor: 2 (Flat Panel Display Touch Screen Type)

Water Leak Detector: 5 (LM;1, each PS;1)

Signal Tower: Red/Yellow/Green/Blue (Upper Left of Front x1 & Upper right section of loader on maintenance side x1)

Data Back up: USB & Ingenio (Ingenio Management Server)

EMO: 7 (Front x2, Rear x5)

Cable Length: 20m (Interconnection), 20m (RF cables)

Inter Locks: External (When the I/L signal is received from Factory, gas valves are closed)

Fittings: No brass fittings


Supporting Remote Units

Chiller: DAIKIN:UBRPD5A-1T

Chiller Coolant: FC-3283

Chiller Hose: DRM 0X LTEMP / 19m (In;PTFE, Out;SUS)

Handy Maintenance Controller: LCD DISPLAY UT3-TLN7-8

RF Generator: GHW-55

RF Matcher: MWD-55LD

Pen Record Box: 2L80-00212-12

Loader Module: SELME2112ZS22-AD5

LOAD PORT: SELOP12F25-30U-14

DRIVE UNIT: SBX92102928

READER OPTICAL: ISS-1700-1TELCC

Carrier ID Reader: KEYENCE BCR:BL-601HAC1-S0

APC: 250mm

GBROR: NA


Hardware Configuration

Process Chb. 1,2,3: DRM Oxide Etch

Chamber Type: Y2O3 Coating

Chamber hardware: FCC high conductance/hole

Endpoint type: SE2000ii

ESC type: Ceramics ESC

Focus ring: Std 4mm COC

Orifice type He Gas Inlet: O

High-conductance depo shield: DEPO SHIELD ASSEMBLY, LD Y-Armor

Oring for Chamber: Armercrystal SC657

TMP: STP-A2203W1-U (SEIKO)

TMP Back Pressure Monitor: 51A11TGA2BA003 (MKS)

Dry Pump: Ebara ESR100WN

Final Valve: Valve; AGD21V-6R-GWL4 (CKD)

Final Filter: Filter; CEP-TM-HL-VR-03PB (Toshiba Ceramic)

APC: Pendulum Motion Dia.; 250mm(V-TEX), R.T.~90deg

Oring for Chamber: Armercrystal SC657

Pressure Monitor: C/M (Process Monitor) : 627BRETDD2P (MKS), 45deg, 30Pa

Pressure Monitor: C/M (Self Check) : 627B11TDC2P (MKS), 45deg, 1330Pa

Pressure Monitor: B.A. Gauge (CM Calibration) : BPG400 (INFICON), 2.0x10-5 ~ 0.1Pa

Pressure Monitor: ATM Switch : 41A13DGA2AA040 (MKS)

Pressure Monitor: Pressure Switch : 51A11TGA2BA010 (MKS) (for H2/fluoro gas)


Gas Box Configuration

"Gas Line 1: Gas Line 1-H2-FCS-4WS-798-F200"

"Gas Line 2: Gas Line 2-C4F8-FCS-4WS-798-F122B"

"Gas Line 3: Gas Line 3-CH3F-FCS-4WS-798-F50"

"Gas Line 4: Gas Line 4-CH2F2-FCS-4WS-798-F200"

"Gas Line 5: Gas Line 5-CHF3-FCS-4WS-798-F260"

"Gas Line 6: Gas Line 6-CF4-FCS-4WS-798-F600"

"Gas Line 7: Gas Line 7-Ar-FCS-4WS-798-F850"

"Gas Line 8: Gas Line 8-O2-FCS-4WS-798-F50"

"Gas Line 9: Gas Line 9-O2-FCS-4WS-798-F1300"

"Gas Line 10: Gas Line 10-CO-FCS-4WS-798-F110"

"Gas Line 11: Gas Line 11-N2-FCS-4WS-798-F300"

"Gas Line 12: Gas Line 12-None-FCS-4WS-798-F600"

Purge: N2 (Process Grade N2)

Filter: CNF1004USG4 (Nihon Pall)

Regulator (Process gas): SQMICRO (VERIFLO)

Regulator (N2): SQMICRO (VERIFLO)

Valve: Primary side(Utility-MFC):Mega mini (FUJIKIN)

Valve: Secondary side(MFC-PC):Mega one (FUJIKIN)

Piping: Dual Piping (for Gas leak containment, Gas box to Final valve & Exhaust through Gas box)

Gas Leak Detection Port: 5 Ports (6.35mm, Swagelok L-type)

Final Pressure Switch: 51A (MKS)

Pressure Gauge: Bourdon Gauge (with inside finishing) 0.2MPa

Pressure Gauge: Bourdon Gauge (with inside finishing)0.4MPa

SP3 Gas Line Connection: N/A

GBROR: GBROR


Process Kit Configuration

WINDOW,SHIELD DEPO(DRM2) Qtz: WINDOW,SHIELD DEPO(DRM2) Quartz

WINDOW DEPO SAF0.5(DRM2): WINDOW DEPO SAF0.5(DRM2)

KAPTON SHEET WINDOW (DRM2): BUSHING, WINDOW DEPO

INSULATOR RING: INSULATOR RING

INSULATOR,ESC ENCLOSURE,T3.5: INSULATOR,ESC ENCLOSURE,T3.5

ELECTRODE,UPPER Y(HAND): ELECTRODE,UPPER Y(HAND)

FOCUS RING,PM,4.0_380(SI)T: FOCUS RING,PM,4.0_380(SI)T

WINDOW DEPO(Y203): WINDOW DEPO(Y203)

BUSH,WINDOW DEPO: BUSH,WINDOW DEPO

SHUTTER ASSEMBLY, LD (Y): SHUTTER ASSEMBLY, LD (Y)

DEPO SHIELD ASSEM, LD Y-Armor: DEPO SHIELD ASSEMBLY, LD Y-Armor

PLATE EXH ASSY, LD-Y: PLATE EXH ASSY, LD-Y

ESC: ESC


Damage/Missing parts list

Please inspect tool to reconfirm

Dry pumps, HDD and customer provided items not included on sales

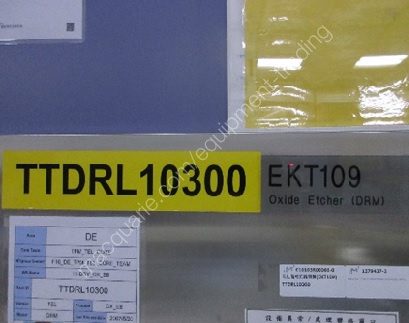

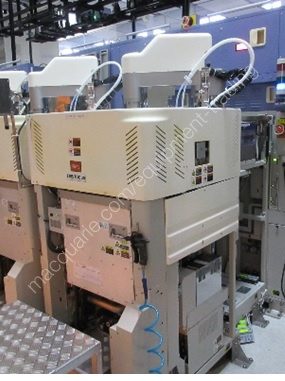

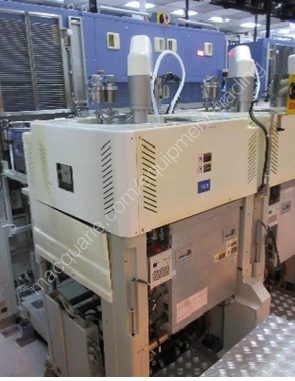

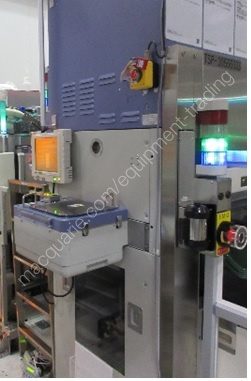

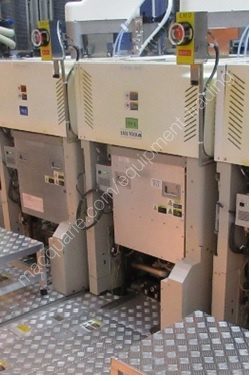

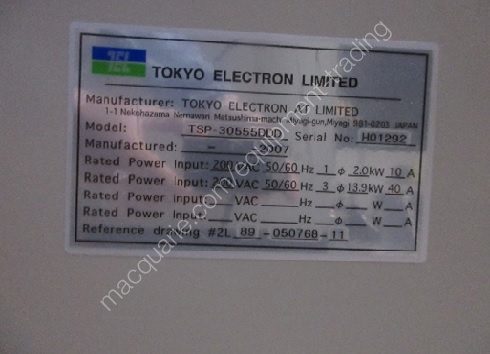

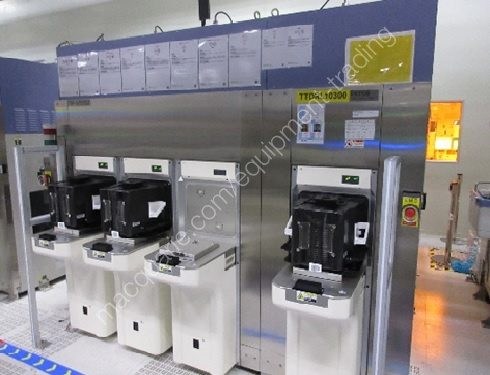

Product images

The information referenced on this page is accurate to the best of our knowledge. We do not warrant the completeness or accuracy of the information contained herein. Interested parties are encouraged to request inspection to verify equipment condition, configuration, and completeness. Any offer to purchase equipment shall be subject to our standard terms and conditions of sale.
