Macquarie Semiconductor and Technology on behalf of Fraunhofer-Gesellschaft zur Forderung der angewandten Forschung e.V. for its Fraunhofer-Institut fur Mikroelektronische Schaltungen und Systeme IMS
The images and data contained herein is owned by Macquarie and is intended for use only by potential purchasers of goods shown herein. Except for such permitted usage, no other use of the images and data is permitted and such images and data shall not be exhibited or shown in any websites or social media or for any commercial purposes without Macquarie’s written permission. Therefore, no seller of goods like the goods shown herein has any right or authority to show or exhibit any images or data shown herein.
Applied Microengineering Ltd (AML)
Date of Manufacture: 2002-12-31
Currently Configured for: 200mm
Current Equipment Status: Available
Location of Equipment: Duisburg, Germany
Available date: Currently Available
***Macquarie will manage the deinstallation, rigging, and crating at Buyer’s expense. Quotes for these services will be provided to buyer following tool award, or upon request.***
Shipping is the full responsibility of the buyer using their selected vendor, however transportation/shipping quotes are also available upon request.
ESTIMATED REMOVAL COSTS:
DEINTALLATION: $2,277.00
RIGGING: $5,182.29
WAREHOUSE HANDLING: $1.134.34
CRATING: $1,219.00
FINAL COSTS MAY BE DIFFERENT AND WILL BE BASED ON ACTUAL COSTS.

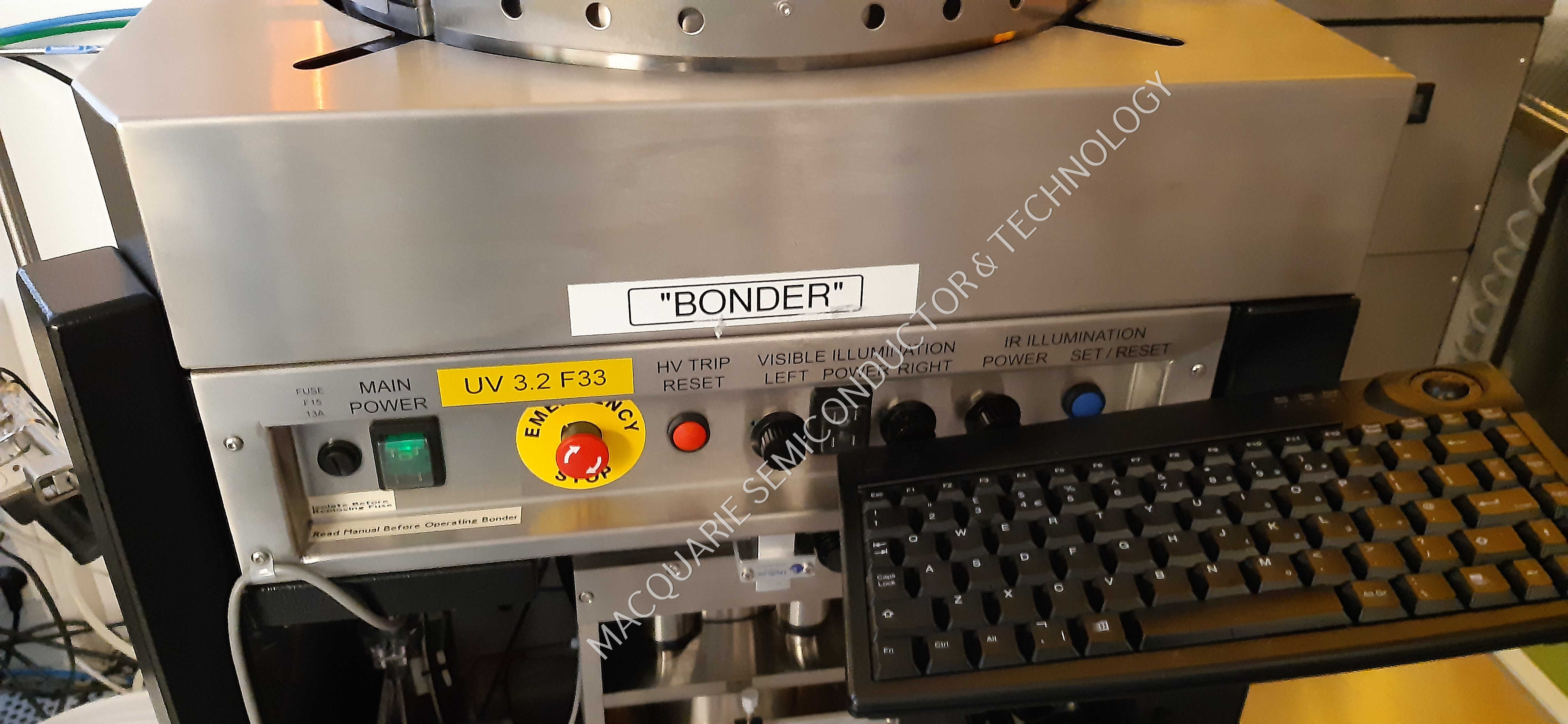

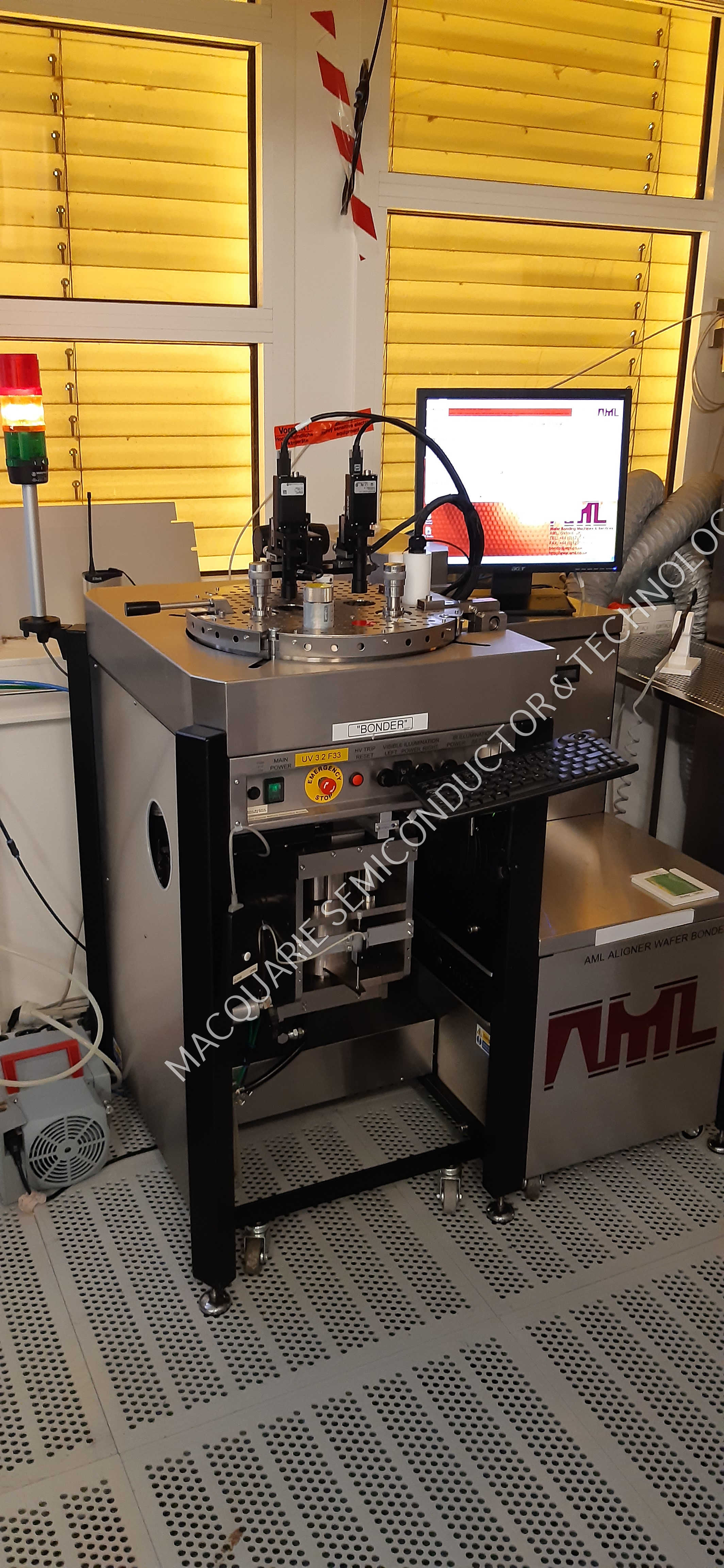

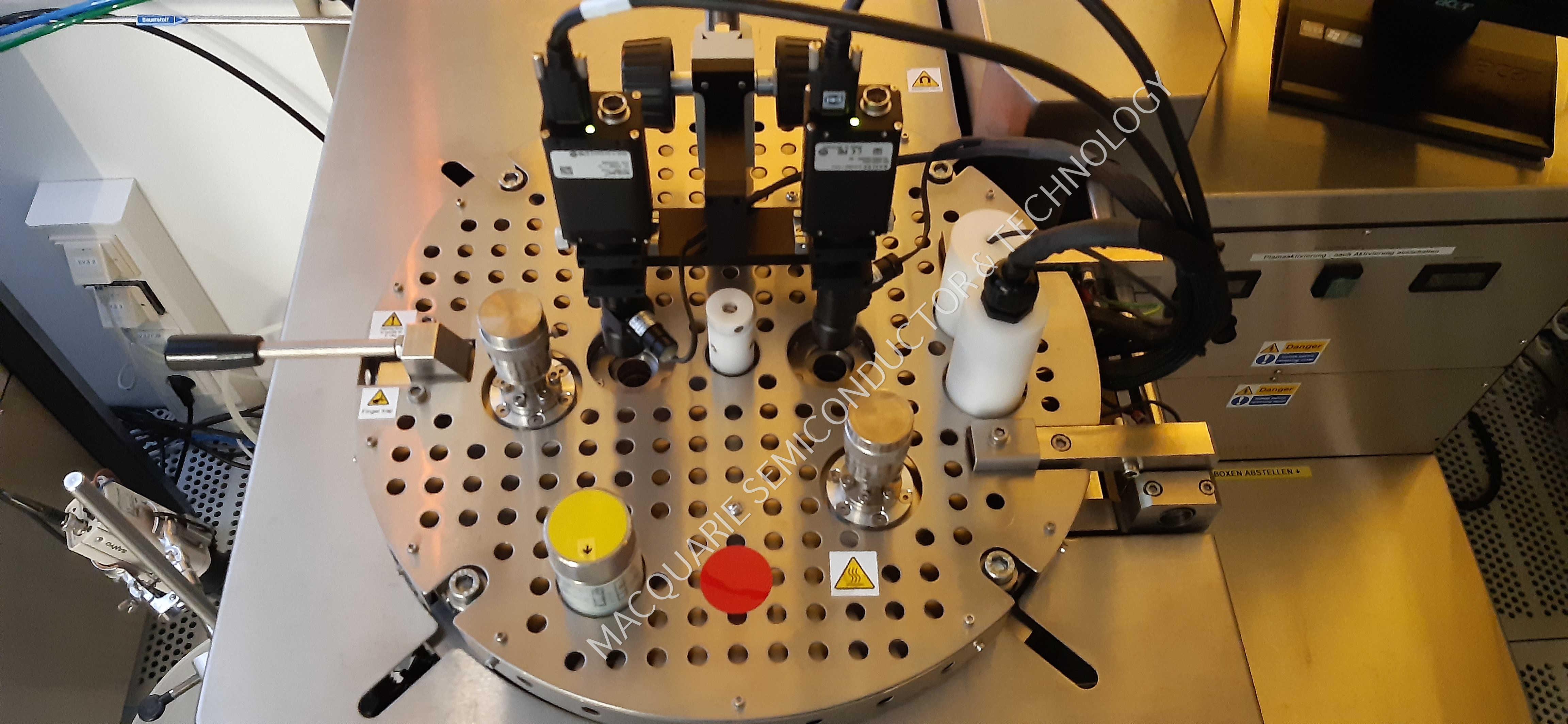

Audit to verify The AWB has the versatility to perform aligned Anodic, Eutectic, Direct (High & Low Temperature) Glass frit, Adhesive, Solder & Thermo-compression wafer bonding. Alignment & bonding in one machine - Wafer size 8" - 8" standard IR platens for forces up to 15kN - IR and vis alignment - Twin Microscope ? camera system with throughthe-lens illumination. Two CCD cameras and side-by-side display of images. Including IR capability. - In-situ alignment up to 1 micron accuracy - 10-6mbar Vacuum to 2bar process gas - forced nitrogen cooling - Voltage up to 2.5kV - Temperature up to 560° C - Semi-automatic PC control & data acquisition Dimensions / Weight (approx. values) 1066 / 745 / 1380 350 kg Included: Pump: Pfeifer MVP 070-3 (defective) ==================== OEM Feature for reference ==================
The information referenced on this page is accurate to the best of our knowledge. We do not warrant the completeness or accuracy of the information contained herein. Interested parties are encouraged to request inspection to verify equipment condition, configuration, and completeness. Any offer to purchase equipment shall be subject to our standard terms and conditions of sale.
