PVD (Physical Vapor Deposition)
Date of Manufacture: 1998-01-01
Currently Configured for: To be determined
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: San Jose, United States
Available date: Currently Available
Turnkey Option is Available!
This system can be fully refurbished and rebuilt to meet customer specifications.
Comprehensive warranty (including parts and labor), professional installation, and long-term service options are available.

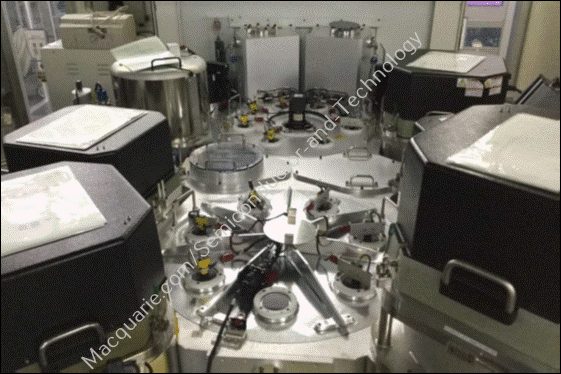

| Mainframe | |

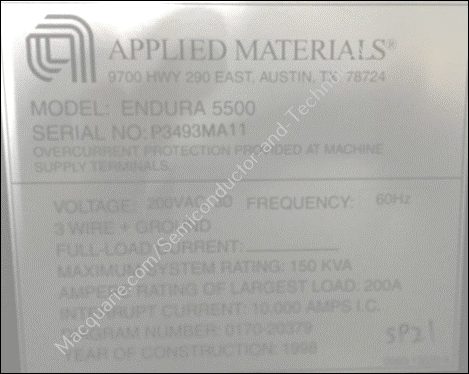

| S/N | E3493F |
| Vintage | 1998 |
| Wafer size | 150mm(JMF) |
| Buffer Robot | HP |
| Transfer Robot | VHP |
| Loadlock | |
| Type | Manual |
| Body | Narrow |
| Cassette | Metal |
| Mapping | STD |
| Indexer | Manual |
| ChA | PT STD Lid |
| ChB | CD (Flat) STD Lid |
| ChE | Orient Degas With Temp Moniter |
| CHF | Orient Degas With Temp Moniter |
| Process chamber | Ch1 | Ch2 | Ch3 | Ch4 | ChC | ChD |
| Process | AL | TTN GAMMA | TIN | AL | TIN | PreClean |
| Chamber | WC | WB | WB | WC | WB | |
| Source | 11.3 | GAMMA | G12 | 11.3 | G12 | |
| Magnet | Ａ（6”） | GAMMA II | G12 | Ａ（6”） | G12 | |
| Shutter | N/A | Linkage | N/A | N/A | N/A | |
| Gate Valve | 2PGV | 3PGV | 2PGV | 2PGV | 2PGV | |
| Water Baffle | NA | NA | NA | NA | NA | |

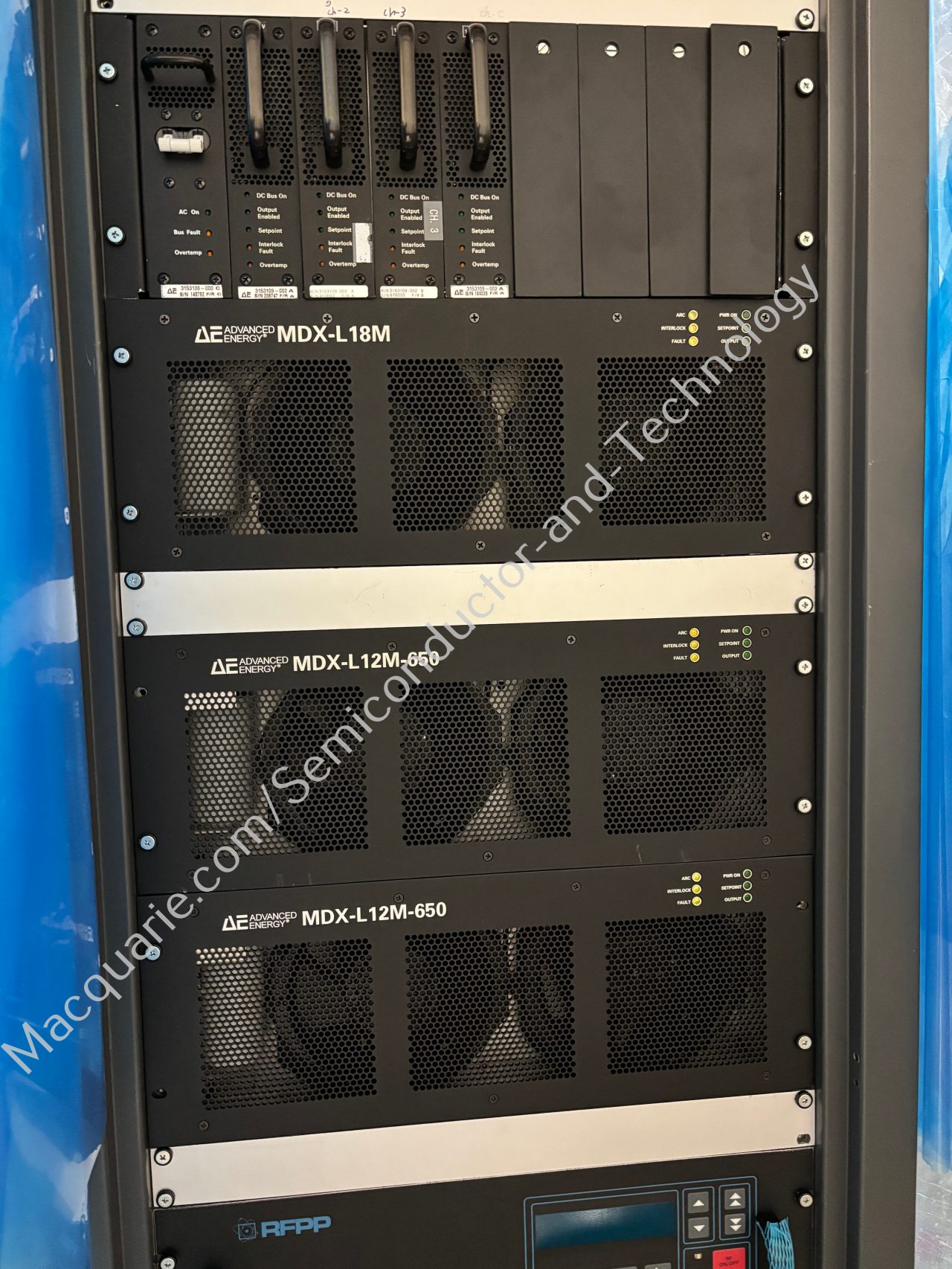

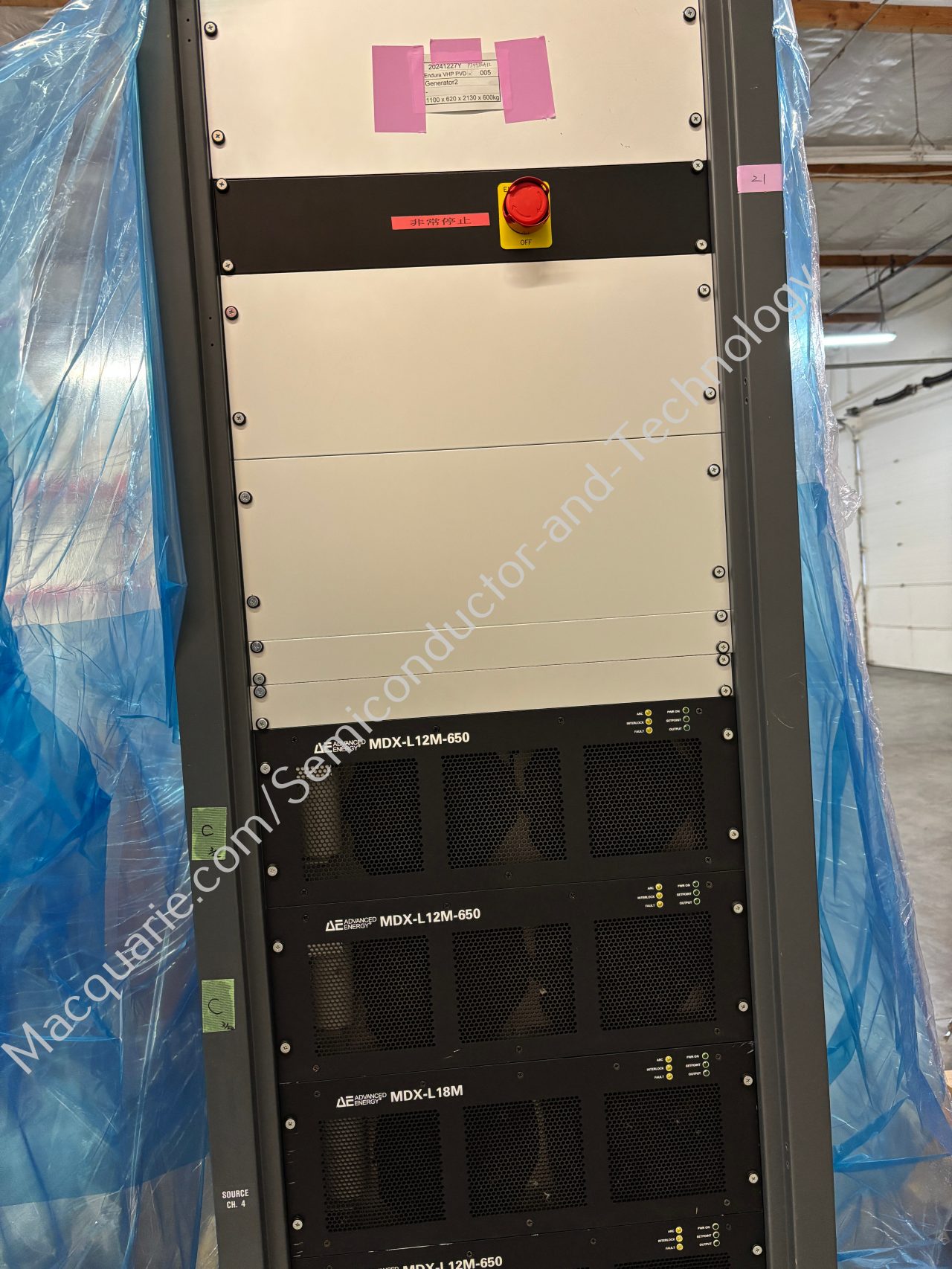

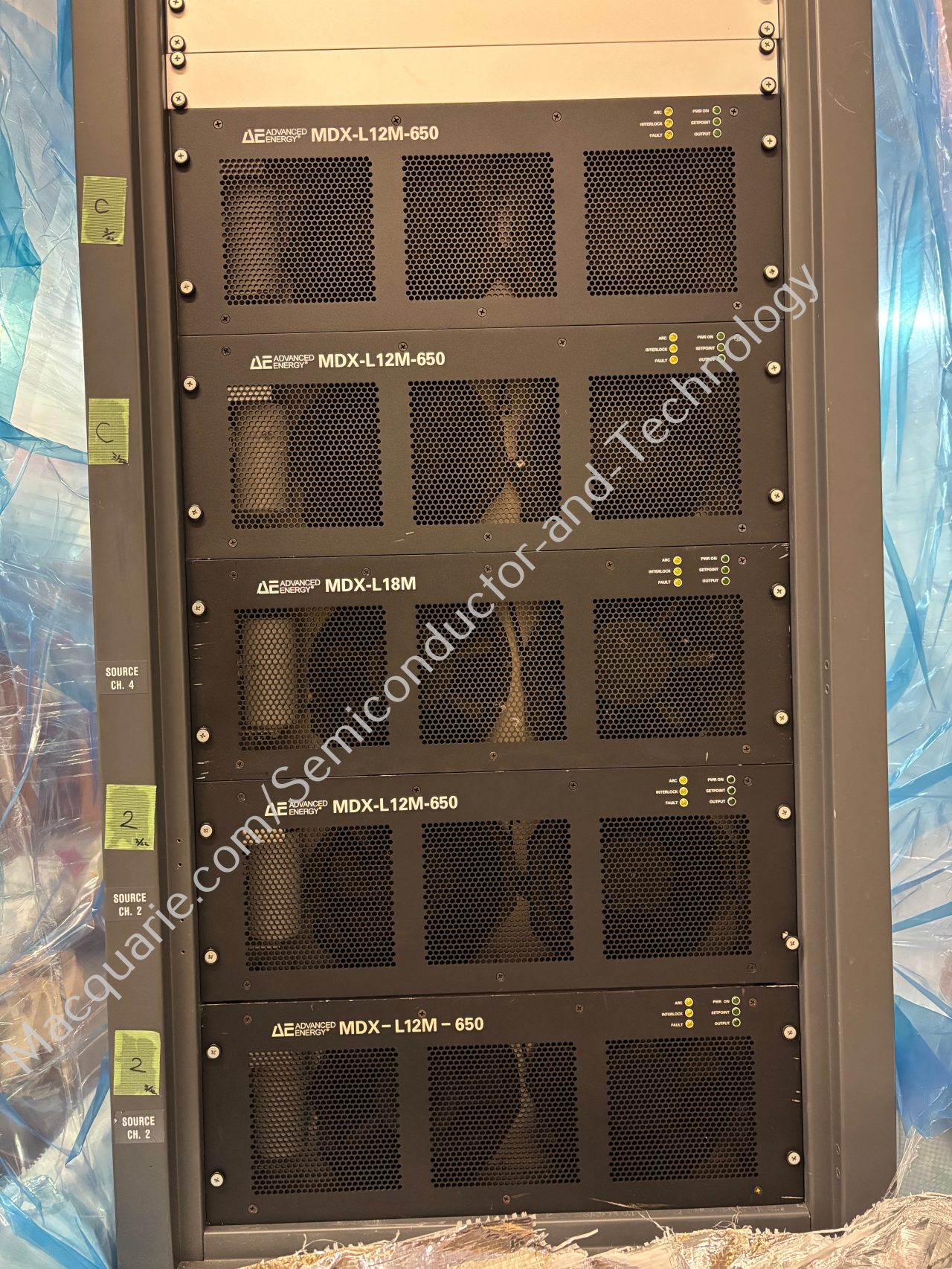

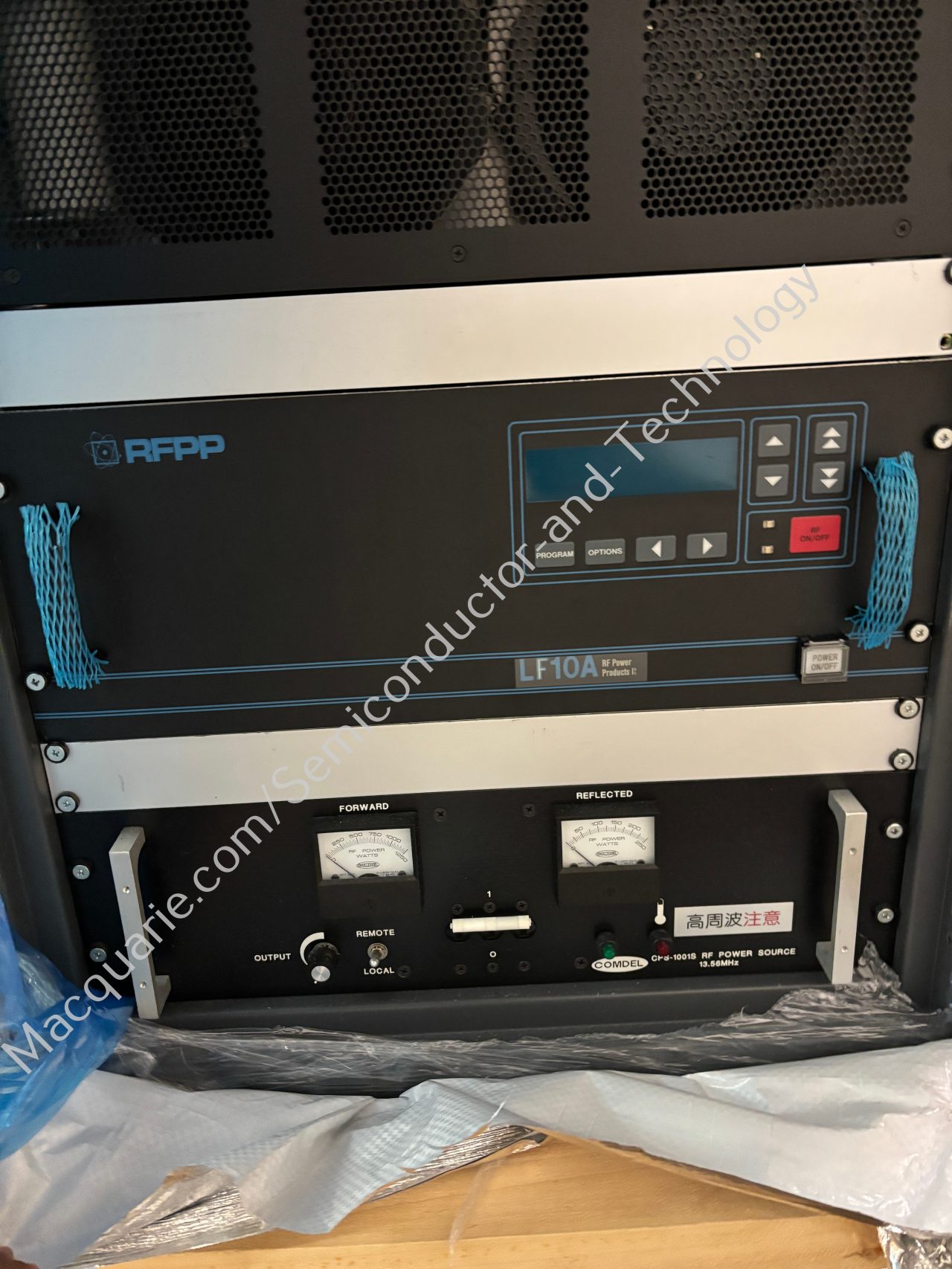

| DC Power | 18KS | 24KHz(12kｘ2) | 24KHz(12kｘ2) | 18KS | 24KHz(12kｘ2) |
Buffer Cryo PN: 8116071G001
Transfer Cryo PN: 8116142G001R
Ch1 ESC Pedestal Assembly PN: 0240-76680
Ch1 ESC AC Box PN: 0010-13650
Ch2 ESC AC Box PN: 0010-13650
Ch3 ESC AC Box PN: 0010-13650
ChC ESC AC Box PN: 0010-13650
ChD Wafer Lift Assy PN: 0010-20753
