PECVD (Chemical Vapor Deposition)
Date of Manufacture: 2015-01-05
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: Currently Available
Tool config is based on original PO, please verify tool details at tool inspection
Tool Model: Producer GT3
Process: TEOS
Segregation Requirement: Non Metal
Software Version (include revision #): pmB5.4_135
System Power Rating: 208 AC 3-Phase

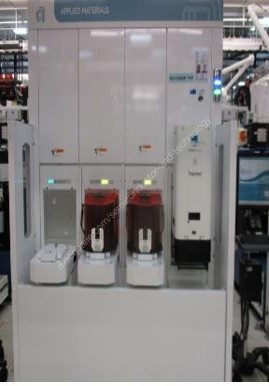

Loading Configuration: 4 SELOP 7 25 WAFER FOUP (LOADPORT)

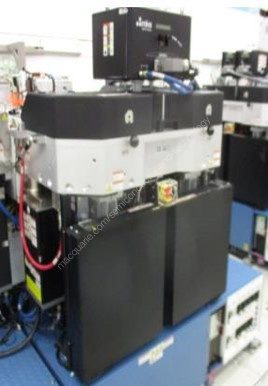

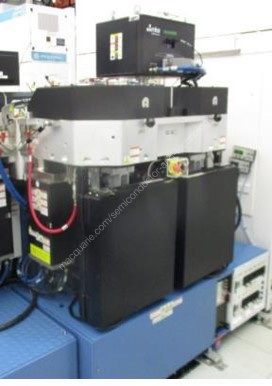

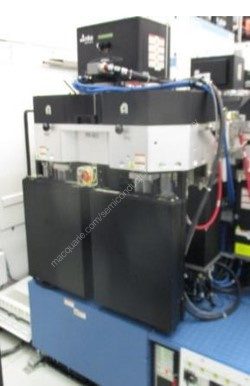

Chm/Unit Position 1: PE TEOS GT TWIN CHM A; Chemicals / Gases Used: O2, NF3, AR, TEOS*2, HE_TEOS
Chm/Unit Position 2: PE TEOS GT TWIN CHM A; Chemicals / Gases Used: O2, NF3, AR, TEOS*2, HE_TEOS
Chm/Unit Position 3: PE TEOS GT TWIN CHM A; Chemicals / Gases Used: O2, NF3, AR, TEOS*2, HE_TEOS
Technology: DCVD
Platform Type: Producer GT3
System Software
System software: B5.4_135
FiCGUI: fB5.20_11
GP: 8.10.21.2
DTauMacros: 9.2.44.0
Mainframe Configuration
Robot type: FX
Robot Blades: 0200-08346
LL preheater: 0090-04659
slit valve door: 9992-00594
MF pump: Ebara ESR80WN
LL pump: EPX 180 TWIN DRY VACCUM PUMP 3620-00517
Diffuser: 0190-37371
Chamber Configuration
Chamber Type: PE Silane
RF Generator 1 (HF): 0920-00139
RF Generator 2 (LF): 0190-08677
Heater: 0010-36734
Slit Valve: 9992-00594
Rf Filter: 0010-42371
Foreline TV: 0190-32100
Foreline ISO: 3870-06775
Gas box: 0040-53688
FACEPLATE: 0040-95475
BLOCKER: 0021-26544
PUMPING LINER side1: 0200-02407
PUMPING LINER side2: 0200-02408
LINER CERAMIC TOP: 0200-06758
LINER CERAMIC MIDDLE: 0200-02973
LINER CERAMIC BOTTOM: 0200-02974
CERAMIC ISOLATOR: 0021-27290
LIFT PINS, FLOATING(BIG FOOT): 0200-03314
LIFT HOOP: 0200-03312
Spacer Side 1: 0021-24181
Spacer Side 2: 0021-24182
RPS: 0190-40602
Gas Box Configuration
Line 1: - EMPTY -
Line 2: - EMPTY -
Line 3: TEOS_1 - 7000
Line 4: TEOS_2 - 7000
Line 5: - EMPTY -
Line 6: NF3 - 5000
Line 7: - EMPTY -
Line 8: AR - 10000
Line 9: HE_TEOS - 15000
Line 10: - EMPTY -
Line 11: - EMPTY -
Line 12: O2 - 15000
Line 13: - EMPTY -
Line 14: - EMPTY -
Line 15: - EMPTY -
Line 16: - EMPTY -
Line 17: - EMPTY -
Line 18: Purge02
Line 19: Purge03
Line 20: - EMPTY -
Line 21: - EMPTY -
Line 22: - EMPTY -
Process Pump/Abatement
Pump: KASHIYAMA SDE1203B
Liquid line temp.
TEOS_1 injection temp.: 150
TEOS_2 injection temp.: 150
Heated line2: 120
Heated line3: 120
Heated line4: 120
Heated line5: 120
Heated line6: 120
Heated line7: 120
Damage/Missing parts list
Please inspect tool to reconfirm
Dry pumps and customer provided items not included on sales
