Macquarie Semiconductor and Technology on behalf of ON Semiconductor Czech Republic s.r.o.
The images and data contained herein is owned by Macquarie and is intended for use only by potential purchasers of goods shown herein. Except for such permitted usage, no other use of the images and data is permitted and such images and data shall not be exhibited or shown in any websites or social media or for any commercial purposes without Macquarie’s written permission. Therefore, no seller of goods like the goods shown herein has any right or authority to show or exhibit any images or data shown herein.
Date of Manufacture: 2022-12-01
Currently Configured for: 150mm
Current Equipment Status: Available
Location of Equipment: Czech Republic
Available date: Currently Available

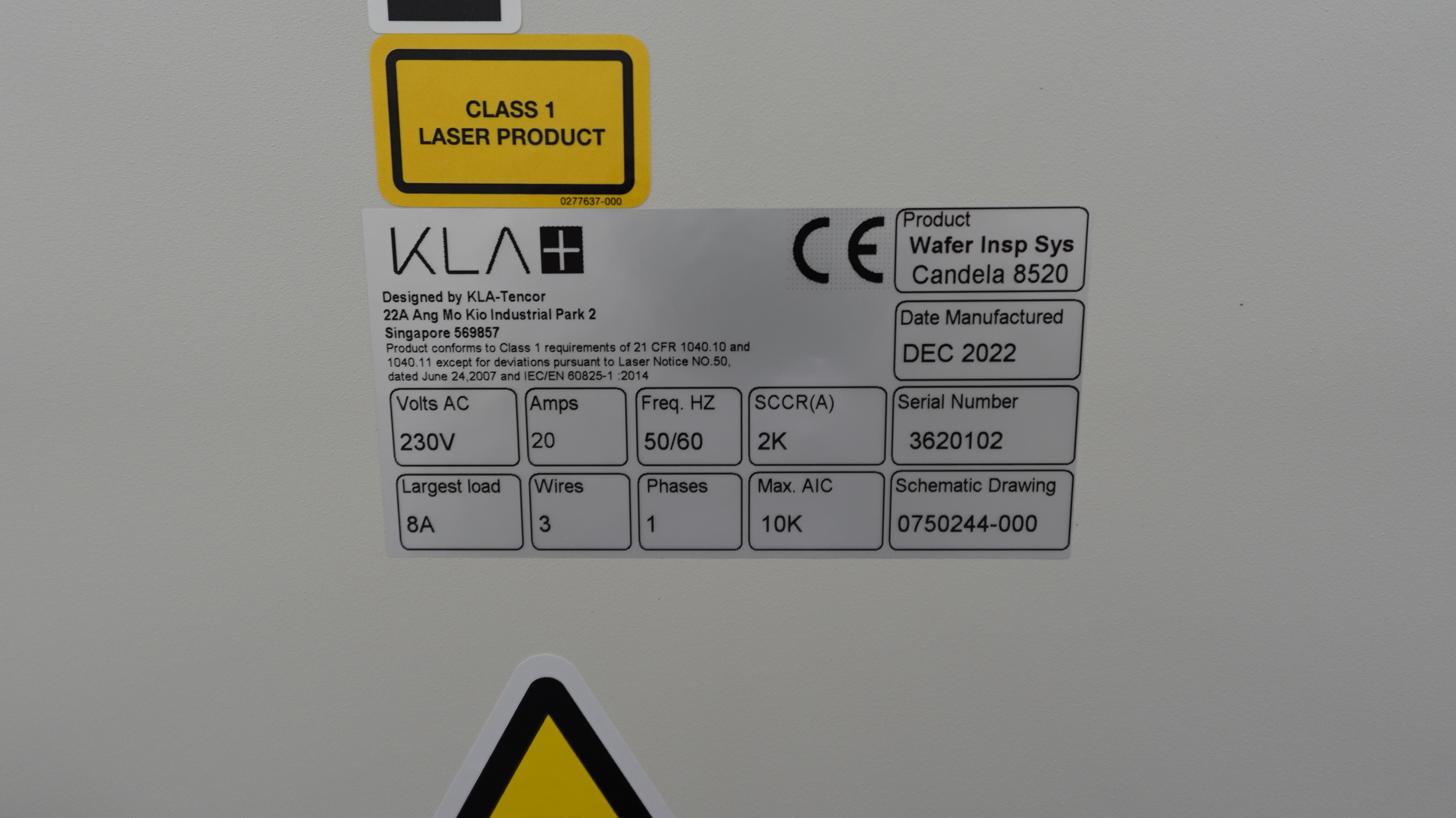

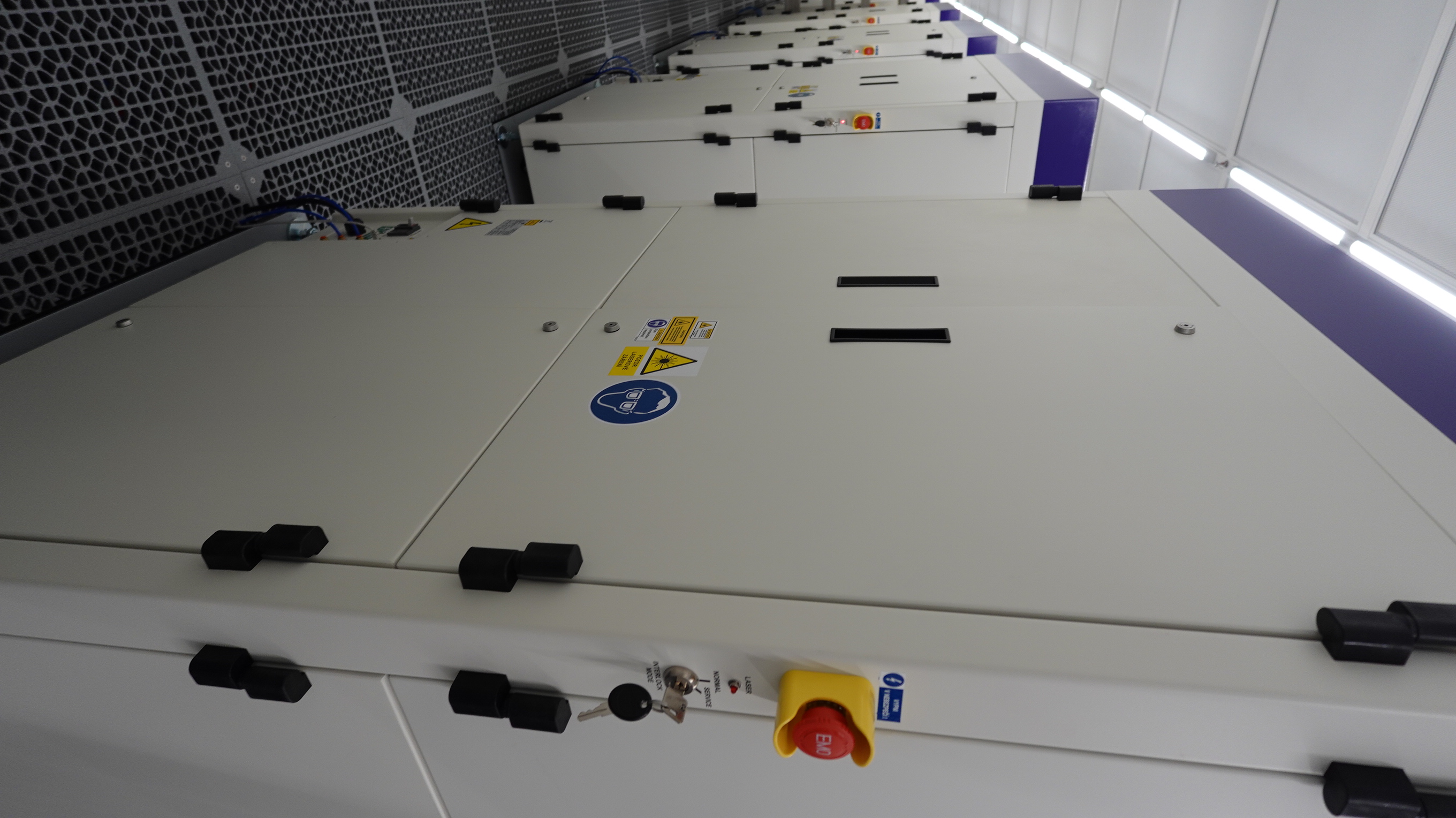

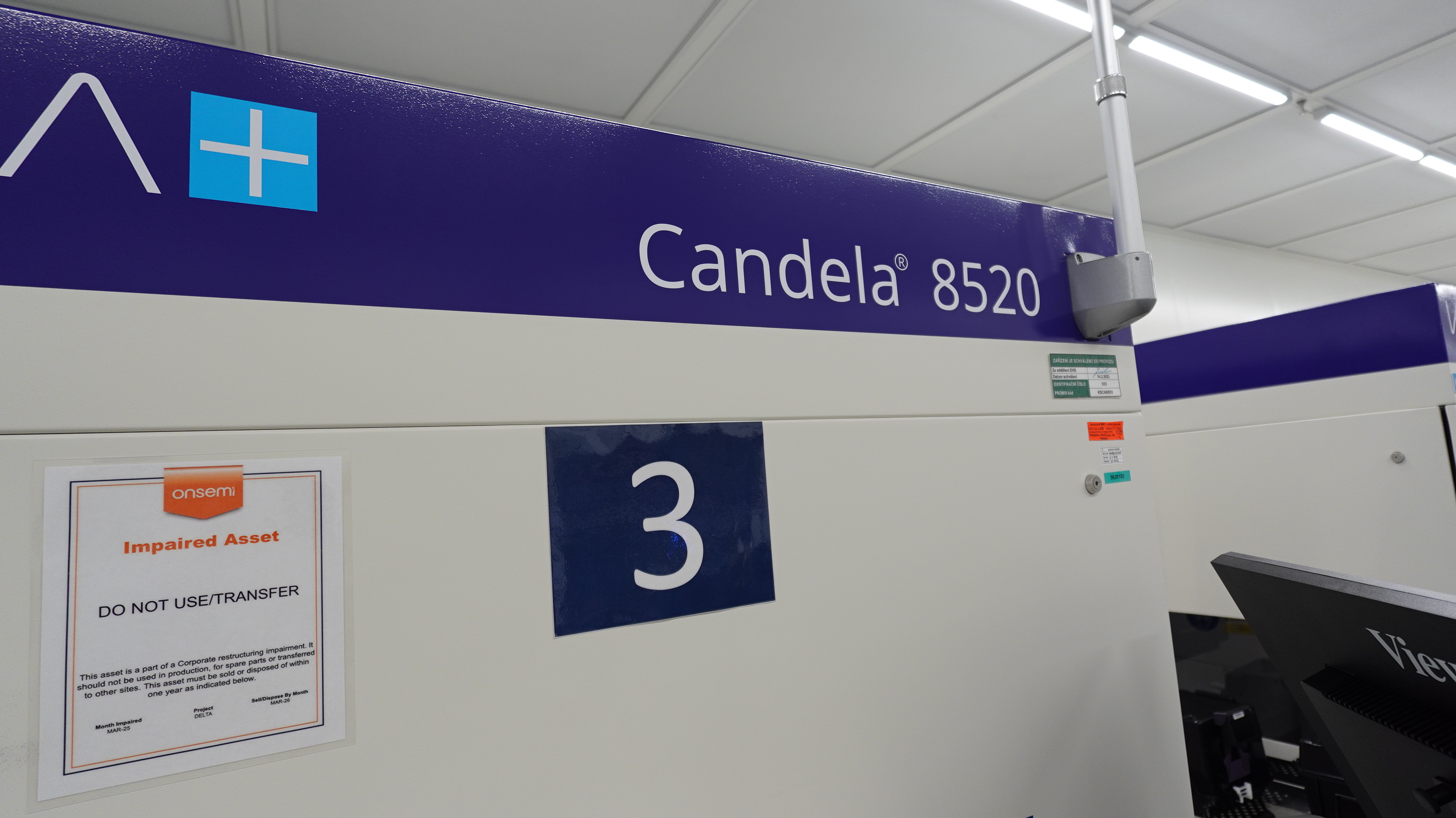

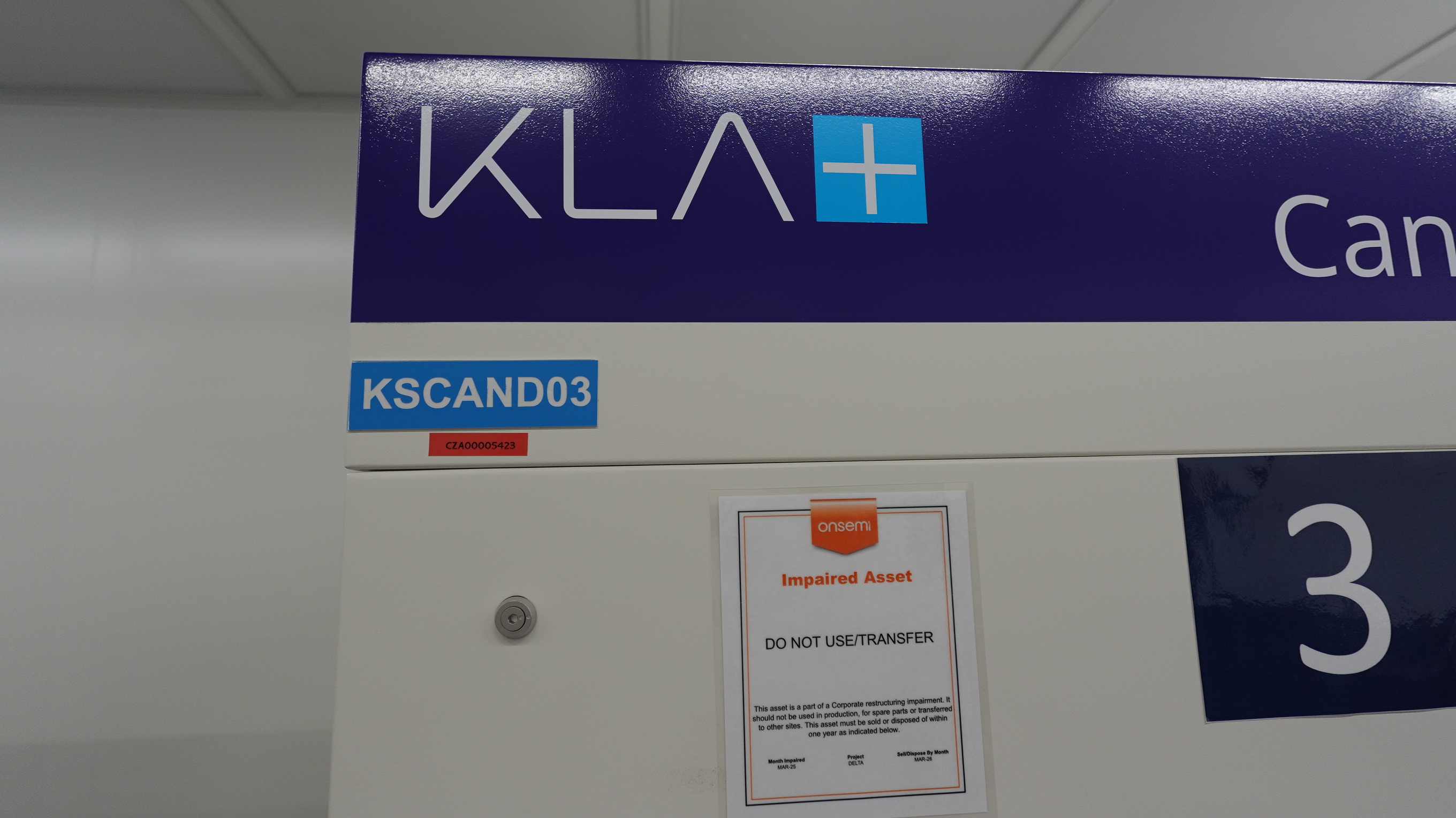

| Model #: | KLA Candela 8520 | |
| Serial Number: | ||
| Install Date: | ||

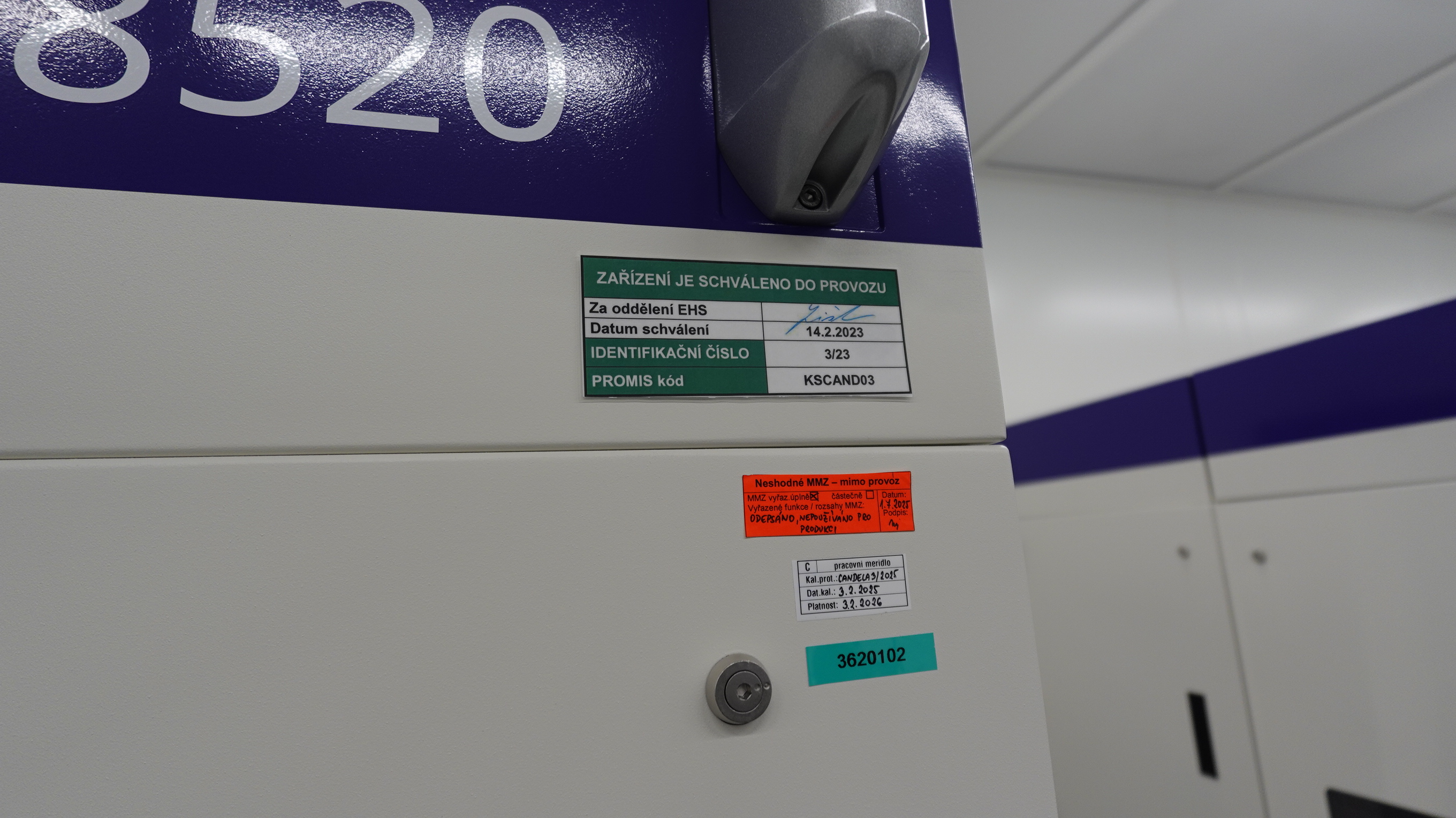

| PROMIS kód: | ||
| Description | Remarks | |
| 1 | Voltage: 208/230 +10% VAC, 1-phase | |
| 2 | Power Consumption: 1.1kVA | |
| 3 | Power frequency: 50/60Hz | |
| 4 | Maximum power: 2.3kVA | |
| 5 | Wafer Size 6 and 8” Wafer | |
| 6 | Wafer Thickness 350μm ~ 1100μm | |

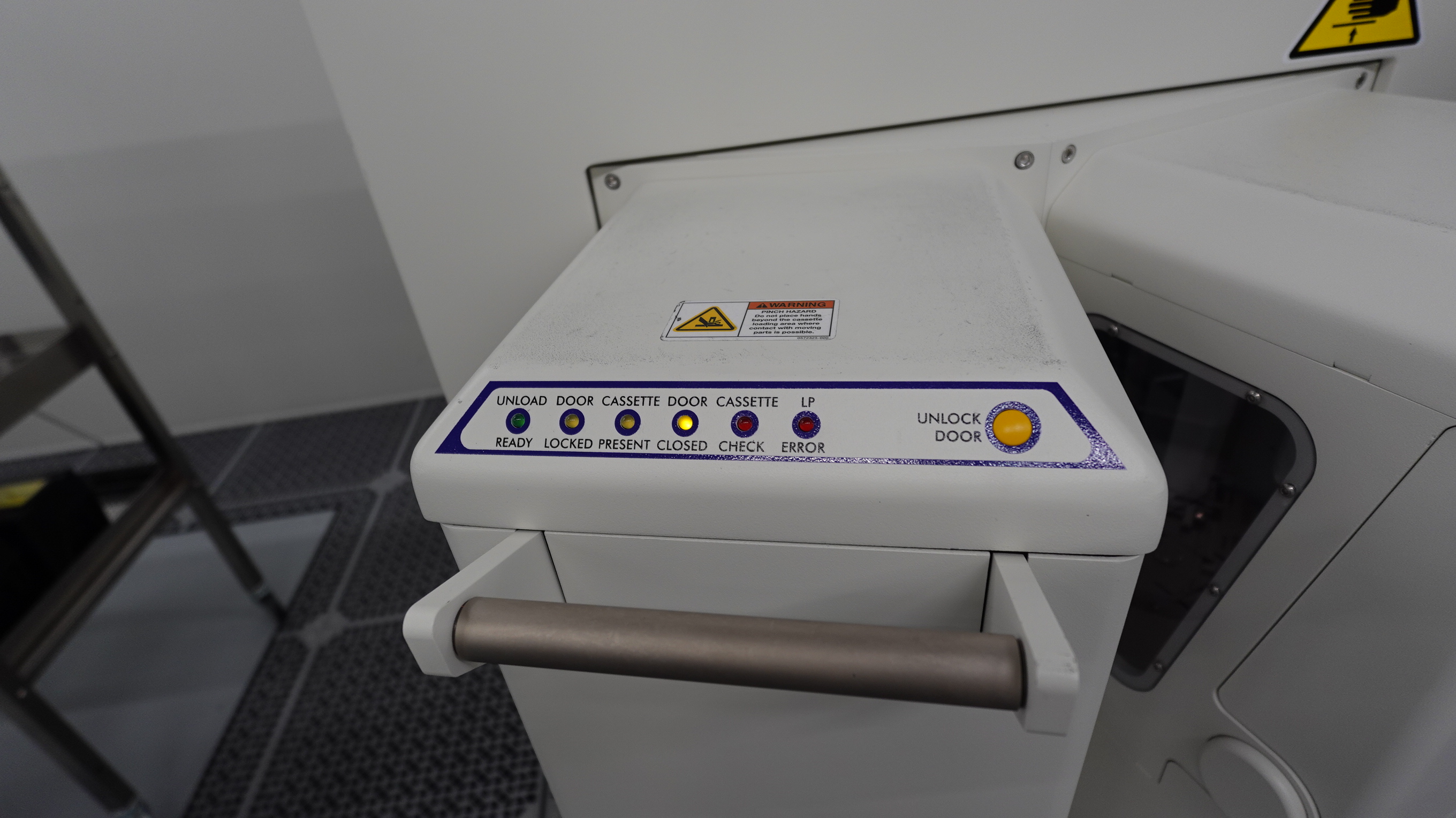

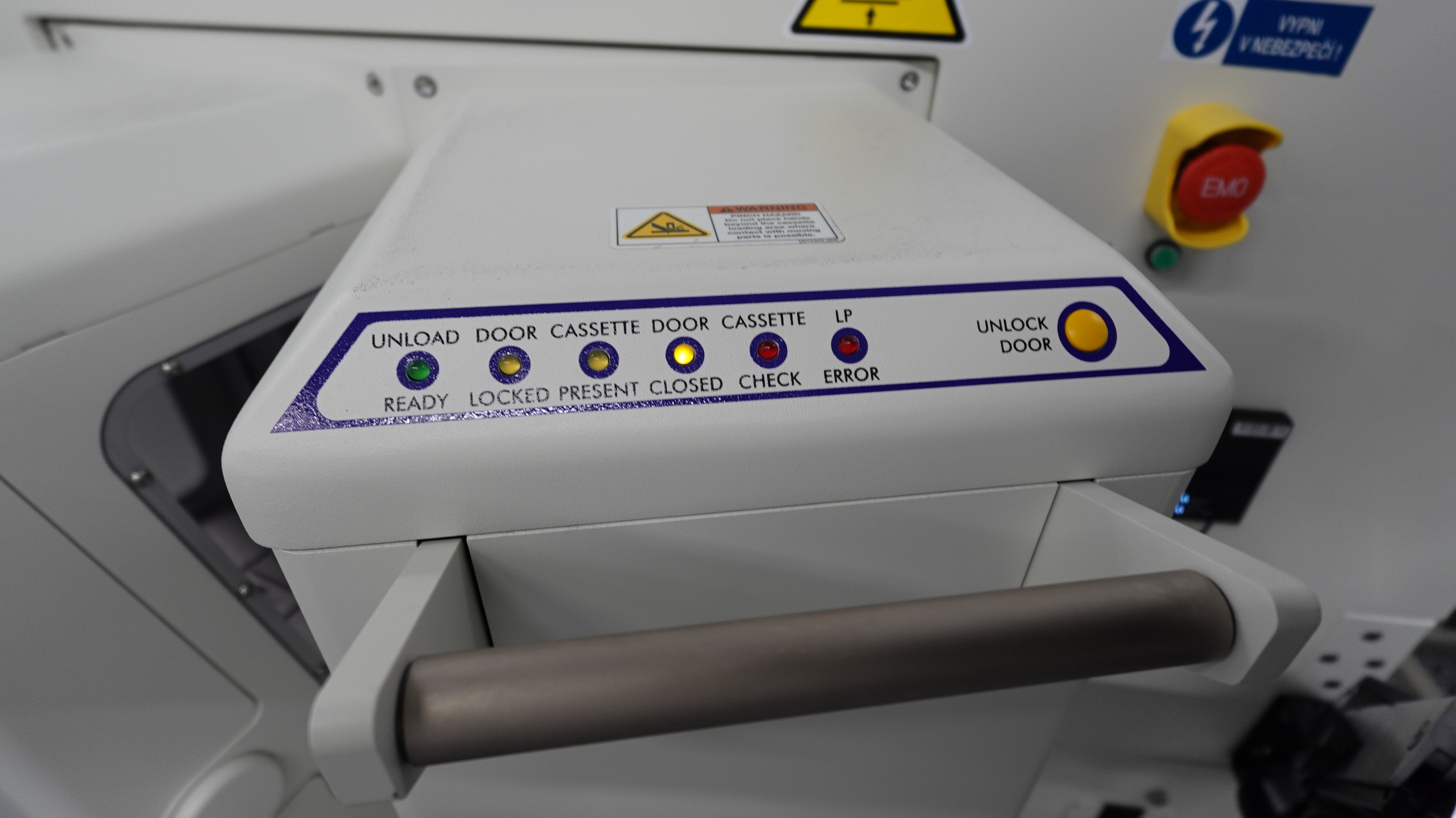

| 7 | Wafer Carrier 2 FUP 6 and 8 | |
| 8 | Wafer Mapping Micro Optical Sensor | |
| 9 | SECS-GEM Interfaces | |
| 10 | CDA | |
| Pressure: 100 psi / 689 KPa (± 10% range). | ||
| Flow: 2 SCFM / 80 L/min (± 10% range). | ||
| AMC: maximum concentration of Volatile Organic Compounds (VOC) must be less than 150 ng/l. | ||
| Anions must be less than 14 ng/l. Cations must be less than 10 ng/l. | ||
| Moisture Content: less than 20 PPM at 1.0 atm, corresponding to a dewpoint of -30° Celsius (-22°F). | ||
| 11 | Vacuum | |
| Pressure: -680 mm Hg / -90 KPa (± 10% range). | ||
| Flow: 0.64 SCFM / 18 L/min (± 10% range). | ||

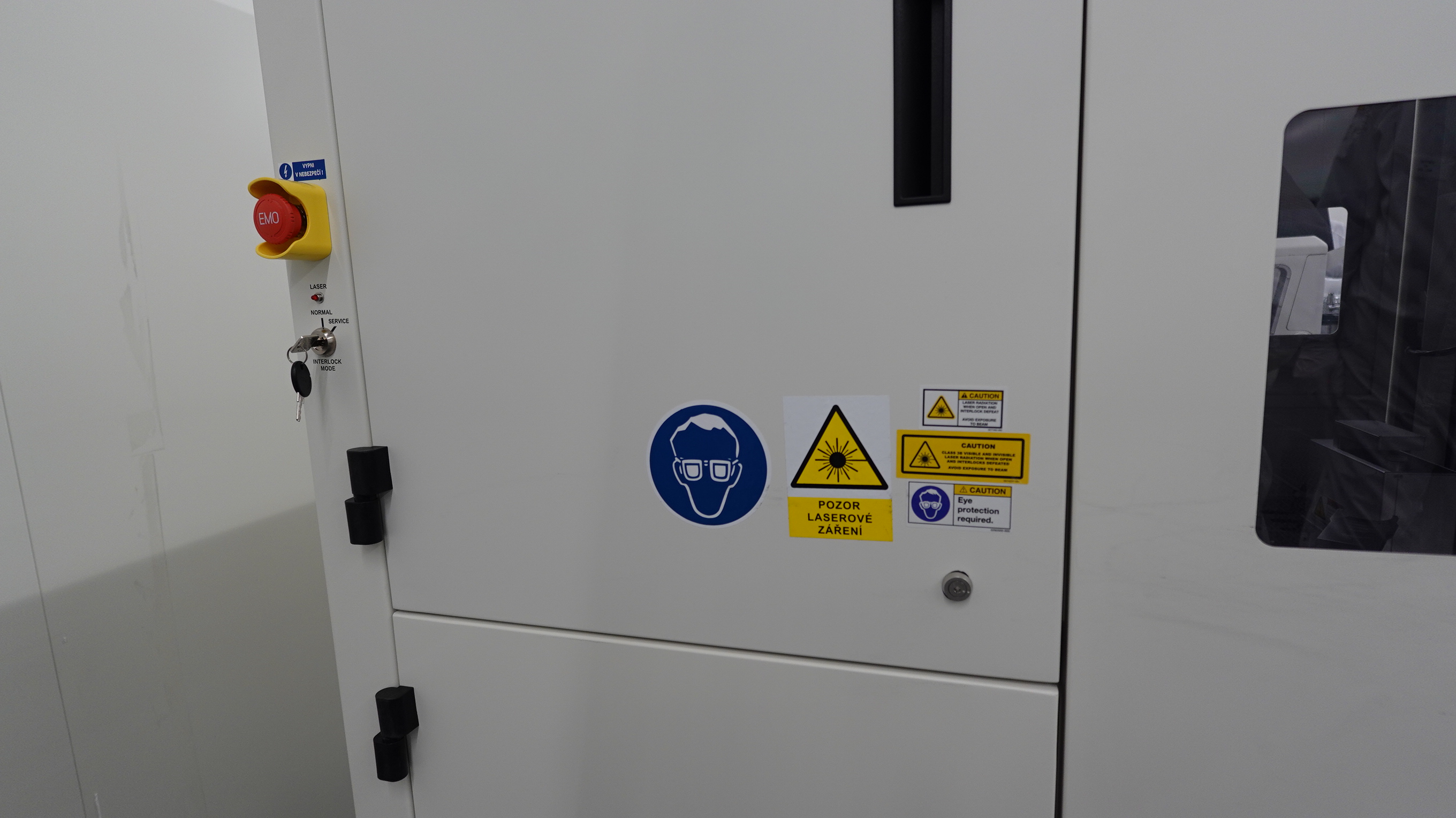

| 12 | The Candela 85XX uses two lasers | |
| 405 nm wavelength, 60 mW power (Class IIIb per CDRH 21CFR 1040). | ||
| 355 nm wavelength, 20 mW power (Class IIIb per CDRH 21CFR 1040). | ||
| 13 | ||
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | ||
| 25 | ||
| 26 | ||
| 27 | ||
| 28 | ||
The information referenced on this page is accurate to the best of our knowledge. We do not warrant the completeness or accuracy of the information contained herein. Interested parties are encouraged to request inspection to verify equipment condition, configuration, and completeness. Any offer to purchase equipment shall be subject to our standard terms and conditions of sale.
