Date of Manufacture: 2005-09-01
Currently Configured for: 300mm
Current Equipment Status: Available
Location of Equipment: Hopewell Junction, United States
Available date: Currently Available

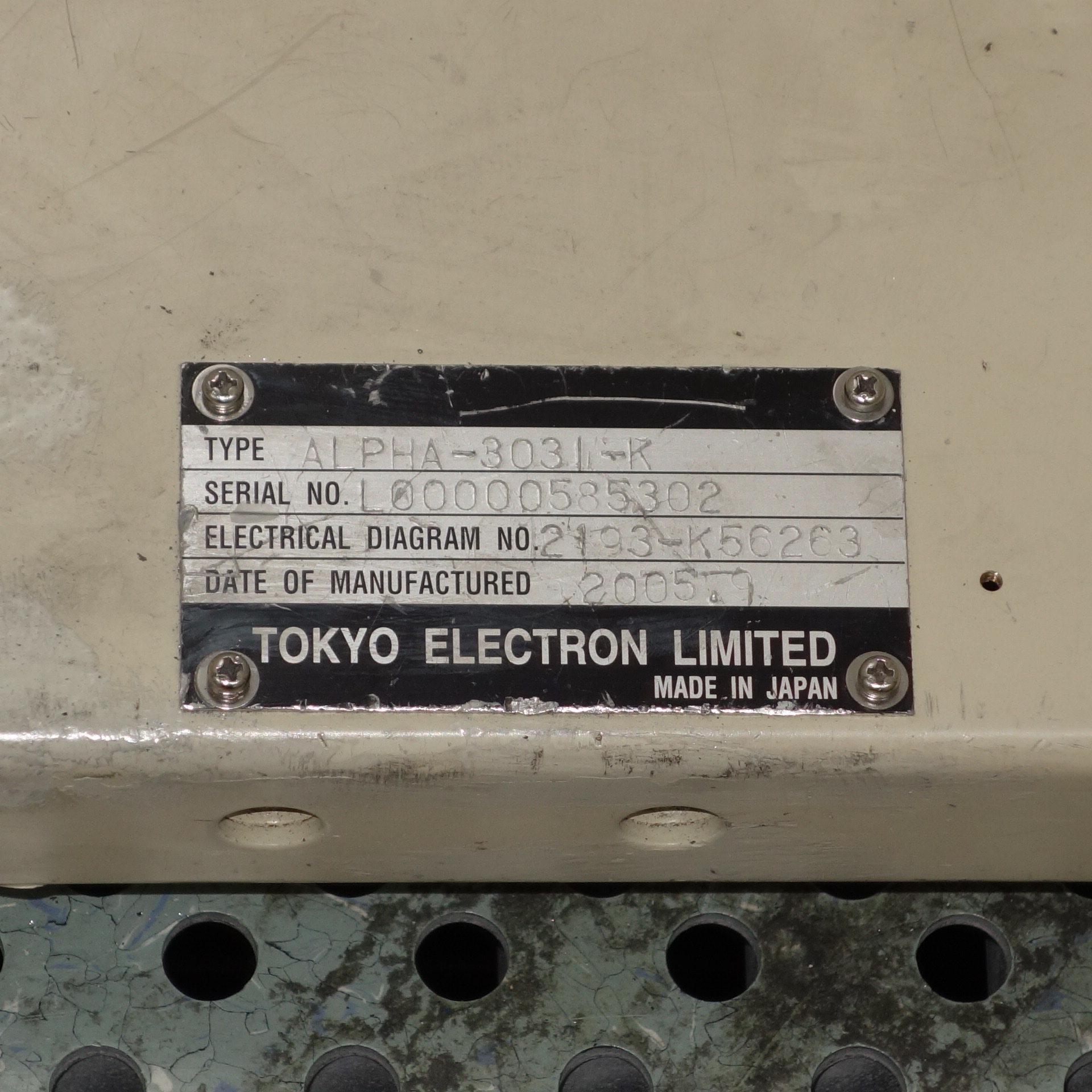

| Serial Number | L000005Y5385 | ||||
| Install Type | Stand Alone | ||||
| Original Ship Date | 3/15/2023 | ||||
| Date of Last PM | 2/3/2025 | ||||
| Is System On-Line? | No | ||||
| Off-Line Date (if applicable) | 3/24/2025 | ||||
| CE Mark Certified | Yes | ||||
| SECS/GEM | Yes | ||||
| Clean Room Manuals | No | ||||
| CD Manuals | No | ||||
| OEM Audit Available? | No | ||||
| Decontamination Report Exists? | Yes | ||||
| Can Produce Wafers AS IS? | Yes | ||||
| Any Known Field Modifications? | No | ||||
| All Cables Present? | Yes | ||||

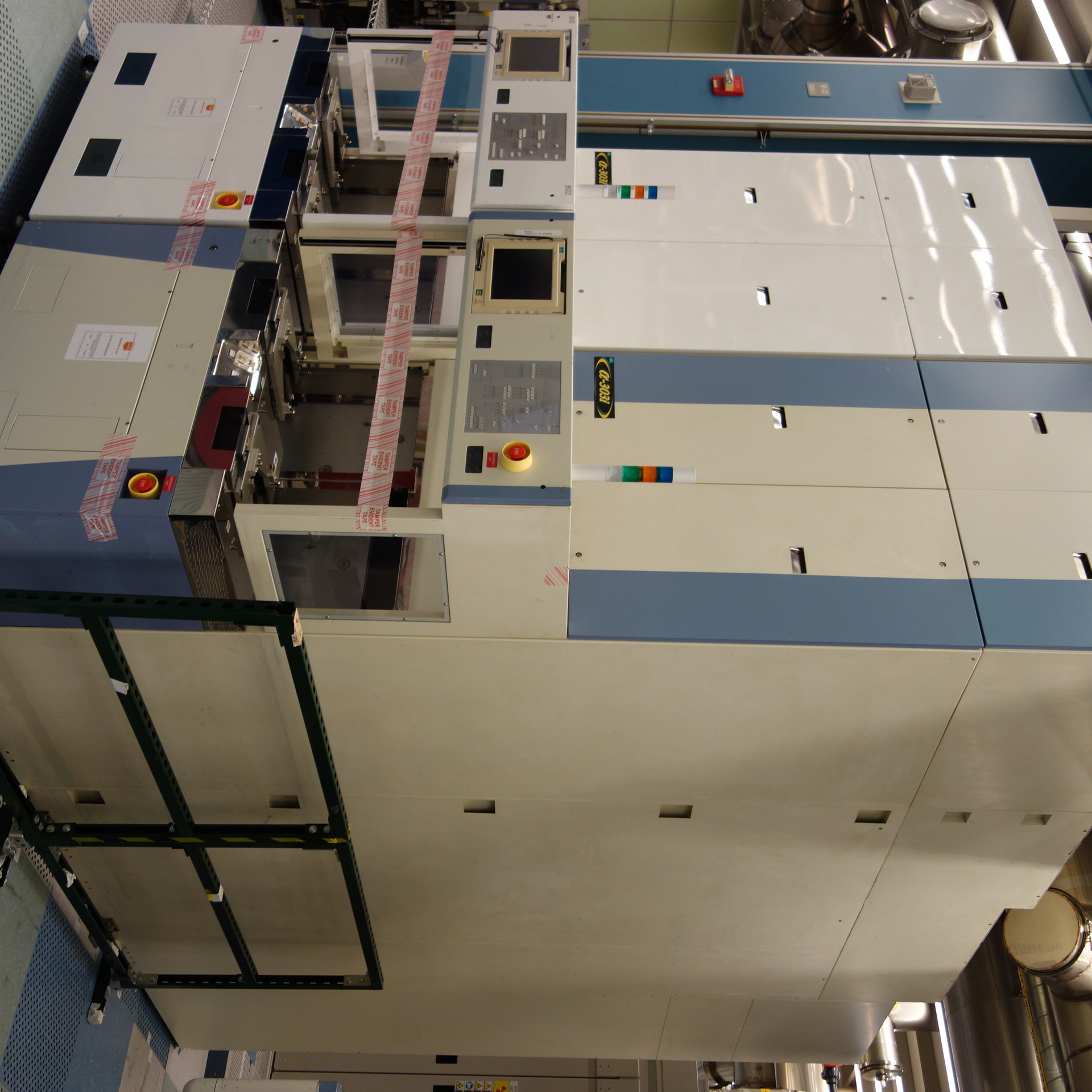

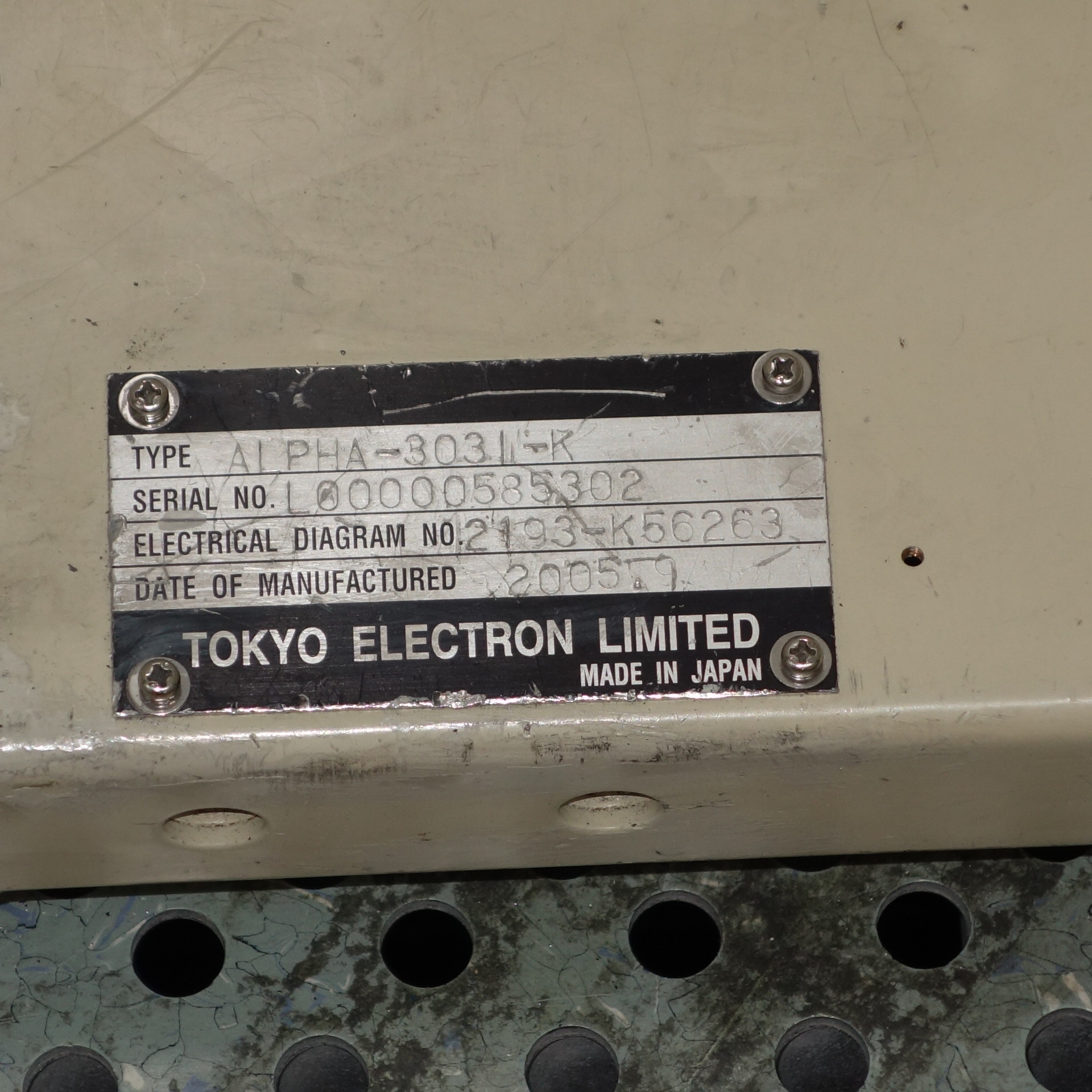

| TEL Model Number | Alpha 303i | ||||
| TEL Process Name | HTO | ||||
| Customer Process Name | HTO | ||||
| Temperature Range | 600-850 | ||||
| Front Surface Finish | White | ||||
| Process Pressure | Sub-Atm | ||||
| Number of Zones | 5 | ||||
| Inner TC Type | Yes | ||||
| Rapid Cooling Unit | No | ||||
| Boat Rotation | Yes | ||||
| Tube Seal | Yes | ||||

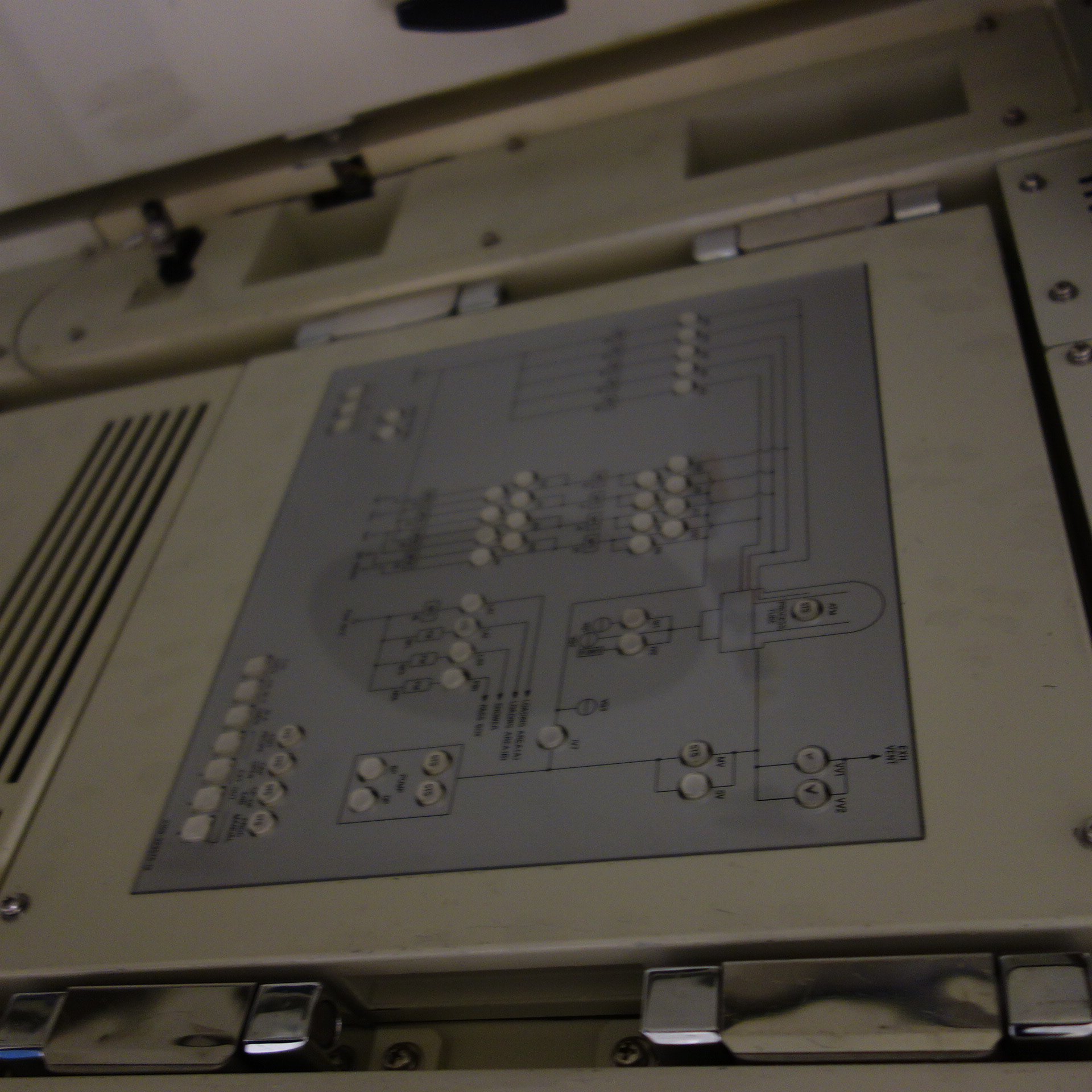

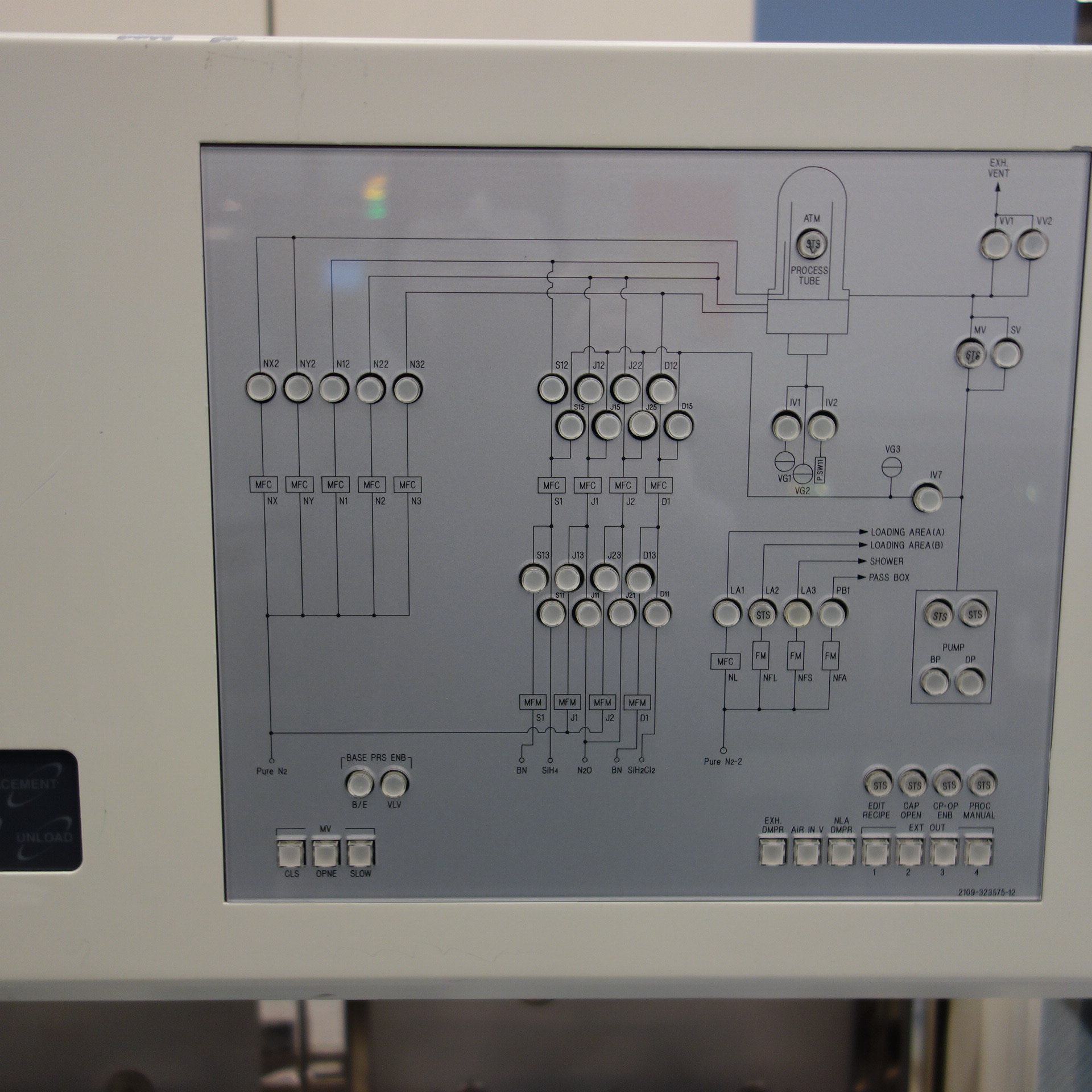

| Remote MMI and Gas Flow Chart | No | ||||
| Signal Lamp Tower | Yes | ||||
| Gas Leak Detection | No | ||||
| Wafer Size | 12 | ||||
| Wafer Type | Notch | ||||
| Bolt-On-SMIF | No | ||||
| Integrated SMIF | No | ||||
| Wafer Handler Type | KHI | ||||
| Fork Material | Ceramic | ||||
| Stocker | 16 | ||||
| Batch/Load Size | 84 | ||||
| N2 Purge System | Yes | ||||
| Transfer Stage Wafer Position Sensor | Yes | ||||
| Fork Wafer Present Sensor | Yes | ||||
| Notch Alignment | No | ||||
| Fork Wafer Position Sensor | Yes | ||||
| MFC Type | |||||

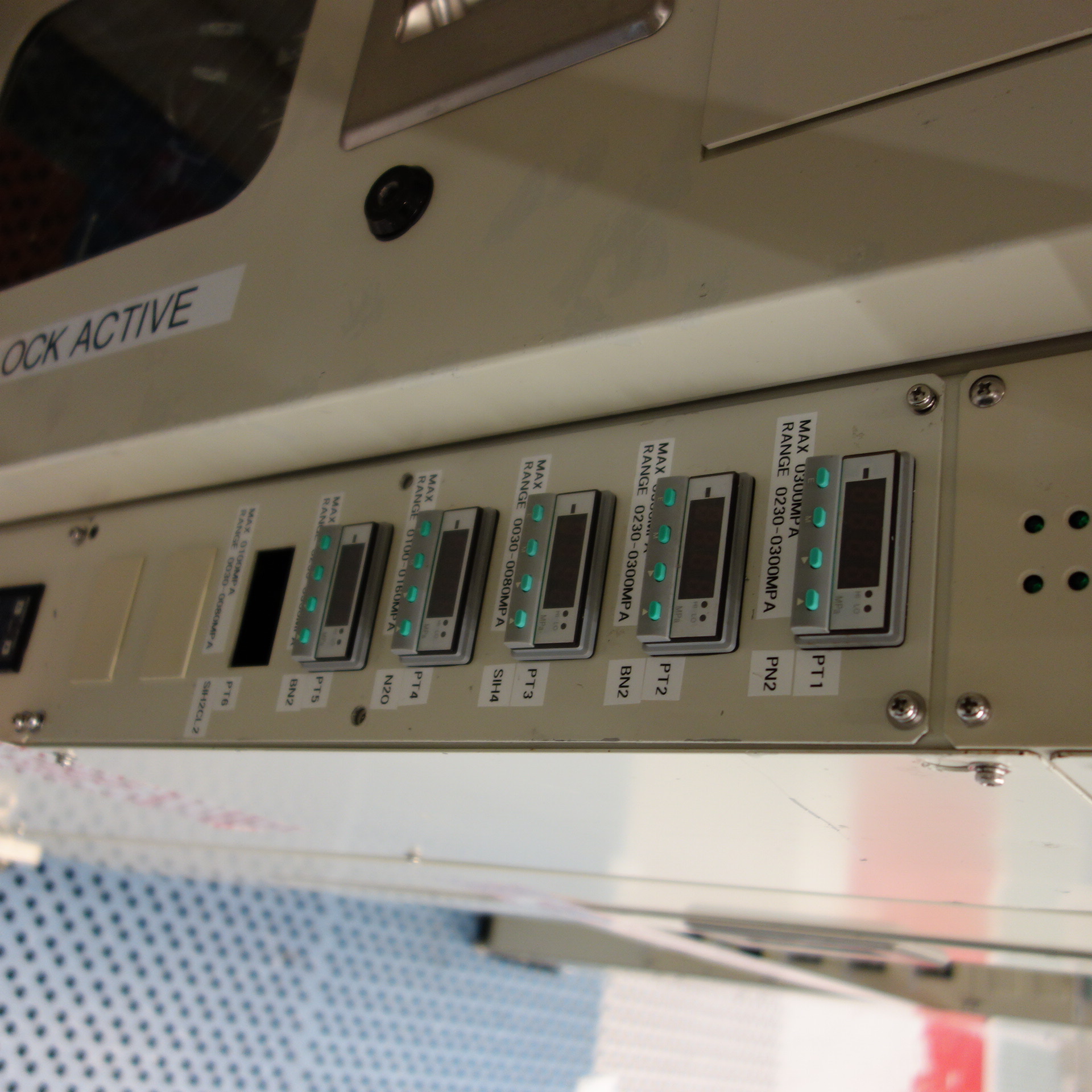

| Pressure Display Units | Mpa / Other | ||||
| Gas | MFC Model | Line | MFC Size | ||
| PN2 | STEC | 50l | |||
| PN2 | STEC | 1l | |||
| PN2 | STEC | 30l | |||
| PN2 | STEC | 5l | |||
| PN2 | STEC | 1l | |||
| SiH4 | STEC | 100sccm | |||
| N2O | STEC | 5l | |||
| N2O | STEC | 300sccm | |||
| DCS | STEC | 300sccm | |||
| Vacuum Pump Included | No | ||||
| Make | Edwards | ||||
| Model | 1820 | ||||
| N2 Ballast Pressure Control | No | ||||
| Trap | No | ||||
| Heated Lines | No | ||||
| Pressure Display Units | Torr | ||||
| Main Valve | CKD | ||||
| Furnace Exhaust Connection Point | Bottom | ||||
| Cooling Water Connection | Bottom | ||||
| Incoming Gas Connection | Bottom | ||||
| Vacuum Foreline | Bottom | ||||
| Vent (Process) Exhaust Connection | Bottom | ||||
| Gas Unit Exhaust Connection | Bottom | ||||
| Pressure Relief Drain | Bottom | ||||
| Cabinet Exhaust Display Units | Bottom | ||||
| UPS | None | ||||
