Date of Manufacture:
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: Currently Available
Process: PH3 Doped Poly/LPCVD
Tool config is based on original PO, please verify tool details at tool inspection

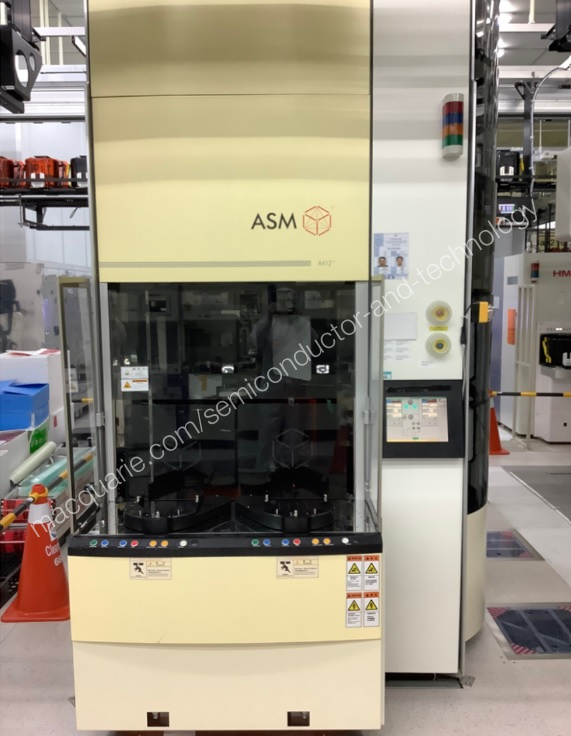

OEM: ASM

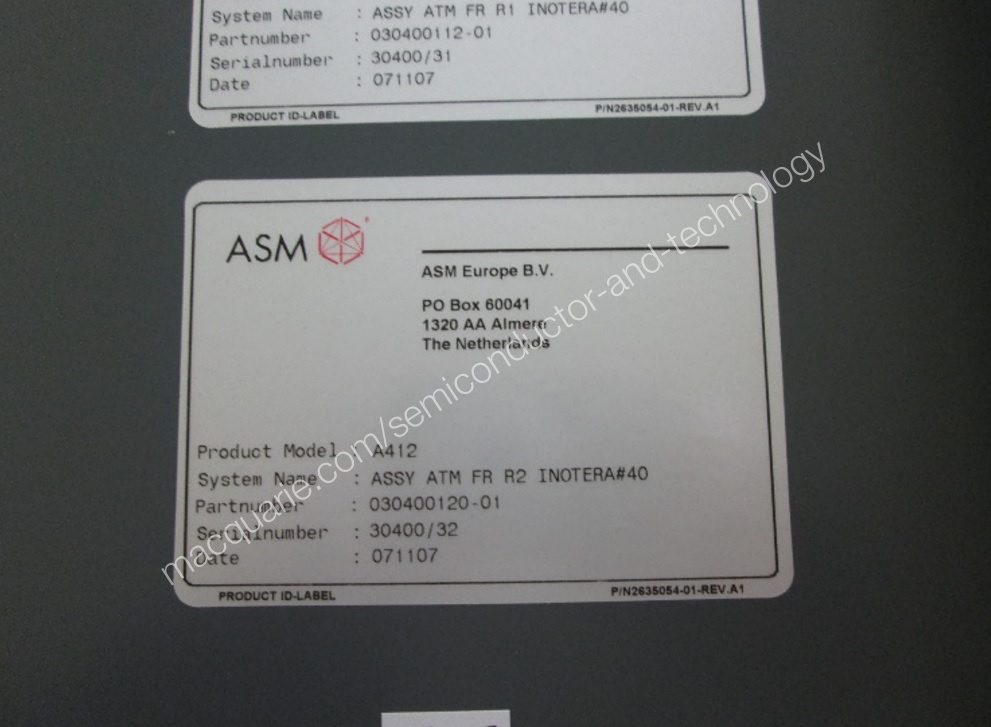

Tool Model: A412
Tool & Auxillary Settings
Software version: 6.80C
Heater Type: MRL
Loader configuration, 4 or 5 loader: 4
Quartzware Configuration
Outer tube: Quartz
Inner tube: Quartz
Boat: SiC boat
Boat fix ring/Cap quartz: Quartz
Adiabatic plate quantity: 6
Back N2, Qty: N/A
BCl3, Qty & Type (L-type, Straight, Diffuser, Shower): N/A
SiH4, Qty & Type (L-type, Straight, Diffuser, Shower): Multihole (1) U/D/L
O2, Qty & Type (L-type, Straight, Diffuser, Shower): Multihole (1) E
PH3, Qty & Type (L-type, Straight, Diffuser, Shower): Multihole (1) U/D/L
ClF3, Qty & Type (L-type, Straight, Diffuser, Shower): N/A
Vacuum Line configuration
Design: original config
10 Torr Baratron model: MKS
10 Torr Baratron full scale setting: 10(F/S)
1000 Torr Baratron model: MKS
1000 Torr Baratron full scale setting: 1000(F/S)
ATM sensor model: MKS
Vent Valve 1 (VV1) normally closed/open,plunger, diaphragm: Normally open,plunger
Check valve model: Fujikin
Check valve resistance pressure: 2.26 Kpa
Mainvalve type, Kitz or CKD: MKS
Slow valve, incorporated with mainvalve or separate(AV72,AV77): Separate (PV003)
Slow valve orifice size: 2.0mm (PV003)
Pressure range of vacuum gauge(Inficon Pirani gauge): 10T
Control Table
Alarm Watch/Table setting
Temp (Low Alarm Limit(deg)/High Alarm Limit(deg)/Check Time(min))
U: 0.7/0.7/30S
CU: 0.7/0.7/30S
C: 0.7/0.7/30S
CL: 0.7/0.7/30S
L: 0.7/0.7/30S
Pressure (Low Alarm Limit(Torr)/High Alarm Limit(Torr)/Check Time(S)): 0.02/0.02/30S
MFC (Low Alarm Limit(%)/High Alarm Limit(%)/Check Time(S))
MFC1: N2: 2%/2%/10sec
MFC2: N2: 2%/2%/10sec
MFC3: N2: 2%/2%/10sec
MFC4: N2: 2%/2%/10sec
MFC5 SiH4: 2%/2%/10sec
MFC6: SiH4: 2%/2%/10sec
MFC7: SiH4: 2%/2%/10sec
MFC8: 1%O2/Ar: 1%/1%/10sec
MFC9: 5%PH3/N2: 2%/2%/10sec
MFC10: 5%PH3/N2: 2%/2%/10sec
MFC11: 5%PH3/N2: 2%/2%/10sec
MFC12: ClF3: 10%/10%/10sec
Transfer Table
Wafer Charge command (charge/discharge)
Side Dummy: Upper:5 / Lower:10
Product: 100
Monitor: 5
Product & Monitor: 105
Time
2nd charge time(min): 0
wafer cool time(min): 20min
Leak Rate Table
Base pressure low Limit(Torr): 1%
Base pressure High Limit(Torr): 1%
Leak Check check time(s): 60s
Leak Check delay time(s): N/A
Leak limit(Torr): 1%
Retry Limit(count): 2
Loadlock Settings
Loadlock configuration
O2 analyser model, NGK or Toray: PBI3.1 / PBI4.0
Process
L/A Keep Value (ppm): 10ppm
N2 Flow max (L): 1300L
N2 Flow min (L): 300L
Check Stability Time(s): N/A
Ready
L/A Keep Value (ppm): 10ppm
N2 Flow max (L): 1300L
N2 Flow min (L): 300L
Check Stability Time(s): N/A
Idle
L/A Keep Value (ppm): 10ppm
N2 Flow max (L): 1300L
N2 Flow min (L): 300L
Check Stability Time(s): N/A
L/A O2 check time (min): N/A
L/A O2 limit (ppm): 10ppm
POD opener O2 limit (ppm): N/A
POD O2 check time(min): N/A
POD check retry N/A
Missing/Damaged Parts List
None report, please inspect tool to reconfirm
Dry pumps not included
