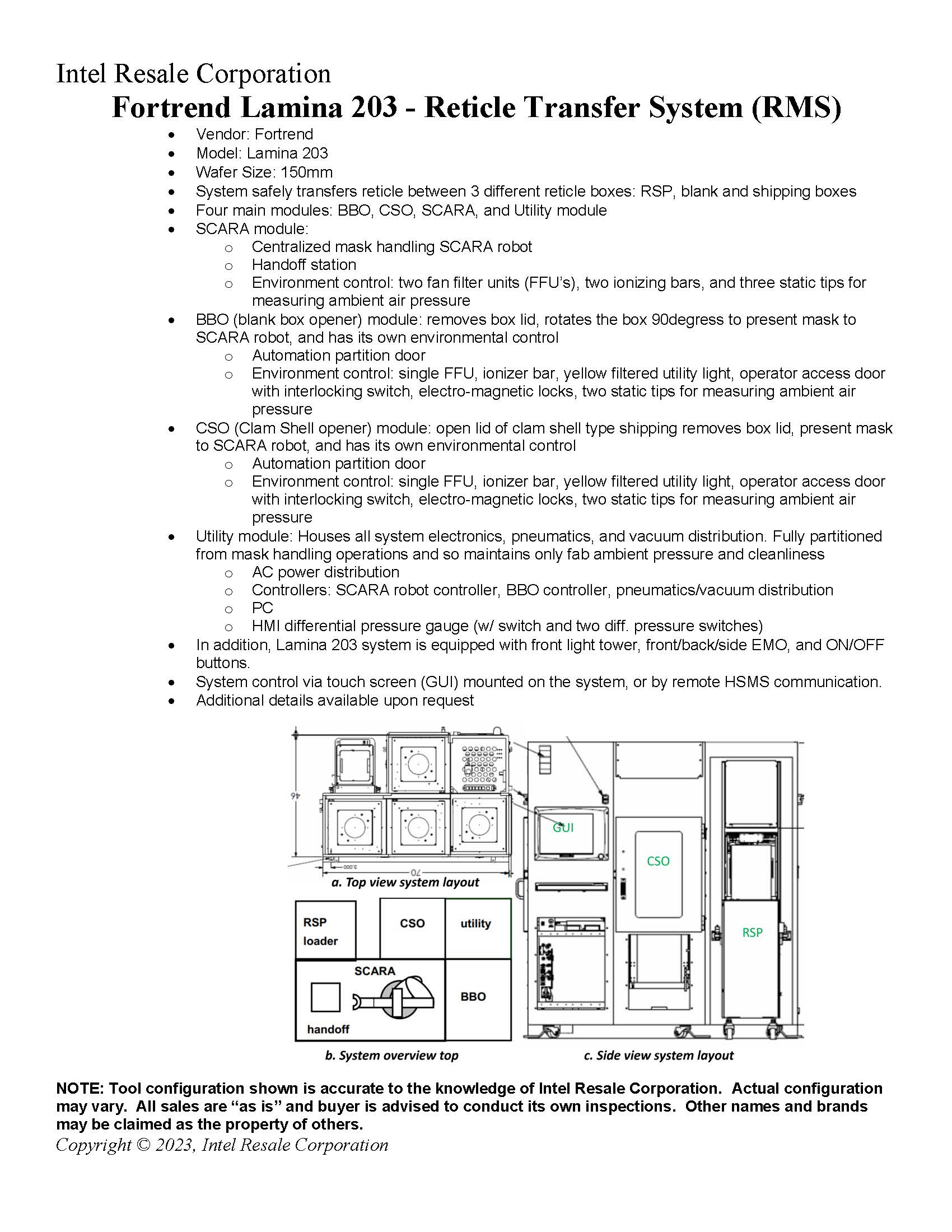

· Wafer Size: 150mm
· System safely transfers reticle between 3 different reticle boxes: RSP, blank and shipping boxes
· Four main modules: BBO, CSO, SCARA, and Utility module
· SCARA module:
o Centralized mask handling SCARA robot
o Handoff station
o Environment control: two fan filter units (FFU’s), two ionizing bars, and three static tips for measuring ambient air pressure
· BBO (blank box opener) module: removes box lid, rotates the box 90degress to present mask to SCARA robot, and has its own environmental control
o Automation partition door
o Environment control: single FFU, ionizer bar, yellow filtered utility light, operator access door with interlocking switch, electro-magnetic locks, two static tips for measuring ambient air pressure
· CSO (Clam Shell opener) module: open lid of clam shell type shipping removes box lid, present mask to SCARA robot, and has its own environmental control
o Automation partition door
o Environment control: single FFU, ionizer bar, yellow filtered utility light, operator access door with interlocking switch, electro-magnetic locks, two static tips for measuring ambient air pressure
· Utility module: Houses all system electronics, pneumatics, and vacuum distribution. Fully partitioned from mask handling operations and so maintains only fab ambient pressure and cleanliness
o AC power distribution
o Controllers: SCARA robot controller, BBO controller, pneumatics/vacuum distribution
o PC
o HMI differential pressure gauge (w/ switch and two diff. pressure switches)
· In addition, Lamina 203 system is equipped with front light tower, front/back/side EMO, and ON/OFF buttons.
· System control via touch screen (GUI) mounted on the system, or by remote HSMS communication.
· Additional details available upon request
