Reticle/Mask Defect Inspection System
Date of Manufacture:
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Portland, United States
Available date: Currently Available
· Factory Interface (FI) with 1 loadport for SMIF pod RSP-200
· Separate electronic cabinets reduce footprint of main tool and separates heat generation sources.
· Separate pre climatization unit to supply conditioned air for main chamber environment control.
· Operator desk with dual monitors for simultaneous view of tool PC and station controller.
· Transfer Chamber
o 6 axis external handling robot for moving masks from loadport to library to internal handling systems
o Internal handling robot interfaces with fine alignment station for accurate mask edge detection.
o Mask library can accommodate 10 masks within the tool at any time.
· Process Chamber
o Temperature and humidity controlled chamber
o Ultra precision stage for measuring mask in face up position.
o Stage rests on advanced damping devices to achieve optimal registration repeatability.

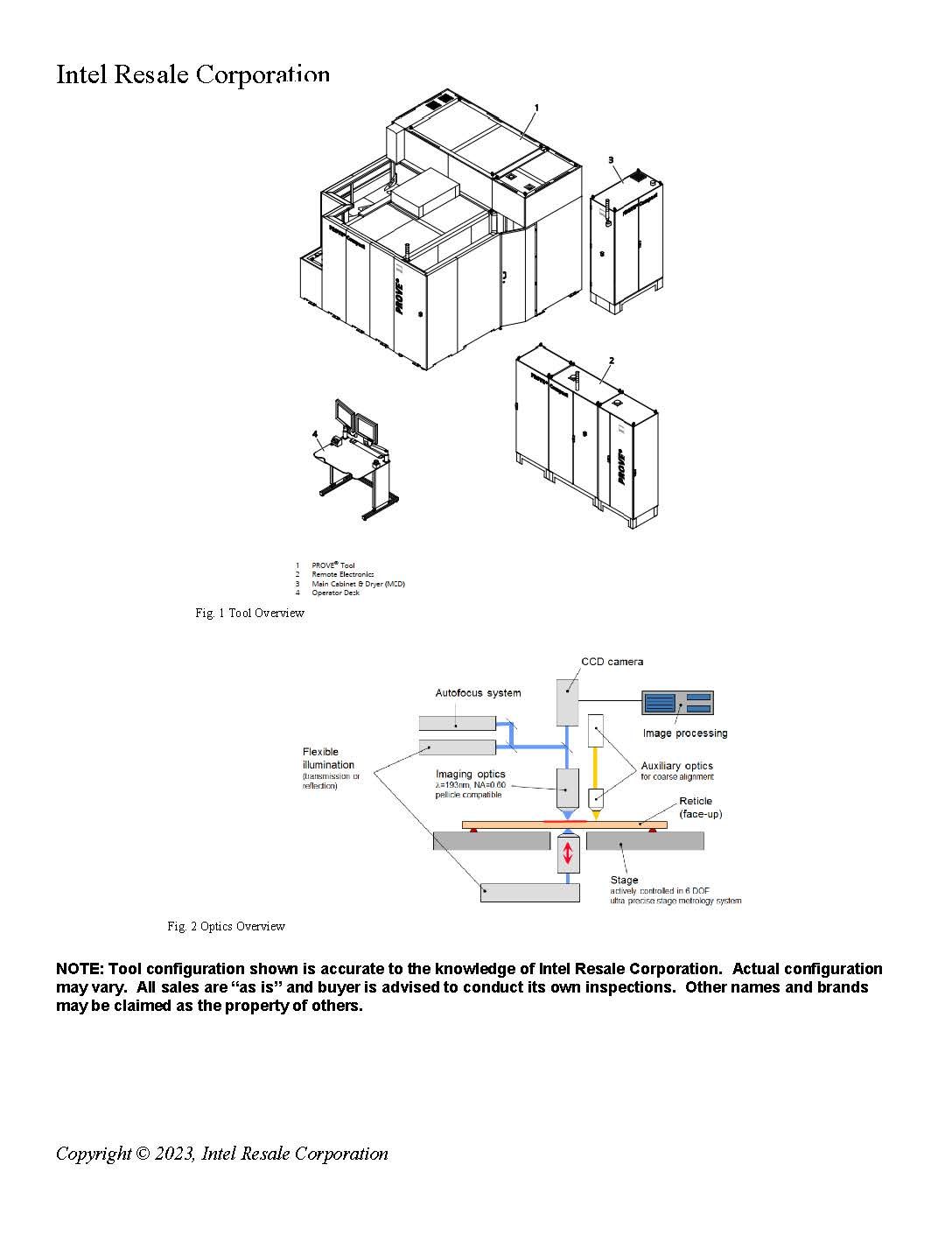

· Imaging optics
o 193nm excimer source with a 25um field of view capable of registration measurements in both reflection and transmission mode
o Capable of through pellicle measurements for optical masks.
o Red vis camera for coarse alignment and mask position measurements.
o Measurement speed is 600 sites per hour with 5 plane measurements and up to 1000 sites per hour with 1 plane measurement
· Performance for both reflection and transmission mode measurements:
o Long term registration repeatability of < 0.55nm with first order corrections and <0.8nm with 0th order corrections
o Registration accuracy < 0.95nm
o Screen linearity < 1nm
o Centrality repeatability <10um
· Additional details available upon request
