PVD (Physical Vapor Deposition)
Date of Manufacture:
Currently Configured for: 300mm
Current Equipment Status: Incoming
Asset HDD not included
Location of Equipment: Portland, United States
Available date: Currently Available

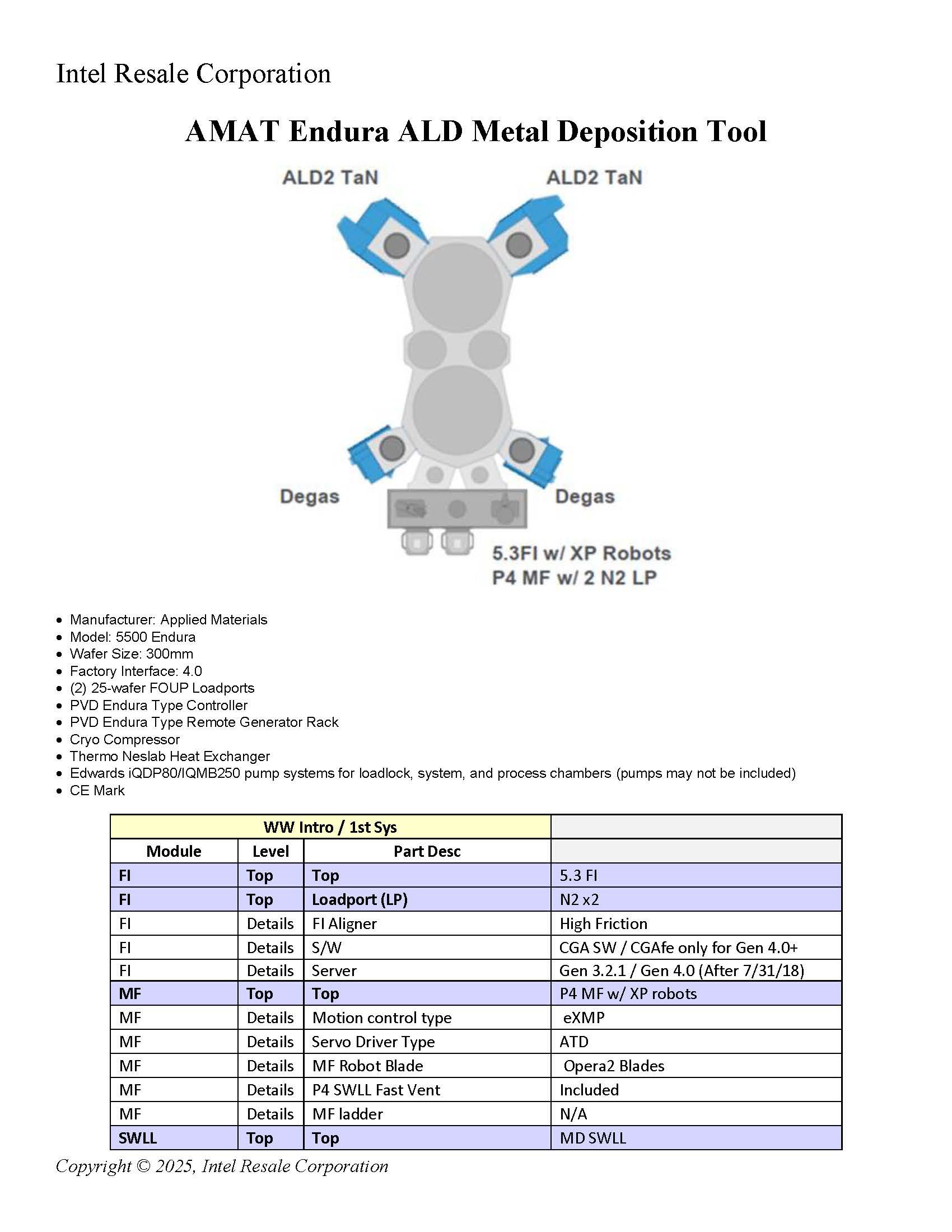

· Factory Interface: 4.0
· (2) 25-wafer FOUP Loadports
· PVD Endura Type Controller
· PVD Endura Type Remote Generator Rack
· Cryo Compressor
· Thermo Neslab Heat Exchanger
· Edwards iQDP80/IQMB250 pump systems for loadlock, system, and process chambers (pumps may not be included)
· CE Mark
| WW Intro / 1st Sys | |||
| Module | Level | Part Desc | |
| FI | Top | Top | 5.3 FI |
| FI | Top | Loadport (LP) | N2 x2 |
| FI | Details | FI Aligner | High Friction |
| FI | Details | S/W | CGA SW / CGAfe only for Gen 4.0+ |
| FI | Details | Server | Gen 3.2.1 / Gen 4.0 (After 7/31/18) |
| MF | Top | Top | P4 MF w/ XP robots |
| MF | Details | Motion control type | eXMP |
| MF | Details | Servo Driver Type | ATD |
| MF | Details | MF Robot Blade | Opera2 Blades |
| MF | Details | P4 SWLL Fast Vent | Included |
| MF | Details | MF ladder | N/A |

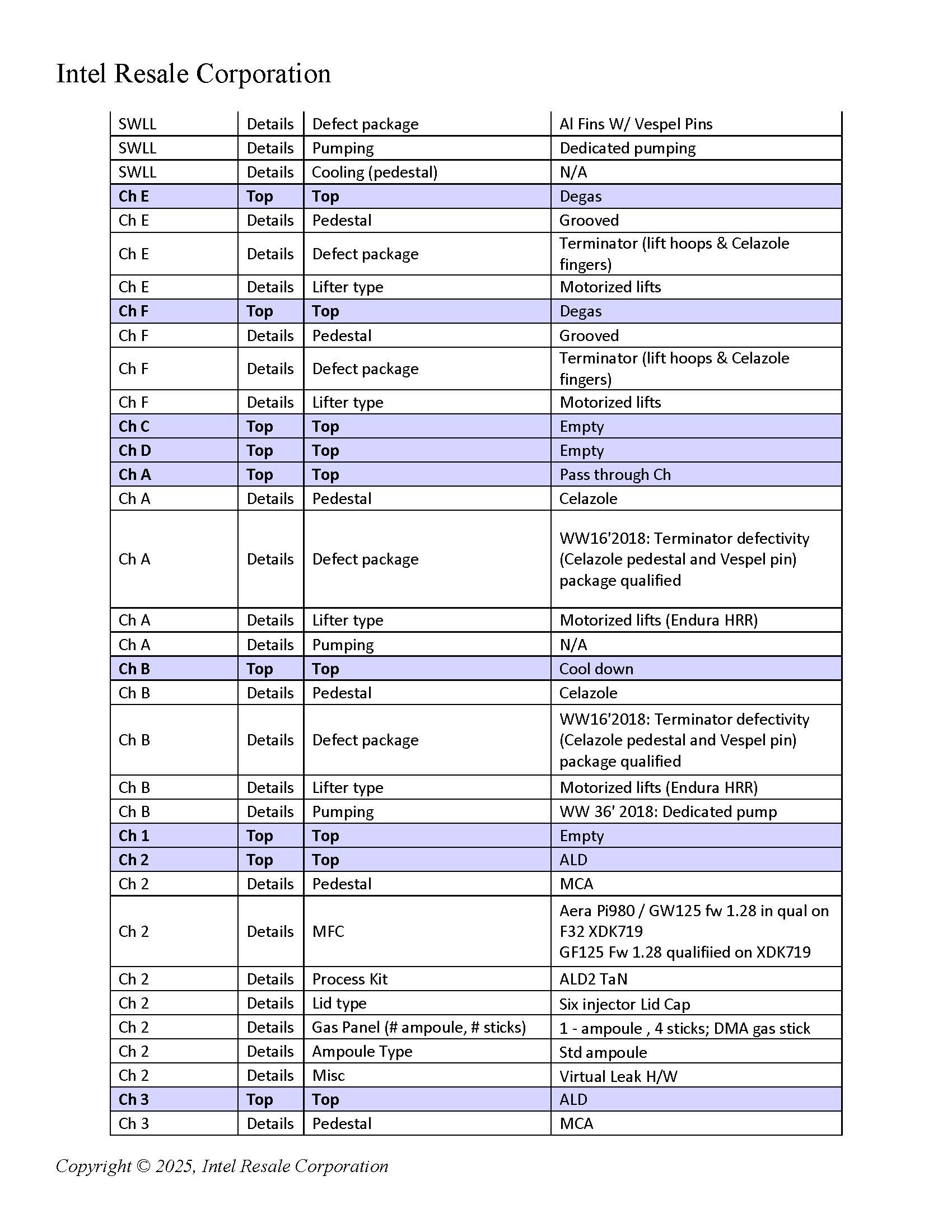

| SWLL | Top | Top | MD SWLL |
| SWLL | Details | Defect package | Al Fins W/ Vespel Pins |
| SWLL | Details | Pumping | Dedicated pumping |
| SWLL | Details | Cooling (pedestal) | N/A |
| Ch E | Top | Top | Degas |
| Ch E | Details | Pedestal | Grooved |
| Ch E | Details | Defect package | Terminator (lift hoops & Celazole |
| fingers) | |||
| Ch E | Details | Lifter type | Motorized lifts |
| Ch F | Top | Top | Degas |
| Ch F | Details | Pedestal | Grooved |
| Ch F | Details | Defect package | Terminator (lift hoops & Celazole fingers) |
| Ch F | Details | Lifter type | Motorized lifts |
| Ch C | Top | Top | Empty |
| Ch D | Top | Top | Empty |
| Ch A | Top | Top | Pass through Ch |
| Ch A | Details | Pedestal | Celazole |
| Ch A | Details | Defect package | WW16'2018: Terminator defectivity (Celazole pedestal and Vespel pin) package qualified |
| Ch A | Details | Lifter type | Motorized lifts (Endura HRR) |
| Ch A | Details | Pumping | N/A |
| Ch B | Top | Top | Cool down |
| Ch B | Details | Pedestal | Celazole |
| Ch B | Details | Defect package | WW16'2018: Terminator defectivity (Celazole pedestal and Vespel pin) package qualified |
| Ch B | Details | Lifter type | Motorized lifts (Endura HRR) |
| Ch B | Details | Pumping | WW 36' 2018: Dedicated pump |
| Ch 1 | Top | Top | Empty |
| Ch 2 | Top | Top | ALD |
| Ch 2 | Details | Pedestal | MCA |
| Ch 2 | Details | MFC | Aera Pi980 / GW125 fw 1.28 in qual on F32 XDK719. GF125 Fw 1.28 qualifiied on XDK719 |
| Ch 2 | Details | Process Kit | ALD2 TaN |
| Ch 2 | Details | Lid type | Six injector Lid Cap |
| Ch 2 | Details | Gas Panel (# ampoule, # sticks) | 1 - ampoule , 4 sticks; DMA gas stick |
| Ch 2 | Details | Ampoule Type | Std ampoule |
| Ch 2 | Details | Misc | Virtual Leak H/W |
| Ch 3 | Top | Top | ALD |
| Ch 3 | Details | Pedestal | MCA |

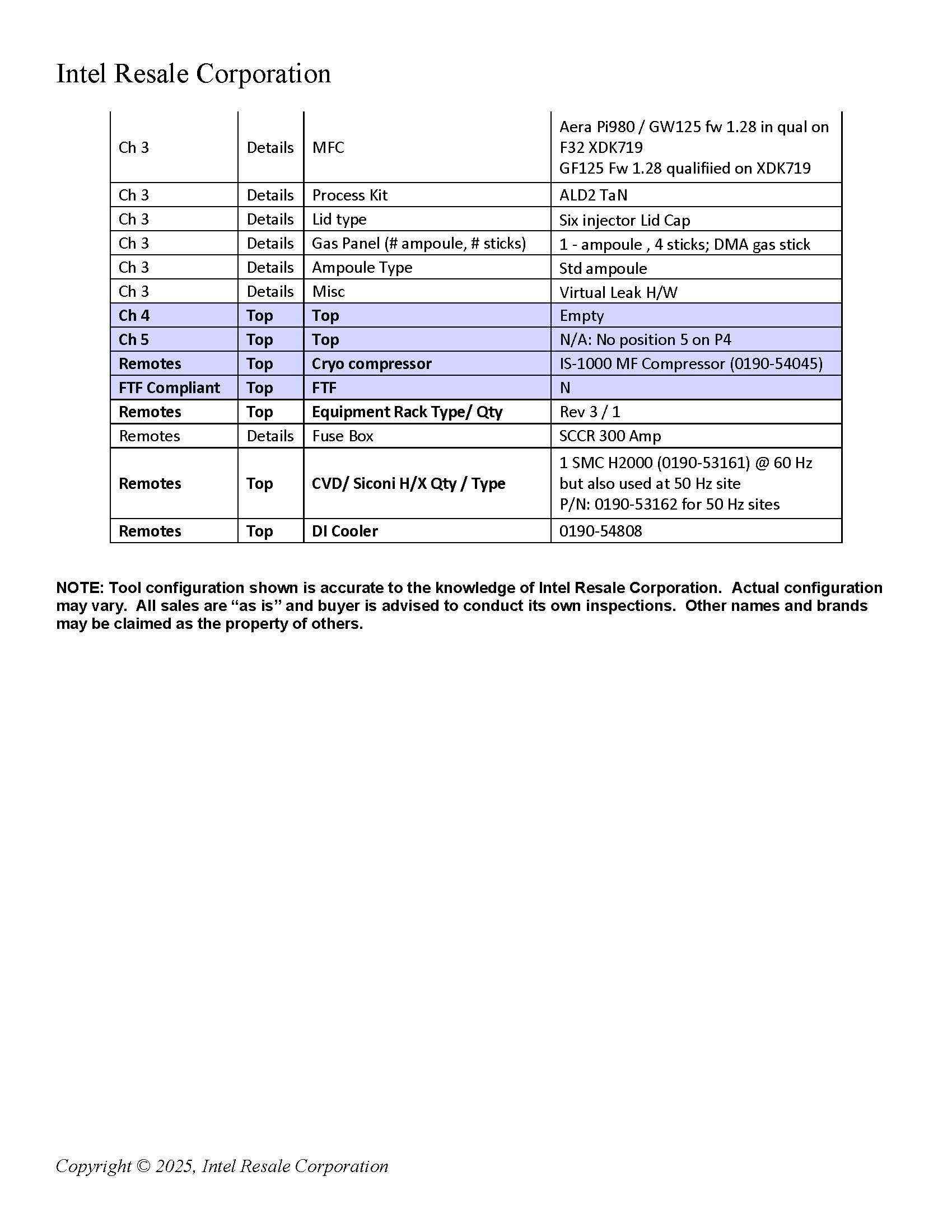

| Ch 3 | Details | MFC | Aera Pi980 / GW125 fw 1.28 in qual on F32 XDK719. GF125 Fw 1.28 qualifiied on XDK719 |
| Ch 3 | Details | Process Kit | ALD2 TaN |
| Ch 3 | Details | Lid type | Six injector Lid Cap |
| Ch 3 | Details | Gas Panel (# ampoule, # sticks) | 1 - ampoule , 4 sticks; DMA gas stick |
| Ch 3 | Details | Ampoule Type | Std ampoule |
| Ch 3 | Details | Misc | Virtual Leak H/W |
| Ch 4 | Top | Top | Empty |
| Ch 5 | Top | Top | N/A: No position 5 on P4 |
| Remotes | Top | Cryo compressor | IS-1000 MF Compressor (0190-54045) |
| FTF Compliant | Top | FTF | N |
| Remotes | Top | Equipment Rack Type/ Qty | Rev 3 / 1 |
| Remotes | Details | Fuse Box | SCCR 300 Amp |
| Remotes | Top | CVD/ Siconi H/X Qty / Type | 1 SMC H2000 (0190-53161) @ 60 Hz but also used at 50 Hz site. P/N: 0190-53162 for 50 Hz sites. |
| Remotes | Top | DI Cooler | 0190-54808 |
