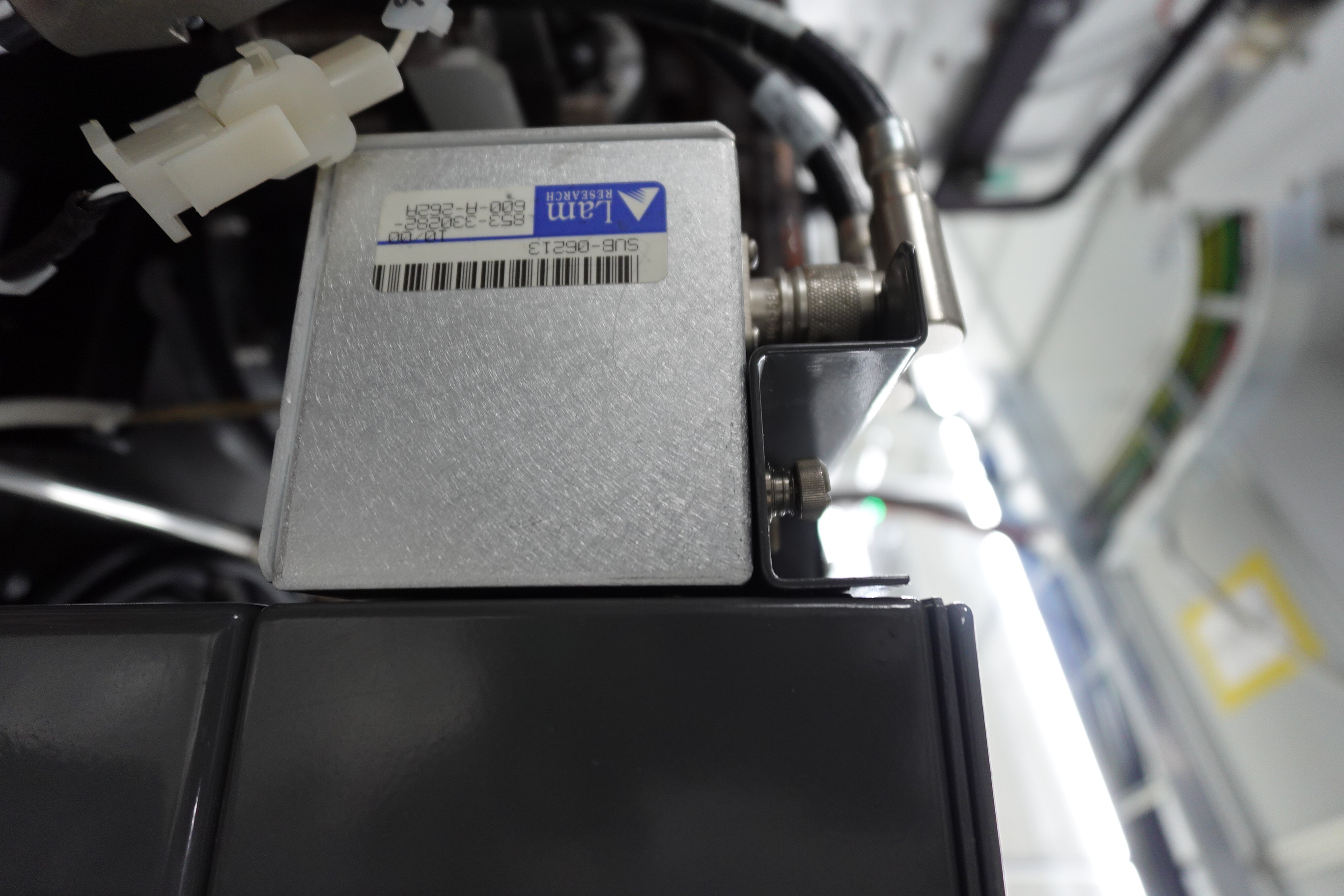

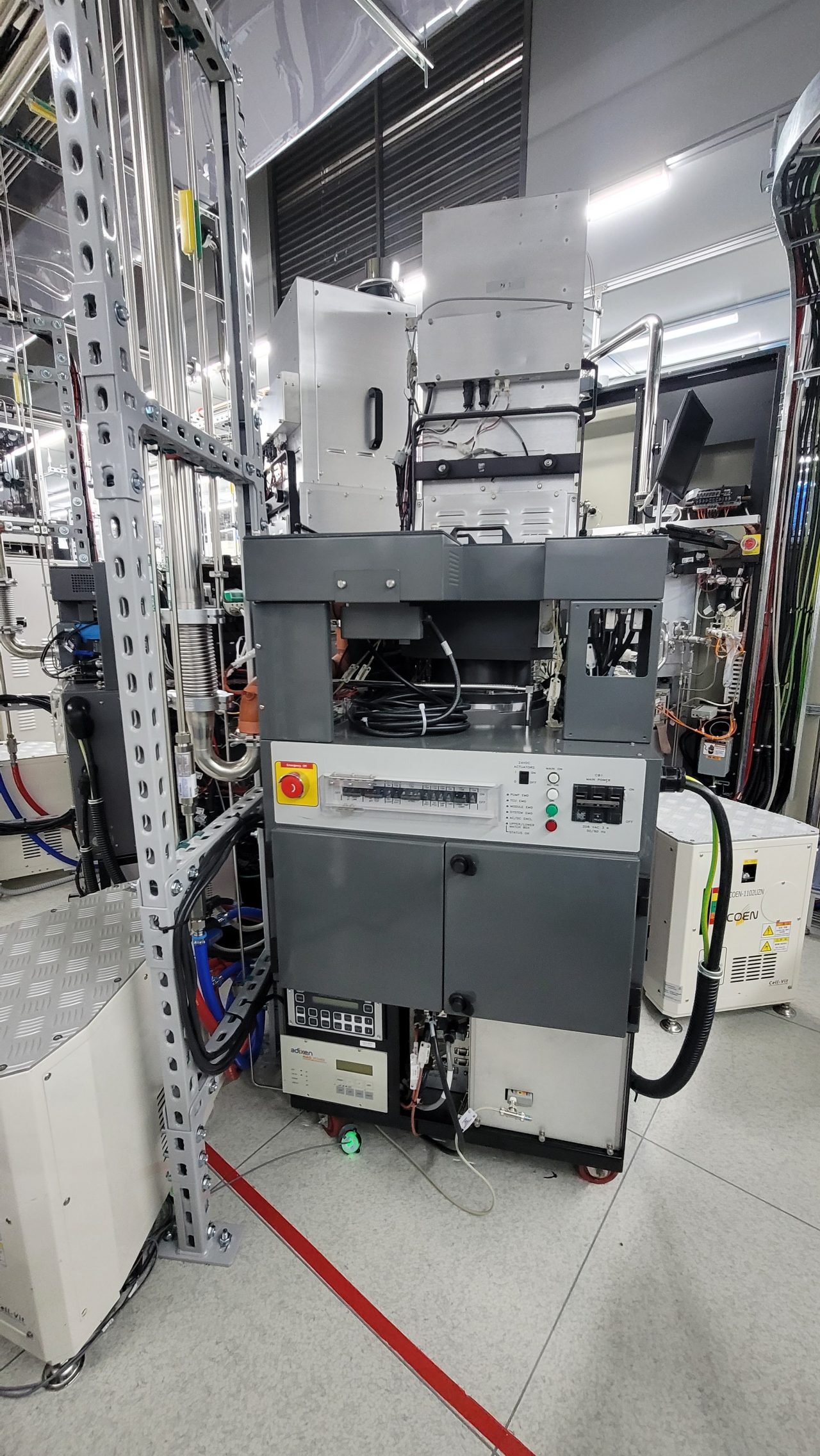

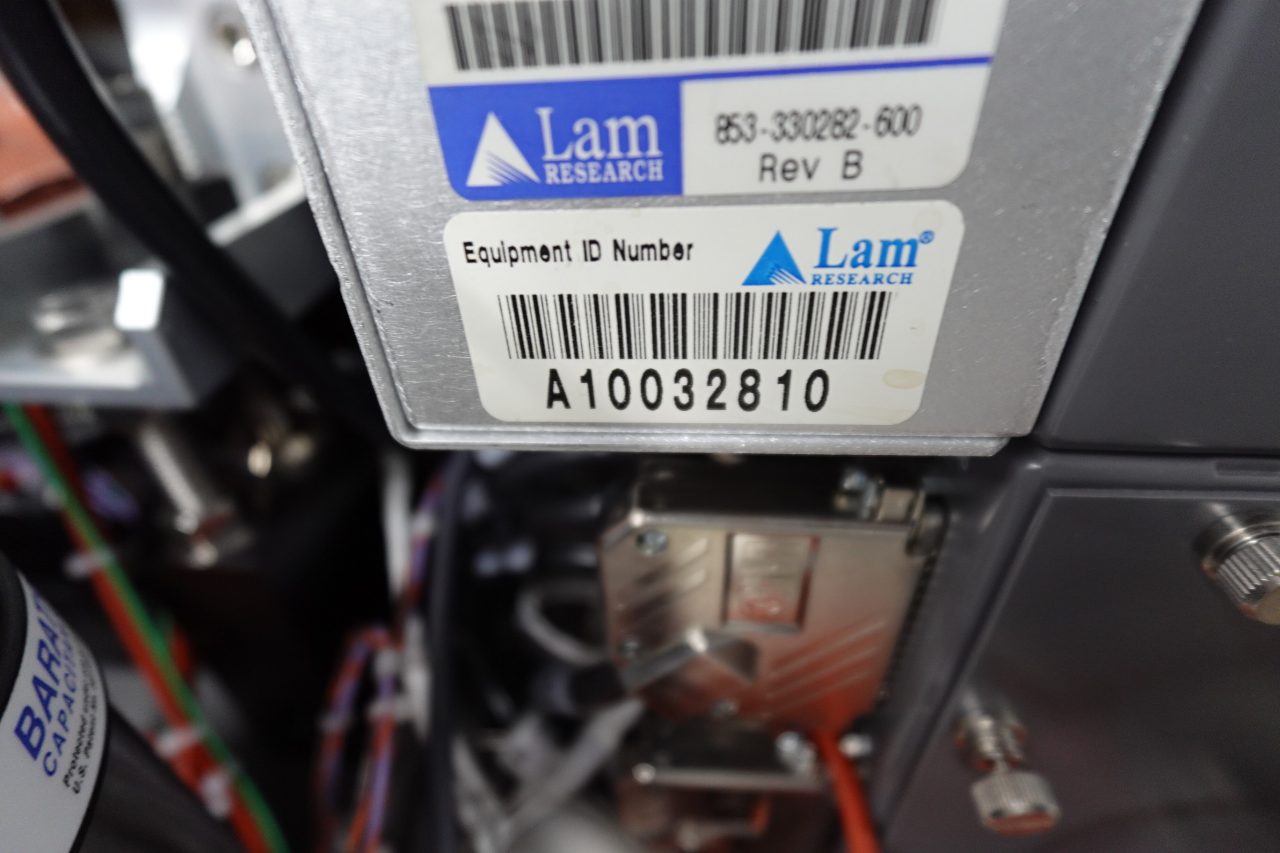

Etch/Ash/Clean - Plasma Processing

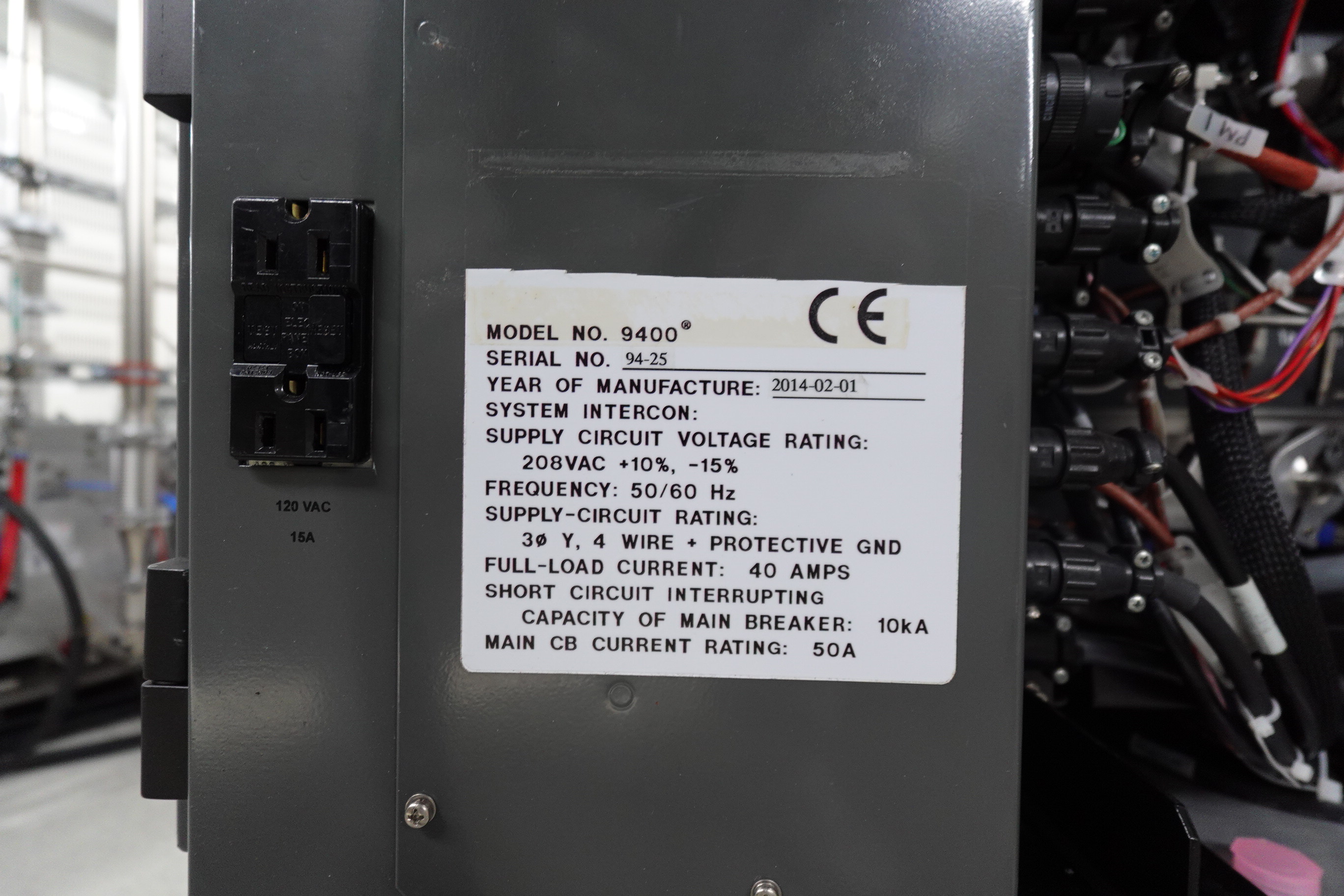

Date of Manufacture: 2014-02-01
Currently Configured for: 150mm
Current Equipment Status: Available
Location of Equipment: Bucheon, Korea, Republic of
Available date: Currently Available

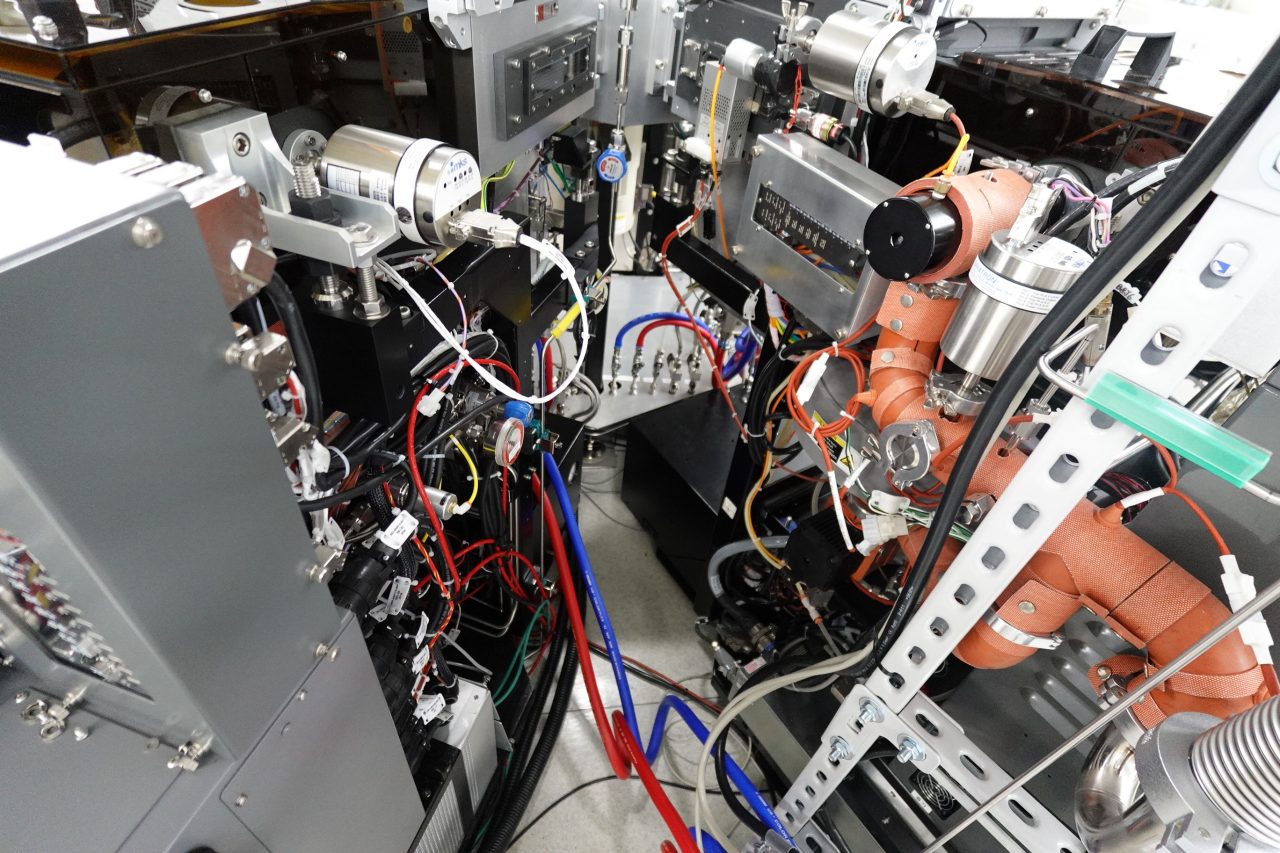

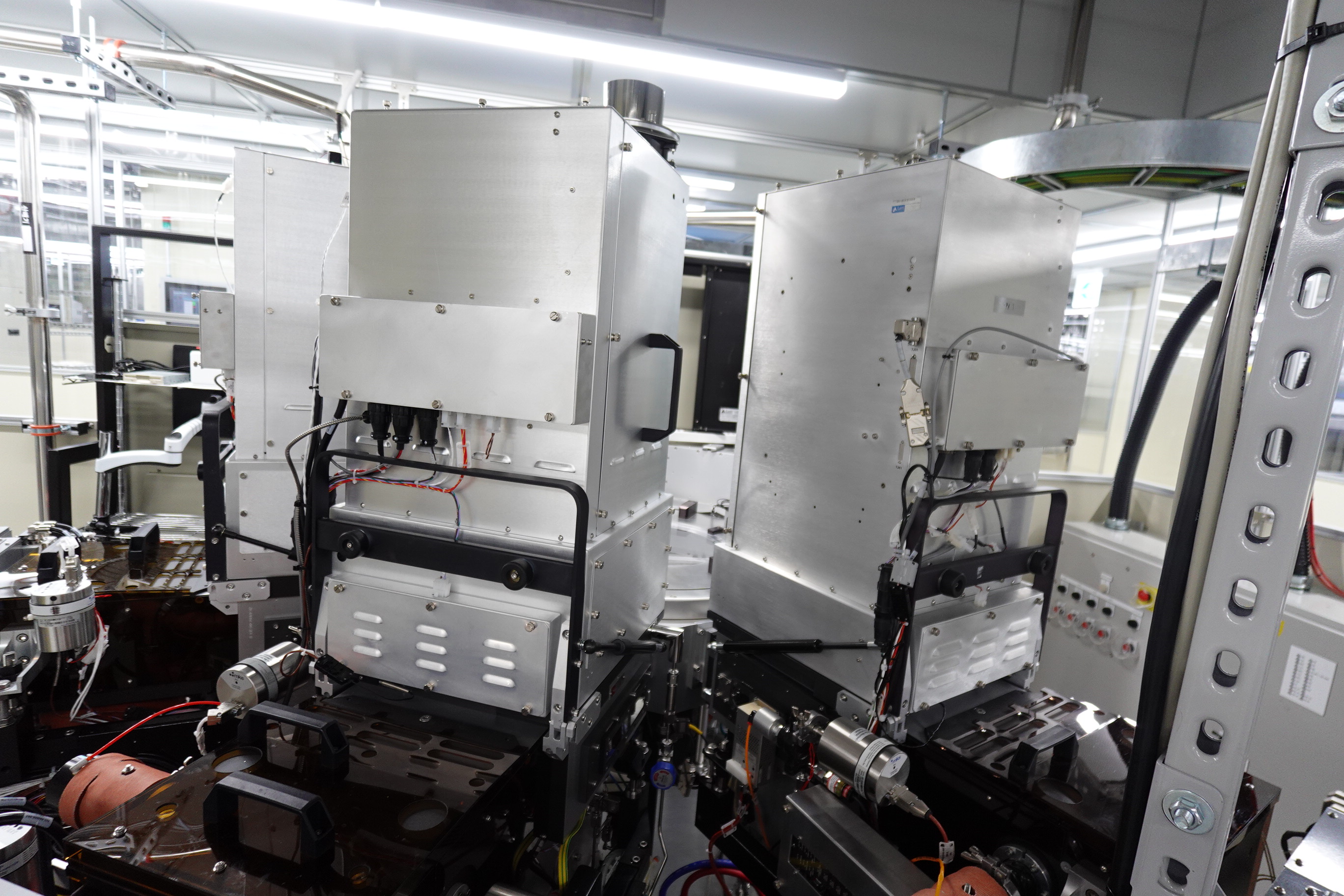

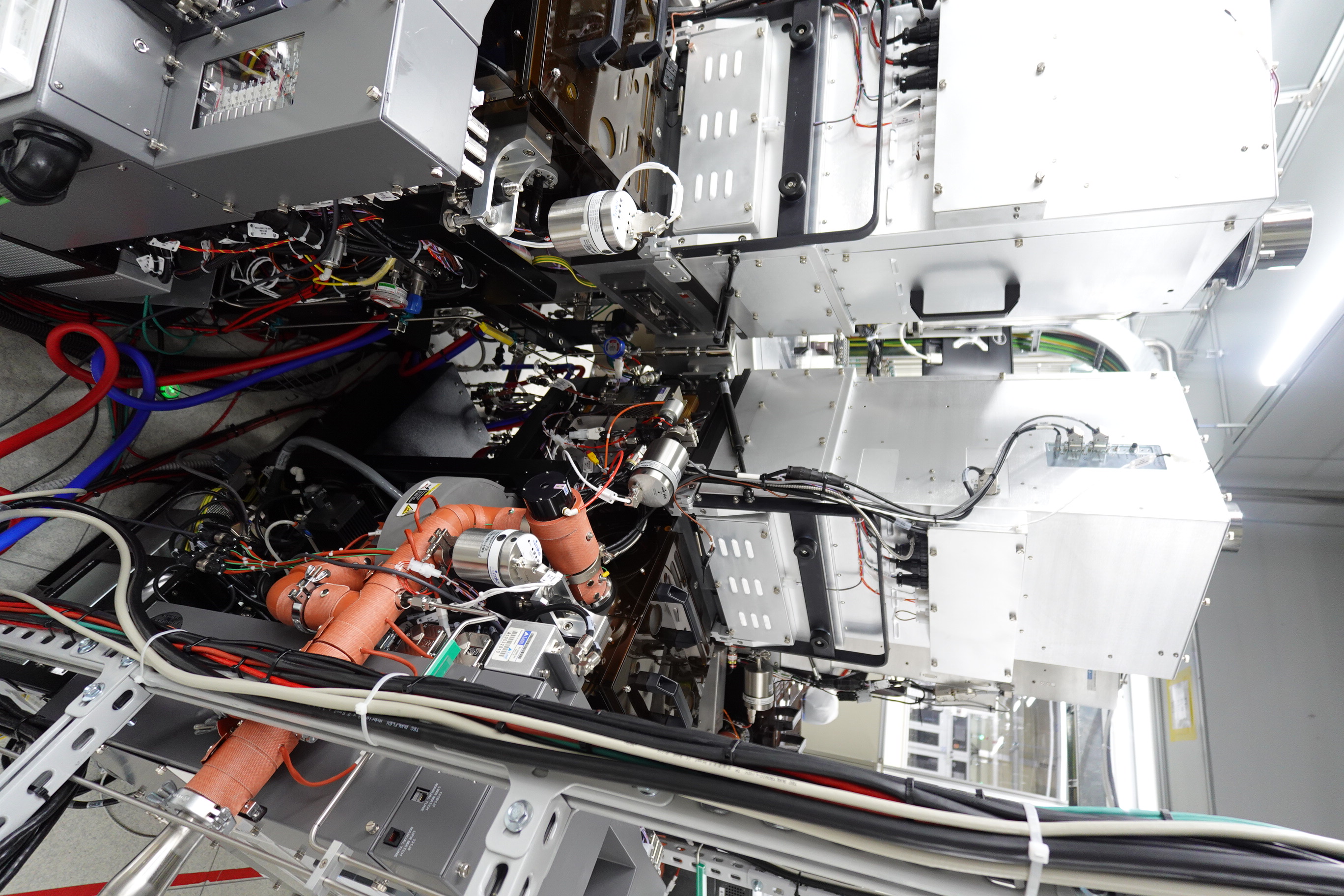

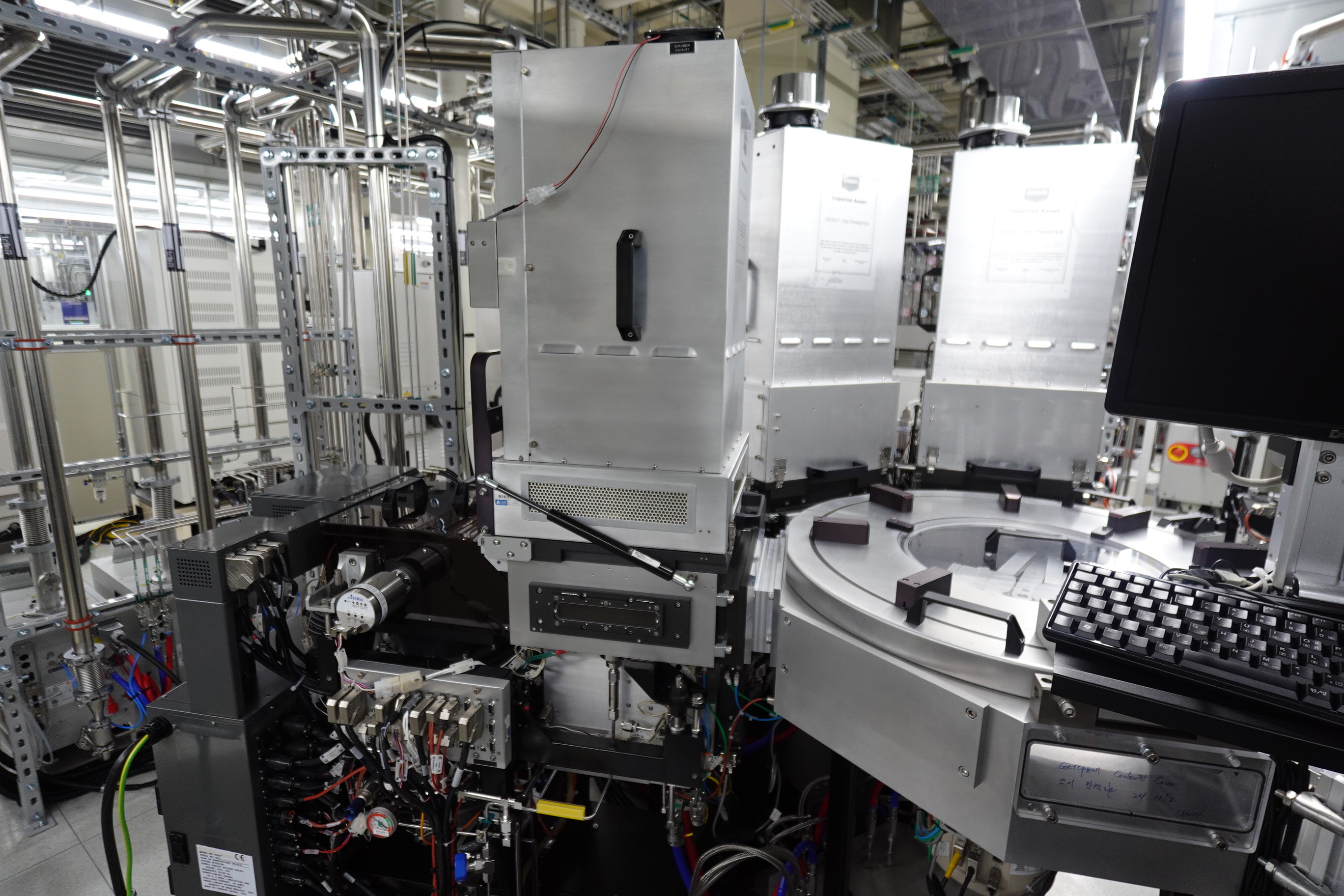

| Install Type | Cluster | |||
| Original Ship Date from Lam | 2024.06.10 | |||
| Software Type | Lam Envision | |||
| Date of Last PM | 2024.11.15 | |||
| Is System On-Line? | No | |||
| Off-Line Date (if applicable) | 2025.04.03 | |||
| CE Mark Certified? | No | |||
| SECS Interface | Yes | |||
| Electrical Requirements | 208v 3-Phase 250A (RPM) | |||
| OEM Audit Available? | No | |||
| Decontamination Report Exists? | No | |||
| Can Produce Wafers AS IS? | No | |||
| Any Known Field Modifications? | No | |||
| All Cables Present? | Yes | |||
| Gas Panel Type | Standard / CES | |||
| Etcher Mainframe Type | Select One | |||
| Alliance A4 | Yes | |||
| System Configuration | Chamber Type | |||

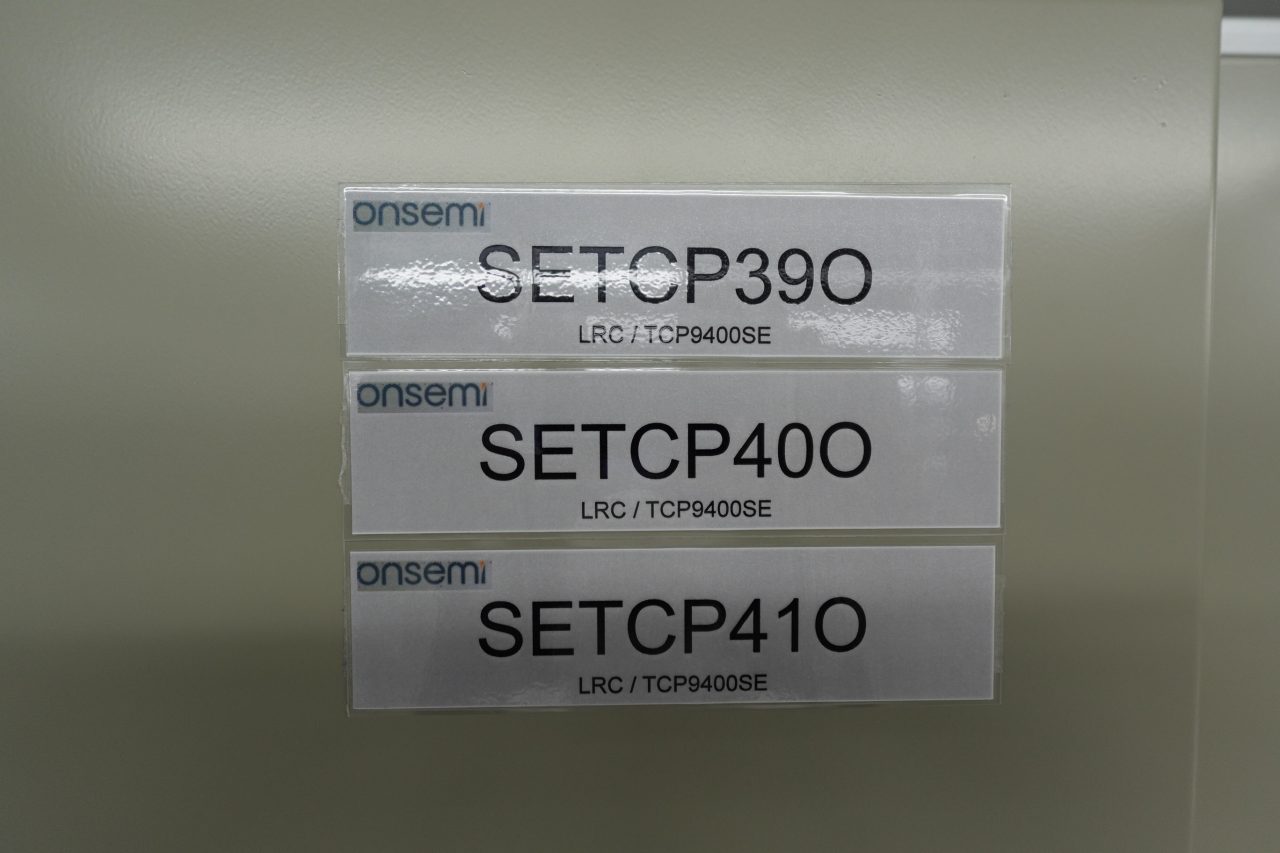

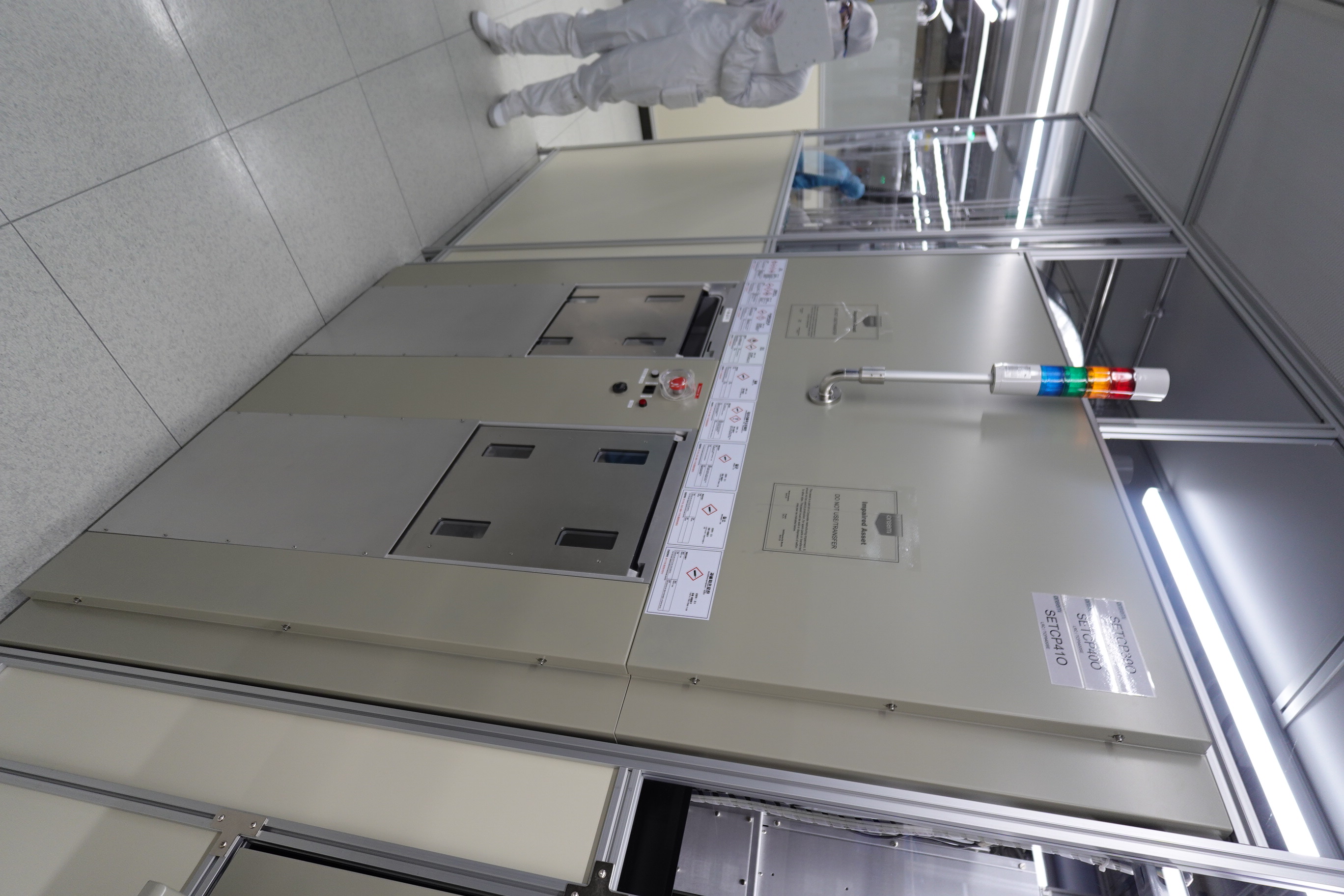

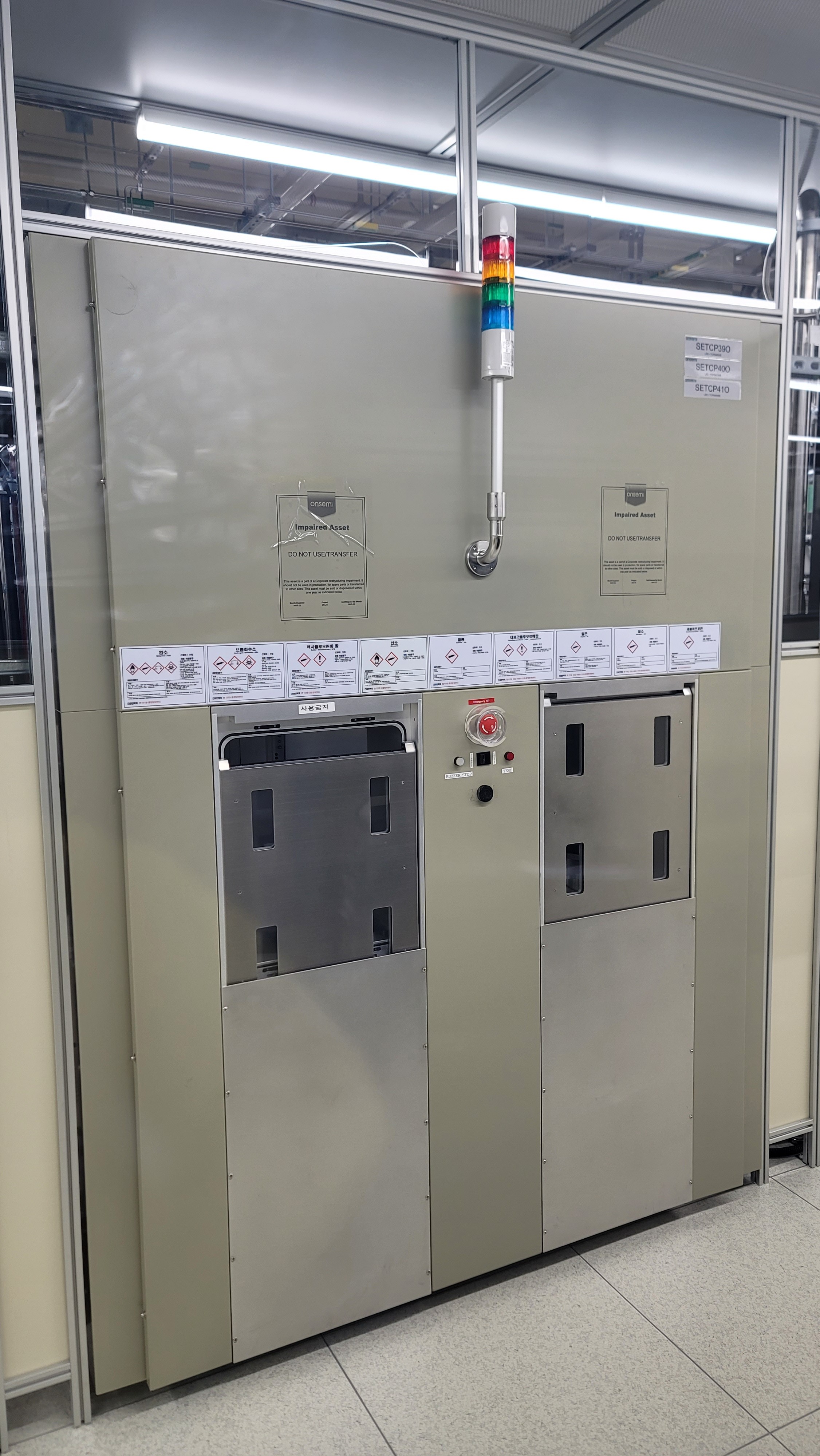

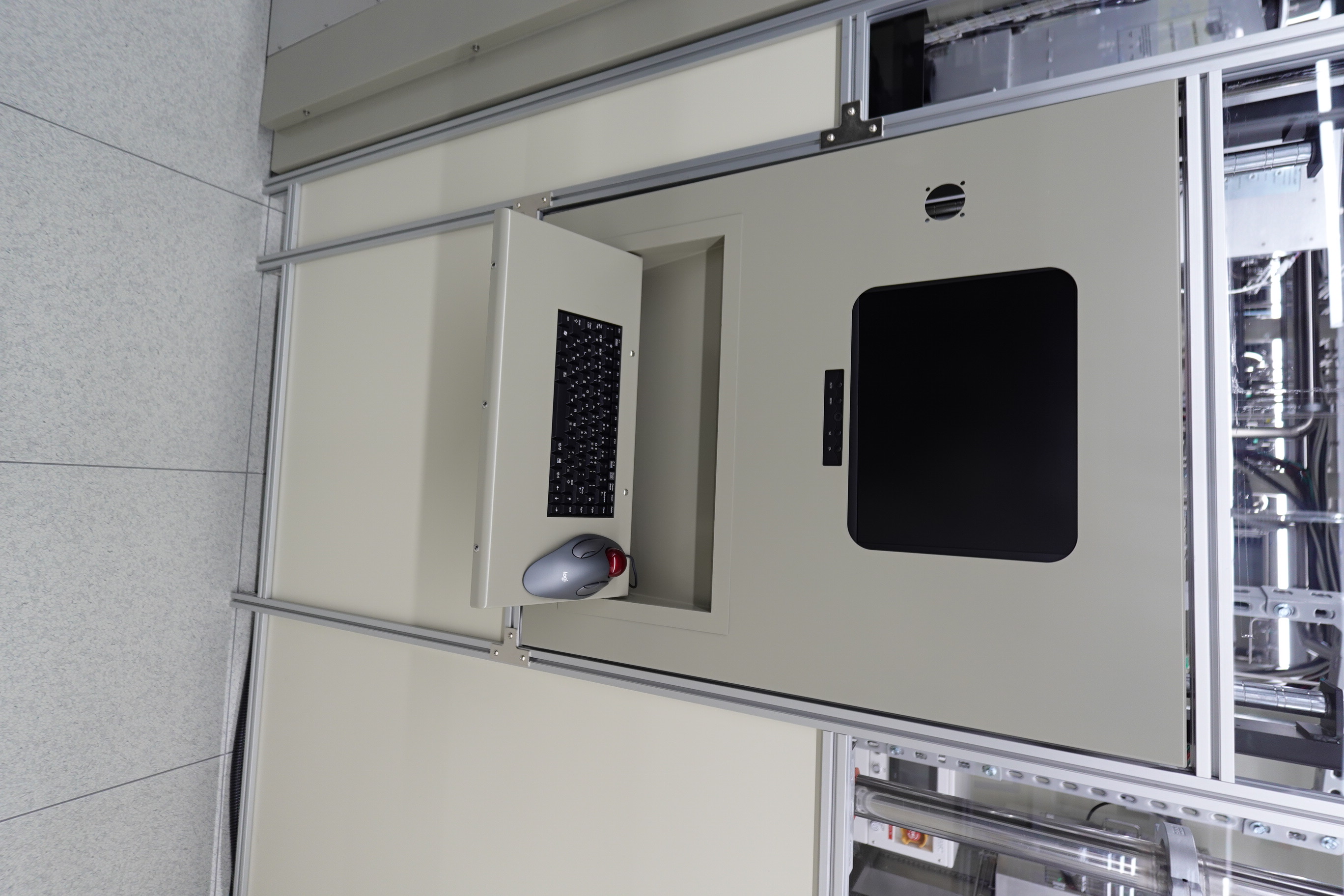

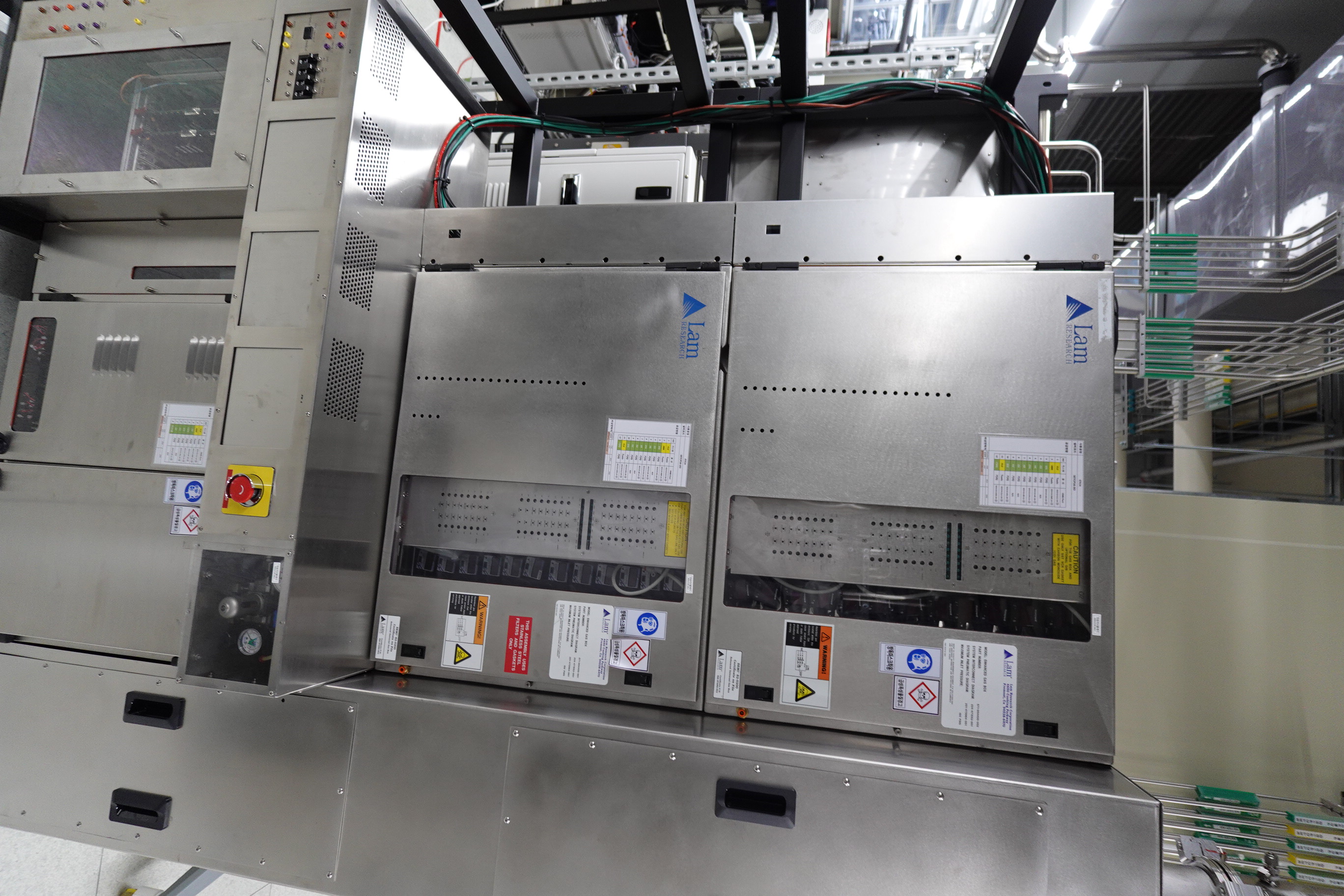

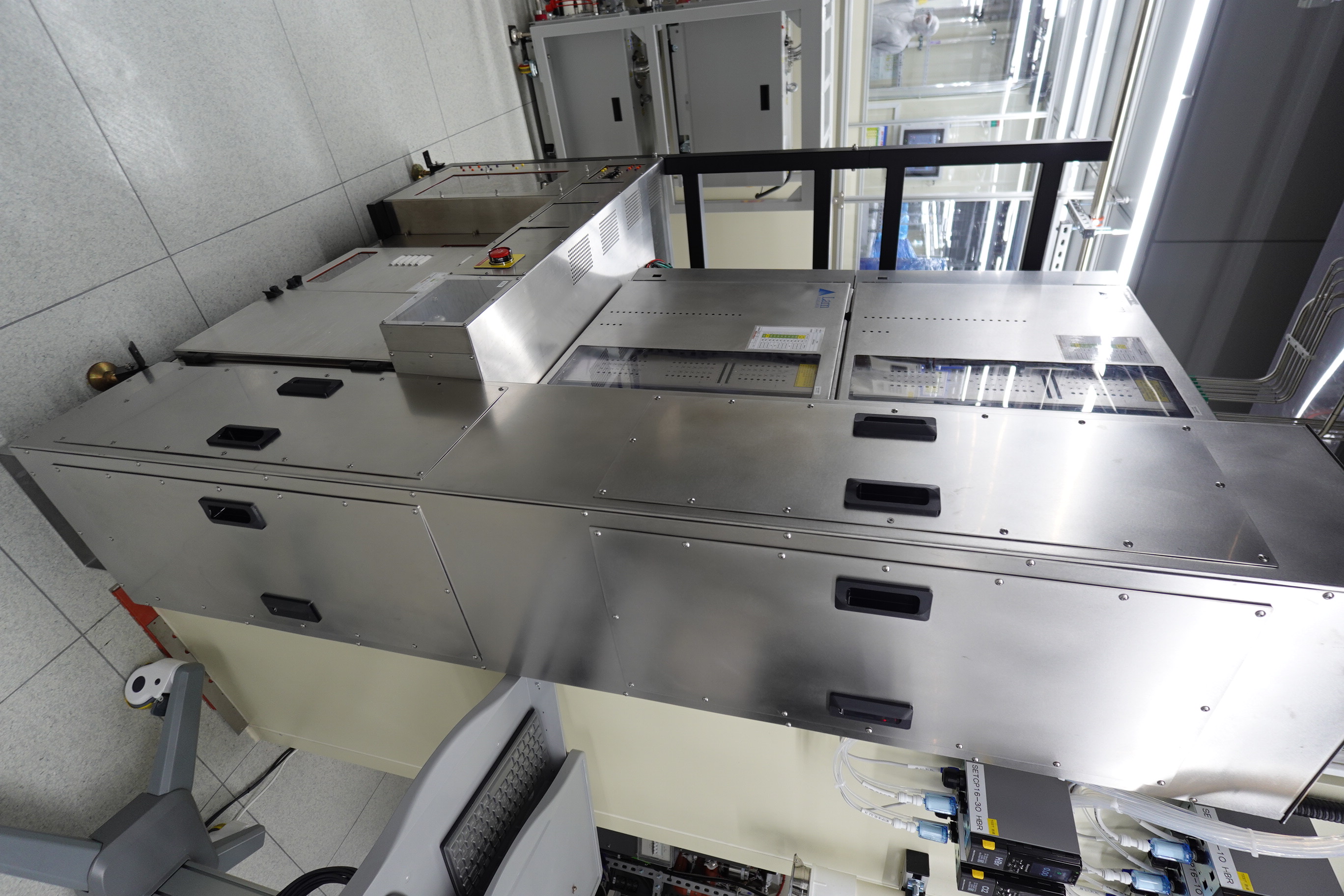

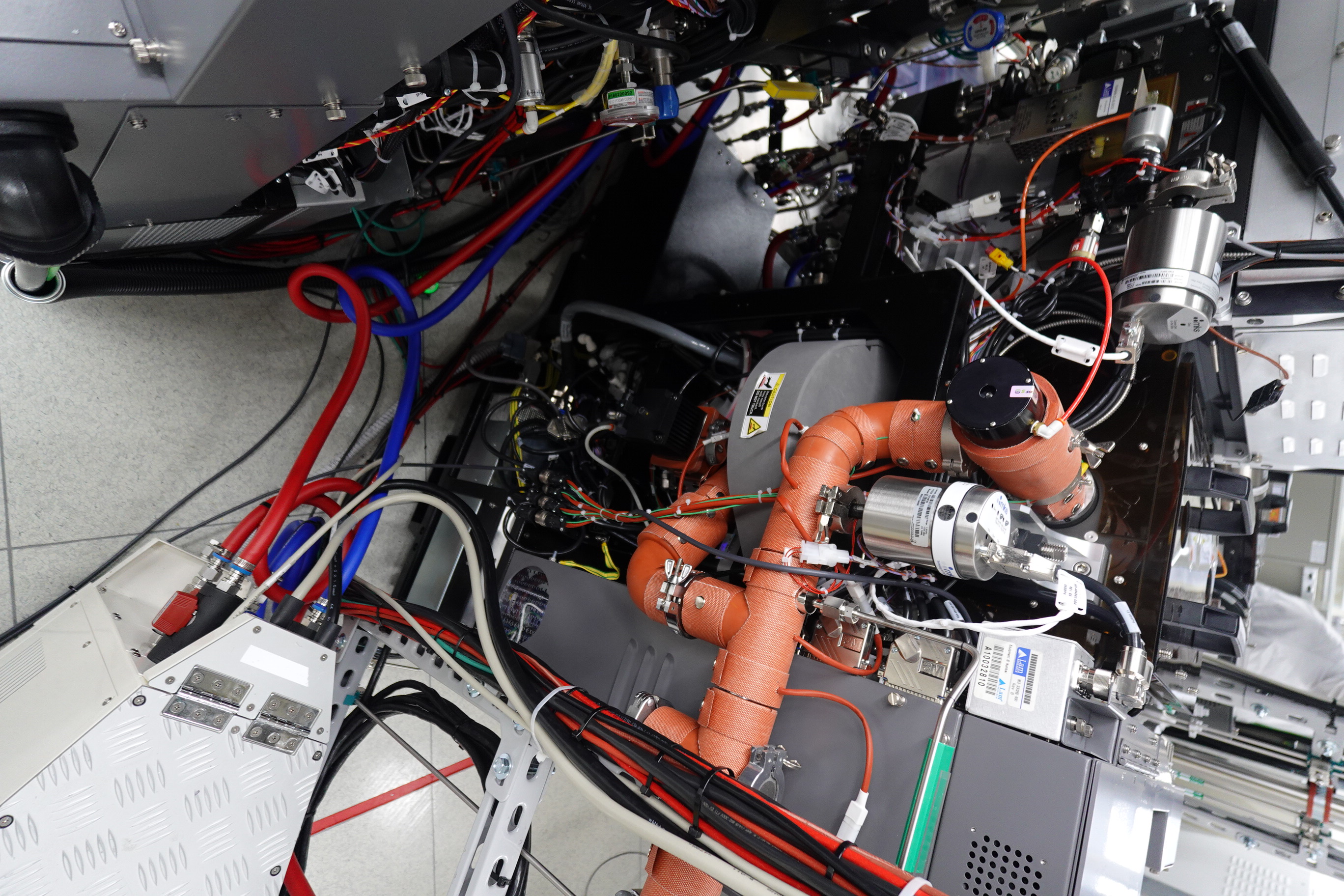

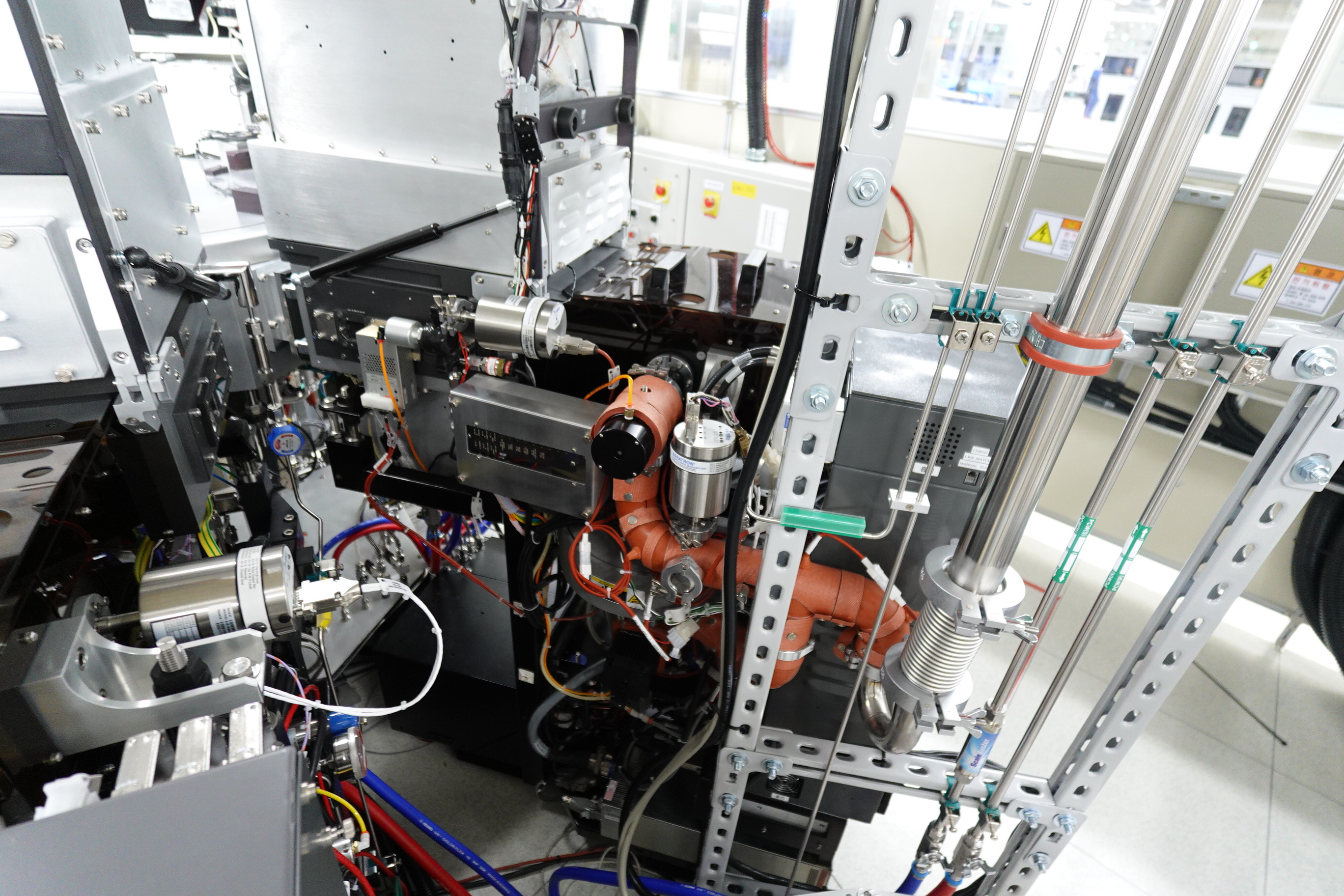

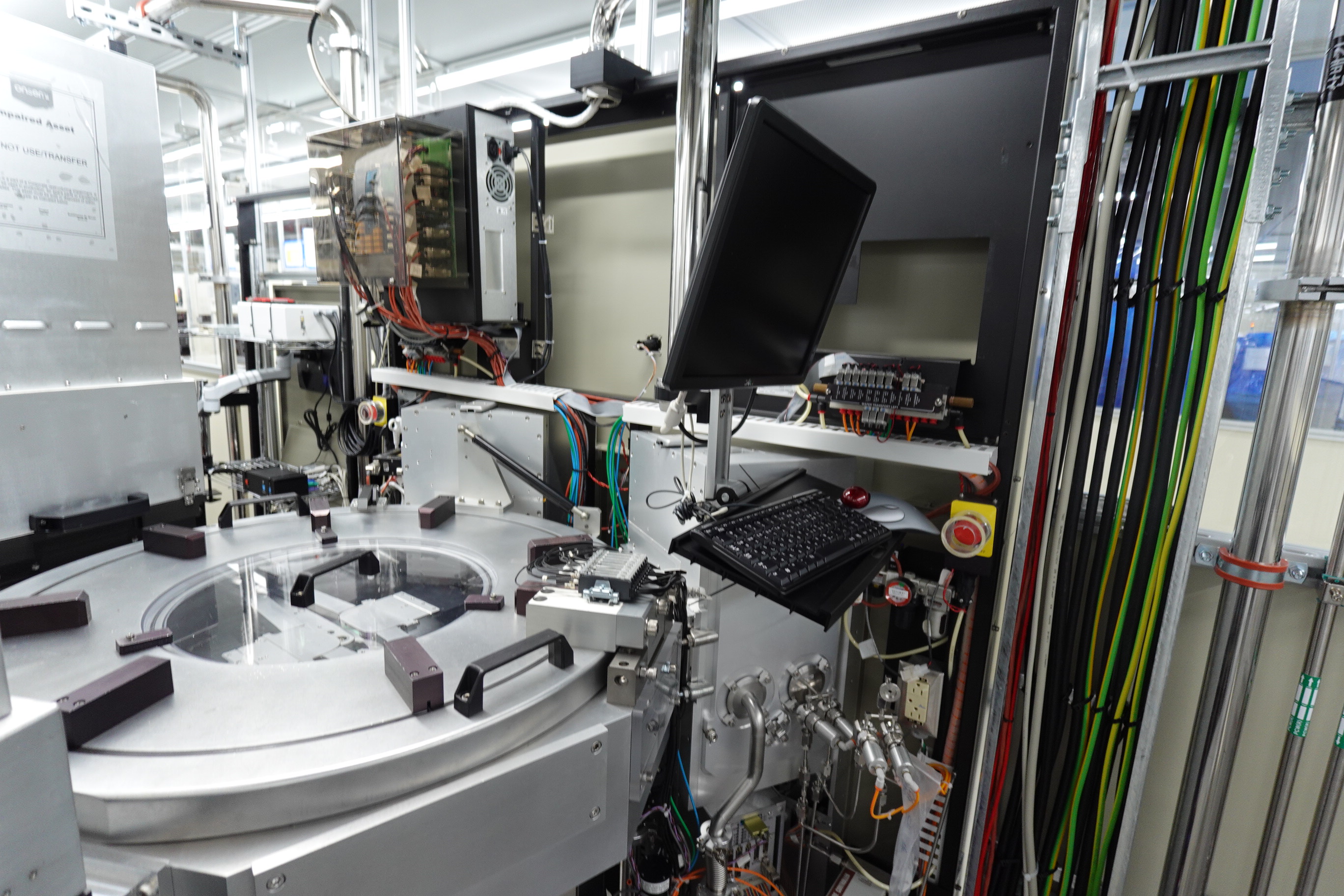

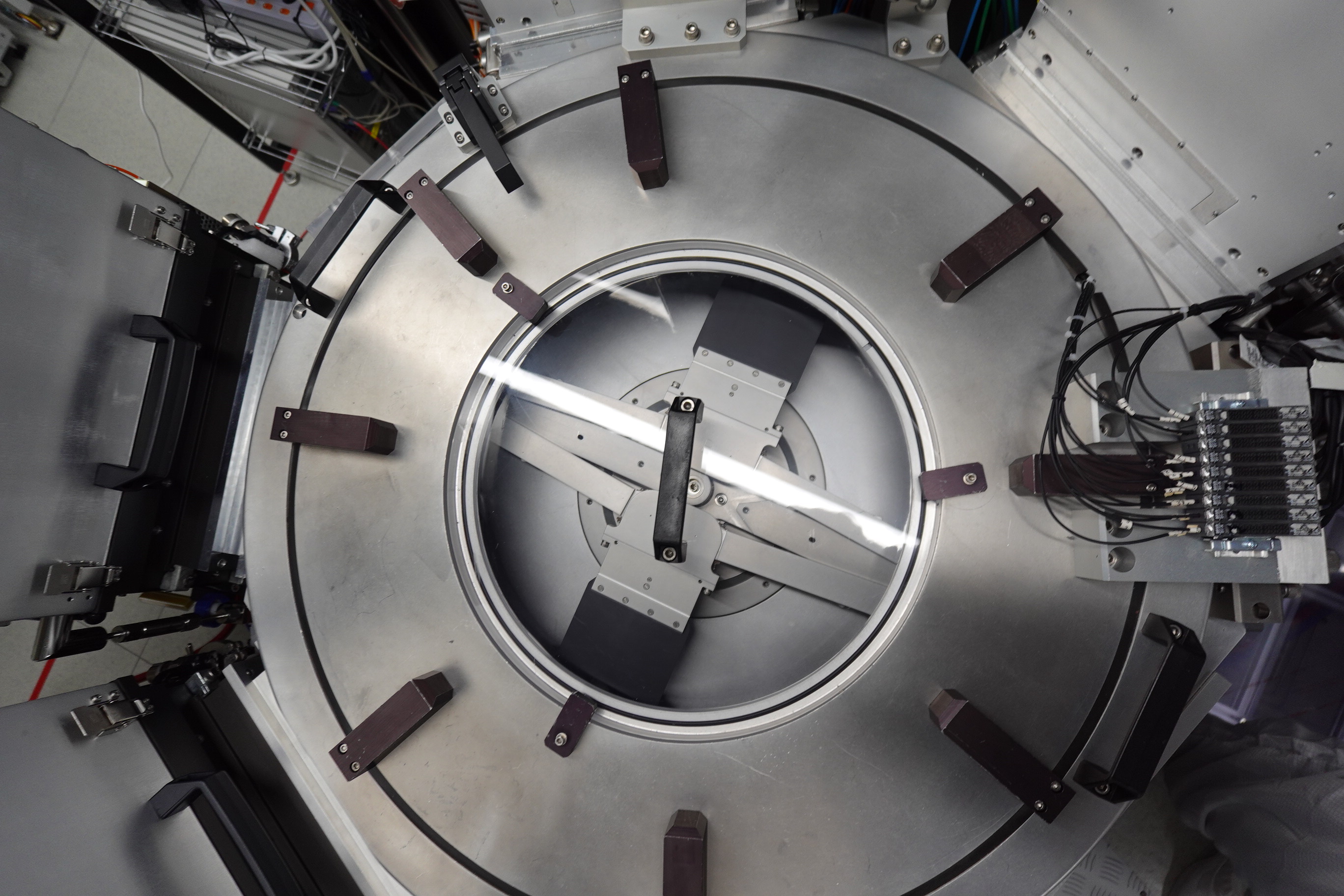

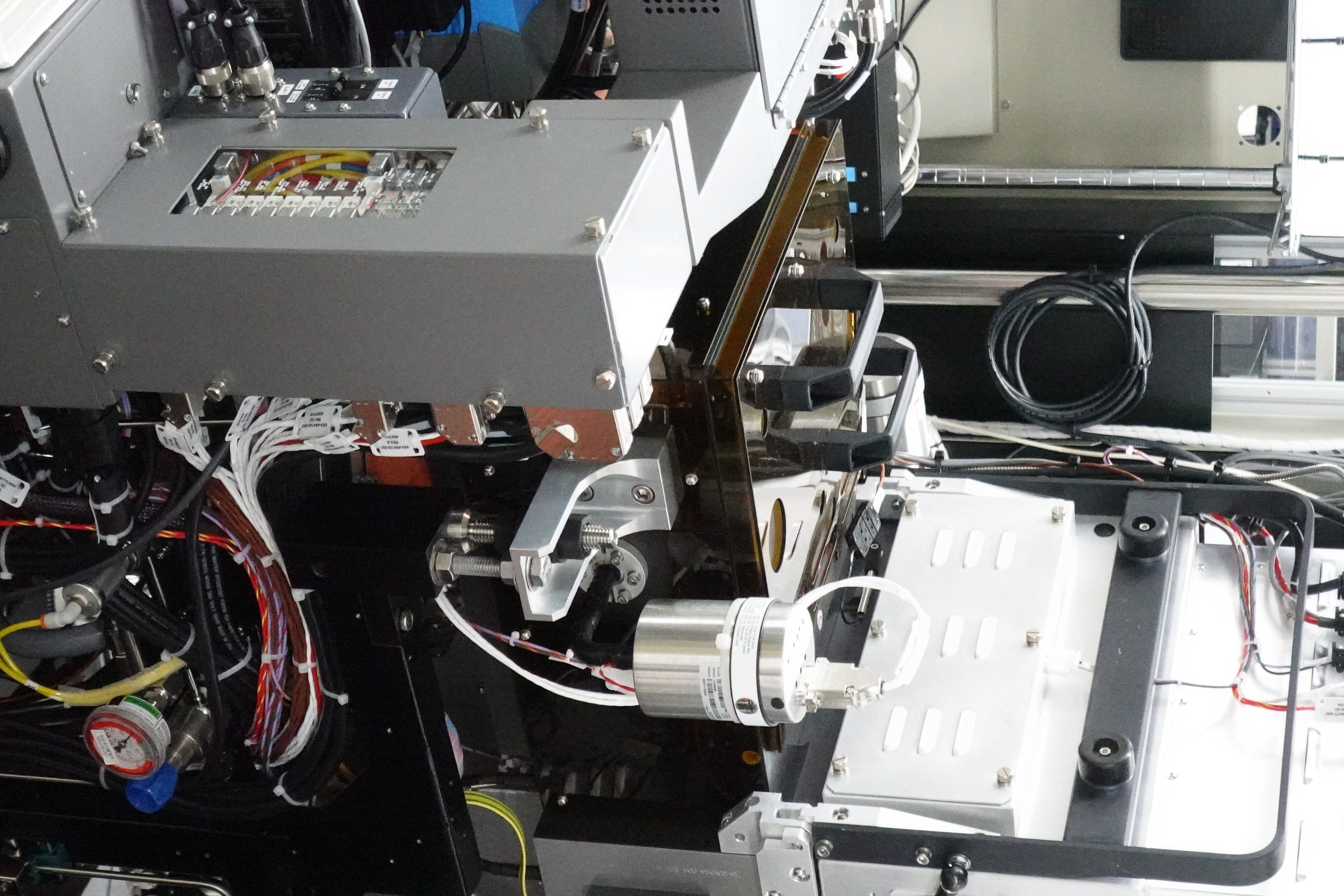

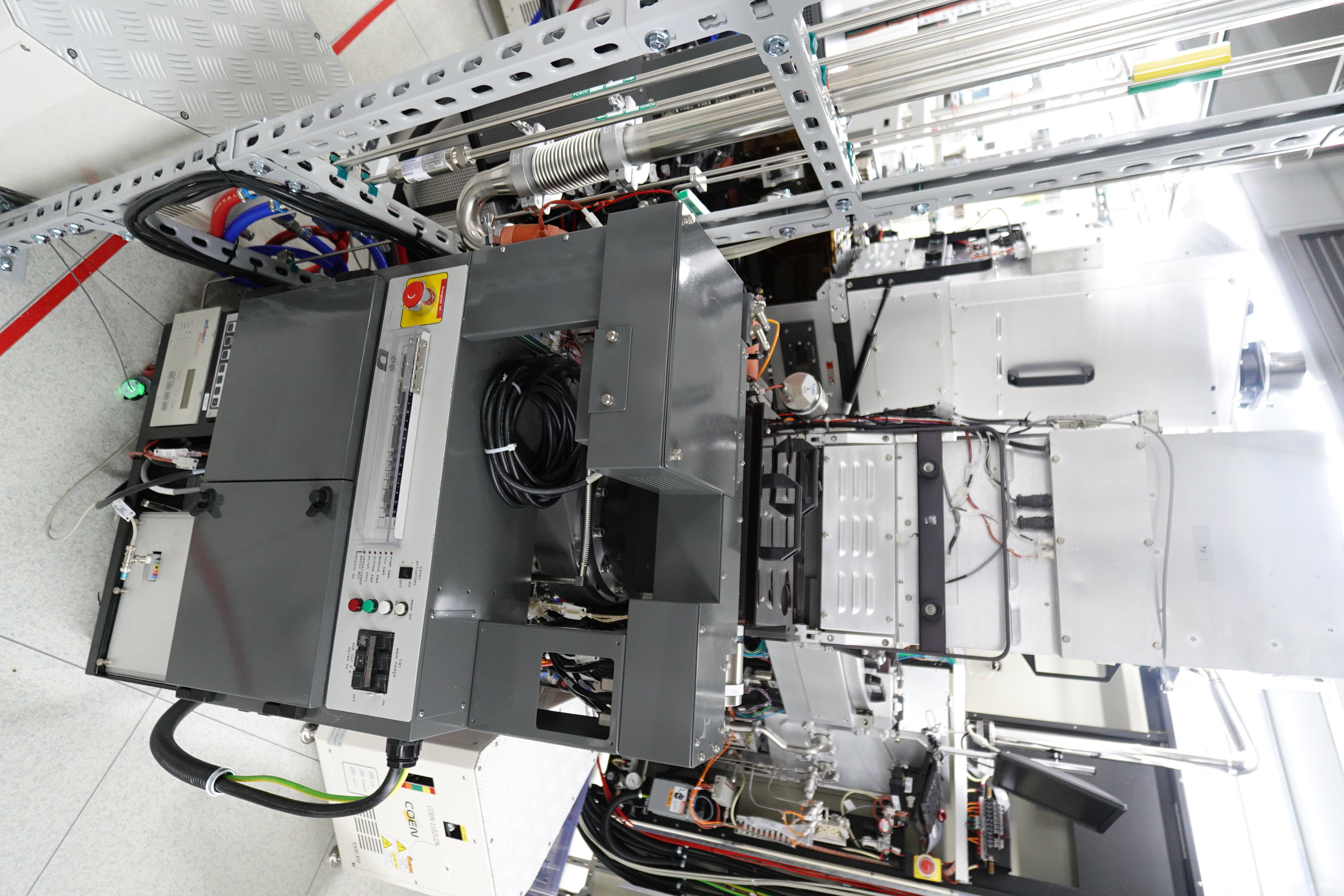

| SETCP39 | 9400SE | |||
| SETCP40 | 9400DFM | |||
| SETCP41 | 9400DFM | |||
| 9400SE, 9400DFM | Poly Etch | |||
| Key Common Options | Included? | |||
| Signal Lamp Tower | Yes | |||
| Bolt-On-SMIF | No | |||
| Built-In SMIF | No | |||
| Load port Make/Model | Assembly Lip Seal Drive, VCE4 / LAM | |||
| Clean Room Manuals | Yes | |||
| Standard Manuals | Yes | |||
| Remote Operator Interface | Yes | |||
| Key Alliance Mainframe Items | ||||
| Equipe Autoloader | Yes | |||
| Built-In Hepa Filter | No | |||
| Orbitally Welded Gas Box | Yes | |||
| Backside Helium Cooling | Yes | |||
| Helium Cooling MFC Type | UPC | |||
| Heated Pumping Manifolds | Yes | |||
| On-Board RF Generators | Yes | |||
| Remote RF Cart | No | |||
| Remote Gas Box | Yes | |||
| Main On-Board AC Distribution Type | Circuit Breaker | |||
| Remote AC Box | Yes | |||
| WVDS | N/A | |||
| DSQ Type | N/A | |||
| Hine 38A Indexers | No | |||
| Endpoint Detection System | Yes | |||
| Endpoint Type | IEP | |||
| Endpoint Lam Part Number | SD1024 | |||
| Photodiode Wavelength(s) | N/A | |||
| Chamber Liner Present | Yes | |||
| Chamber Anodization Condition | Normal | |||
| Electrode Gap | Fixed Gap | |||
| Wafer Clamp | ESC | |||
| ESC Type | UNIPOLAR | |||
| Gate Valve Mfg, Model/Type | ASSY,GATE DRIVE,ALLI 6 /LAM | |||
| TCP Coil Size | 6” | |||
| Key Alliance Mainframe Items | ||||
| Robot Type | 3-axis controlled | |||
| Robot Part Number | MAG7 (brooks) | |||
| VCE Model | VCE 4 | |||
| VCE SMIF Ready (cassette platforms extend to received cassettes from LPIs) | No | |||
| Front Skins SMIF Ready (cutouts & latch hardware) | No | |||
| RPM (Remote Power Module) | Yes | |||
| Key Alliance Chamber Items | ||||
| PM1 – Endpoint Type | IEP | |||
| PM1 – Endpoint Lam Part Number | SD1024 | |||
| PM1 – Wafer Clamping Method | ESC | |||
| PM1 – Gate Valve Mfg. Model/Type | ASSY,GATE DRIVE,ALLI 6 /LAM | |||
| PM1 – Chamber Anodization Condition | Normal | |||
| PM1 - VCI Installed | No | |||
| PM1 – TCP Coil Size | 6” | |||
| PM2 – Endpoint Type | IEP | |||
| PM2 – Endpoint Lam Part Number | SD1024 | |||
| PM2 – Wafer Clamping Method | ESC | |||
| PM2 – Gate Valve Mfg. Model/Type | ASSY,GATE DRIVE,ALLI 6 /LAM | |||
| PM2 – Chamber Anodization Condition | Normal | |||
| PM2 - VCI Installed | No | |||
| PM2 – TCP Coil Size | 6” | |||
| PM3 – Endpoint Type | IEP | |||
| PM3 – Endpoint Lam Part Number | SD1024 | |||
| PM3 – Wafer Clamping Method | ESC | |||
| PM3 – Gate Valve Mfg. Model/Type | ASSY,GATE DRIVE,ALLI 6 /LAM | |||
| PM3 – Chamber Anodization Condition | Normal | |||
| PM3 - VCI Installed | No | |||
| PM3 – TCP Coil Size | 6” | |||

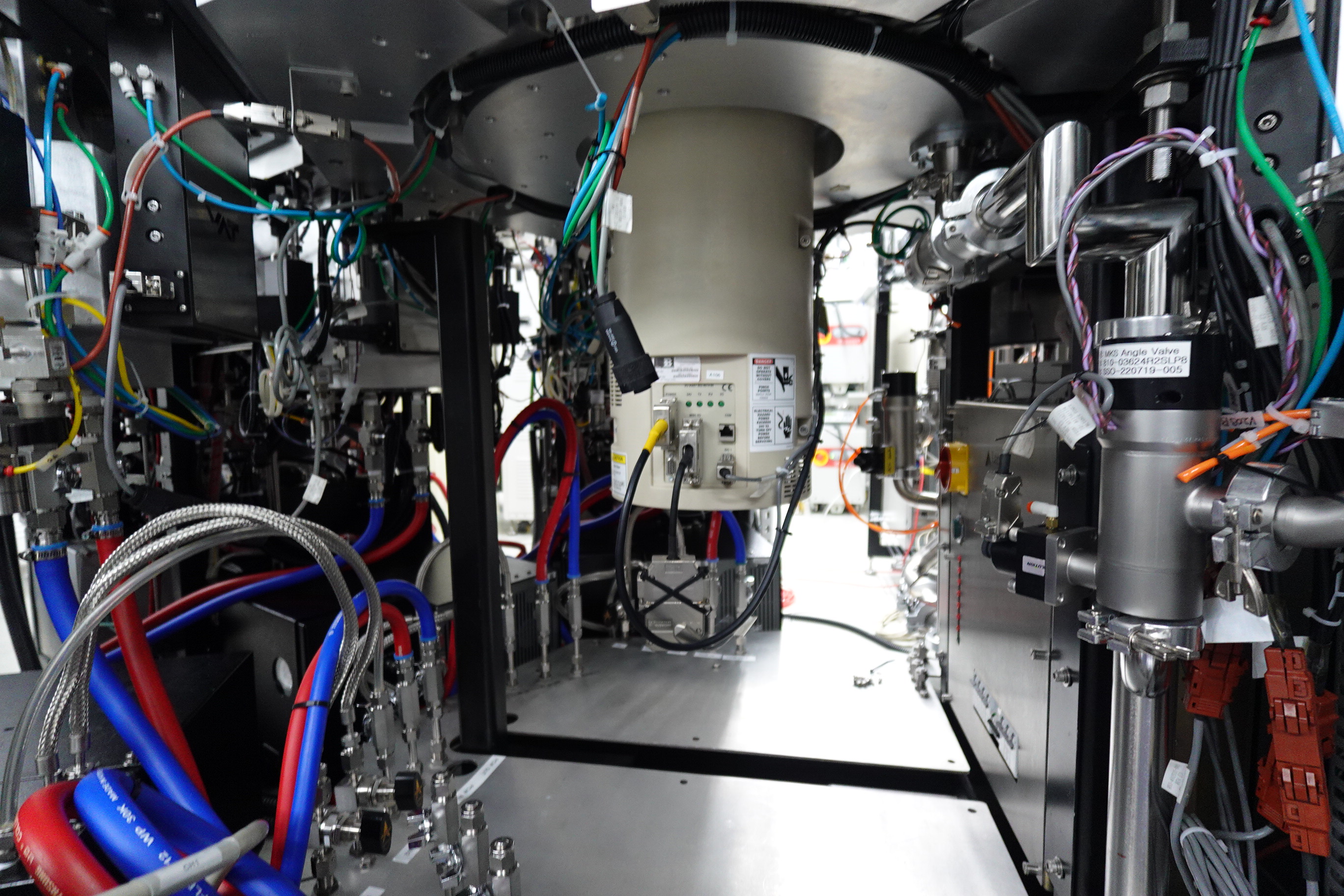

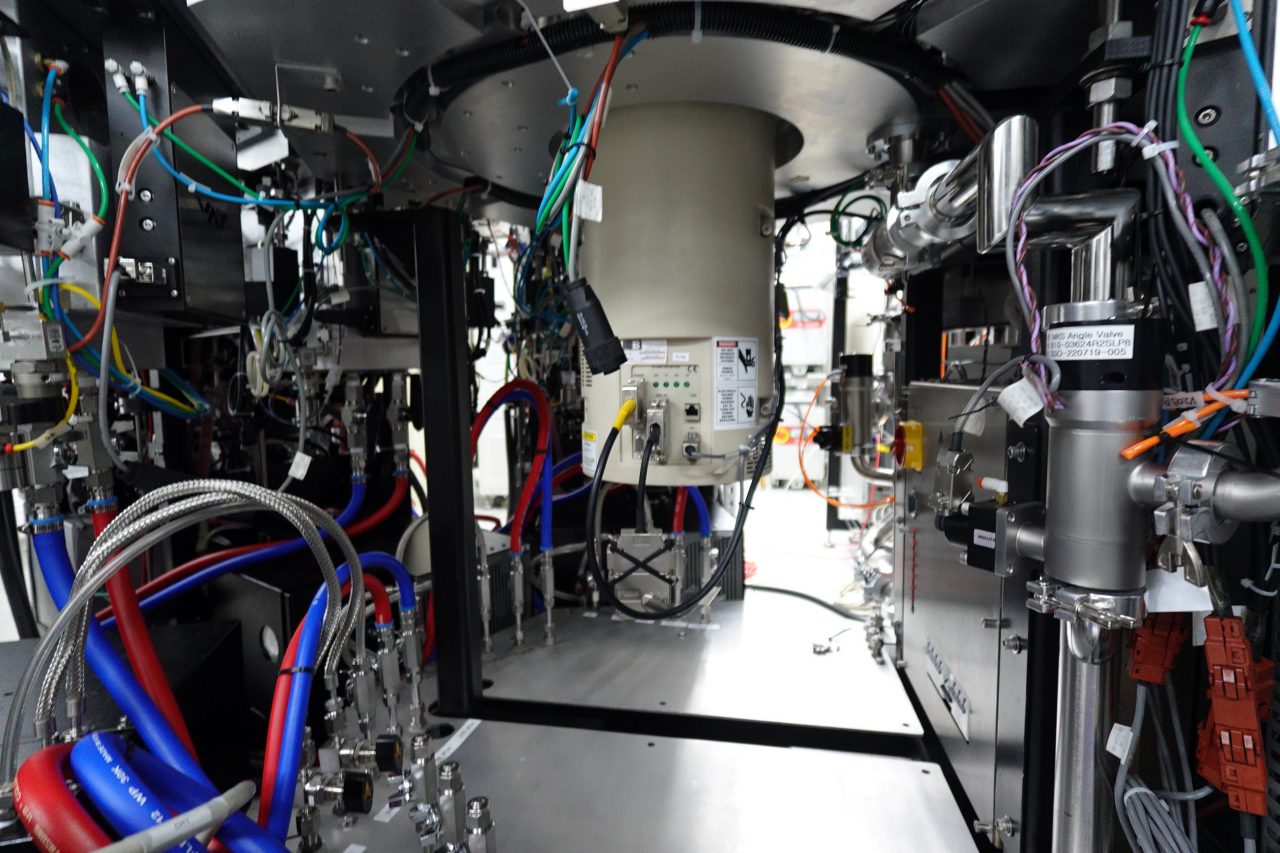

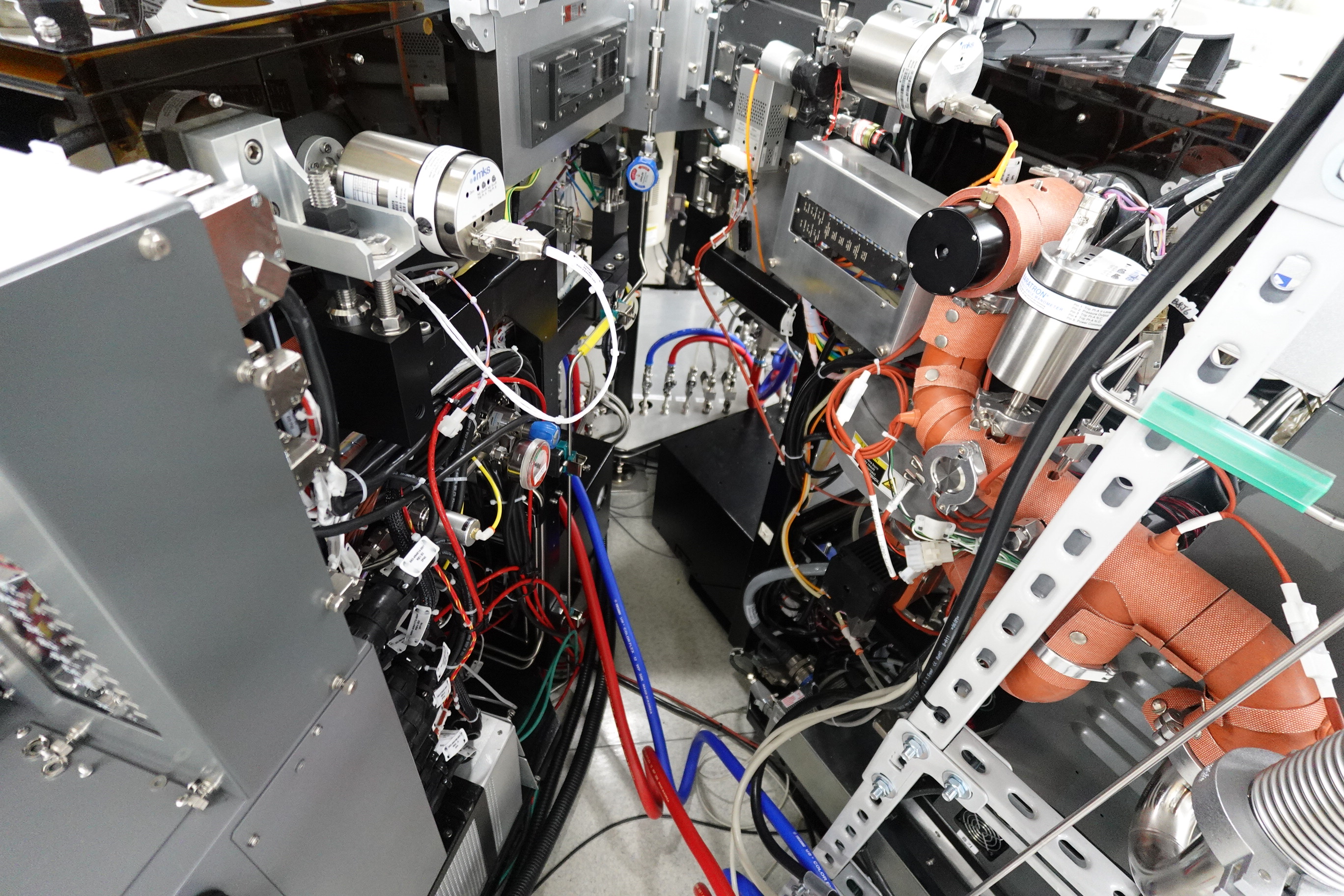

| Turbo Pump Details | ||||
| Chamber Position | Turbo Mfgr. | Turbo Model | ||
| PM 1 / Main Chamber | Alcatel | ATH1600M | ||
| PM 2 / Main Chamber | Alcatel | ATH1600M | ||
| PM 3 / Main Chamber | Alcatel | ATH1600M | ||
| RF Generator Details | ||||
| Chamber Position | Mfgr. | Model | ||
| PM 1 / Top | AE | RFG1250 | ||
| PM 1 / Bottom | AE | RFG1250HALO | ||
| PM 2 / Top | AE | 3156312-161(Paramount) | ||
| PM 2 / Bottom | AE | 3156312-160(Paramount) | ||
| PM 3 / Top | AE | 3156312-161(Paramount) | ||
| PM 3 / Bottom | AE | 3156312-160(Paramount) | ||
| LVCE,RVCE or TM Pump | ||||
| Manufacturer | Edwards | |||
| Model | IXM200 | |||
| Included With System | Yes | |||
| Main Etch Chamber Pump | ||||
| Manufacturer | Edwards | |||
| Model | IXM200 | |||
| Quantity Required(PM1,2,3) | 3 | |||
| Included With System | Yes | |||
| Chiller Information | Complete All | |||
| Manufacturer | Cell-Vit | |||
| Model | COEN1102UZN | |||
| Machine Hours | 29004 | |||
| Electrical Requirements | 208v 3-Phase 60A | |||
| # of Cooling Channels | One | |||
| Quantity Required | 3 | |||
| Included With System | Yes | |||

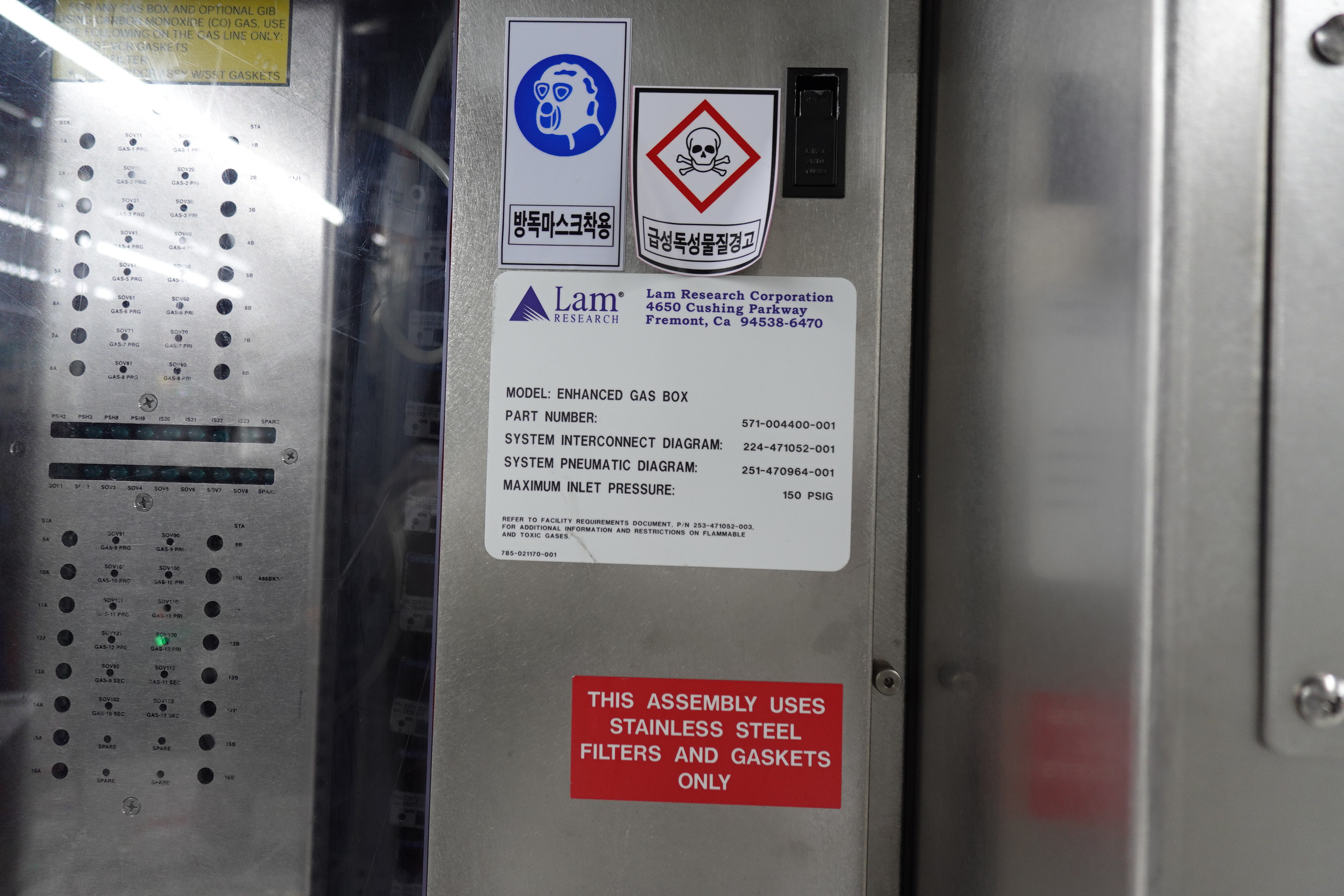

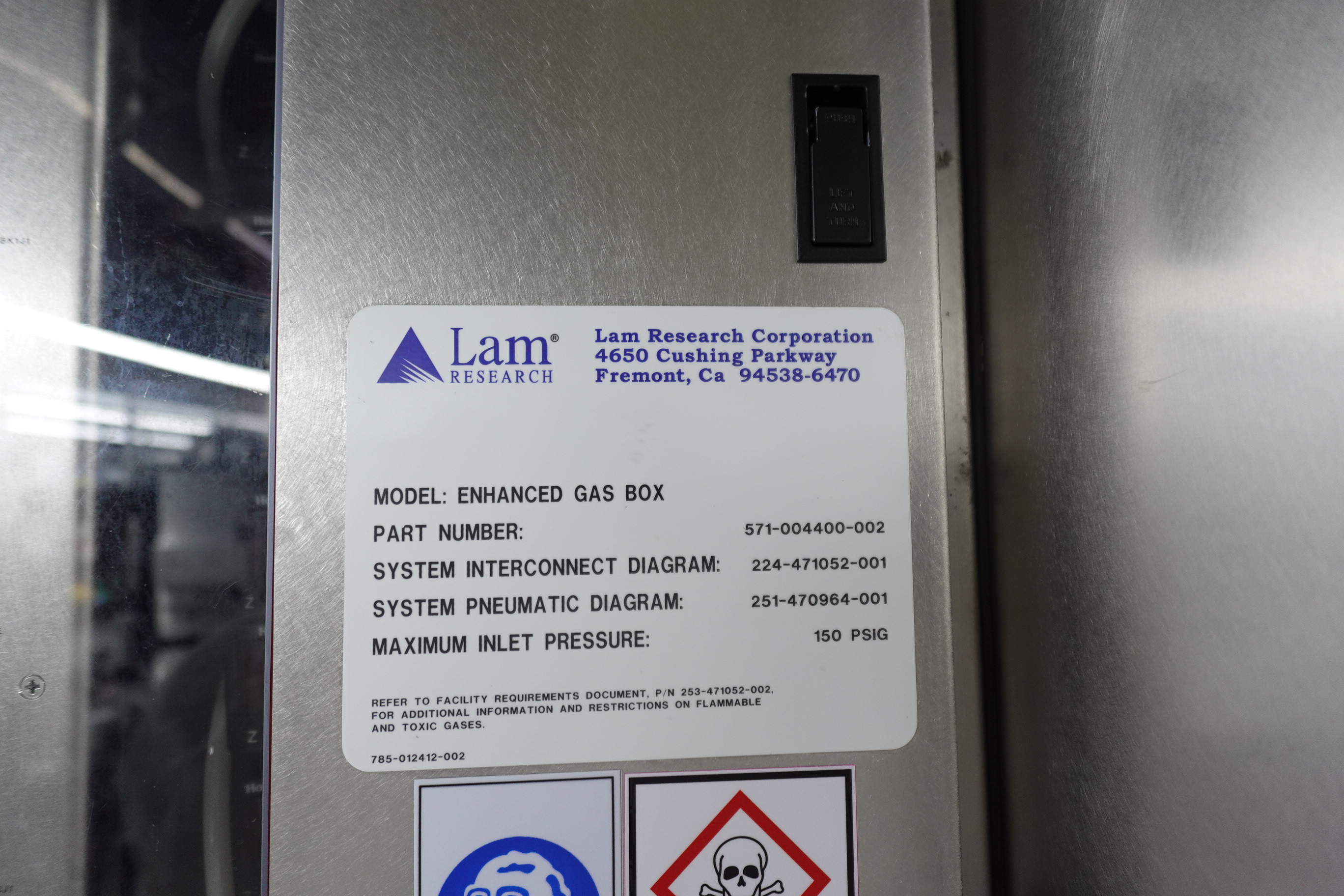

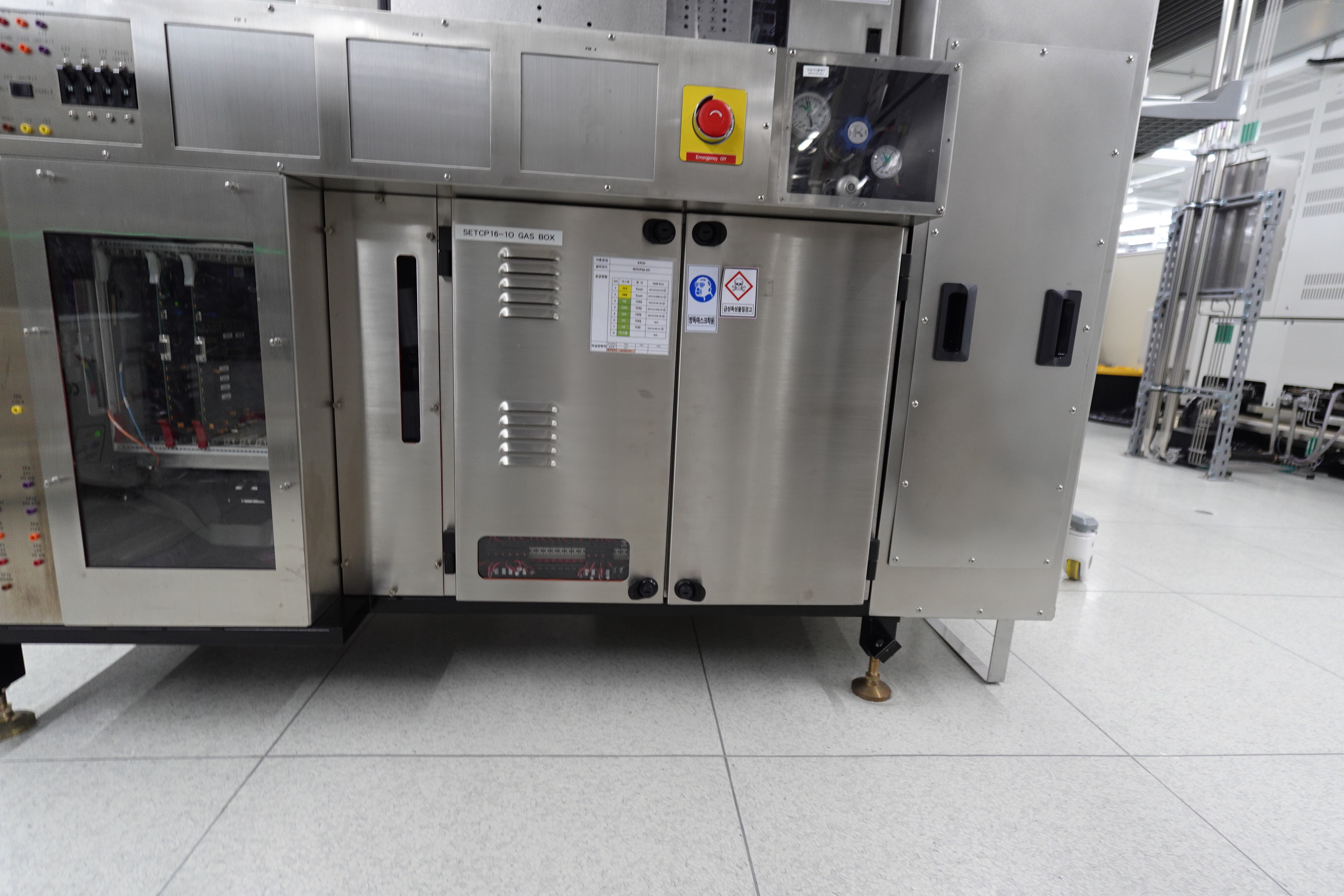

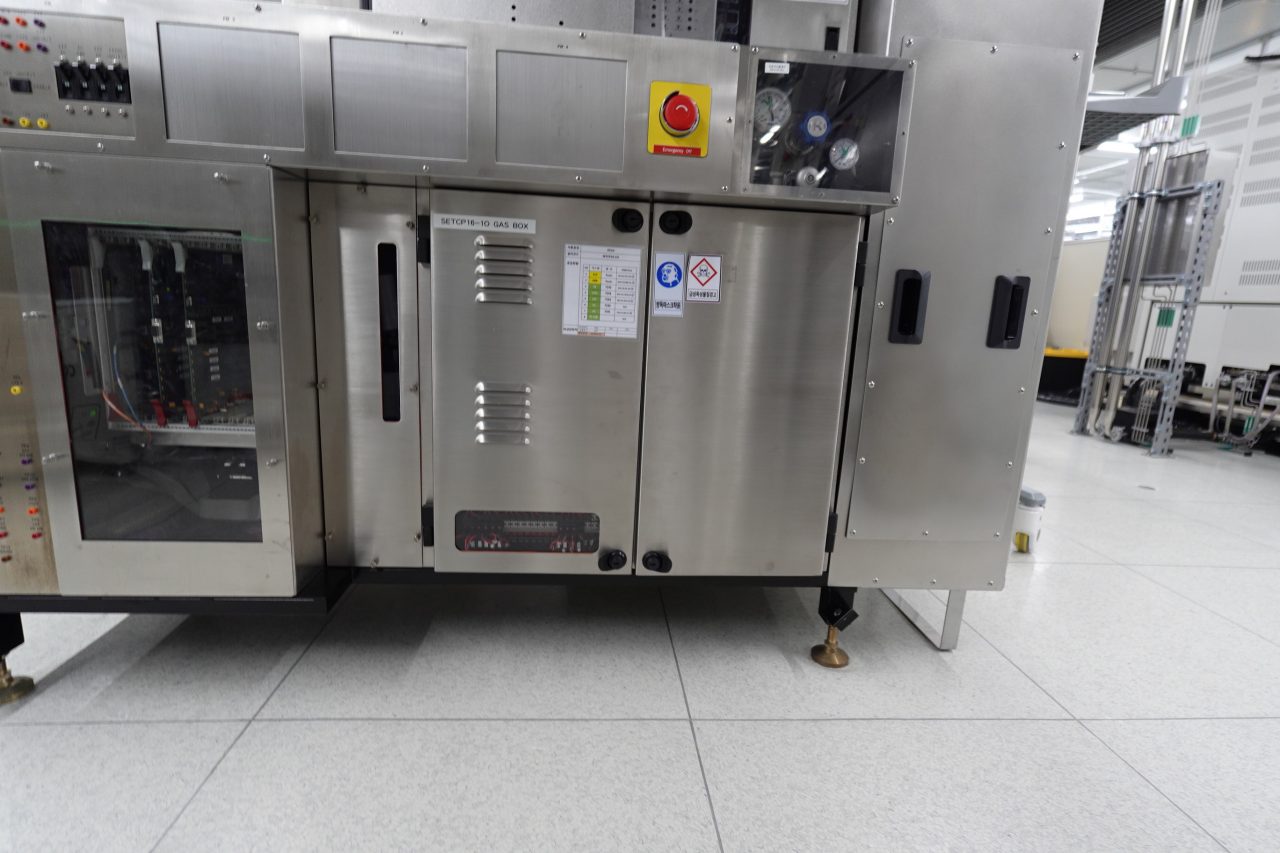

| Gas Box Configuration | ||||
| Gas Box Model | ||||
| Lam Part Number | ||||
| Maximum Number of Gas Lines | Enhanced (12) | |||
| Gas | Gas | Flow (sccm) | MFC Mfgr. | MFC Model |
| Line # | ||||
| 1 | CL2 | 200 | Brooks | GF125CXXC |
| 2 | HBR | 500 | Brooks | GF125CXXC |
| 3 | SF6 | 200 | Brooks | GF125CXXC |
| 4 | O2 | 100 | Brooks | GF125CXXC |
| 5 | HE | 1000 | Brooks | GF125CXXC |
| 6 | CF4 | 200 | Brooks | GF125CXXC |
| 7 | AR | 500 | Brooks | GF125CXXC |
| 8 | O2 | 30 | Brooks | GF125CXXC |
| 9 | N2 | 100 | Brooks | GF125CXXC |
| 10 | SF6 | 25 | Brooks | GF125CXXC |
| 11 | CL2 | 200 | Brooks | GF125CXXC |
| 12 | C3F8 | 300 | Brooks | GF125CXXC |
| 13 | BACK HE | 50 | UNIT | UPC-8130 |
| Chiller Controller (COEN1102UZN 3 Unit) | ||||
