LAM Research Rainbow 4520i

Equipment details:

Date of Manufacture:

Currently Configured for: 150mm

Current Equipment Status: Available

Location of Equipment: Czech Republic

Available date: Currently Available

Description:

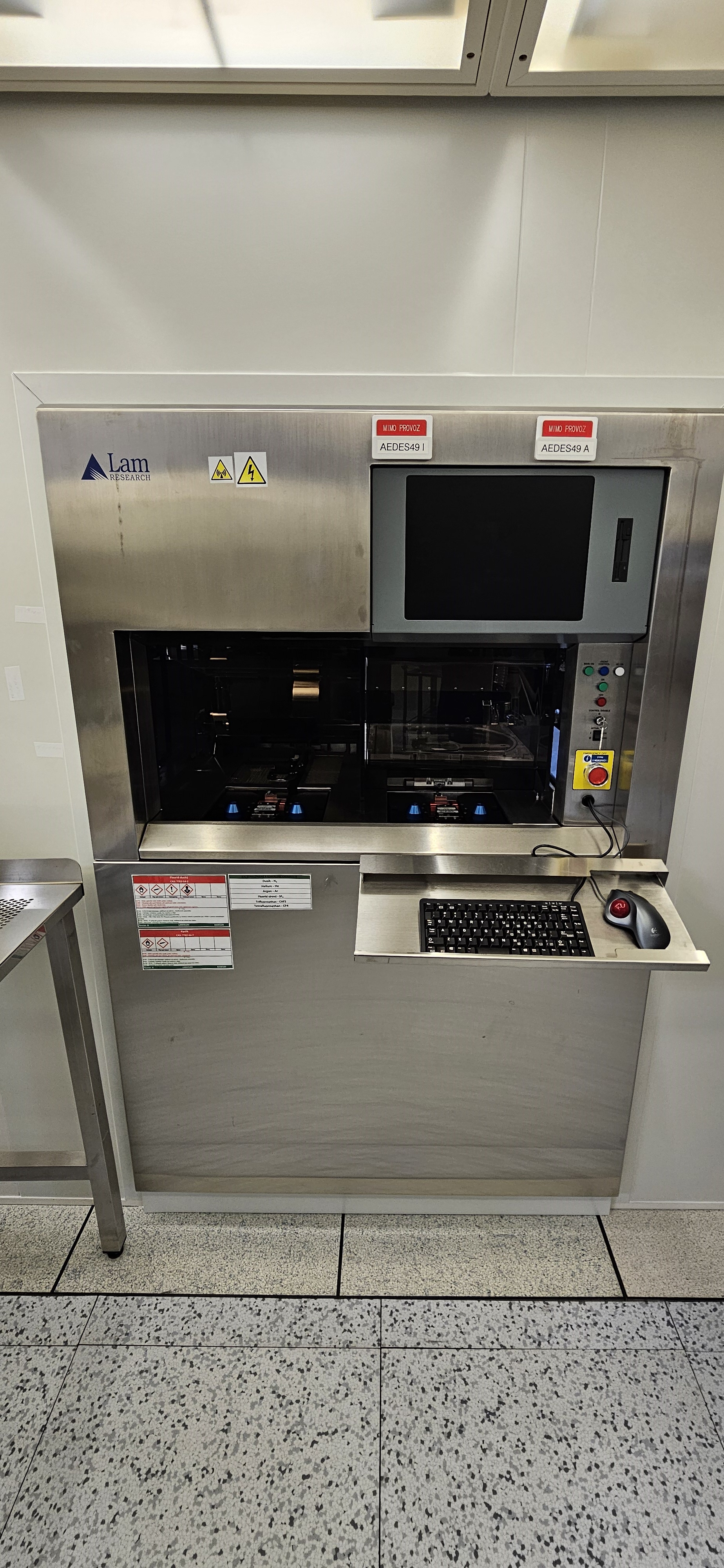

Install Type     Through-the-wall

Software Type               Lam Envision

Software Version        E 1.5.2

Is System On-Line?   No

CE Mark Certified?    No

SECS Interface             Yes

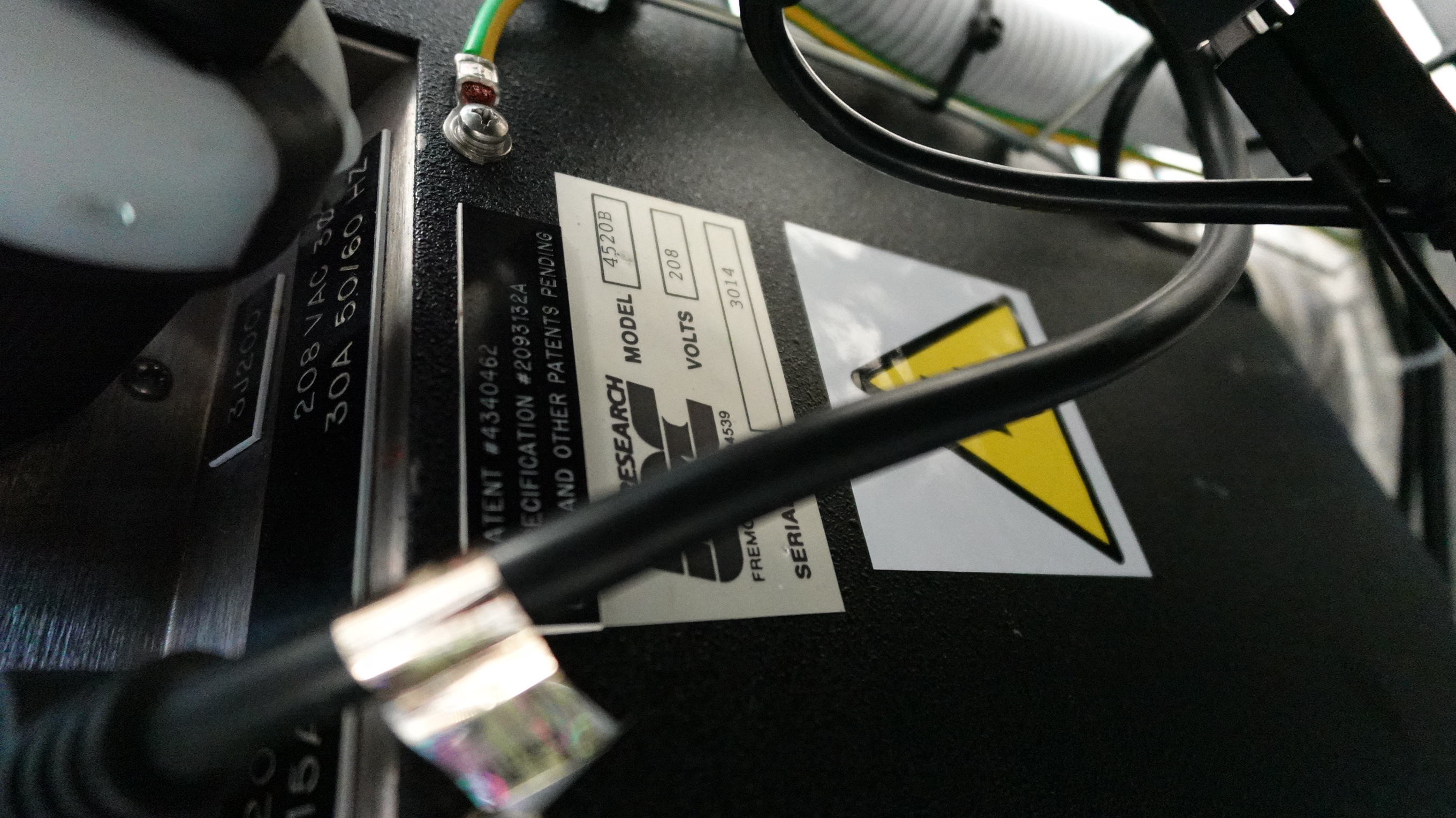

Electrical Requirements        208V/30A/50Hz

OEM Audit Available?              No

Decontamination Report Exists?     No

Can Produce Wafers AS IS? Yes

Any Known Field Modifications?      No

All Cables Present?   Yes

Gas Panel Type            Standard

RAINBOW

PM 1 / Main Chamber              Oxide Etch

Key Common Options            Included?

Electrostatic Chuck  No

Turbo Pump On Process Ch(s)          No

Signal Lamp Tower     No

Bolt-On-SMIF No

Built-In SMIF  No

Loadport Make/Model 38A Elevator

Endpoint Detection System Yes

Endpoint Type Monochromators

Endpoint (1) Lam Part # Ep200Mmd

Clean Room Manuals No

Standard Manuals No

Isotropic Etch Module Yes

Autoloader No

Built-In Hepa Filter No

Orbitally Welded Gas Box Yes

Backside Helium Cooling Yes

Helium Cooling MFC Type    UNIT UPC1300

Heated Pumping Manifolds Yes

On-Board RF Generators       No

Remote RF Cart           Yes

RF Cart Lam Part #    LAM

RF Match Type and Model (if not Lam) AE RF Navio

Remote Gas Box         No

Remote Operator Interface  Yes

Main On-Board AC Distribution

Type     Circuit Breaker

Remote AC Box           No

Pump Controller         No

Hine 38A Indexers      No

Atmospheric Passivation Module    No

Plasma Load Lock (PLL)        No

High Conductance Manifold              No

PM 1 / Main Chamber              Advanced Energy        PDW2200

PM 2 / Isotropic Ch. / PLL      ENI       OEM 12 A

Key Common Options            Included?

Electrostatic Chuck  No

Turbo Pump On Process Ch(s)          No

Signal Lamp Tower     No

Bolt-On-SMIF No

Built-In SMIF  No

Loadport Make/Model             38A Elevator

Endpoint Detection System Yes

Endpoint Type               Monochromators

Endpoint (1) Lam Part #          Ep200Mmd

Clean Room Manuals             No

Standard Manuals     No

Key Rainbow Mainframe Items

Isotropic Etch Module             Yes

Autoloader      No

Built-In Hepa Filter    No

Orbitally Welded Gas Box     Yes

Backside Helium Cooling     Yes

Helium Cooling MFC Type    UNIT UPC1300

Heated Pumping Manifolds Yes

On-Board RF Generators       No

Remote RF Cart           Yes

RF Cart Lam Part #    LAM

RF Cart Machine Time

RF Match Type and Model (if not Lam)         AE RF Navio

Remote Gas Box         No

Remote Operator Interface  Yes

Main On-Board AC Distribution

Type     Circuit Breaker

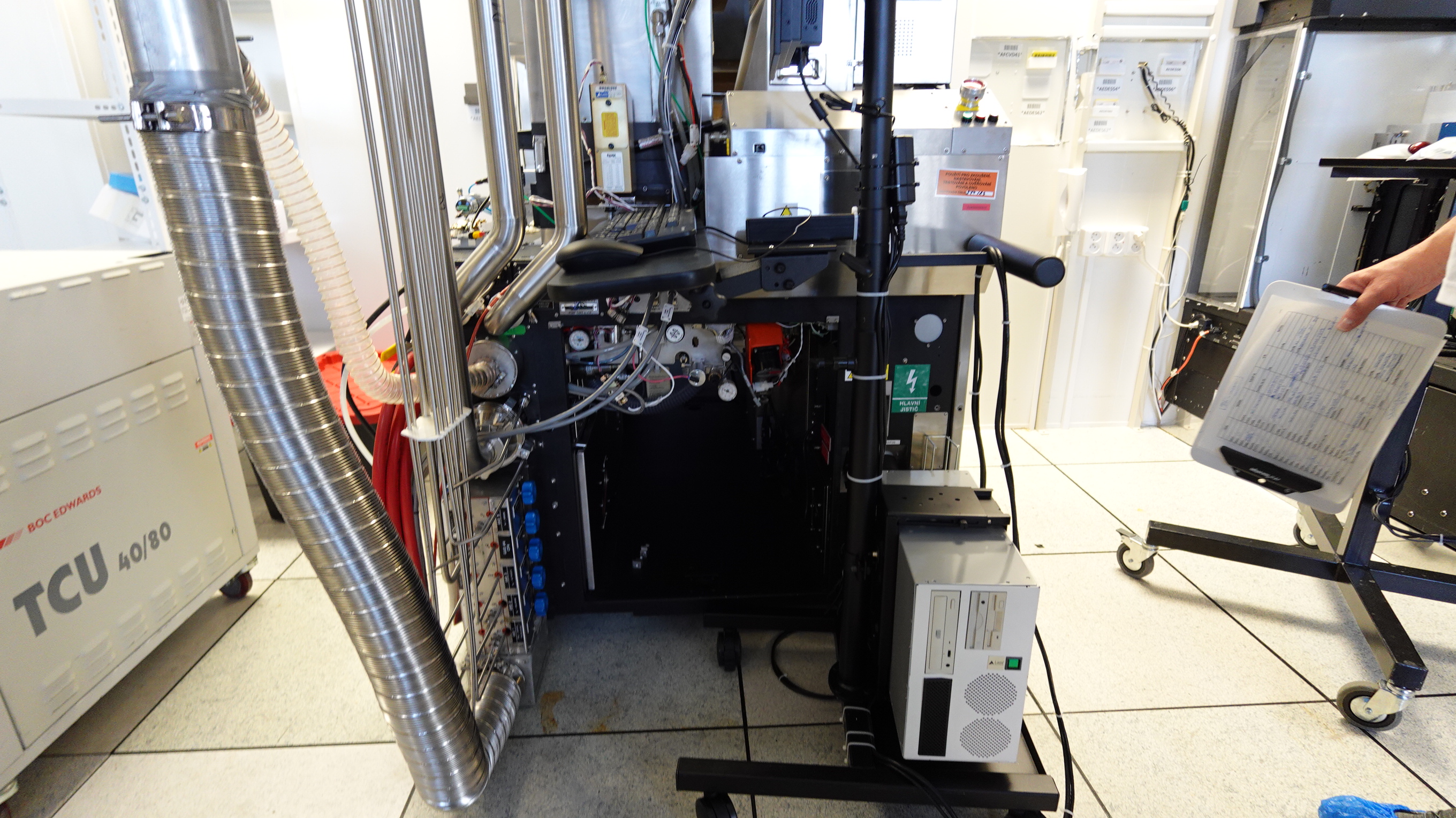

Chiller Information

Manufacturer Edwards

Model TCU2080

# of Cooling Channels Two

Quantity Required     1

Included With System             Yes
