Macquarie Semiconductor and Technology on behalf of Micron Technology Taiwan, Inc. (F11)

Lam Research EOS

Asset ID: 79171

Print spec sheet

Lam Research

EOS

Single Wafer Processing

Etch/Clean - Wet Processing

Equipment details:

Date of Manufacture: 2014

Currently Configured for: 300mm

Current Equipment Status: Available

Asset HDD not included

Location of Equipment: Taoyuan City, Taiwan

Available date: Currently Available

Process: BACKETCH


Tool config is based on original PO, please verify tool details at tool inspection


Process: SWC_300HF Processes

Sending Site Workstation Name: SWC_300HF_EOS

Software Version (include revision #): 1.84-SP9-SC8-HF6-Release

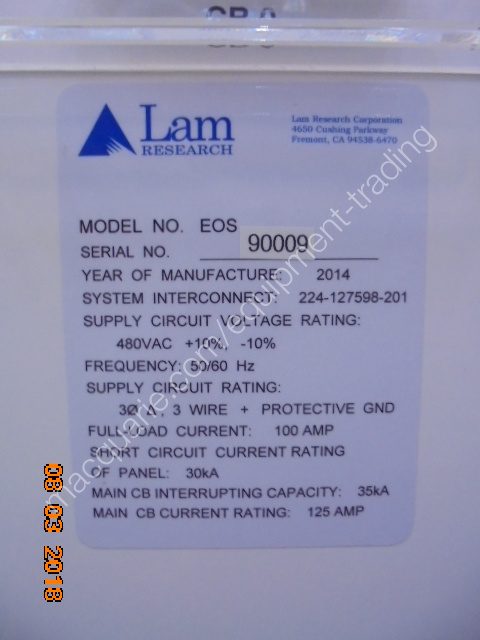

System Power Rating: 208AC 3-phase for System


Chm/Unit Position  1: process chamber- 300:1DHF, DICO2, N2, IPA

Chm/Unit Position  2: cabinet- IPA, 300:1DHF, CDA, N2, DICO2, DIW

Chm/Unit Position  3: DICO2 module- CO2, DIW, CDA

Chm/Unit Position  4: Chiller- PCW, DHF


Base System

Front End Robot.: Vortex

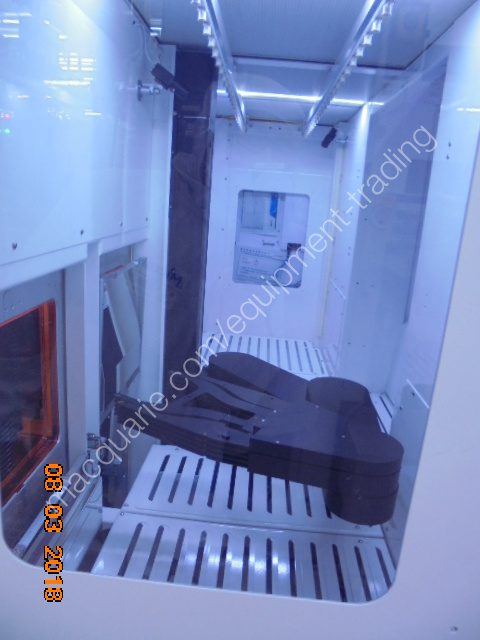

Process Robot: Vortex Qty 2

Host Controller: Host Interface

Product Type: EOS GS L

Wafer Mapping capability: E84 Parallel I/O Sensors


System software

PC Version: OUI software

Main Controller: System software

Host Controller: Host Software


FOUP Station

FOUP: 300mm FOUP

Load Port: Number of FOUP


Process Module 1-16: Lam

ACID Cabinet ICDS1: (80 liters on EOS),DHF,20L for 100:1 HF (80 liters on EOS)

ACID Cabinet ICDS2: (80 liters on EOS) ,5L for IPA Yes

ACID Cabinet ICDS3: (80 liters on EOS),DHF,20L for 100:1 HF Heat Exchanger

ACID Cabinet ICDS4: (80 liters on EOS) ,5L for IPA

Exhaust Control: Acid Exhaust

DIW System: From Tool Main Frame ,Dispense 4 DIW

Gas System: From Tool Main Frame, N2

Gas System: From Tool Main Frame, CDA

Process Module 1-16: Acid Exhaust line Yes

Process Module 1-16: Alkali Exhaust line Yes

"Fire Extinguisher: Required for IPA

 dry(set)繹寶 "

DICO2 module: mixing DIW and CO2

Chiller: PCW to control chemical timperature

CCTV box: local

Cooling system: Cooling DHF system

Safety Precautions: LOTO Independent lockout device for each chemical and gas line for maintenance

Facilities: Chemical Line Connection Rear Bottom (C.S.S.)

Facilities: Electrical Supply Option for transformer(208 to 400V).


N2 Load Port Exists: No


Chemical Mixing and Supply

Supply line

Line 1: DHF

Line 2: IPA

Line 3: SC1


Setting Ratio: MML mixing

DHF: 1:300/1:100

IPA: recipe set

DIW: RT


Flow rates

DHF: 2000ml/min ,1500 ml/min (needle valve controlled)

DI: 1500 ml/min(needle valve controlled)

IPA: 100~145 ml/min


Damage/Missing parts list

Please inspect tool to reconfirm

Dry pumps and customer provided items not included on sales

Enquire about this product

I agree to receive further communication from Macquarie Group Limited in accordance with its Privacy Policy, as amended from time to time.

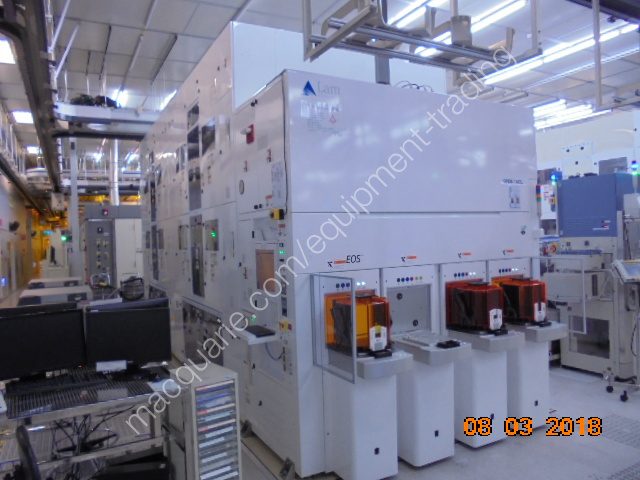

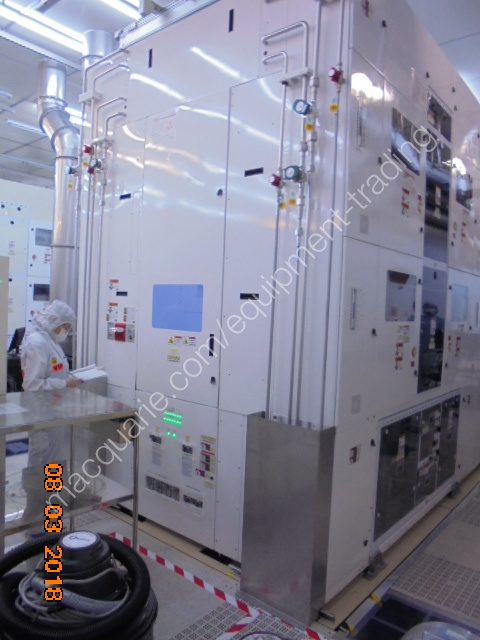

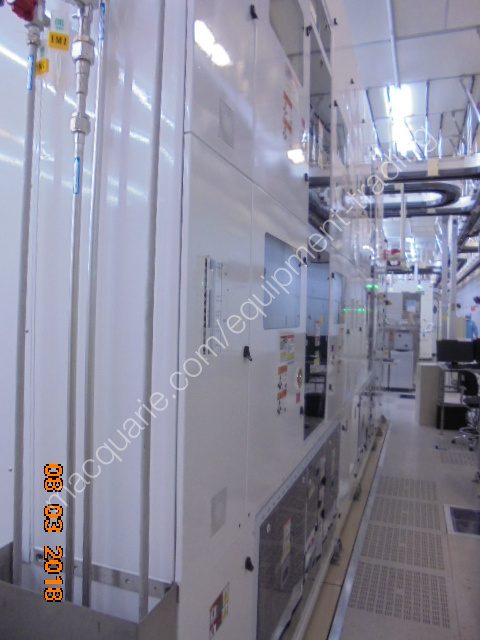

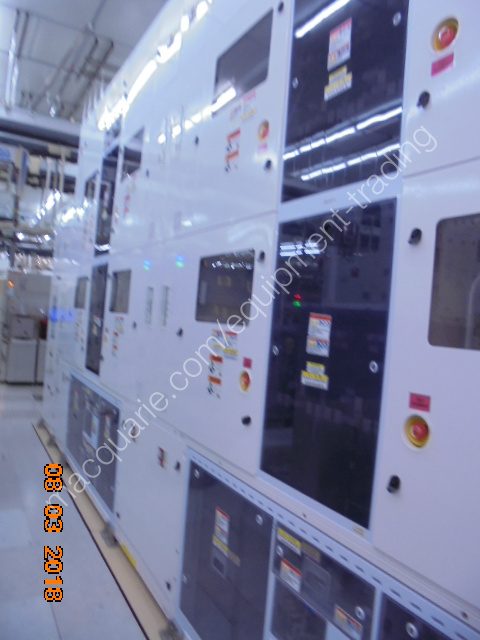

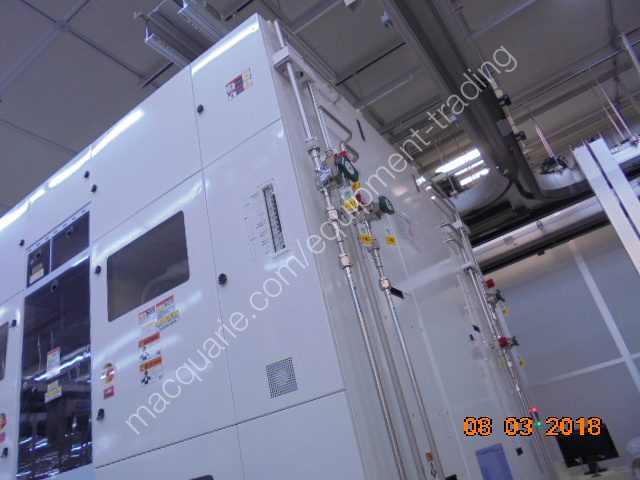

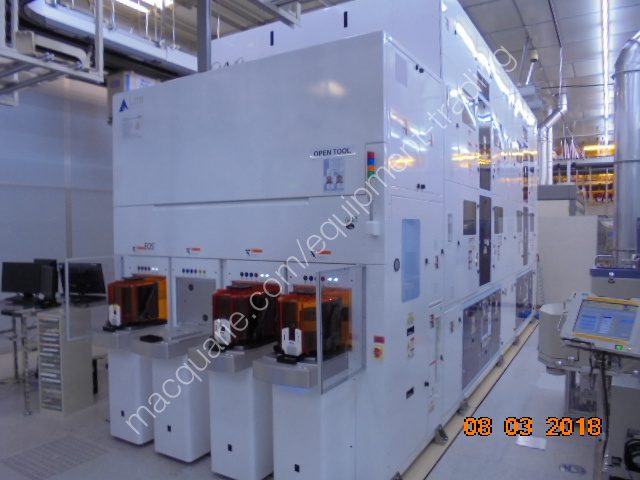

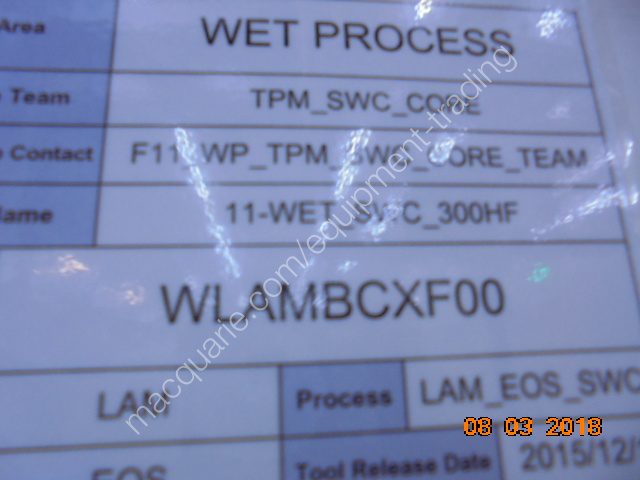

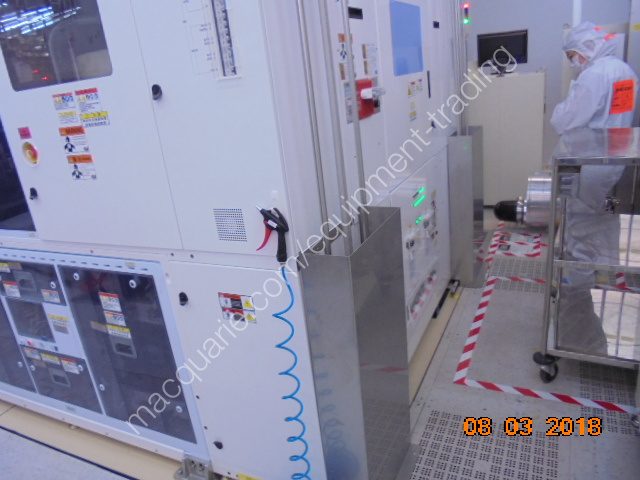

Product Images
