VERSA CONN CORP.

WB-302 Triple+

Semi Automated High Force Wafer Bonder

Wafer Bonding

Equipment details:

Date of Manufacture:

Currently Configured for: 150mm

Current Equipment Status: Available

Asset HDD not included

Location of Equipment: Hsinchu 308, Taiwan

Available date: Currently Available

Feature :

The purpose of this machine is to heat and cool 2 wafers in a vacuum with glue, and glue the 2 wafers together.

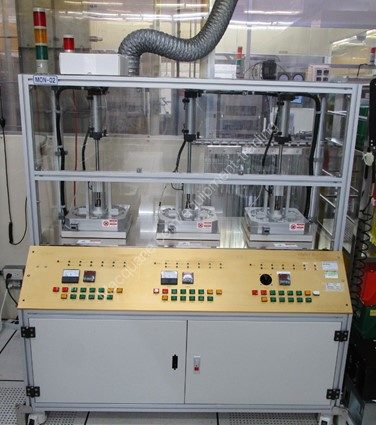

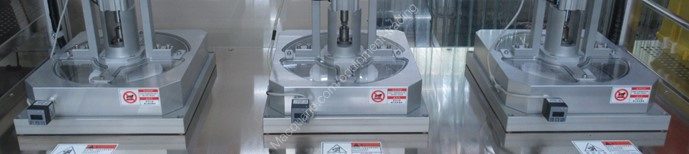

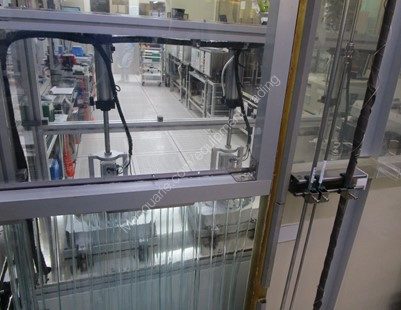

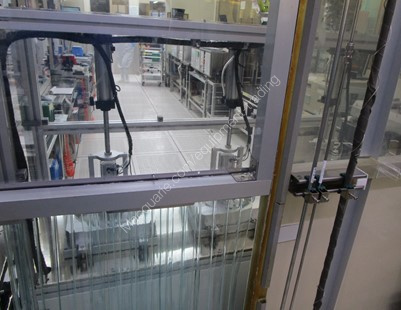

This machine has 3 identical working lines, which can be operated at the same time.

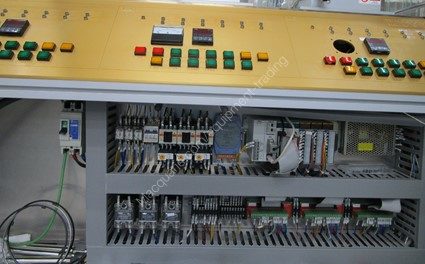

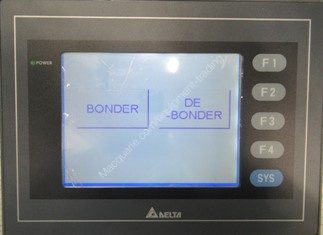

PLC controller for 3 line individually

PS30V pressure controller

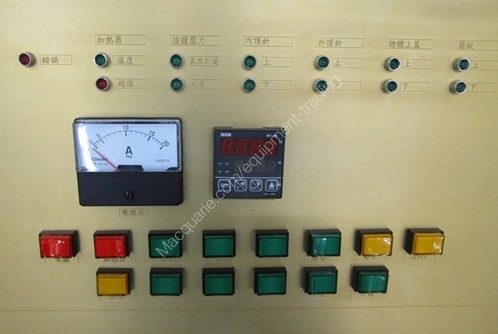

MT PID+Fuzzy Temperature controller

Size: 1,400 x 700 x 1,740 mm

Weight : 250 kg


HARD DRIVE WILL BE REFORMATTED. OPERATING SOFTWARE IS NOT INCLUDED.

Inspect to confirm configuration and condition.

Date of Audit:2022/03/11

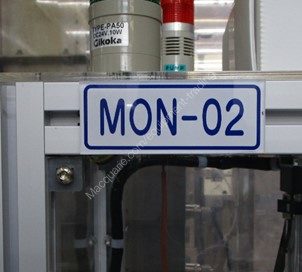

Fab Equipment ID:MON-02

Manufacturer (Make):新鶴股份有限公司(VERSA CONN CORP.)

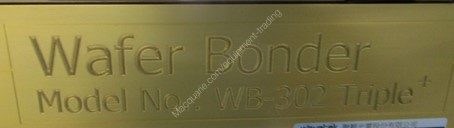

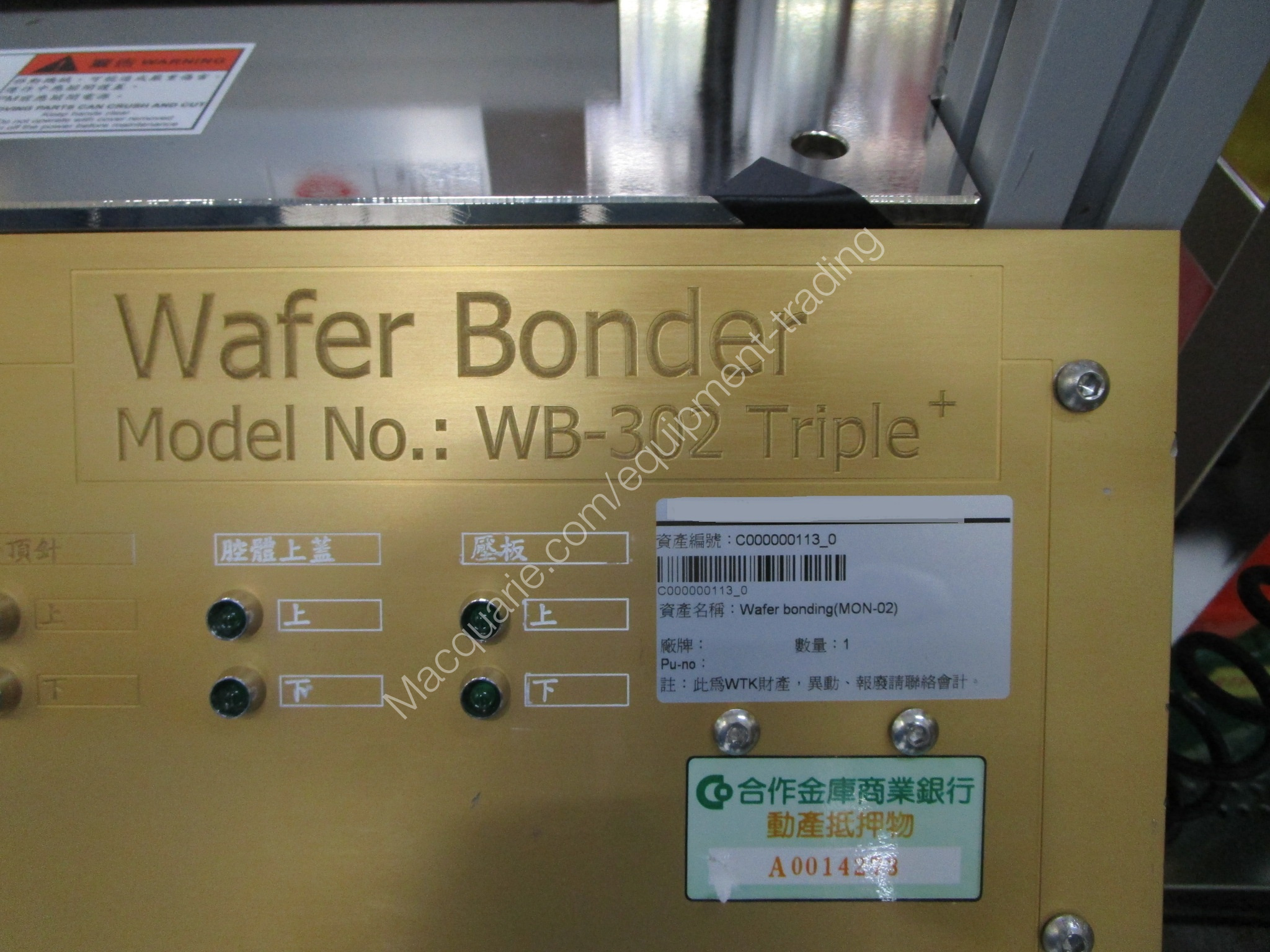

Model WB-302 Triple+

OEM MFG Date:2012.10.12

Install Date:2012.10.15

Date of Last PM:2021.12.13

Is System On-Line? No

Off-Line Date (if applicable):2021/12/14

Can Produce Wafers As-Is ? Yes

CE Mark Certified ? No

Are any Manuals included ? Yes

OEM Audit Available? No

3rd Party Audit Available ? No

Decontamination Report Exists? No

Any Field Modifications ? Yes

All Cables present ? Yes

Any Corrosion visible on modules ? Yes

Any Missing / Damaged Parts ? Yes

Shipping Brackets Included ? No

Wafer Handler:No

Handler Type:No

Robot Type:No

End-Effecter Type:No

Pre-Aligner ? No

Mini-Environment? No

Handler Options ? No

GEM / SECS ? No

HSMS:No

Serial :No

Ethernet:No

Other ? HID

Power Supply:Yes

AC Dist Box:Yes

Ext Transformer:No

UPS:No

Heat Exchanger / Chiller:No

Backing Pump(s):Yes

CDA:Min. 6 kg/cm2 Tube size: 10 mm

DIW:No

Vacuum:70cmHg; Tube size: 1/2”

Gas:No

Power :single phase 220VAC, 60Hz, 45A

Exhaust: Tube size: 4”

Are any Manuals included: Operation manual

Any Missing / Damaged Parts : thermostat

Equipment supplier has gone out of business


Missiing Parts : Current gage... etc

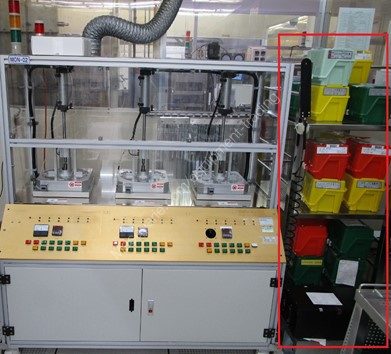

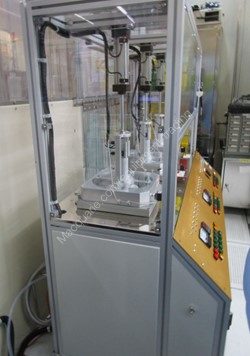

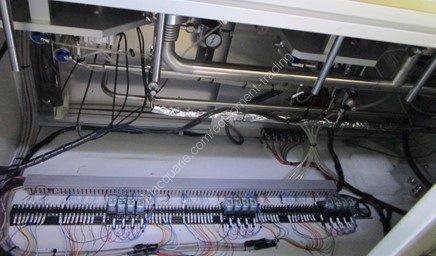

Product images

The information referenced on this page is accurate to the best of our knowledge. We do not warrant the completeness or accuracy of the information contained herein. Interested parties are encouraged to request inspection to verify equipment condition, configuration, and completeness. Any offer to purchase equipment shall be subject to our standard terms and conditions of sale.
