Date of Manufacture: 1997-01-08
Currently Configured for: 200mm
Current Equipment Status: Available
Location of Equipment: Oldham, United Kingdom
Available date: Currently Available

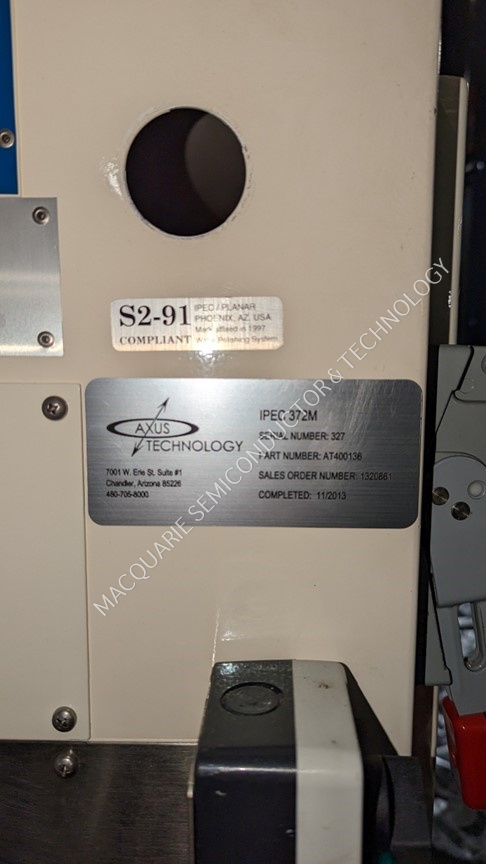

OEM: IPEC
MODEL: 372M
================= Feature for Reference =====================

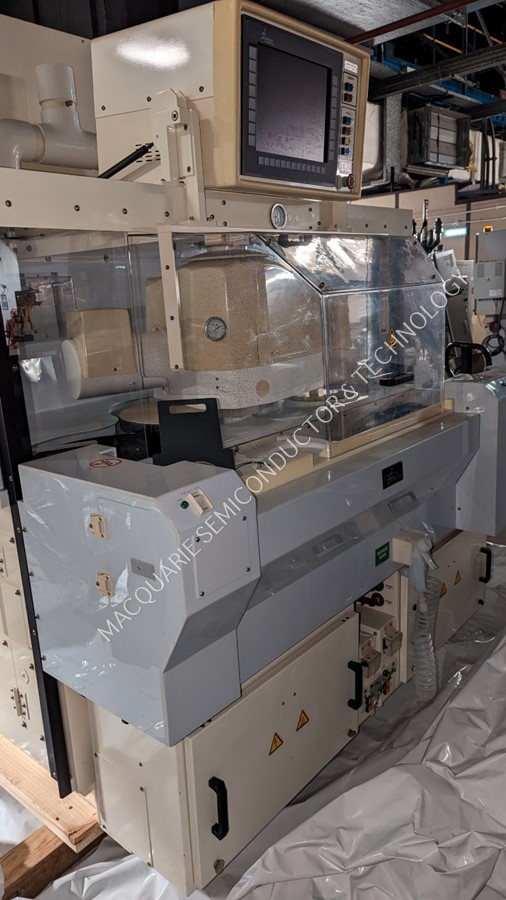

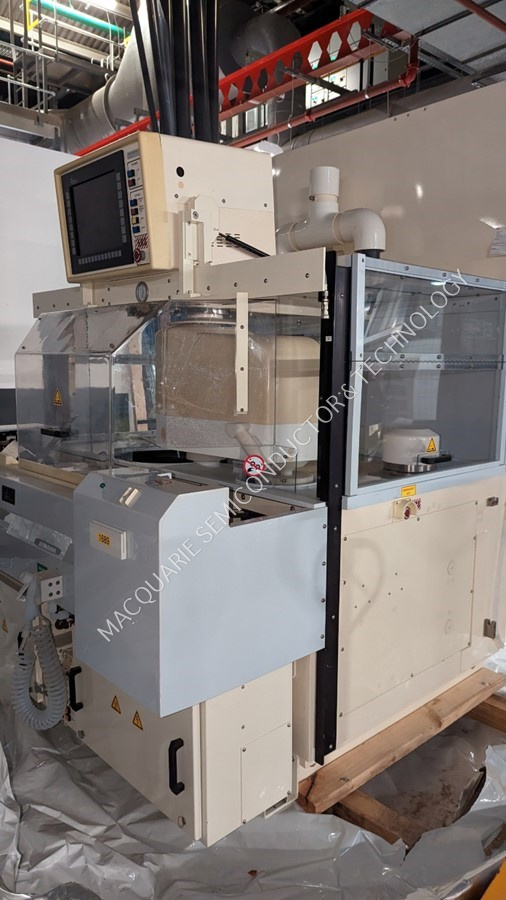

The IPEC 372M is one of the most widely installed CMP tools ever. Designed for both oxide and metal planarization processes, the IPEC 372M offers single wafer, two-step polishing for substrates up to 200mm.
Standard Features Include:

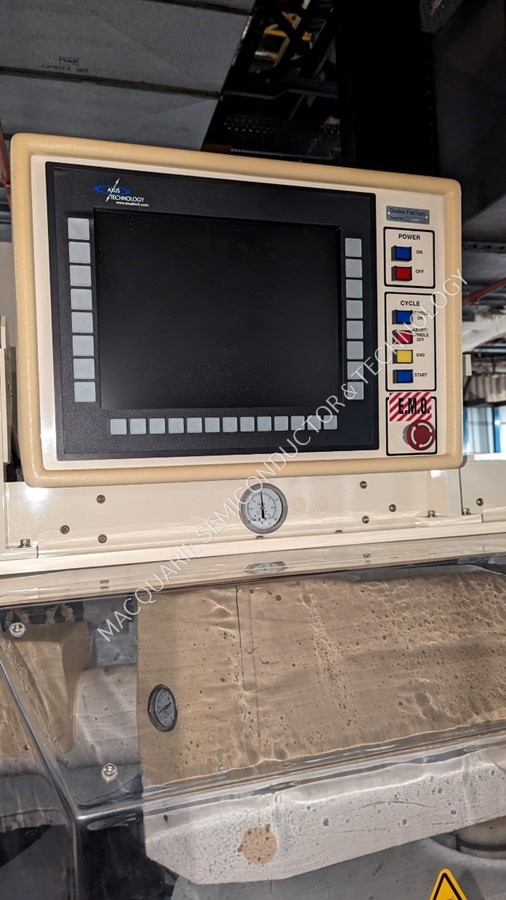

- Automated control with soft touch key pad

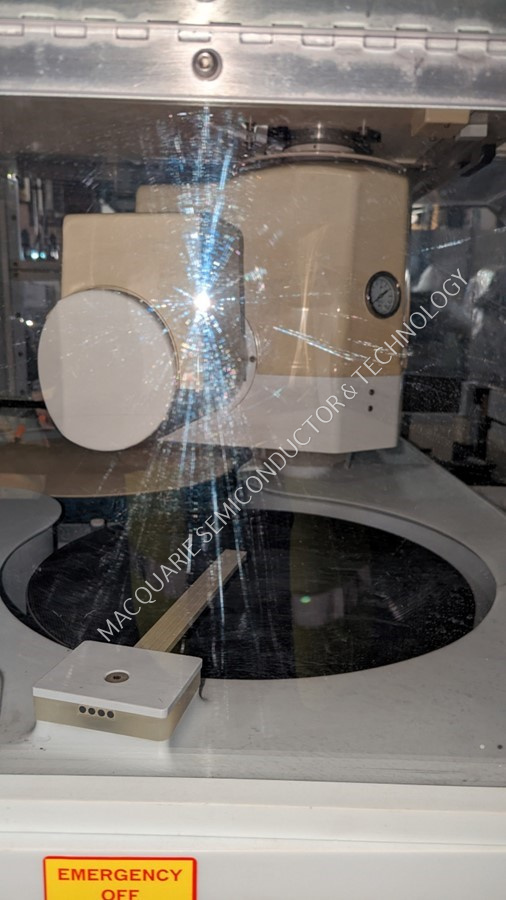

- Two platen process for post polish buff
- Multiple slurry dispense
- In-situ pad conditioner
- Material compatibility for medium and low ph slurries (1 – 12)
- Down force up to 750lbs.
- Controllable wafer back pressure
- Polish head clean station
- External interface for end point capability
Optional Features
- Multizone ViPRR carrier upgrade
- Temperature controlled platens
- SECS II Interface
Facilities:
- Dimensions: Width: 67”, Depth: 97”, Height 92”

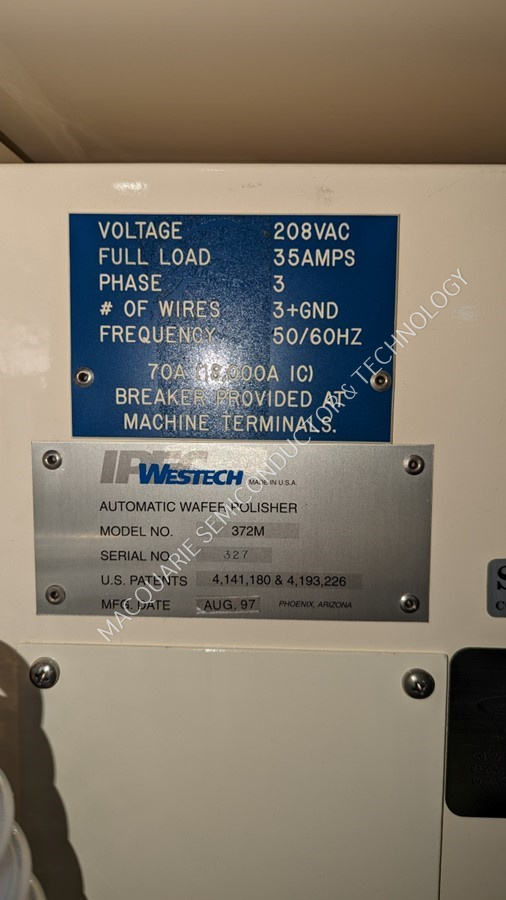

- Electrical, 208 VAC, 3-PH, 50/60Hz

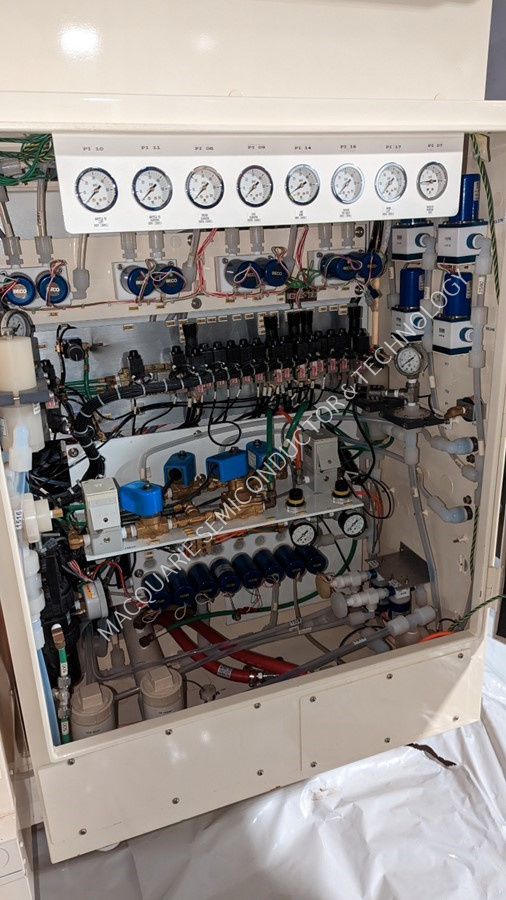

- DI Water: Avg Flow: 6gpm / Pressure: 25 – 30psi, minimum
- Nitrogen or CDA: Peak 10SCFM
- Compressed Air: 6SCFM
