WCVD (Chemical Vapor Deposition)
Date of Manufacture: 2004
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: Currently Available
Tool config is based on original PO, please verify tool details at tool inspection

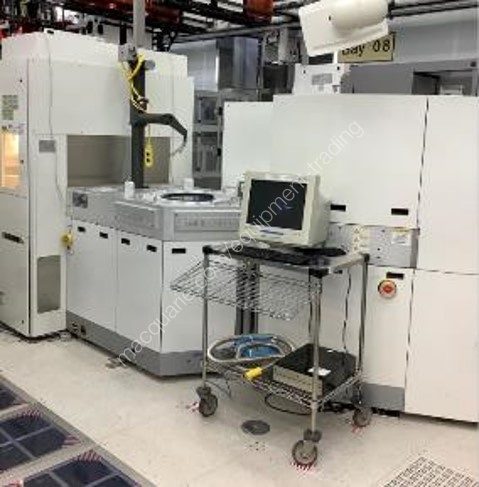

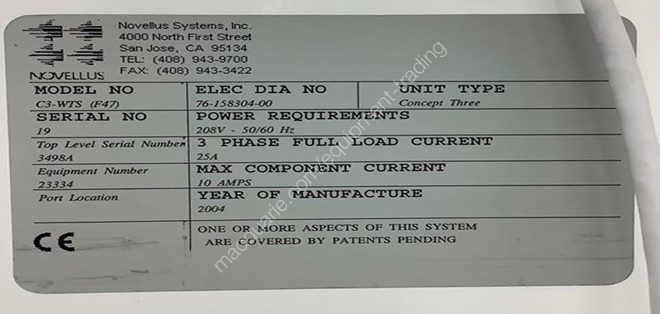

Tool Model: C3-SCON
System Power Rating: 208 AC 3-Phase

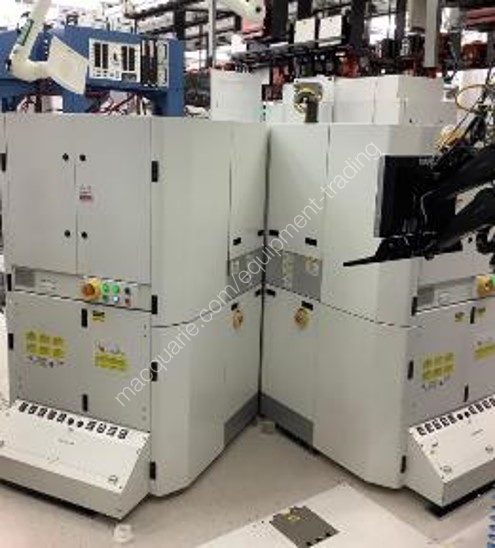

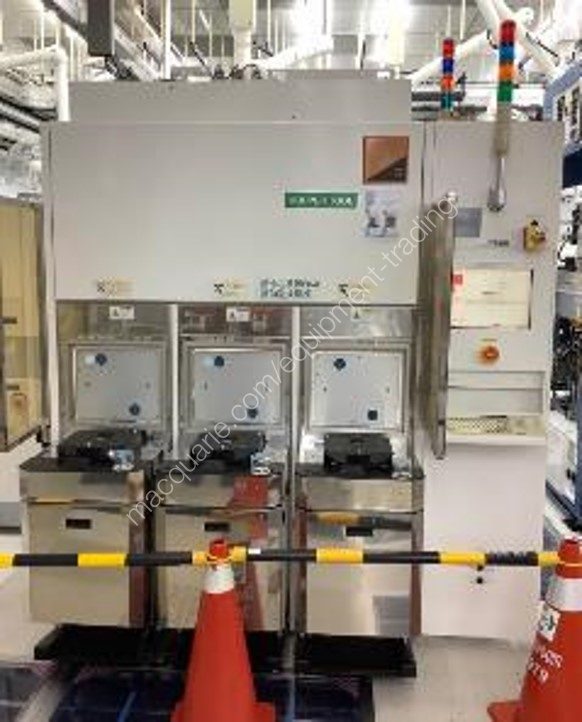

Loading Configuration: 3 load ports
Chamber lift pin Servo moter assembly Qty 2- Retrofit to servo moter from Pneumatic
Process Unit:4200-61 VIA W DEP
Chm/Unit Position 1: C3 ALTUS CHA; Chemicals / Gases Used: Ar/SiH4/H2/WF6/NF3/B2H6/N2
Chm/Unit Position 2: C3 ALTUS CHB; Chemicals / Gases Used: Ar/SiH4/H2/WF6/NF3/B2H6/N2
Basic System
Platform type: C3 WTS MC3
Chamber type: C3 ALTUS
Loadport count: 3
Required Software Revisions

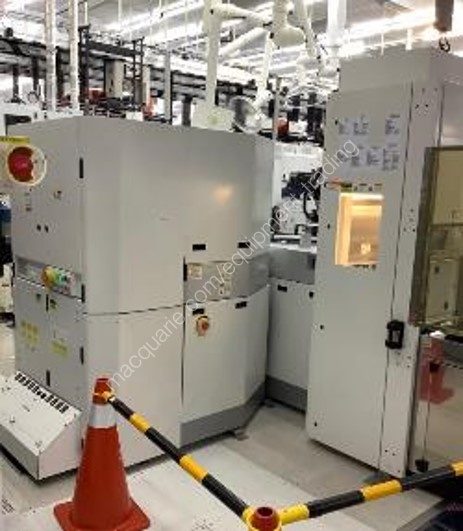

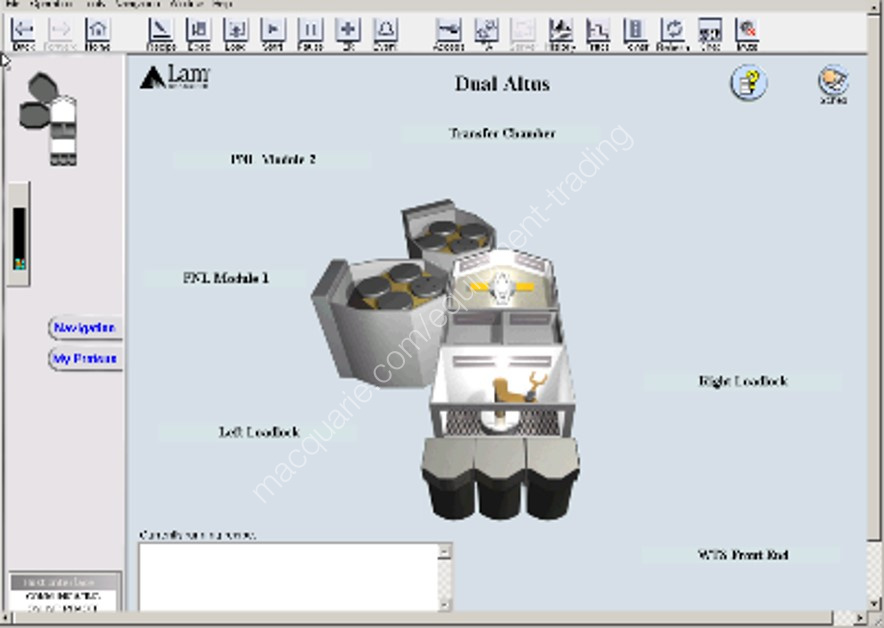

System software (Proteus): 2.657_151
System software (QNX): 5.86B150
WTS IOC0 firmware: SIOC 4.8
WTS IOC1 firmware: SIOC 4.8
WTS IOC E84/AWC firmware: NA
Altus IOC0 & IOC1 firmware: 02-274618-00 SIOC 4.8
Altus IOC2 firmware: 02-274618-00 SIOC 4.8
Windows version: Windows 2000
ATM robot firmware: WAVE2, 1.0T,CF2AB
Throttle valve controller firmware: NA
Supporting Remote Units
Transfer module pump: IH600
Loadlock pump: IH600
Hardware Configuration - Frame
Module controller: ASSY,CONTROLLER,MC4,ETHERNET, 02-423402-00
Platform controller: ASSY,CONTROLLER,MC4,ETHERNET, 02-423402-00
WTS IOC0: PCA,FIELD,WTS-3F,SIOC0, 03-157052-00
WTS IOC1: ASSY,PCA,FIELD SIOC1 WTS-3F, 03-144747-00
WTS IOC E84/AWC: NA
Altus IOC0 & IOC1: ASSY,PCA,FLD CONN,SIOC 0&1,300, 02-057949-00
Altus IOC2: ASSY,PCA,FLD CONN,SIOC2,300WCV, 02-109139-00
ATM robot kit: 63-283529-00
ATM robot end effector: 02-270536-01
Transfer module robot: 02-262511-00
Transfer module SMC valve: 60-251903-00
Cooling pedestals, LL-R: 02-164380-01 Right
Cooling pedestals, LL-L: 02-164380-02 Left
Throttle valve, WTS: 02-101445-00
LL ATM gate valve: 02-259468-00
LL vacuum gate valve: 60-052581-00
Leak check shutoff valve: 04-110786-00
Mini-environment AWC: Installed
TM AWC sensor transmitter: 27-053299-00
TM AWC sensor receiver: 27-053301-00
IMM-ready hardware: NA
Loadlock baratron: 27-126439-00
Transfer module baratron: 27-10340-00
Transfer module pump: IH600
Loadlock pump: IH600
He elimination loadlock: NA
FFU filter: PB-500 FFU Grade for HF (Novellus) Size, 002346-0002, 22-S4C22-1
FFU filter lifetime, chemicals of interest, limit: 3 months, NOX, < 6 ppb
Hardware Configuration - Chamber
Station 1 pedestal: 16-341152-00
Station 1 MOER: 15-105508-00
Station 1 showerhead: 16-289070-00
Station 2 pedestal: 16-341152-00
Station 2 MOER: 15-105508-00
Station 2 showerhead: 16-289070-00
Station 3 pedestal: 16-341152-00
Station 3 MOER: 15-105508-00
Station 3 showerhead: 16-289070-00
Station 4 pedestal: 16-341152-00
Station 4 MOER: 15-105508-00
Station 4 showerhead: 16-289070-00
Remote plasma clean: 27-261291-00
Indexer plate hub: 15-100082-00
Indexer plate upper assembly: 15-046309-00
Spindle assembly: 02-324753-00
IR endpoint detector kit: 34-348116-00
Leak check shutoff valve: 60-268274-00
Assembly, carrier ring holder (reduced tip wafer holder): 02-332440-00
Throttle valve PCV: 60-174047-00
TV controller/firmware: 27-146103-00
Gate valve, L-motion SMC: 60-313773-00
Symmetric foreline: 04-363404-00
Process 100T manometer: 27-10340-00
Process 10T manometer: 27-10343-00
Backside 100T manometer: 27-10340-00
SiH4/B2H6 canopy filter: 22-00006-00
Aligner: NA
UPC: 02-162343-00
Station 1 springs: 15-355501-00

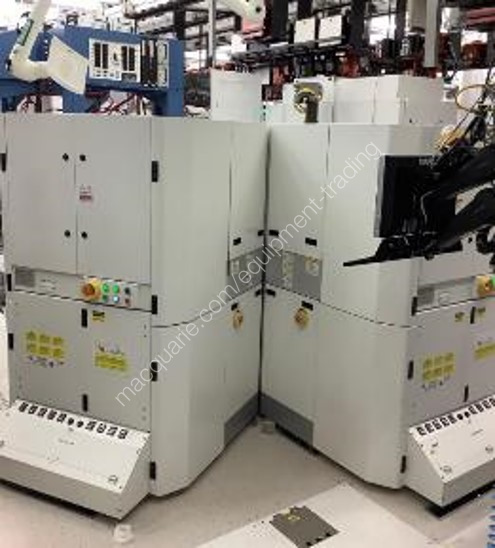

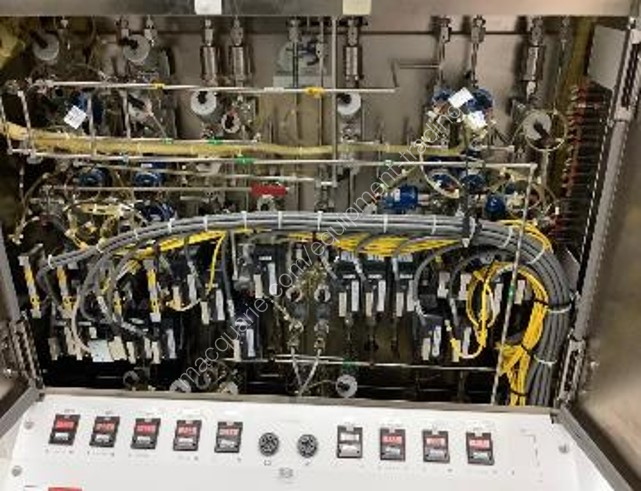

Gas Panel (part#, gas species, size):
Line 1, manifold D: AERA FC-D980, Ar, 5SLM
Line 2, manifold D: Aera FC-D980C-SiH4 / 500 SCCM
Line 3, manifold A: AERA FC-D980,H2, 30slm
Line 4, manifold A: AERA FC-D980, Ar, 20slm
Line 5, manifold W: Aera FC-D980C-WF6 / 500 SCCM
Line 6: na
Line 7:
Line 8, manifold C: AERA FC-D980, Ar, 20SLM
Line 9, manifold C: AERA FC-D980, H2, 30SLM
Line A: NA
Line B, manifold A: NA
Line C, Ar carrier: AERA FC-D980, Ar, 20SLM
Line D, manifold H: AERA FC-D980, Ar, 50SLM
Line E, manifold J: Aera FC-D980C-WF6 / 500 SCCM
Line F, manifold K: AERA FC-D980, Ar, 5SLM
Line G, manifold K: Aera FC-D980C-SiH4 / 500 SCCM
Line H: NA
Line I, manifold A: AERA FC-D980, NF3, 5SLM
Line J, manifold M: Aera FC-D980C-WF6 / 500 SCCM
Line K, manifold N: Aera FC-D980C-WF6 / 500 SCCM
Line L: NA
Line M, Ar carrier: AERA FC-D980, Ar, 20SLM
Line N, manifold D: AERA PA7800, B2H6, 750SCCM
Line P, manifold F: AERA FC-D980, Ar, 20SLM
Line X, manifold K: NA
Damage/Missing parts list
Please inspect tool to reconfirm
Pumps and customer provided items not included on sales
