Macquarie Semiconductor and Technology on behalf of Macquarie (Asia) Pte Ltd. - UMC

Tokyo Electron Ltd. (TEL) TELFORMULA Anneal

Disclaimer

The images and data contained herein is owned by Macquarie and is intended for use only by potential purchasers of goods shown herein. Except for such permitted usage, no other use of the images and data is permitted and such images and data shall not be exhibited or shown in any websites or social media or for any commercial purposes without Macquarie’s written permission. Therefore, no seller of goods like the goods shown herein has any right or authority to show or exhibit any images or data shown herein.


Asset ID: 210196

Enquire about this product Print spec sheet

Tokyo Electron Ltd. (TEL)

TELFORMULA Anneal

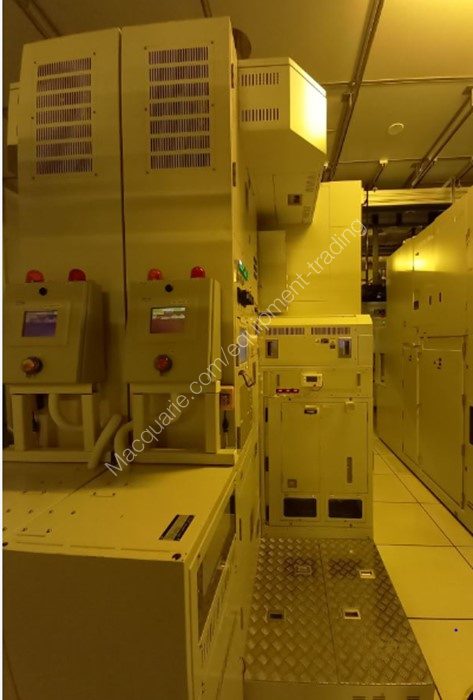

Vertical Furnace

Furnaces/Diffusion Systems

Equipment details:

Date of Manufacture: 2004-01-03

Currently Configured for: 300mm

Current Equipment Status: Available

Asset HDD not included

Location of Equipment: Singapore, Singapore

Available date: Currently Available

EQUIPMENT IDCUALLOY-03
AUDIT DATEJAN. 13, 2022

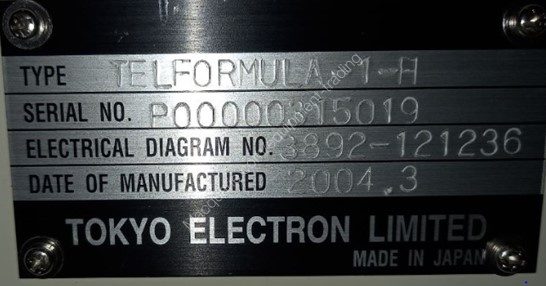

SERIAL NUMBERP00000315019
ORIGINAL SHIP DATESEPT. 2005

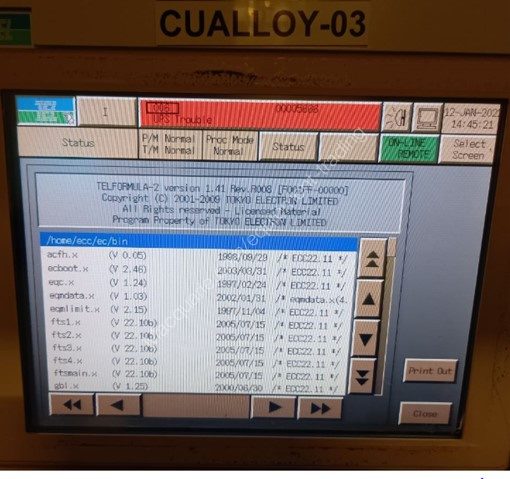

SOFTWARE VERSIONTELFORMULA-2 VERSION 1.41 REV. R009 (F007FF-00000)  SOFTWARE NOT INCLUDED
SYSTEM CONTROLLERTEL WAVES
DATE OF LAST PMAUG. 2021
SYSTEM ONLINEYES
CAN PRODUCE WAFERS AS ISYES
KNOWN FIELD MODSNO
ALL CABLES PRESENTYES
TEL MODEL NUMBERFORMULA REV 0
TEL PROCESS NAMEANNEAL
CUSTOMER PROCESS NAMECUALLOY
TEMP RANGE0-450C
PROCESS CONDITIONLP

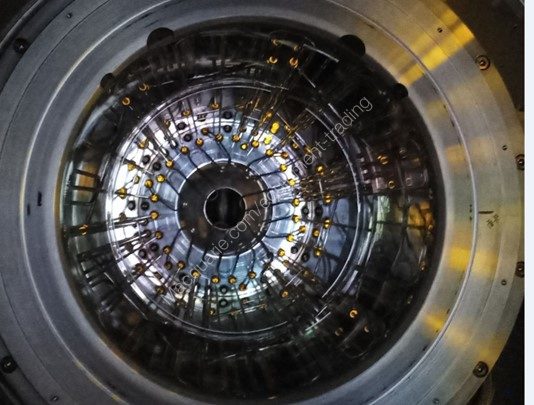

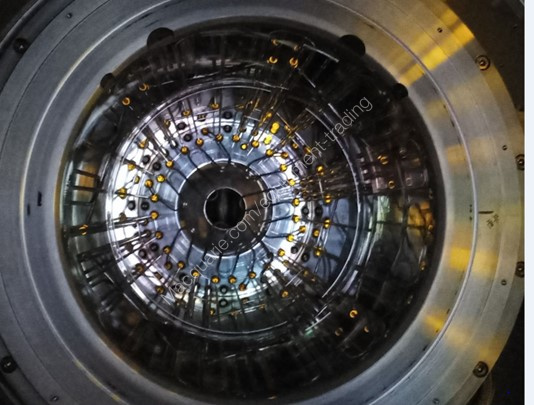

HEATER ELEMENT MODELLOW TEMP VCM-40-001L
FORCE AIR COOLINGYES
SIDE MAINTENANCEYES
O2 DENSITY CONTROLYES
N2 BOAT SHOWER WAFER COOLINGYES
FURNACE TEMP CONTROLLERYES
AUTO SHUTTERYES
WAFER TYPE300MM SI SEMI STD NOTCH
CARRIER TYPEASYST TYPE G4

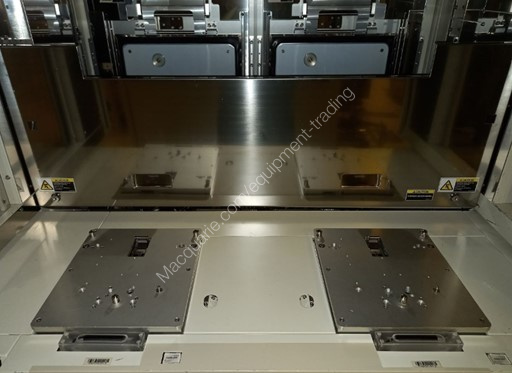

CARRIER STAGE CAPACITY4
WTU TYPETEL
QTY OF PRODUCTION WAFERS50
BOAT OPERATIONSINGLE

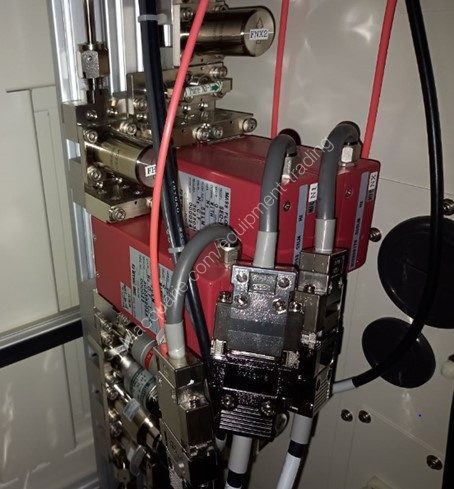

MFC OEMHORIBA
PRESSURE TRANSDUCERNAGANO KEIKI ZT15-Z20-17110(-0.1-0.5MPA)
GASMFC MODELLINEMFC SIZE
N2  F750BMOA1-800A-UCNX50SLM
N2  F740BMOA1-800A-UCN15SLM
N2  F730MOA1-800A-UCNW1300SCCM
N2  F730MOA1-800A-UCNW2300SCCM
H2 F740MCA1-800A-UCH25SLM
LOW TEMP HEATERS00170001ALLOY
VACUUM PUMP INCLUDEDYES
OEMEDWARDS
MODELIH80
N2 BALLAST PRESSURE CONTROLNO
VACUUM GAGES
2T1
10T1
100TN
1000T1
LOW VAUUM VALVEYES
MAIN VALVEYES
ELCTRICAL REQUIREMENTS400V

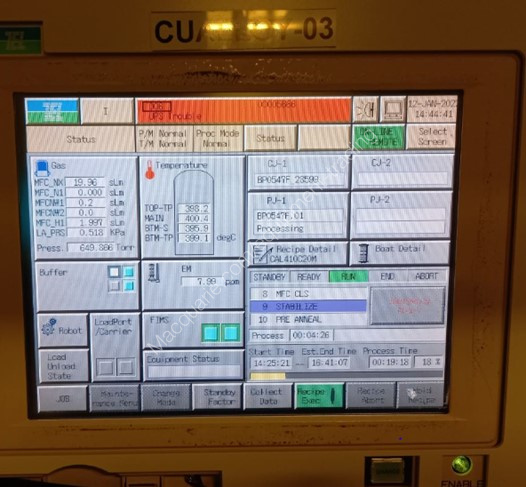

OPERATING SOFTWAREWAVES







Product images

The information referenced on this page is accurate to the best of our knowledge. We do not warrant the completeness or accuracy of the information contained herein. Interested parties are encouraged to request inspection to verify equipment condition, configuration, and completeness. Any offer to purchase equipment shall be subject to our standard terms and conditions of sale.
