Etch/Ash/Clean - Plasma Processing
Date of Manufacture: 2015
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: 8/31/2023
Tool config is based on original PO, please verify tool details at tool inspection
Model No. 2300e

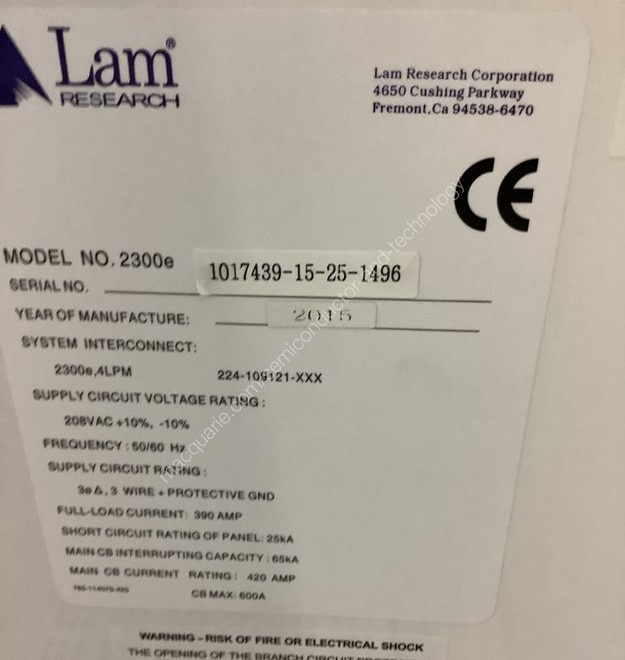

FI SN: 1017439-15-25-1496

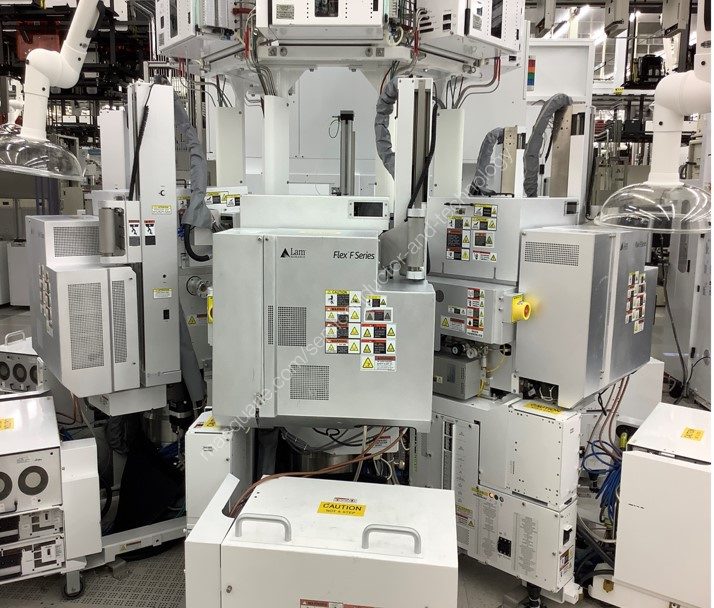

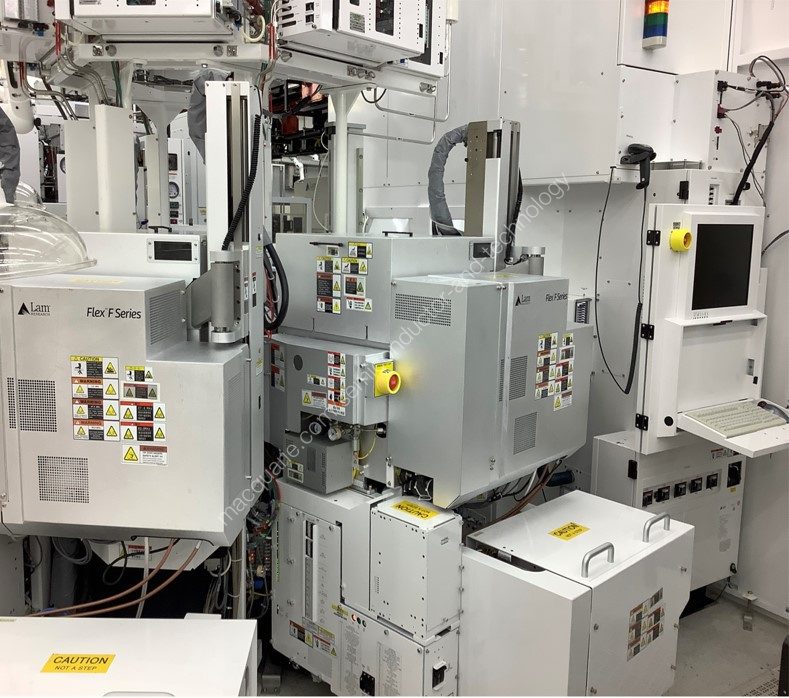

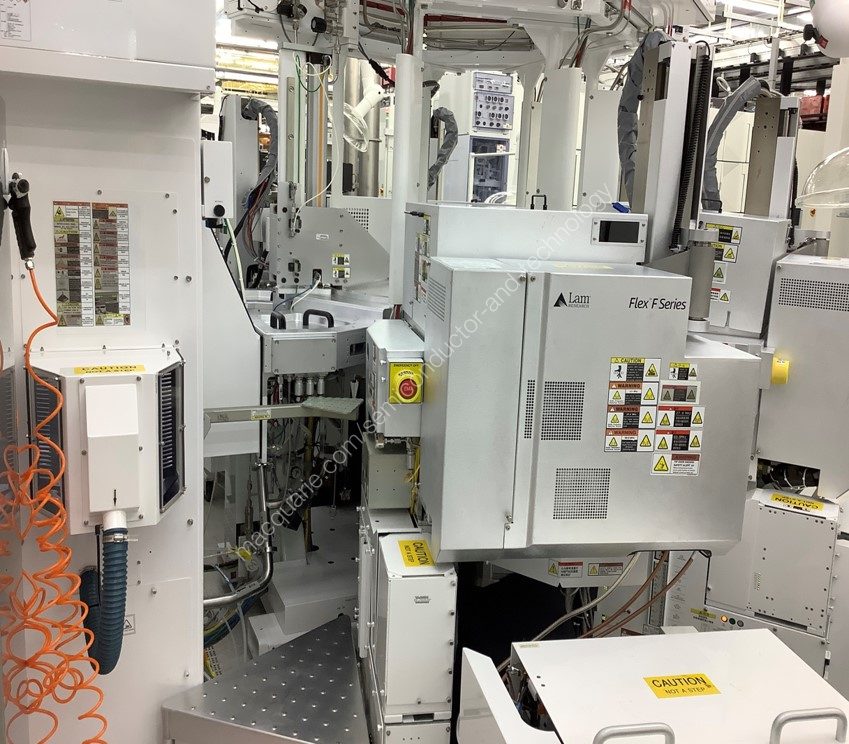

Model No. Flex FX Series

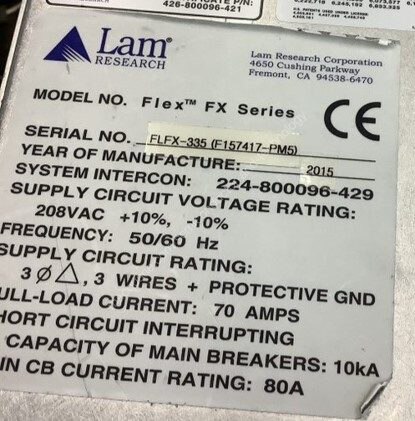

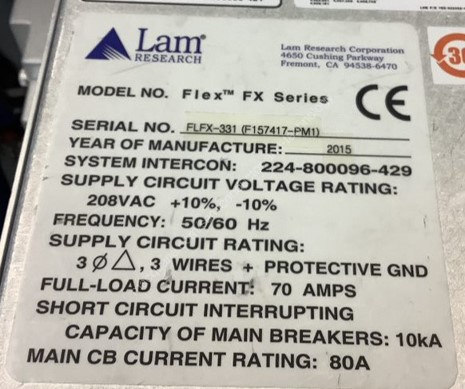

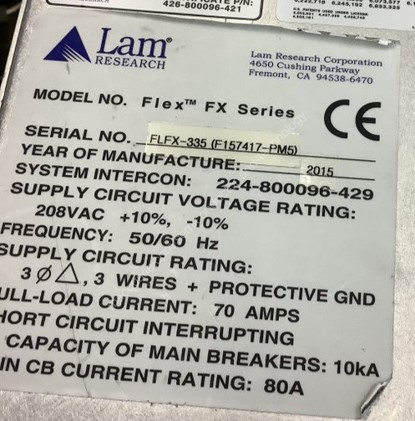

Ch1 SN: FLEX-331(F157417-PM1)

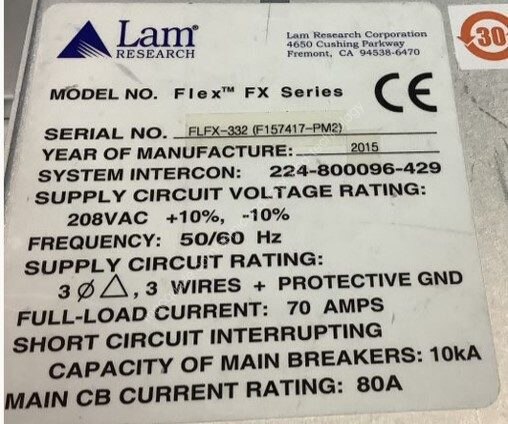

Ch2 SN: FLEX-332(F157417-PM2)

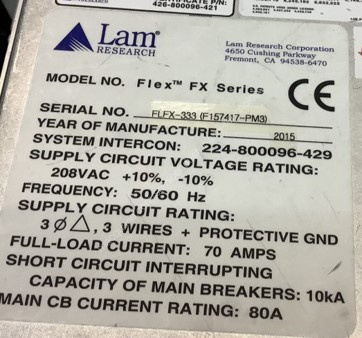

Ch3 SN: FLEX-333(F157417-PM3)

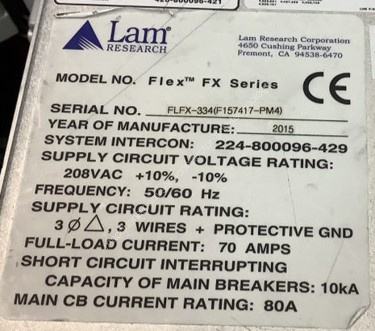

Ch4 SN: FLEX-334(F157417-PM4)
Ch5 SN: FLEX-335(F157417-PM5)
Process: Oxide
Software Version: 1.8.4 SP11-HF5
System Power Rating: 208 AC 3-Phase
Loading Configuration: 4 Load ports
Chm/Unit Position 1: 2300 Flex FX; Chemicals / Gases Used: C4F6, COS, O2, CO, CH2F2, C4F8, CH3F, CHF3, H2, NF3, N2, CF4, Ar, C4F8
Chm/Unit Position 2: 2300 Flex FX; Chemicals / Gases Used: C4F6, COS, O2, CO, CH2F2, C4F8, CH3F, CHF3, H2, NF3, N2, CF4, Ar, C4F8
Chm/Unit Position 3: 2300 Flex FX; Chemicals / Gases Used: C4F6, COS, O2, CO, CH2F2, C4F8, CH3F, CHF3, H2, NF3, N2, CF4, Ar, C4F8
Chm/Unit Position 4: 2300 Flex FX; Chemicals / Gases Used: C4F6, COS, O2, CO, CH2F2, C4F8, CH3F, CHF3, H2, NF3, N2, CF4, Ar, C4F8
Chm/Unit Position 5: 2300 Flex FX; Chemicals / Gases Used: C4F6, COS, O2, CO, CH2F2, C4F8, CH3F, CHF3, H2, NF3, N2, CF4, Ar, C4F8
2300 System
Wafer Size: 300 mm wafers
Wafer Config: SEMI
Cassette Type: 25 Slot Cassette
Process Module Position and Quantity: 2300 Exelan Flex FX
Gas Box Type: JetStream
2300 Process Module
Maintenance Kits: Quick Clean Kit
Maintenance Kits: Quick Clean Kit w/ Electrode
Maintenance Kits: Liner Kit (Qty = QCK qty + QCK w/ Electrode qty)
Maintenance Kits: Pendulum Valve Clean Kit
Service Kits: Service Tool Kit
Service Kits: RF Maintenance Kit
Service Kits: VCI Test Probe
Service Kits: Two Stage Calibration Kit
Service Kits: Service Platform
Service Kits: Generator Cart
Chamber Type: 2300 Exelan Flex FX
2300 Exelan Flex FX Options
Chamber Enhancement: Adv. Temp Control
Electrode Gap: Adjustable Gap
Process Hardware Finish: Polished
Electrode Step: .16 Step
Upper Electrode Socket: Standard
Gas Feed: Adv. Top Plate 2-zone Gas Feed
Top Plate Enclosure: Vented Top Plate Enclosure
Top PI Chamber Manometer: Baffle
Advanced Confinement Control: ACC+
Gasket: Medium Power Gasket
Coupling Ring: Standard
Wafer Clamping Mechanism: EP-518
ESC Cooling: Dual Control, Dual Zone
Pin Lifter: Standard Temp
Wafer Lifter: Two Stage
Edge Rings: 35 Deg CER
Bias Match,2MHz Generator: 2Mhz High Power Pulsed
Bias Match,27MHz Generator: 27MHz Pulsed
Bias Match,60MHz Generator: 60Mhz Pulsed
300MM Turbo Pump: 2700 L/s BOCE
Endpoint Detection: Chamber Configurables, Optical Endpoint
Module Options: Bellow Removal Tool
PM Facilities : Dual Channel Chiller
PM Facilities Flow Rate: 10GPM
Coolant Hoses: High Pressure
TCU Leak Detection: Optical Coolant Leak Detector
Foreline Manometer: Heated
Foreline Heater: Non-Heated
Chamber Isolation Valve: Bonded Viton Barr. Seal Door 2
Vacuum Valve: Chemraz
Lower Isolation Valve: Viton Dry
Interconnect Hardware, Pump to TCU: Interconnect Cable Length
Interconnect Hardware, TCU to PM: Interconnect Cable Length
Interconnect Hardware, Pump to PM: Interconnect Cable Length
EMO Cable, TCU to RPDB: EMO Cable Length
EMO Cable, Pump to RPDB: EMO Cable Length

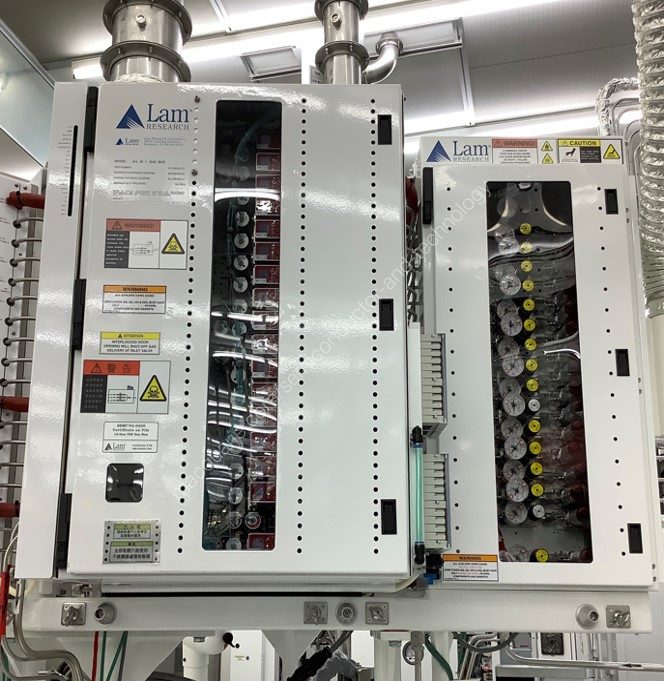

2300 Gas Box
Mounting Location: Transport Module
Door: Window
Primary Valve Options: Lock-out Tag-out Manual Valve
Facilitization: FIB
Facility Box Connection: Top Gas Connection
Facility Box Containment: Enhanced Containment
Facility Box Regulation: Tescom Regulator
Facility Box Filter: Nickel & SST(Gas Dependent)
Future PM: Position 1, 2, 3, 4, 5, 6
Inlet Pressure Measurement: Gauge Only
Gas System Exhaust: Top Exhaust
Gas System Option: IGS Tool Kit
Gas System Option: MFC Ergo Tool Kit
Gas System Option: Service Ladder
Gas System Option: Gas Box Hoist
Gas System Option: Upper Frame Lift Fixture
Gas System Option: AFVi
2300 Exelan Flex FX Gas Box Options
Process Gas Line Qty: Process Gas Line Qty _
Tuning Gas Options: 4
Heated Gas Lines: No Heated Gas Lines
Manifold Options: Multi-Exit (Pos 3 Exit)
AFVi Vacuum Weldments: Yes
Optional Gas Configuration: Custom Gas Lines
Gas Box Configuration
Gas Line 1: C4F6 200 sccm- STEC D219
Gas Line 2: COS 30 sccm - STEC D219
Gas Line 3: O2 20 sccm - STEC D219
Gas Line 4: CO 500 sccm - STEC D219
Gas Line 5: CH2F2 200sccm - STEC D219
Gas Line 6: C4F8 200 sccm - STEC D219
Gas Line 7: O2 200 sccm - STEC D219
Gas Line 8: CH3F 100sccm - STEC D219
Gas Line 9: CHF3 200 sccm - STEC D219
Gas Line 10: H2 300 sccm - STEC D219
Gas Line 11: NF3 30 sccm - STEC D219
Gas Line 12: N2 500 sccm - STEC D219
Gas Line 13: CF4 200 sccm - STEC D219
Tuning Gas 4/Line 14: AR 1000 sccm - STEC D219
Tuning Gas 3/Line 15: O2 3000 sccm - STEC D219
Tuning Gas 2/Line 16: O2 20 sccm - STEC D219
Tuning Gas 1/Line 17: C4F8 20 sccm- STEC D219

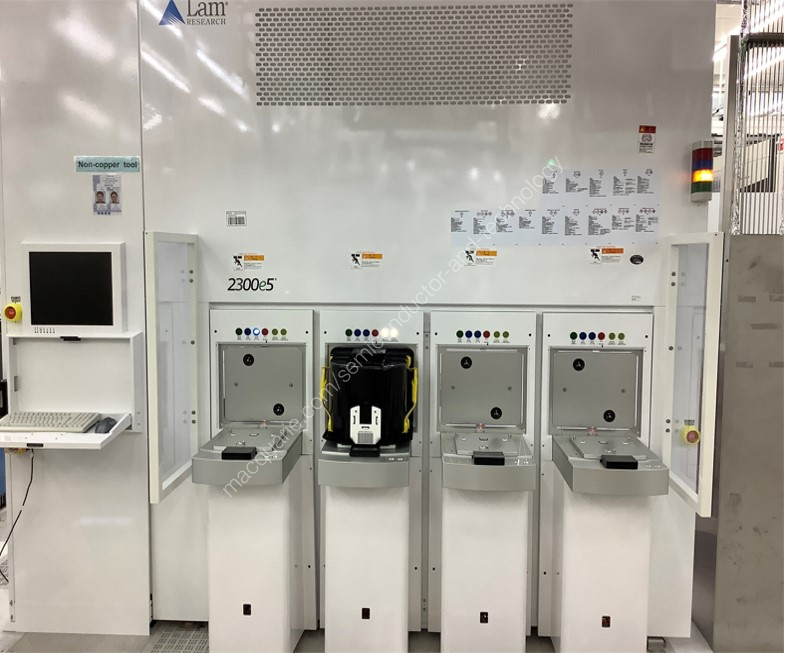

2300e Platform
ATM, EFEM: 3 Wide or 4 Wide EFEM Type
ATM Front Fascia: Standard Front Fascia
ATM Front End Load Port: 3 or 4 FOUP TDK
ATM Cassette ID: Selection for Carrier ID
ATM Wafer ID: WIDS Bottom Read
ATM, Light Curtain: Select if Light Curtain is needed
ATM Factory Automation: OHT PIO Sensor
ATM Wafer Aligner: Wafer Aligner
ATM End Effector Contact Pads: Kalrez
ATM Input Buffer Station: 25 Slot
ATM Auxiliary Buffer Station: 25 Slot Buffer Station Type
ATM,CTC Computer, Storage: Hard Disk Drive - Mirrored
ATM Controls User Interface: Tool Monitor and Keyboard configuration
ATM Controls UPS Circuitry: Selection for system UPS circuitry
ATM Controls ELB: Selection for Earth Leakage Breaker
VTM Throughput: Standard
VTM Loadlock A: Select appropriate configuration for platform type.
VTM Loadlock B: Select appropriate configuration for platform type.
VTM Conditioning Station A: No Conditioning Station
VTM Conditioning Station B: No Conditioning Station
VTM 25 Slot Buffer-Lwr Aux: Yes
VTM 25 Slot Buffer-Lwr Align: Yes
VTM 25 Slot Buffer-Lwr Alcove: Select if Buffer Station is needed in the Lower Alcove position
VTM 25 Slot Buffer-Upr Aux: No
VTM 25 Slot Buffer-Upr Align: No
VTM 25 Slot Buffer-Upr Alcove: No
VTM Clean Room Configuration: Defines tool will be configured for Ballroom or Bulkhead
VTM Airlock Wafer Fingers: Stainless Wafer Fingers
VTM Robot: Standard
VTM Backing Pumps: Kashiyama
VTM Robot End Effector: Kalrez
Subpanel (RPDB): RPDB
Subpanel Interconnect Cables: TM to Subpanel
Signal Tower: R-O-G-B Signal Tower
Software, System Control: Software Version 1.X
Platform System Options: System Calibration and Alignment
Platform System Options: Service Step for PM
Platform System Options: Robot CDM
Platform System Options: VTM Robot Lift
Platform System Options: Ionizer Kit
Platform System Options: TM Vacuum Hand Held Module
Platform System Options: APCS
Platform System Options: Facility Interface Board
Platform System Options: EFEM Yellow Light
Platform System Options: ATM Robot Removal Kit
Software
Platform: APC Recipe Tuning from Host
Platform: LamState
Platform: Wafer Flow Tuning
Platform: TEK Software
Distrubuted UI: Distrubuted UI
Additional Software: 2nd HSMS
LamRAMP: LamRAMP
LamRAMP: Individual LamRAMP Options
LamRAMP Options: Remote Station
LamRAMP Options: Configuration Browser
LamRAMP Options: Recipe Browser
LamRAMP Options: Alarm Browser
Number of Unit License: Number of License
Number of Site License: Number of License
LamFAST: LamFAST
LamFAST: Individual LamFAST Options
LamFAST Options: Lam DataAnalyzer
LamFAST Options: Lam SpectraAnalyzer
LamFAST Options: Lam WaferViewer
Number of Unit License: Number of License
Number of Site License: Number of License
Automated Procedure and Maint: AutoPM
Simulator Plus: Simulator Plus
Data Management: Equipment Information Mgmt Pkg
Data Management: EIM Server (Primary)
Data Management: EIM Server (Secondary)
Data Management: EIM Server UPS
Damage/Missing parts list
Please inspect tool to reconfirm
Dry pumps and customer provided items not included on sales
