Macquarie Equipment Trading on behalf of Micron Technology Taiwan, Inc. (F11)

Lam Research EOS

Asset ID: 67442

Print spec sheet

Lam Research


Single Wafer Processing

Etch/Clean - Wet Processing

Equipment details:

Date of Manufacture: 2015

Currently Configured for: 300mm

Current Equipment Status: Available

Asset HDD not included

Location of Equipment: Taoyuan, Taiwan

Available date: Currently Available



Tool config is based on original PO, please verify tool details at tool inspection


FID: 157426

Tool S/N: E14

Reference Tool S/N: E6


EOS Product Type

EOS Front Section ES

EOS Rear Section ES

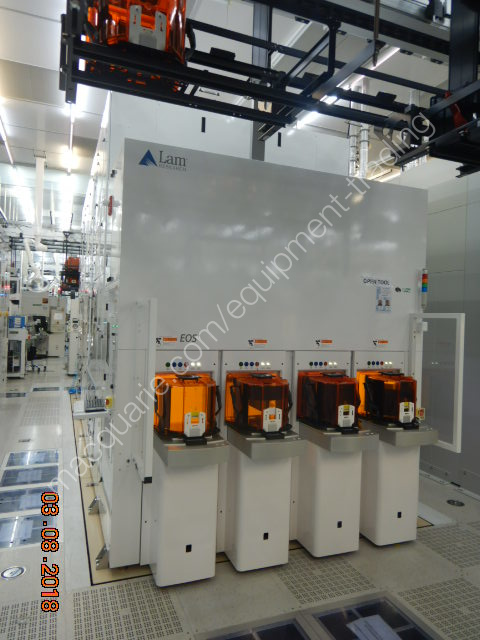

Front End Load Port: 4 FOUP TDK

Carrier ID: Brooks Carrier ID reader

Factory Automation: OHT PIO Sensor

User Interface Options: Side Only (Ballroom)

Signal Tower: R-O-G-B Silm Line

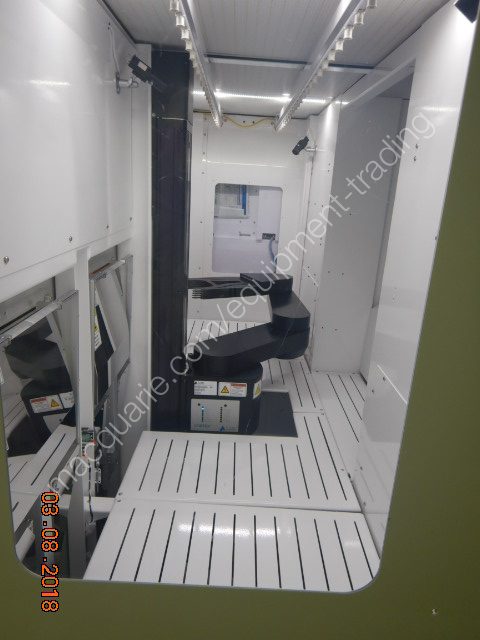

Handling system: Standard Handling

Process Module Ionization: PM Ionixation 16 chamber

Platform Doors: Door with Windows

Okatform Lights: Wite LEDs

Number of Power Supply Lines: 2 Supply Feed

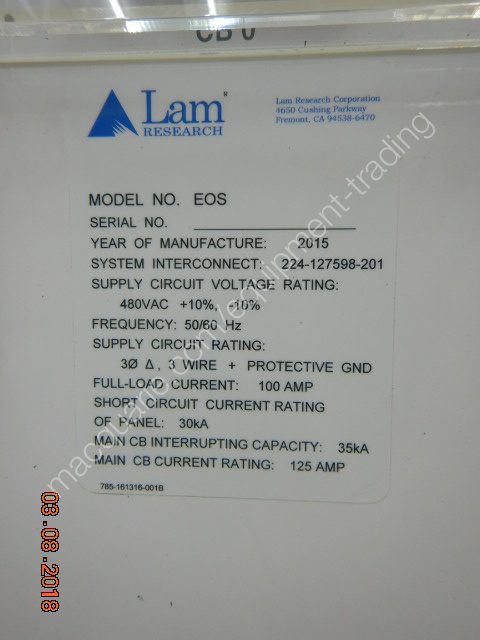

System Power Supply: 208V and 480V 50/60 Hz

Interconnect Com. Cables: 30m Cab;es to Subpanel

PC Power supply: Internal UPS

Fire Suppression


Front Section & Rear Section

EOS ES Media#1

Chemistry 1: dHF (supply to TL)

Chemistry 1 Dispense: double side dispense

Chemistry 1 Dispense mode: Drain & recirculation

Chemistry 1 Preparation: 2 Chemical Mix (High Flow) NSR

Chemical 1 Temperature Mixing: Not Present: Local NSR

Chemistry 1 Life Time Exp.: Top-up

Chem. 1 Temp. Specification: 24-40C

Chemical 1 Filter Preparation: Filter Housing

Chem. 1 Gilter Catridge: Filter Pore Size 20nm

Internal Chemical 1 AnalyzersL Horiba HF-960M

External Chemical 1 Analyzers: Not present

Chem 1 Analyzer Saple collerL Not Present


EOS ES Media#2

Chemistry 2: Not present


EOS ES Media#3

Chemistry 3: Not present



Chuck: DS Chuck (Std. & Solb. less than 60C)

Drying: ASD3+

IPA Options: Standard

IPA Filter Cartridge: Lam Spplied IPA Filter

Partical Removal Options: A-Jet (DI/CO2)

Drain Separation (Rinse Level): 3 Media

Level 3- Drain#1: Rinse Medua (DI)

Level 3- Drain#2: IPA- High Concentration

Level 30 Drain#3: IPA- Low Concentration

Exhaust Separation: BB-L1 & L2-Exh. 1, Le-Exh1,2

Media 1 Dispense Single Nozzle

Media 2 Dispense: Single Nozzle

OptionsL Continuos Wet Wafer


Damage/Missing parts list

Please inspect tool to reconfirm
