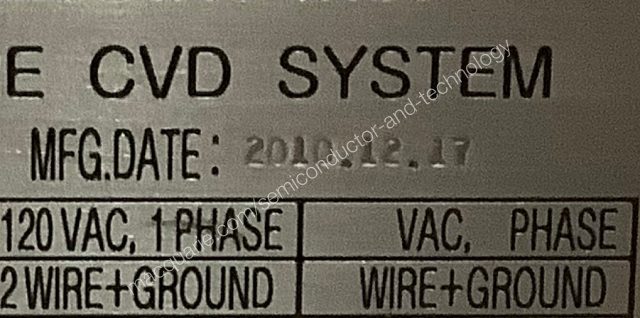

Date of Manufacture: 2010-12-17
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: Currently Available
Tool config is based on original PO, please verify tool details at tool inspection
Micap #: 1304394
Micron MISTI/LID #: KISDBCNA00
Vendor Tool Serial #: T2DC6-14553-1
Any defective or missing parts: No
Any modification/conversion/refrofit was perform to the tool? No

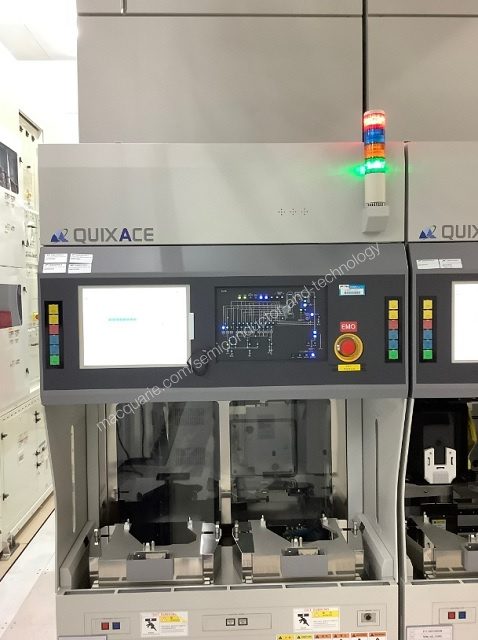

OEM: HIKE
Tool Model: Q2LN

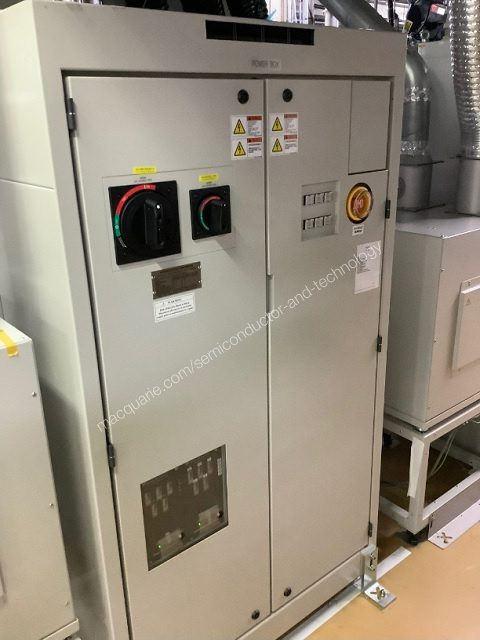

System Power Rating: 208V/480V
Loading Configuration: 5 lots
• Currently configured for 300mm (12”) wafer sizes
• MFG Date: 12/17/2010
• Idle Date: 6/30/2013

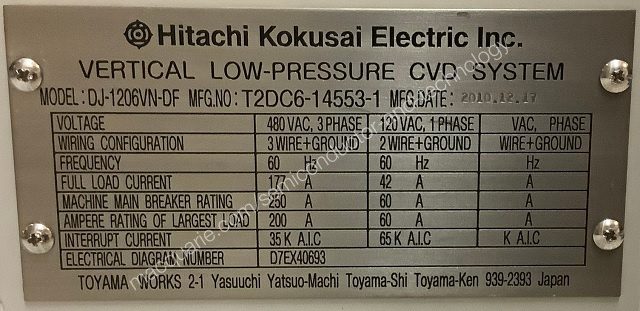

• Model: DJ-1206VN-DF
• Process Application: Poly
• Hardware Config:
o Options:
? Cartridge heater: (1) HIKE RHC2 Heater
? TC, Heater Control: (5) Hitachi Kokusai
? TC, Over-temperature: (5) Hitachi Kokusai
? 5-P T/C, Cascade: (1) Hitachi Kokusai (5-P T/C for Cascade Control for 2 Boat System)
? 1-P T/C, Profile: (1) Hitachi Kokusai 1-P T/C for Profile Control
? SCR Unit Model: (1) EICH SKKT160L5Z4F-HKD
? Clean Unit 1 Model: (1) Panasonic BV-R14TF2G1H
? Clean Unit 2 Model: (1) Panasonic BV-R09TF2G1L
? Clean Unit 3 Model: (1) Hitachi PCF-4EKD3750
? Clean Unit 4 Model: (1) Hitachi PCF-8EKD3796
? I/O Shutter: (1) Hitachi Kokusai
? Stage: (1) Hitachi Kokusai AGV/PGV/OHT STAGE
? FOUP Loader: (1) Hitachi Kokusai
? FOUP Storage: (1) Hitachi Kokusai, FOUP recipe #: 16
? FOUP Opener: (1) Hitachi Kokusai, (2) ports
? Wafer Detection: (2) Omron, 25 in 1 lot
? Wafer Transfer: (1) Hitachi Kokusai Lift transfer
? Wafer Pitch Converter: (1) Hitachi Kokusai variable wafer pitch convertor
? Boat Elevator: (1) Hitachi Kokusai
? Boat Changer: (1) Hitachi Kokusai
? Furnace Port Shutter: (1) Hitachi Kokusai
? Boat Rotation: (1) EKK Boat Rotation w/N2 purge - for 2 Boat System
? Flange-Upper: (1) Hitachi Kokusai
? Flange-Lower: (1) Hitachi Kokusai
o Process Kit:
? Boat: (2) Hitachi Kokusai (143 Slot, Materia: Quartz)
? Outer Tube: (1) Hitachi Kokusai (Materia: Quartz)
? Inner Tube: (1) Hitachi Kokusai (Materia: Quartz)
? Adiabatic Plate: (32) Hitachi Kokusai (Materia: Quartz)
? Quartz Nozzle-1: (1) Hitachi Kokusai (N2, SI2H6, SiH4, PH3, ClF3)
? Quartz Nozzle-2: (1) Hitachi Kokusai (N2, PH3, ClF3)
? Quartz Nozzle-3: (1) Hitachi Kokusai (N2, SiH4, PH3, ClF3)
? Quartz-Nozzle-4: (1) Hitachi Kokusai (N2, SiH4, PH3, ClF3)
? Quartz-Nozzle-5: (1) Hitachi Kokusai (N2, PH3, ClF3)
? Quartz Nozzle-6: (2) Hitachi Kokusai (N2, ClF3)
? Quartz Nozzle-7: (1) Hitachi Kokusai (N2)
? Boat Fixing Ring: (2) Hitachi Kokusai
? Boat Base: (2) Hitachi Kokusai
? Quartz Shutter Plate: (1) Hitachi Kokusai
o Gas System:
? Gas Unit (IGS): (1) CKD
? Tape Heater, Gas Pipe1: (8) Hitachi Kokusai (100V, 140W)
? Tape Heater, Gas Pipe2: (3) Hitachi Kokusai (100V, 260W)
? Diffuser: (1) Hitachi Kokusai
? Mass Flow Controller: (16) Horiba-Stec SEC-Z500 Series
? Filters: (11) Entegris WGSLS Series
? Regulators: (5) CKD PGM Series
? Pressure Gauges: (6) Nagano Keiki ZT16-S01 & AM-215A-2A-71
? Manual valves: (7) CKD MMGD5-11D-W-KA
? Check Valve-1: (4) CKD MCGP5-F1X1-023-KA
? Check Valve-2: (1) CKD MCGP5-F2X1-023-KA
? Check Valve-3: (2) CKD MCGP5-01D-W-023-KA
? Needle Valve: (9) CKD MMGD5-11D-W Series
? Air Valve: (38) CKD MAGD5 Series
? Gases (SLM):
• #1: N2 (30), #2: N2 (1), #3: N2 (1), #4: SiH4 (4), #5: SiH4 (1), #6: SiH4 (.1),
• #7: SiH4 (.1), #8: PH3 (.5) / N2 (5%) – (.3), #9: PH3 (.5) / N2 (5%) – (.03)
• #10: PH3 (.5) / N2 (5%) – (.03), #11: PH3 (.5) / N2 (5%) – (.03)
• #12: PH3 (.5) / N2 (5%) – (.03), #13: N2 (5), #14: ClF3 (5), #15: N2 (3), #16: Si2H6(1)

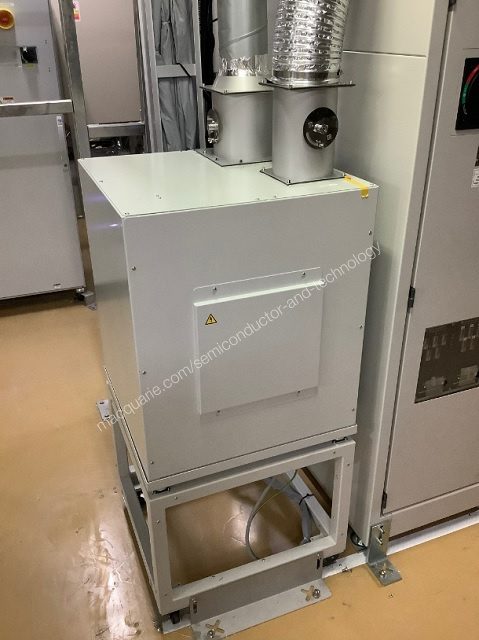

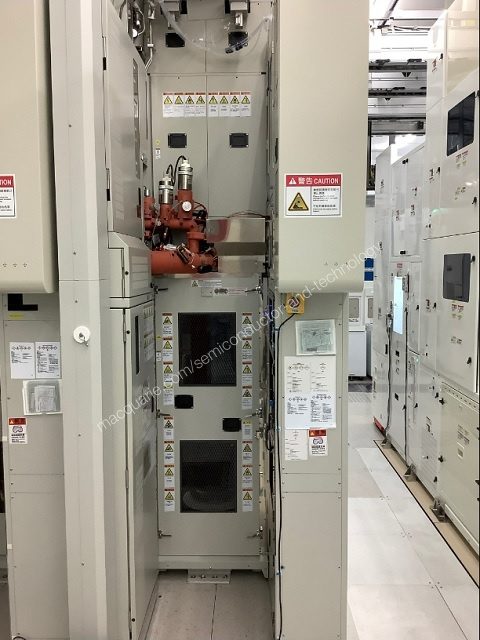

o Exhaust System:
? Vacuum Sensor (VG11): (1) MKS 1000Torr
? Vacuum Sensor (VG14): (1) MKS 10Torr
? Vacuum Sensor (VG13): (1) MKS 2Torr
? Vacuum Sensor Monitor: (1) Copal
? Main Valve: (1) CKD VEC-SHA8-X0327
? Exhaust Piping: (1) HIKE One-Way Exhaust
? Exhaust Dilution Line: (1) HIKE One-Way Exhaust
? Reactor Tube Press Leak Line: (1) HIKE One-Way Exhaust
? Tape Heater, BG Line: (1) HIKE (Tape Hetaer, BG Line 40?)
? Jacket Heater, Exhaust Pipe: (1) MKS (Jacket Heater, Exhaust Pipe 150?)
? Baratron Calibration Port: (1) HIKE
? Inlet Flange Heater: (1) Shinwa ESH-13400-01
? Injector Port Heater: (21) HIKE
? Seal Cap Heater: (1) Shinwa ESH-13229,13237 - 2 Boat System
o Facility Interface:
? Power
? Gases
? Exhaust (to duct/House)
? Exhaust (to Pump)
? Process Cooling Water
? UPS Requirement: (1) Electrical connection point to controller to tie fa
Damage/Missing parts list
Please inspect tool to reconfirm
Dry pumps and customer provided items not included on sales
