PECVD (Chemical Vapor Deposition)
Date of Manufacture: 2006-01-01
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Singapore, Singapore
Available date: Currently Available
Inspect to confirm configuration and condition.

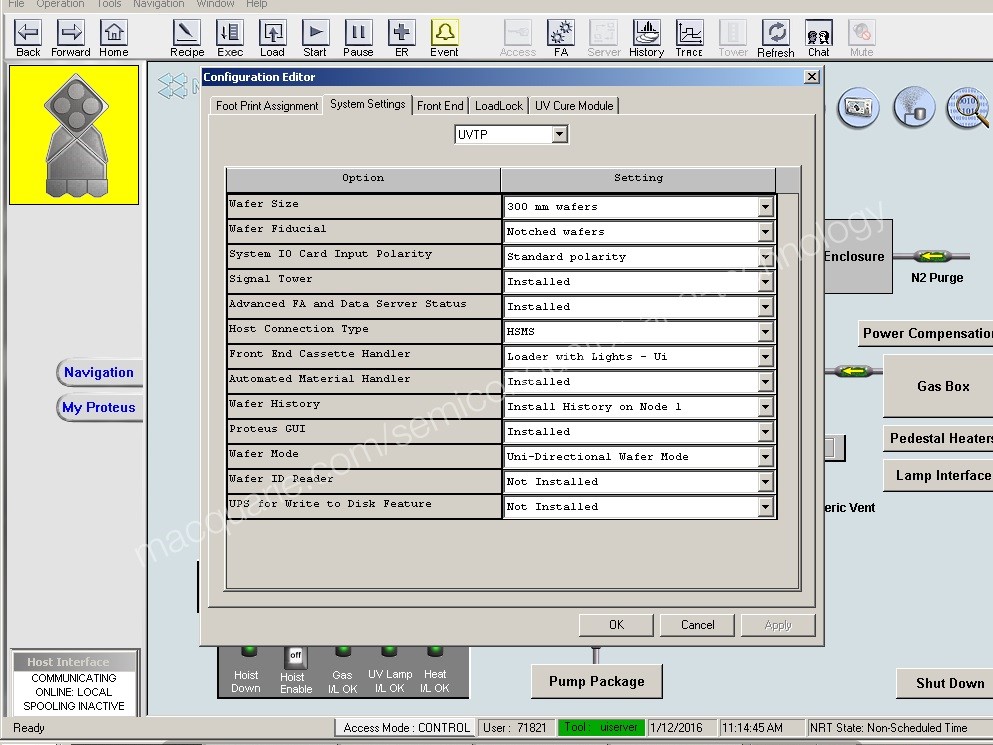

General System Info
Equipment ID: SINCUR-01
Date of Audit: 11-Feb-2022

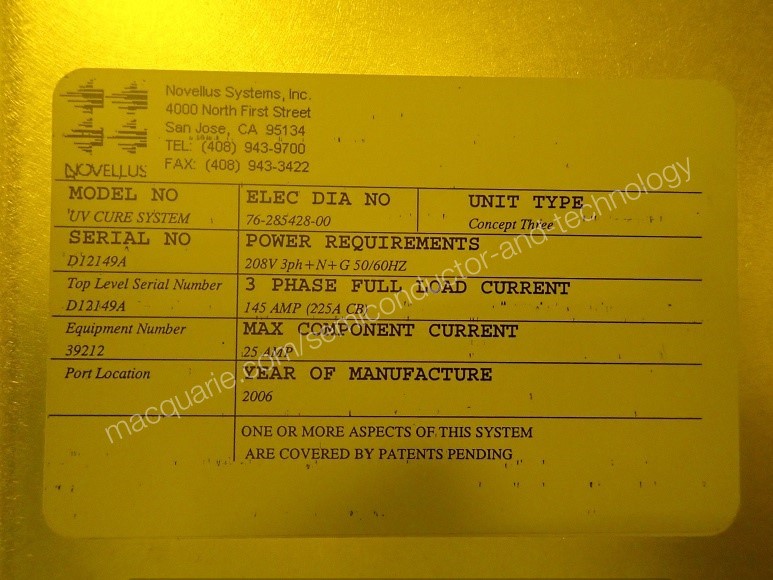

Serial Number: D12149A
Original Ship Date from Novellus: 2006

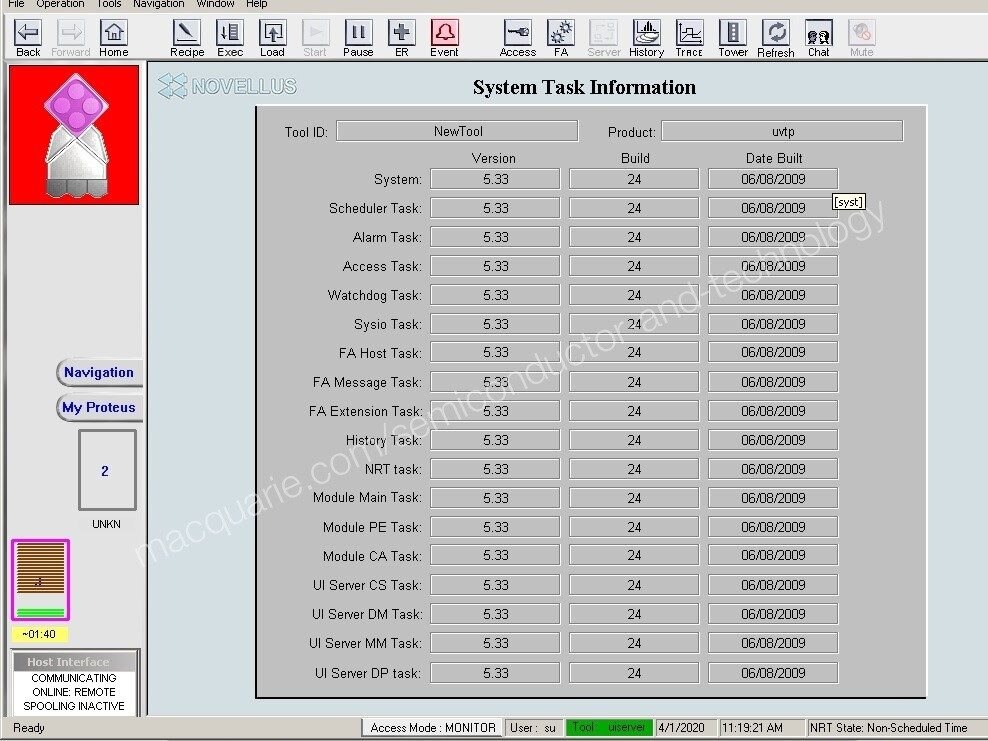

System Software Version: 5.33B24
Date of Last PM: 7-Feb-2022
Is System On-Line?: Yes
Off-Line Date (if applicable): NA
CD-ROM Manuals: No
OEM Audit Available?: Yes
Decontamination Report Exists?: No
Can Produce Wafers AS IS?: Yes
Any Known Field Modifications?: No
All Cables Present?: No
Model: Vector SOLA
Mainframe Items

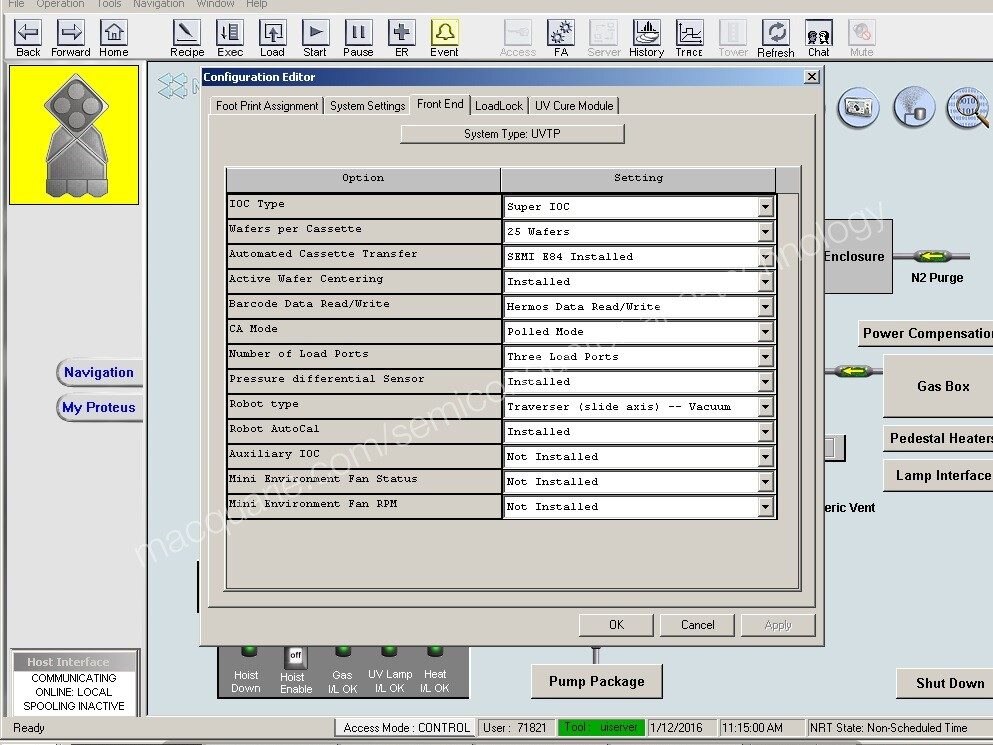

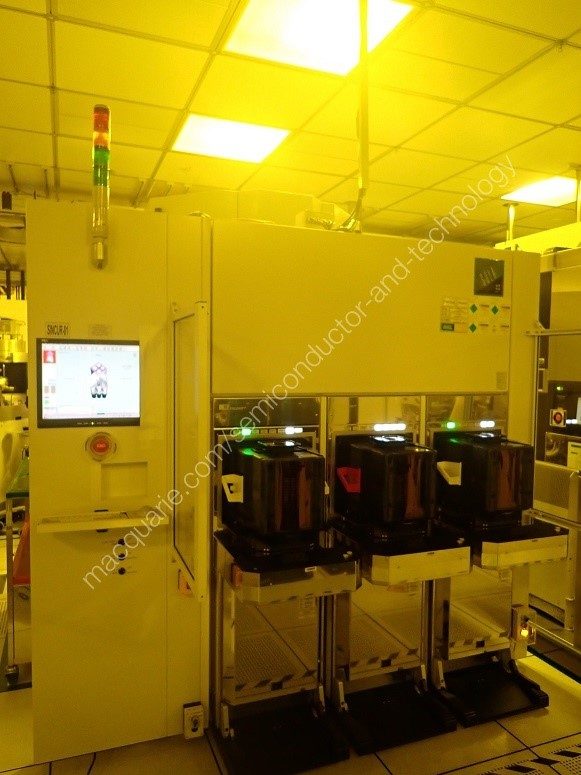

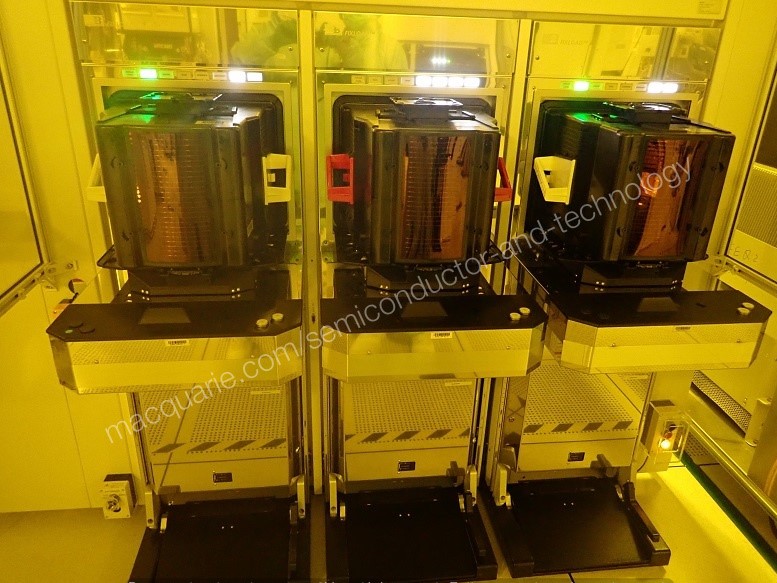

Front-End Interface: 3 LPs
Wafer Size: 12"
Factory Automation: OHT

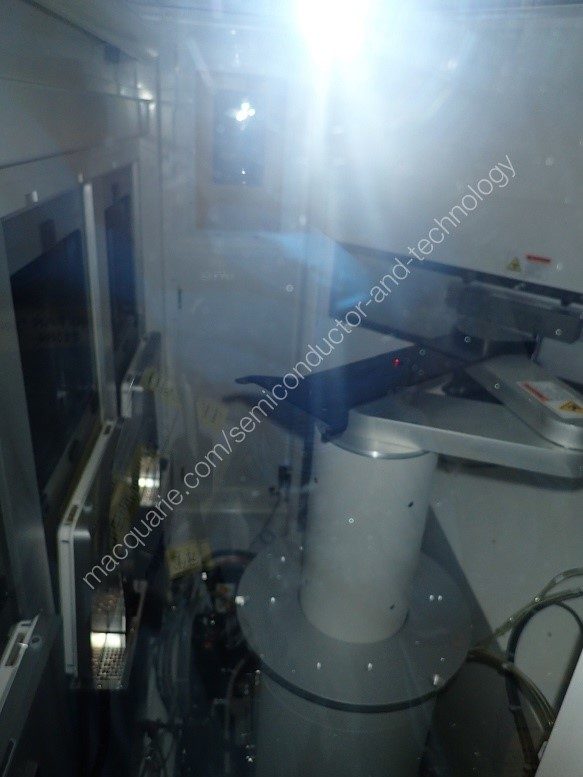

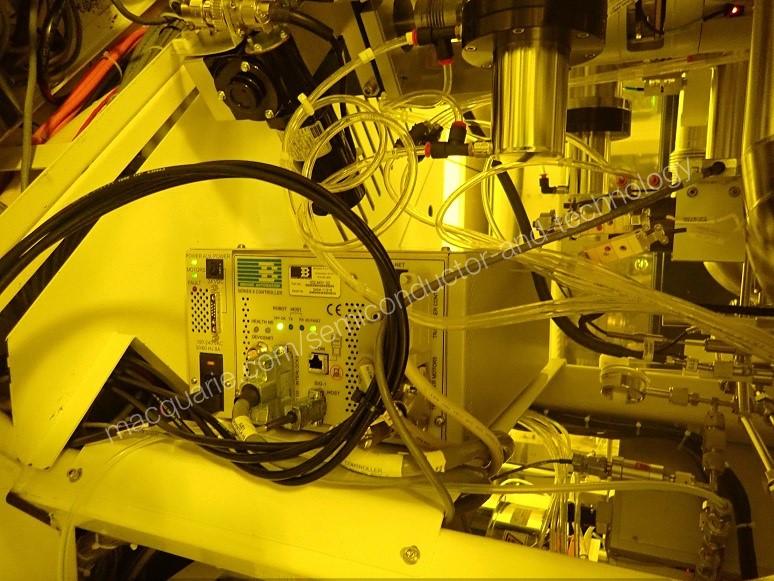

Robot Type: Brooks ATR8
Facilities Configuration: Bottom
Remote Interconnect Cable Length: 75”

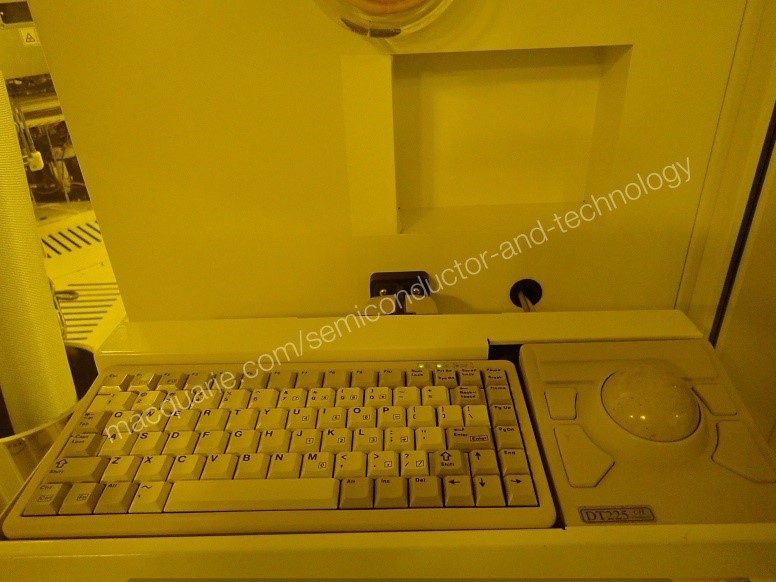

Primary User Interface Loc.: Left

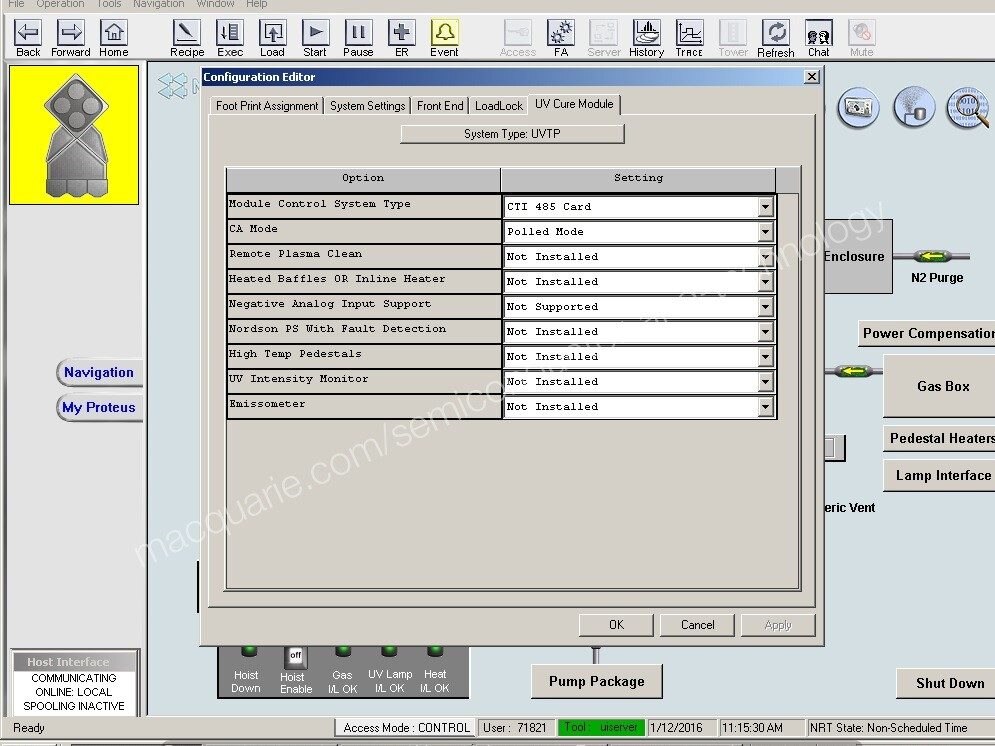

Chamber Items
Chamber Type and Position: Sola type / N.A
High Frequency Generator: NA
Low Frequency Generator: NA
Cooling Shroud Kit: No
Pressure Display Package: No
Spindle: Pneumatic
LL Pedestal: Pneumatic
Helium Reduction Kit: No
Lift Pin: Pneumatic
Pedestal Type: Standard pedestal
Gate Valve Type: L-TYP PM
Heated Manometer: No
Heated Top Plate: No
Heated Chamber: No
Leak-Check Shutoff Valve: Yes
Remote Plasma Clean: No
RF Switching Plasma Treatment Hardware: No
Optional Processing Kit: NA
Number of Precursors: 1
ILDS Channels and Gaslines: NA
AccuFlo: No
Active Wafer Monitoring: No
Station 1 Gas Isolation: No
Four View Port: No
Dep Chamber Roughing Pumps
Manufacturer: Edwards
Model: iH1800
Quantity Required: 1
Included With System: Yes
Load Lock Pump
Manufacturer: Edwards
Model: EPX180L
Included With System: Yes
Gas Panel Configuration
Gas Pallet Type: Standard gas box
Gas Configuration
Gas Line # : Gas | Flow (sccm) | MFC Mfgr. | MFC Model
Gas Line #1 : Ar | 50K ________ | Aera ______ | FC-D980C
Gas Line #2 : O2 | 100K ______ | Aera ______ | FC-D980C
Gas Line #3 : He | 100K ______ | Aera ______ | FC-D980C
Damage/Missing parts list
Please inspect tool to reconfirm
