Multi Block (Resist Coater/Developer)
Date of Manufacture:
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Portland, United States
Available date: Currently Available

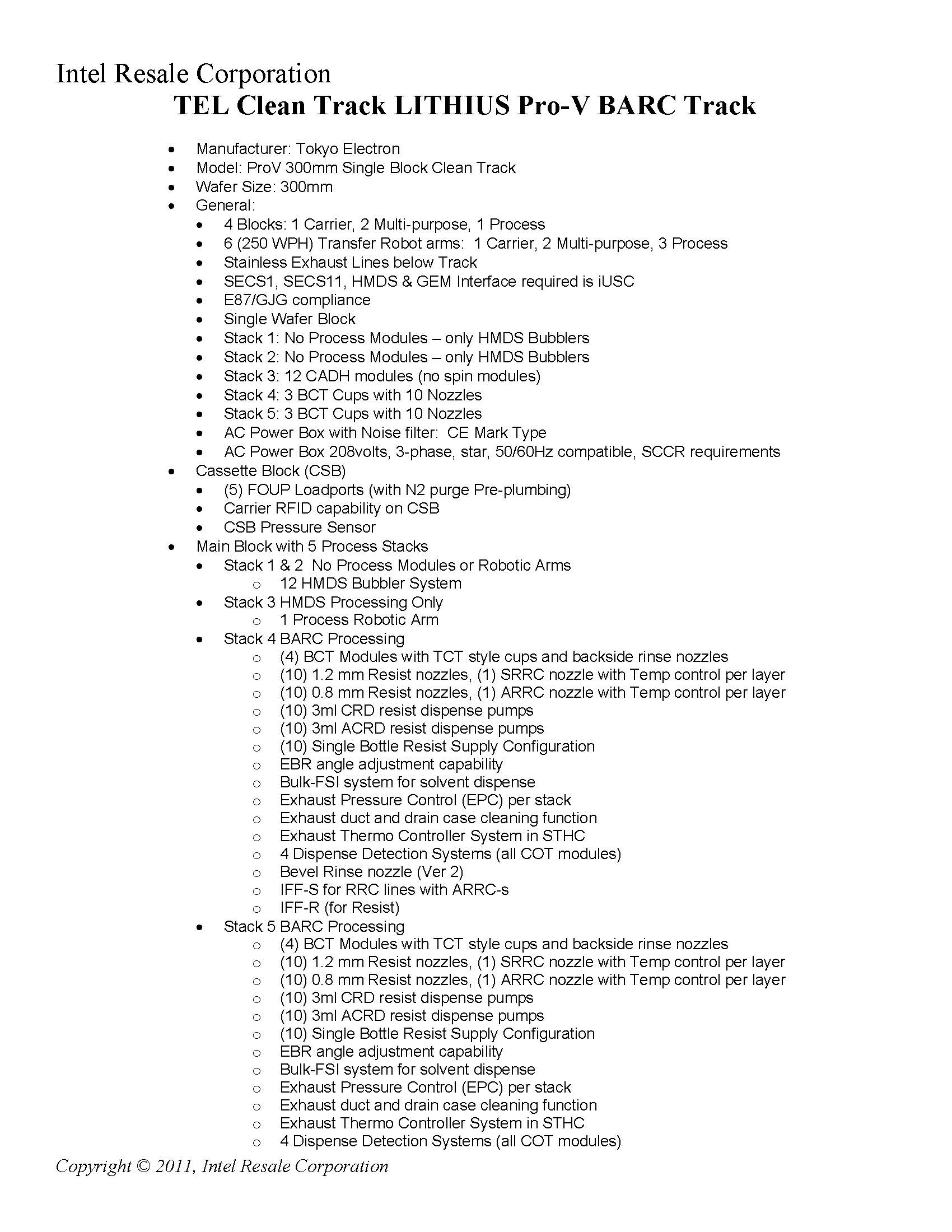

General:
· 4 Blocks: 1 Carrier, 2 Multi-purpose, 1 Process
· 6 (250 WPH) Transfer Robot arms: 1 Carrier, 2 Multi-purpose, 3 Process
· Stainless Exhaust Lines below Track
· SECS1, SECS11, HMDS & GEM Interface required is iUSC
· E87/GJG compliance
· Single Wafer Block
· Stack 1: No Process Modules – only HMDS Bubblers
· Stack 2: No Process Modules – only HMDS Bubblers
· Stack 3: 12 CADH modules (no spin modules)
· Stack 4: 3 BCT Cups with 10 Nozzles
· Stack 5: 3 BCT Cups with 10 Nozzles
· AC Power Box with Noise filter: CE Mark Type
· AC Power Box 208volts, 3-phase, star, 50/60Hz compatible, SCCR requirements
· Cassette Block (CSB)
· (5) FOUP Loadports (with N2 purge Pre-plumbing)
· Carrier RFID capability on CSB
· CSB Pressure Sensor
· Main Block with 5 Process Stacks
· Stack 1 & 2 No Process Modules or Robotic Arms
o 12 HMDS Bubbler System
· Stack 3 HMDS Processing Only
o 1 Process Robotic Arm
· Stack 4 BARC Processing
o (4) BCT Modules with TCT style cups and backside rinse nozzles
o (10) 1.2 mm Resist nozzles, (1) SRRC nozzle with Temp control per layer
o (10) 0.8 mm Resist nozzles, (1) ARRC nozzle with Temp control per layer
o (10) 3ml CRD resist dispense pumps
o (10) 3ml ACRD resist dispense pumps
o (10) Single Bottle Resist Supply Configuration
o EBR angle adjustment capability
o Bulk-FSI system for solvent dispense
o Exhaust Pressure Control (EPC) per stack
o Exhaust duct and drain case cleaning function
o Exhaust Thermo Controller System in STHC
o 4 Dispense Detection Systems (all COT modules)
o Bevel Rinse nozzle (Ver 2)
o IFF-S for RRC lines with ARRC-s
o IFF-R (for Resist)
· Stack 5 BARC Processing
o (4) BCT Modules with TCT style cups and backside rinse nozzles
o (10) 1.2 mm Resist nozzles, (1) SRRC nozzle with Temp control per layer
o (10) 0.8 mm Resist nozzles, (1) ARRC nozzle with Temp control per layer
o (10) 3ml CRD resist dispense pumps
o (10) 3ml ACRD resist dispense pumps
o (10) Single Bottle Resist Supply Configuration
o EBR angle adjustment capability
o Bulk-FSI system for solvent dispense
o Exhaust Pressure Control (EPC) per stack
o Exhaust duct and drain case cleaning function
o Exhaust Thermo Controller System in STHC
o 4 Dispense Detection Systems (all COT modules)
o Bevel Rinse nozzle (Ver 2)
o IFF-S for RRC lines with ARRC-s
o IFF-R (for Resist)

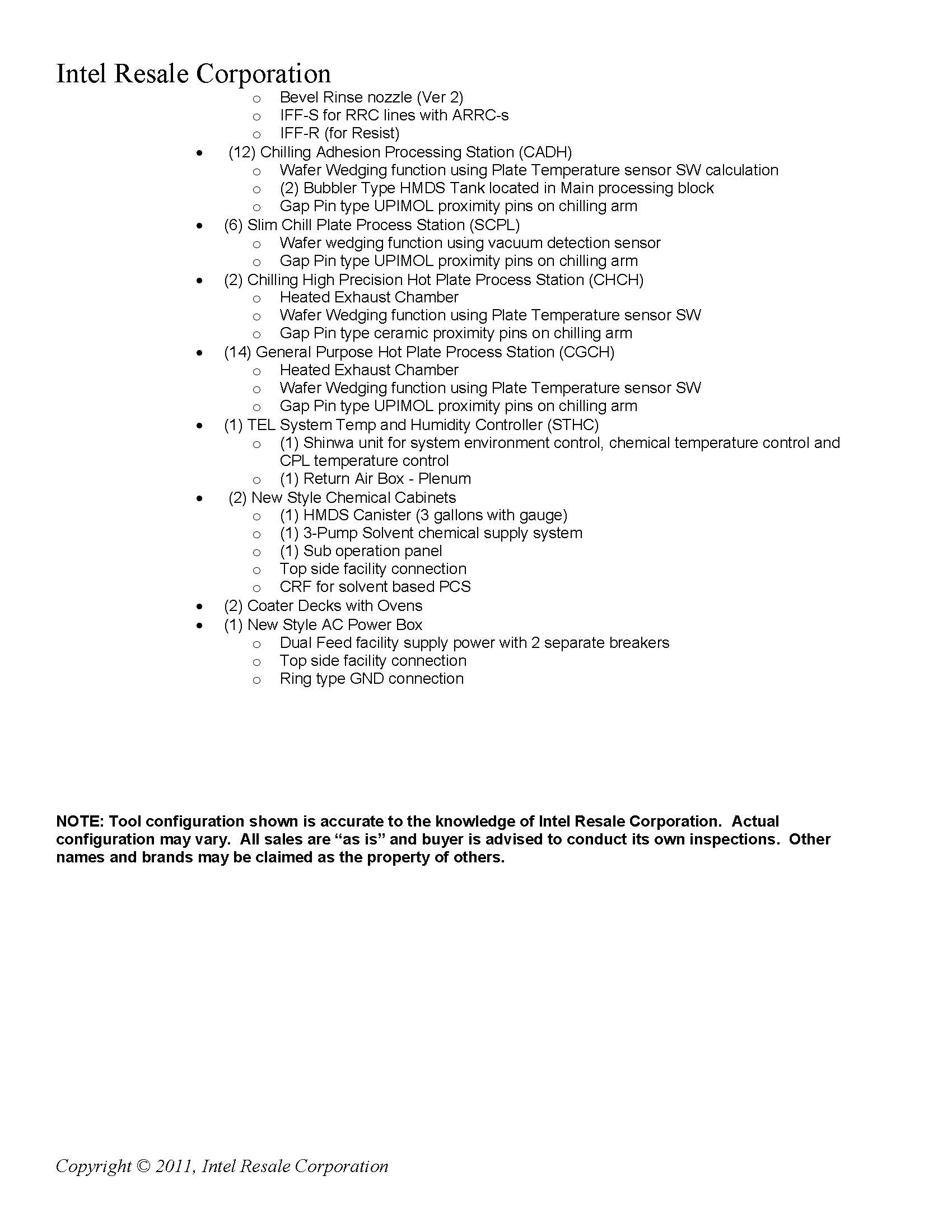

· (12) Chilling Adhesion Processing Station (CADH)
o Wafer Wedging function using Plate Temperature sensor SW calculation
o (2) Bubbler Type HMDS Tank located in Main processing block
o Gap Pin type UPIMOL proximity pins on chilling arm
· (6) Slim Chill Plate Process Station (SCPL)
o Wafer wedging function using vacuum detection sensor
o Gap Pin type UPIMOL proximity pins on chilling arm
· (2) Chilling High Precision Hot Plate Process Station (CHCH)
o Heated Exhaust Chamber
o Wafer Wedging function using Plate Temperature sensor SW
o Gap Pin type ceramic proximity pins on chilling arm
· (14) General Purpose Hot Plate Process Station (CGCH)
o Heated Exhaust Chamber
o Wafer Wedging function using Plate Temperature sensor SW
o Gap Pin type UPIMOL proximity pins on chilling arm
· (1) TEL System Temp and Humidity Controller (STHC)
o (1) Shinwa unit for system environment control, chemical temperature control and CPL temperature control
o (1) Return Air Box - Plenum
· (2) New Style Chemical Cabinets
o (1) HMDS Canister (3 gallons with gauge)
o (1) 3-Pump Solvent chemical supply system
o (1) Sub operation panel
o Top side facility connection
o CRF for solvent based PCS
· (2) Coater Decks with Ovens
· (1) New Style AC Power Box
o Dual Feed facility supply power with 2 separate breakers
o Top side facility connection
o Ring type GND connection
