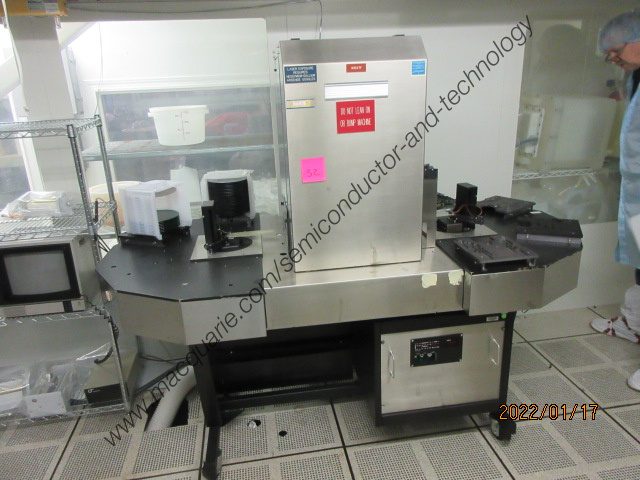

Broadband Patterned Wafer Defect Inspection
Date of Manufacture: 1993
Currently Configured for: 200mm
Current Equipment Status: Available
Location of Equipment: Caldwell, United States
Available date: Currently Available
DOMESTIC SALE: Only offers from US entities will be considered. Seller will not clear the equipment for export or act as Exporter of Record from the United States.
Estek WIS 900
Designed to completely analyze substrates, films and oxides used in the manufacture of semiconductors. Dark and light channel system. Dark channel is used for detecting particles and any light scattering defects. Light channel is useful for detecting non-light scattering defects such as mounds, dimples and non uniformity. Detects specular flaws, including large particles, mounds, dimples, saw marks, grooves, fractures, slip, epi-spikes, small particles on large grained surfaces, particles buried in/under a film. Detection 0.10 um on Silicon at 95% capture rate. Verified by NIST Traceable Standards. Remanufactured system to factory production specifications.
