Macquarie Semiconductor and Technology on behalf of Qorvo Costa Rica S.R.L.
Date of Manufacture: 2014
Currently Configured for: 200mm
Current Equipment Status: Available
Location of Equipment: Heredia, Costa Rica
Available date: Currently Available

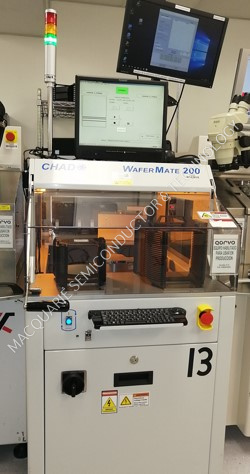

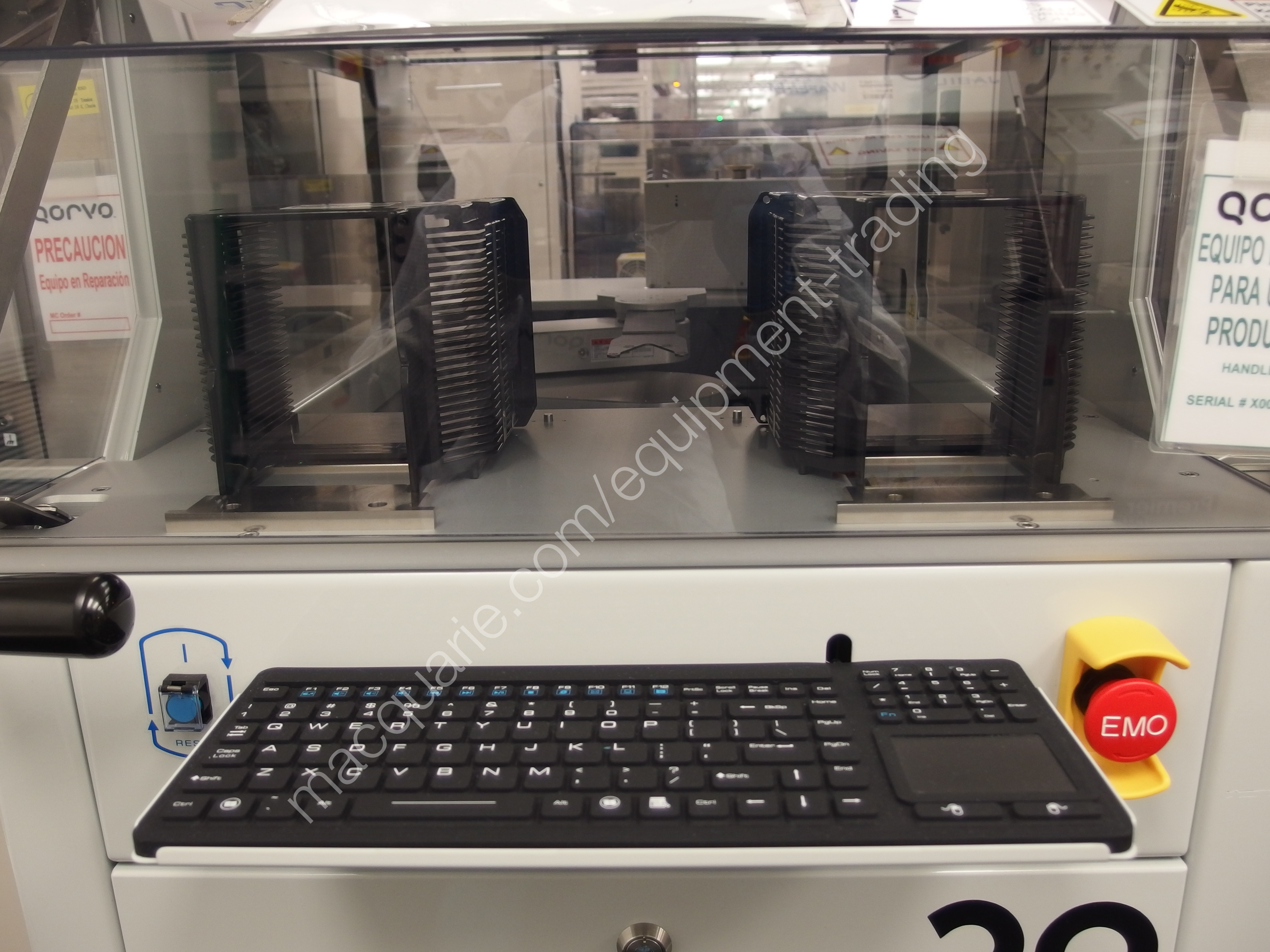

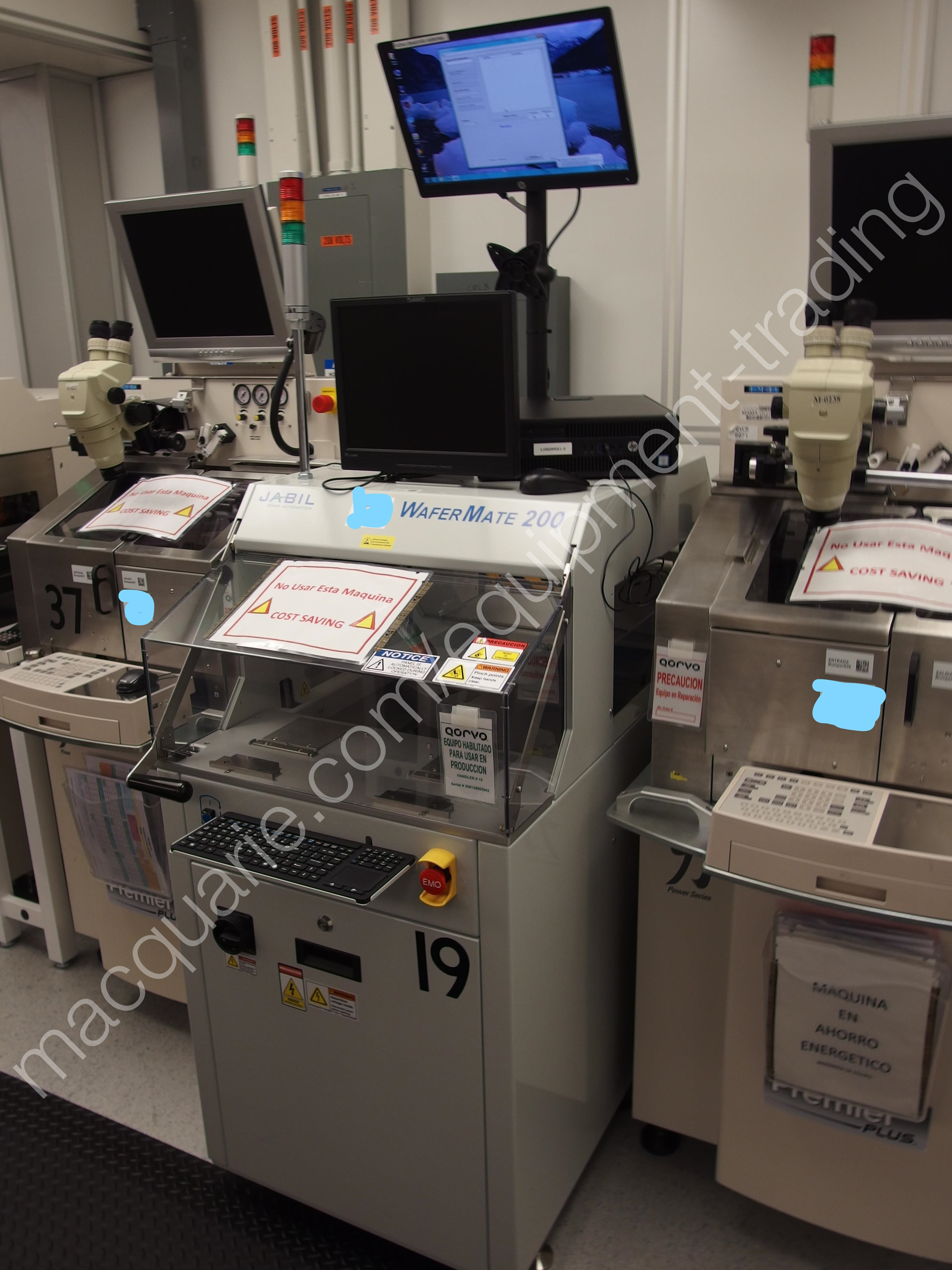

Jabil WaferMate 200 Wafer Sorting Machine
Air Requirements: 90-100 PSIG
Performance Specifications:
Pre-alignment of 100 mm, 125 mm, 150 mm, and 20 0mm wafers with +/- 0.5 degrees theta accuracy
Standard SEMI and SMEMA interfaces
PC-based control system for offline process flow development
CE & SEMI S2/S8 compliant
This unit was used for a qualification after its installation.

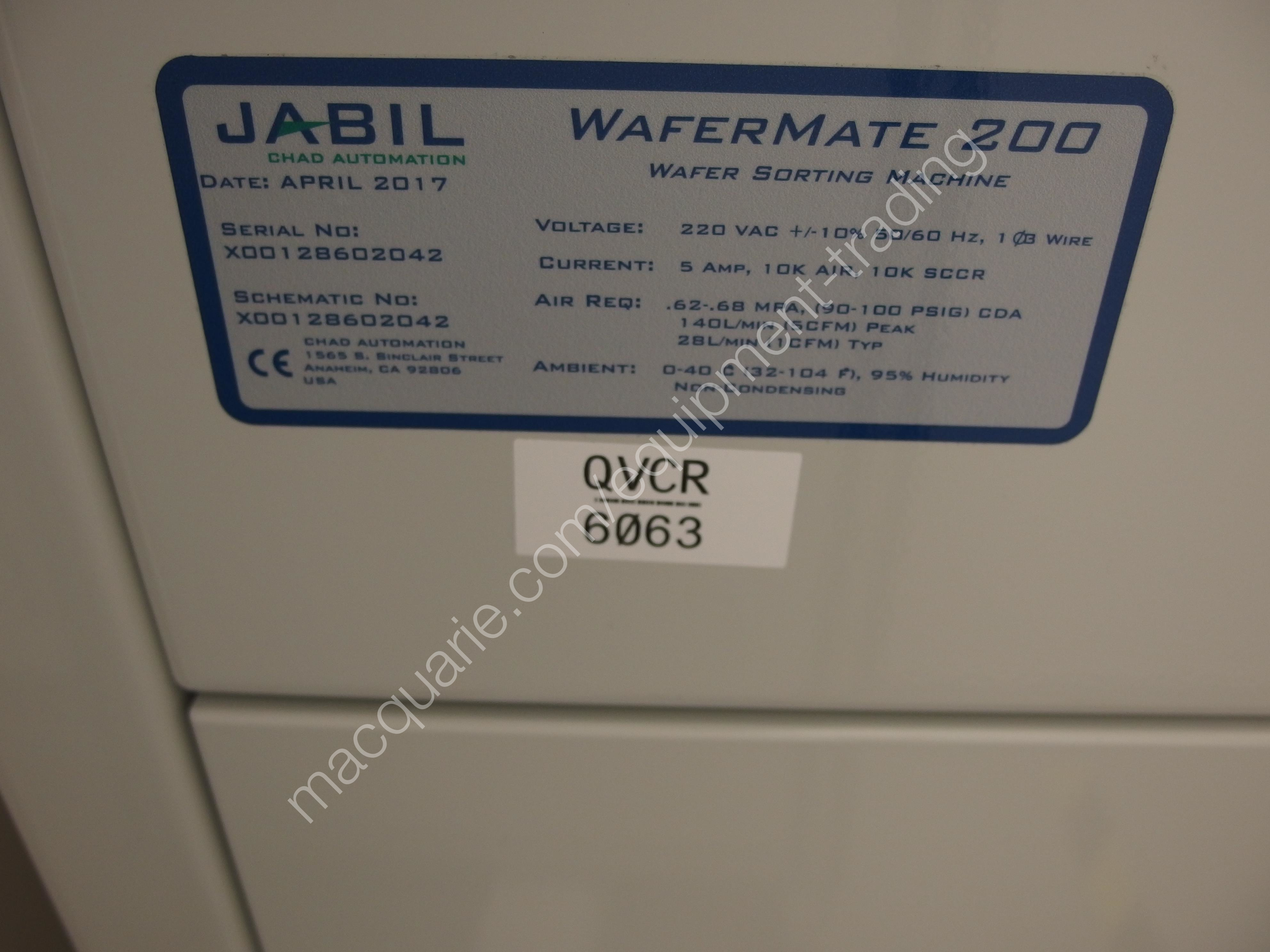

Specifications:
Manufacturer Name: Jabil Chad Automation
Year:2017
Serial Number: X00128602042
Model: WaferMate 200
Voltage:220 VOLTS
Frequency:50/60 HERTZ
Phase:1
Current:5 AMPS
Recommended Packaging Form: PALLET
Dimensions:
Standard
Overall:53 x 26 x 72 IN - 500 LBS
Metric
1346.20 x 660.40 x 1828.80 mm - 226.80 kg
