PECVD (Chemical Vapor Deposition)
Date of Manufacture: 2014
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: Currently Available
Tool config is based on original PO, please verify tool details at tool inspection
AMAT

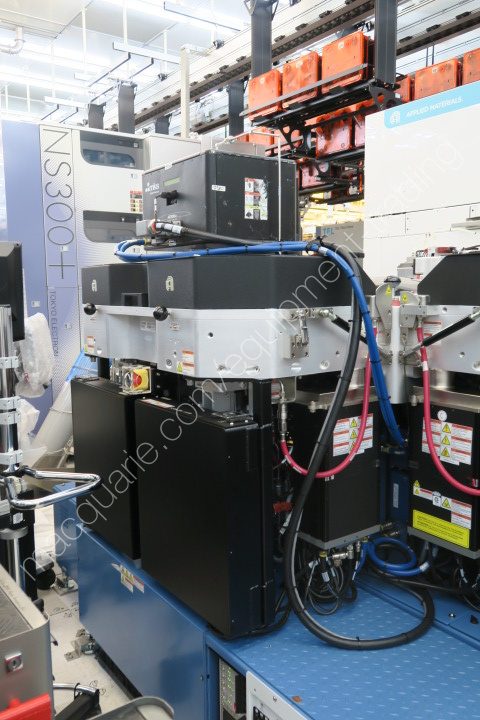

Producer GT plus

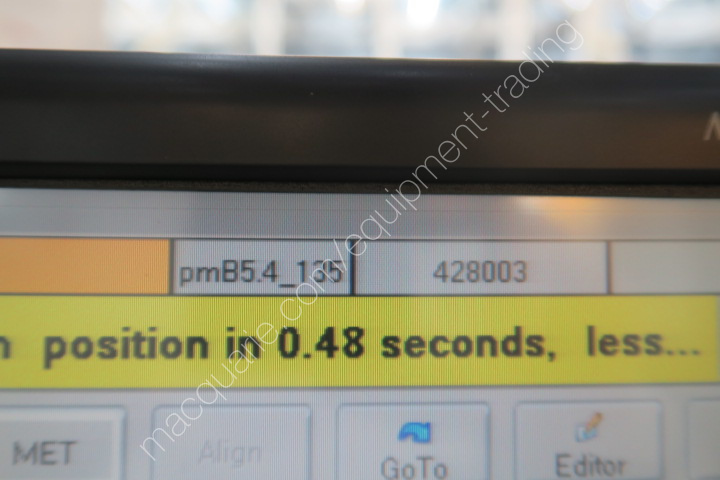

Software Version: pmB5.4_135

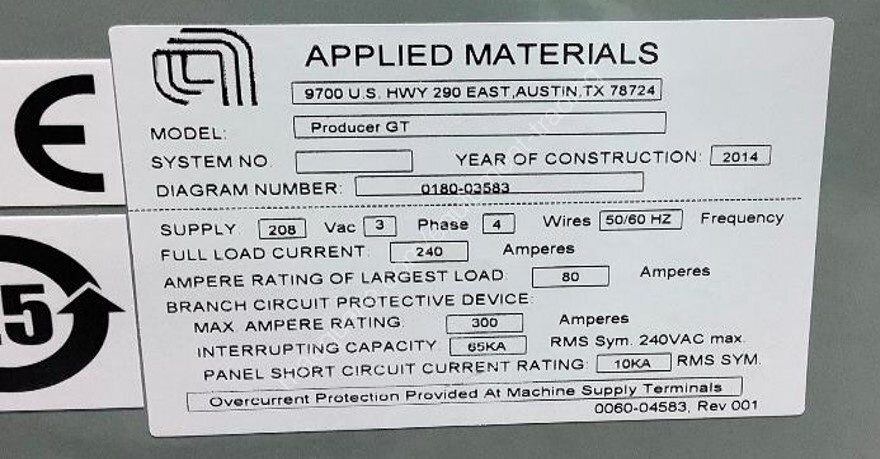

System Power Rating: 110 AC 3-Phase for System

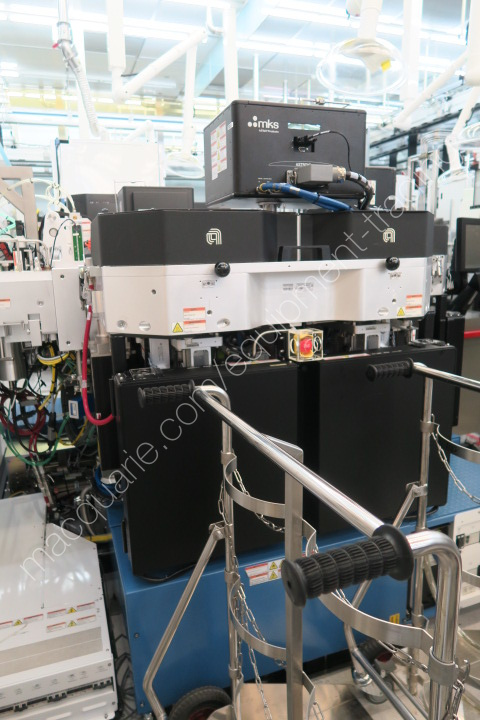

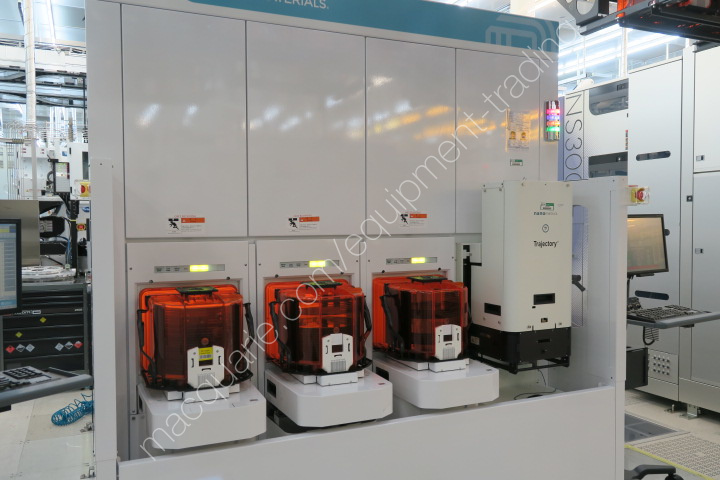

Loading Configuration: 3 LP/9 cooling station/ 25 wafer FOUP
Chm/Unit Position A: TEOS GT TWIN, Process Kit, TEOS A; Chemicals / Gases Used: NF3/AR/TEOS/TEOS1/HE_TEOS/O2

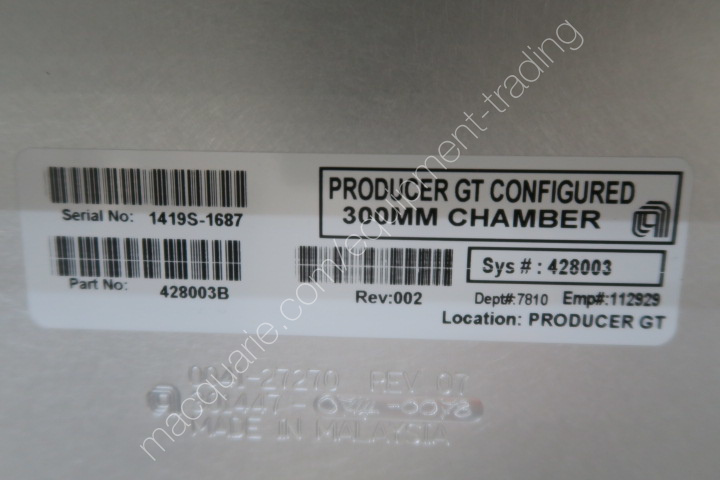

Chm/Unit Position B: TEOS GT TWIN, Process Kit, TEOS B; Chemicals / Gases Used: NF3/AR/TEOS/TEOS1/HE_TEOS/O2

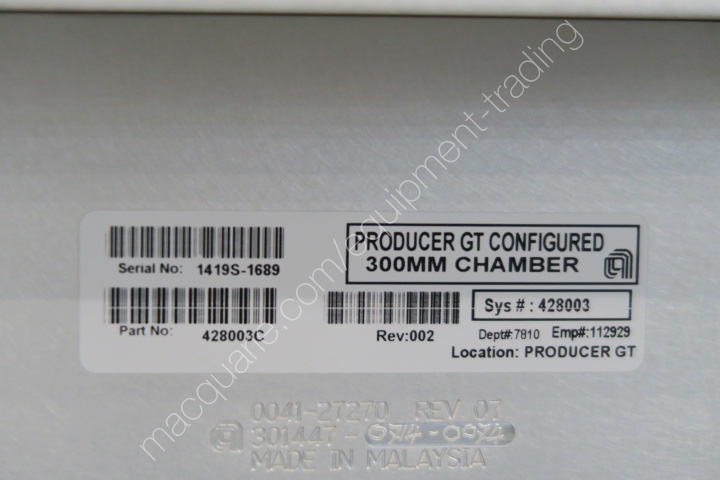

Chm/Unit Position C: TEOS GT TWIN, Process Kit, TEOS C; Chemicals / Gases Used: NF3/AR/TEOS/TEOS1/HE_TEOS/O2
Process Unit:TEOS PROD
FOUP Opener:Entegris

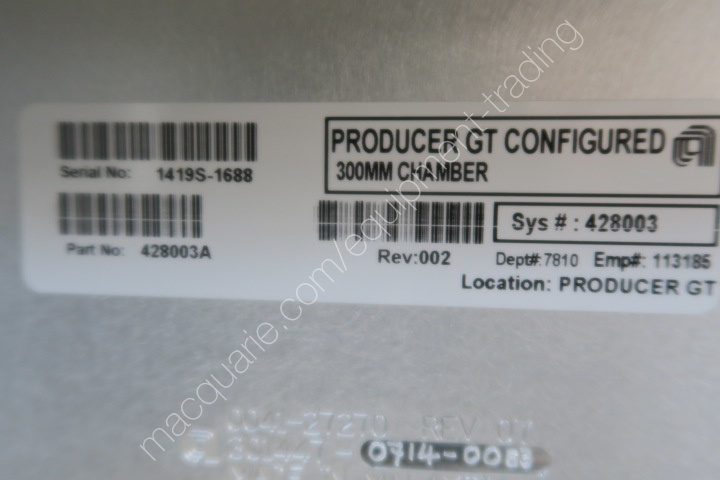

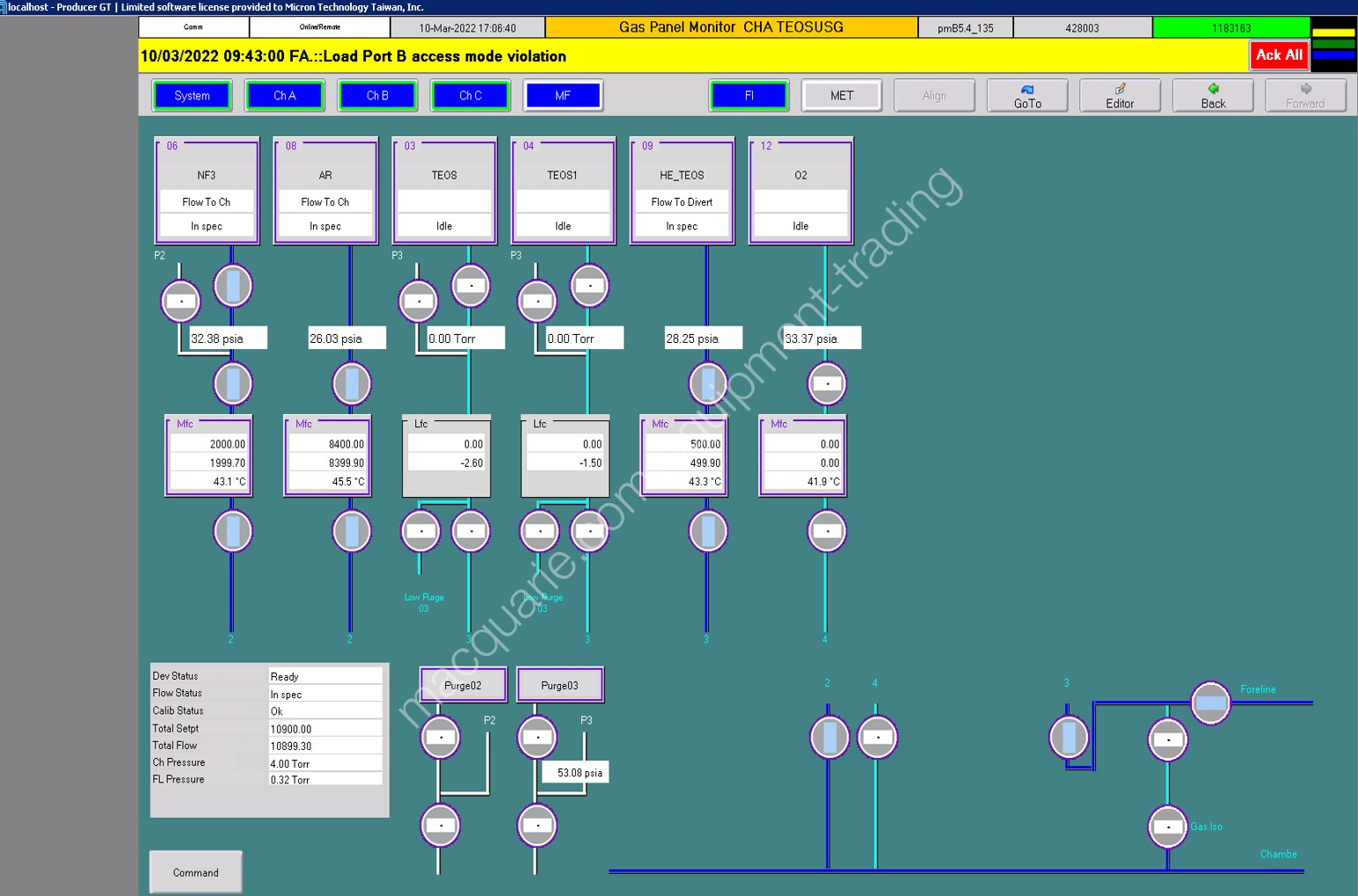

Gas Panel Schematic for TEOS

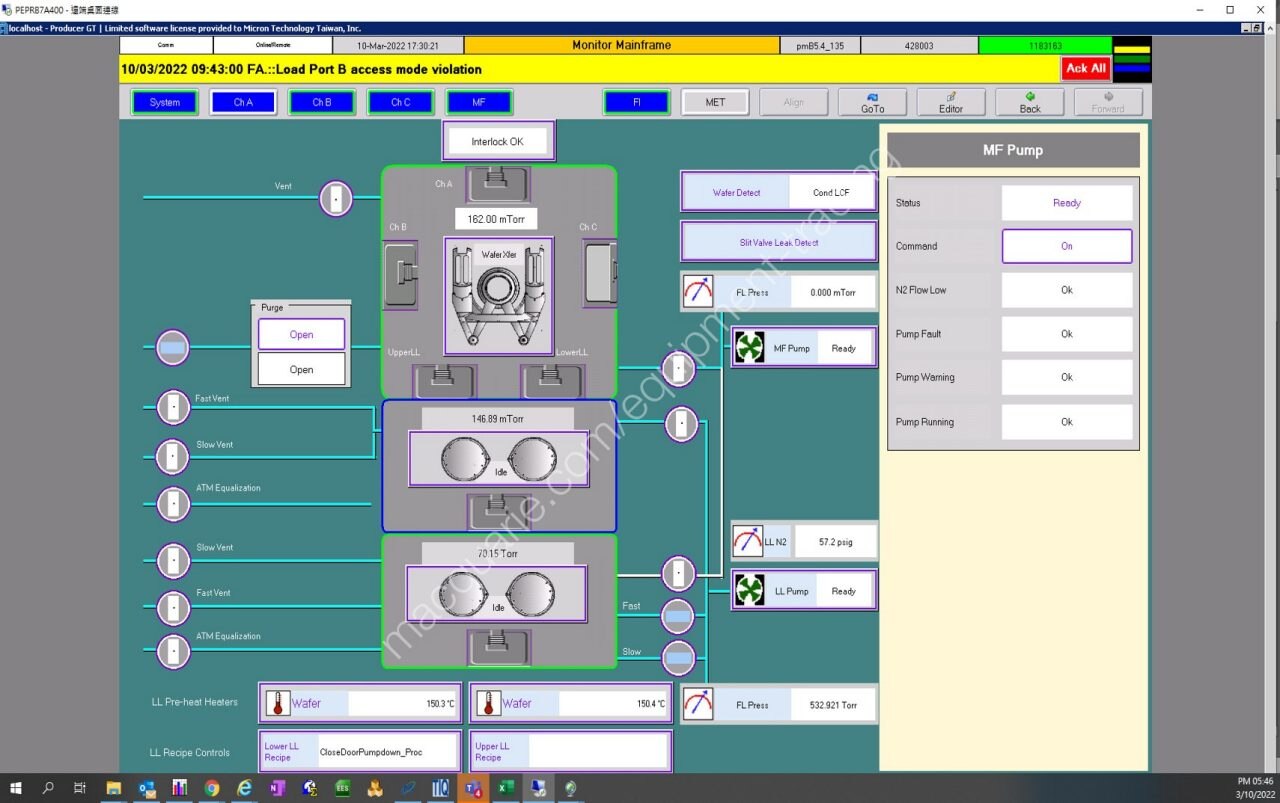

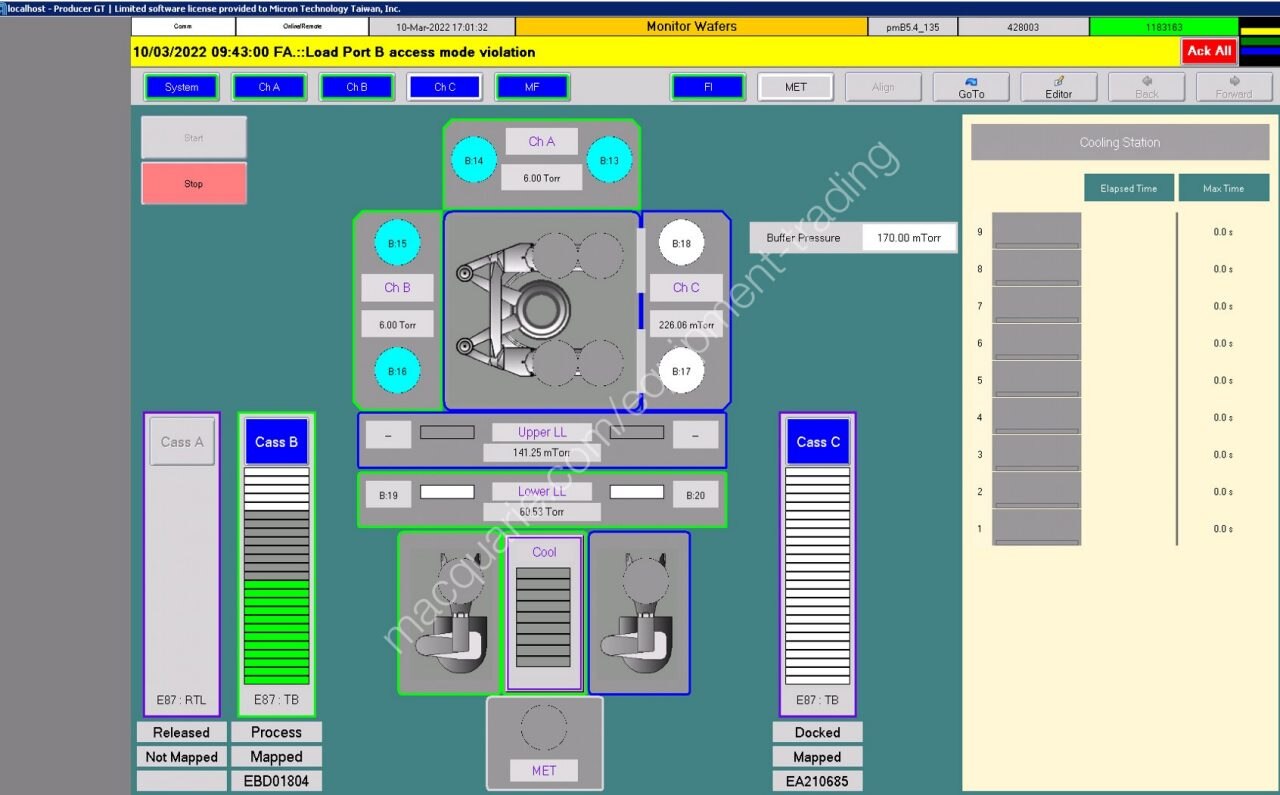

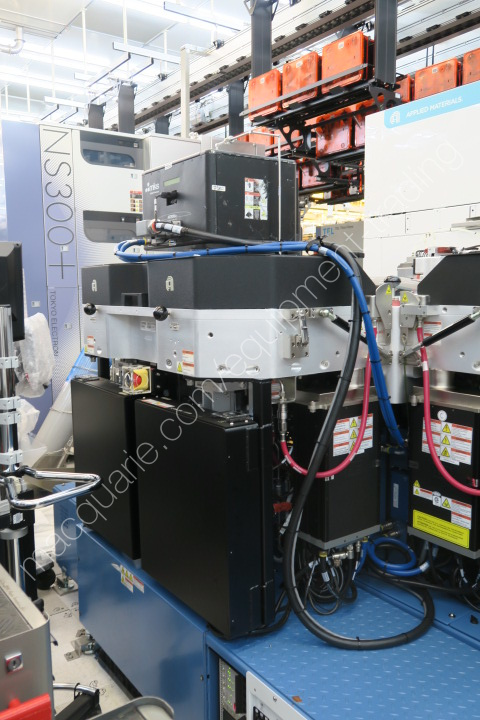

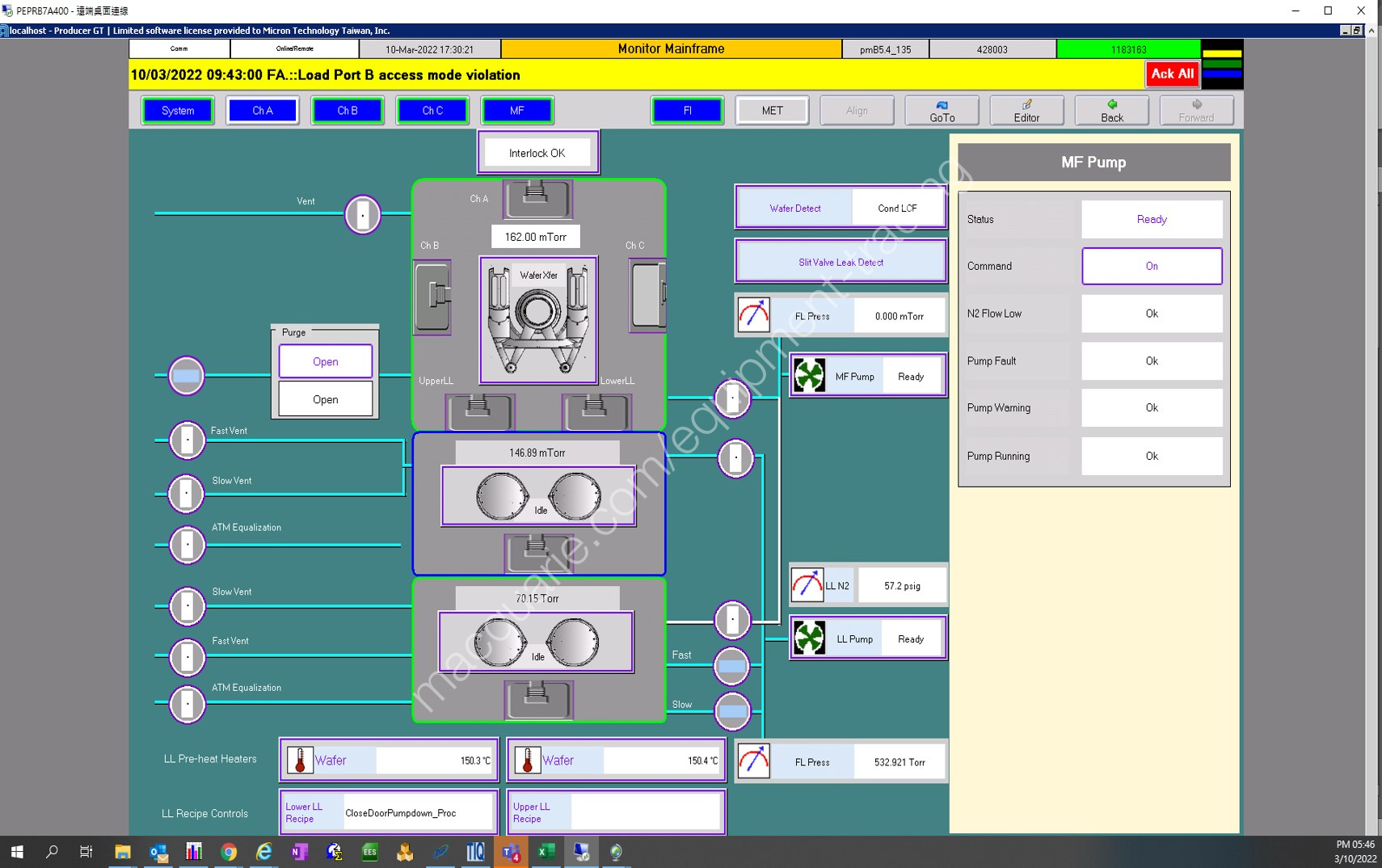

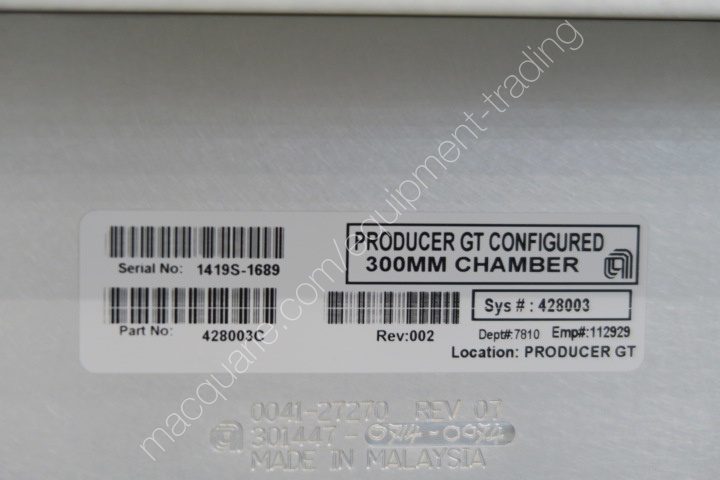

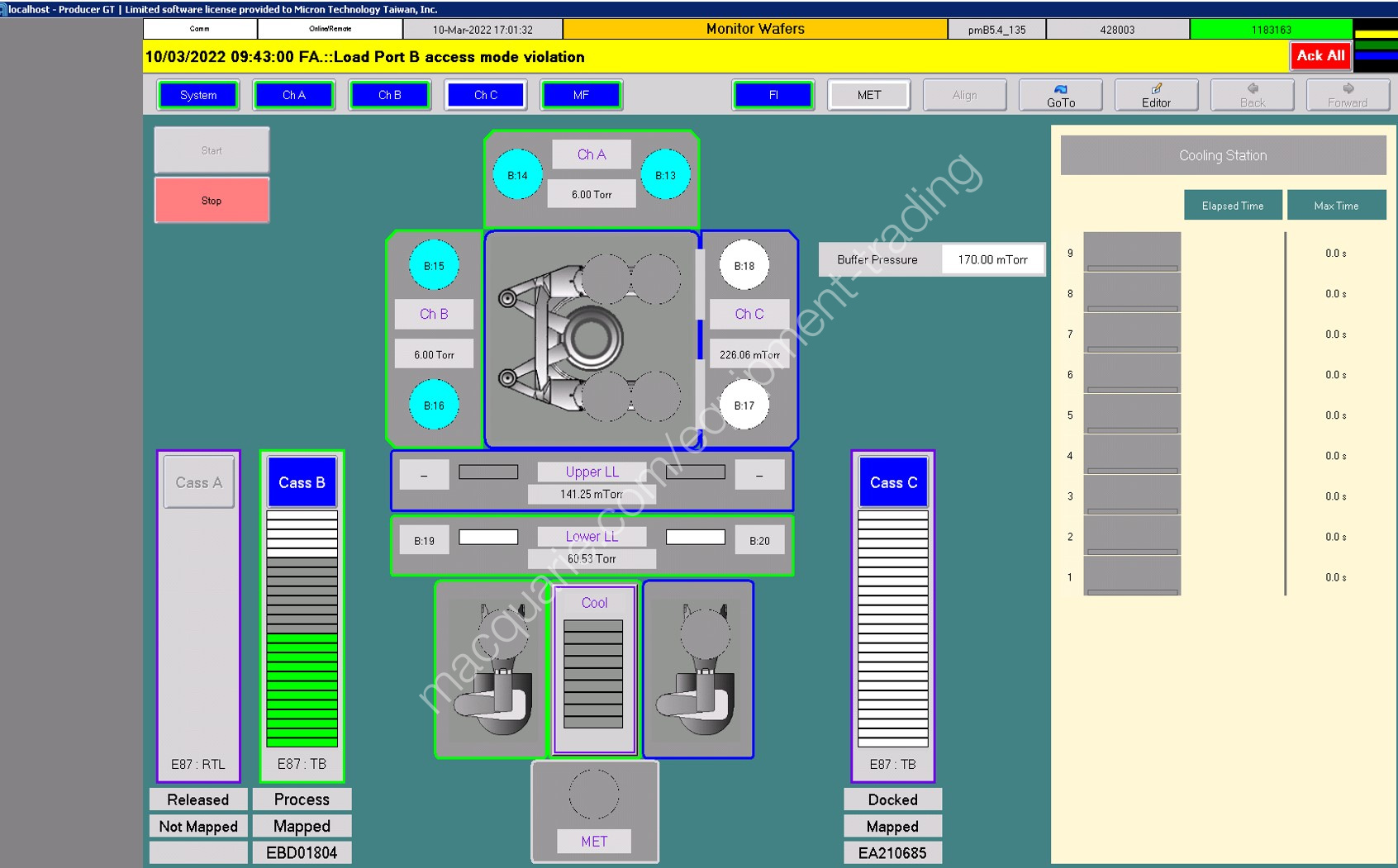

System Overview
Technology: DCVD
Platform Type: PRODUCER GT plus
Application: PMD-PMD
Wafer Size: 300MM (12 INCH)
Wafer Shape: SNNF
Position A: (XW) PE TEOS TWIN
Position B: (XW) PE TEOS TWIN
Position C: (XW) PE TEOS TWIN
Position A Process: (10) DELTA MF OXIDE USG
Position B Process: (10) DELTA MF OXIDE USG
Position C Process: (10) DELTA MF OXIDE USG
Factory Interface System 6.4 FI, Options
WIP Delivery Type: OHT WIP DELIVERY
PreAlignment & Centering: YES
Remote Control System Capable: YES
Number of Loadports: Customer Specify
Docked E99 Reading Capability: YES
Load Port Types and Quantity: 300mm STD
Load Port Operator Interface: STANDARD 8 LIGHT
Air Intake Systems: FFU with Hepa - standard
E84 PIO Sensors & Cables: OHT with Side On Sensor
E99 Carrier ID: E99 Carrier RF Tag Reader
Operator Access Switch: YES
5 COLOR CONFIGURABLE LIGHT TOWER: 5 COLOR CONFIGURABLE LIGHT TOWER
Fast Data Gateway Software: NO
eDiagnostics: NO
Interface A: NO
MainFrame Options
LL High pressure diffuser: High presssure diffuser
LL Copley Driver: Copley Driver
LL Slit Valve: KLR9100 + Zalak tabs
Local Center Finder: YES
Robot Blades: Ceramic
Remote Options, Heat Exchanger
System Heat Exchanger Qty: ONE
AMAT HX Hoses and Manifolds: NO
Facilities UPS Interface: NO
Loadlock chamber: AMAT supplied

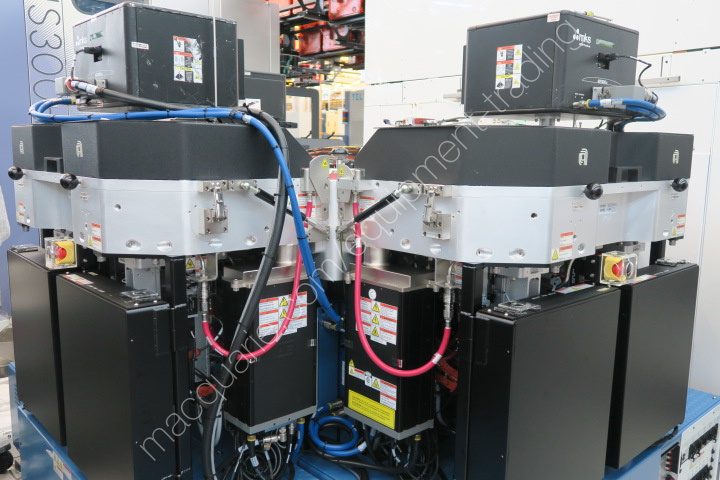

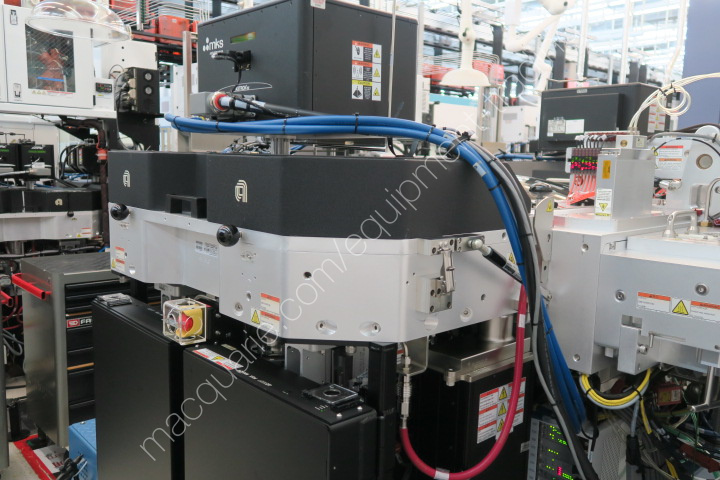

Ch A, B & C (XW) PE TEOS TWIN
TEOS Chamber Type: TYPE 2
Cleaning Process Diagnostic: NO
Bevel Edge Control: NOT APPLICABLE
Bottom Liner, Side 1: YES
Bottom Liner, Side 2: YES
RF Generator 1: APEX 3K2P (1 per chuck)
RF Generator 2: AE PDX 900-2V 132
Heater: SZ HEATER, TP, 300MM PRODUCER SE/GT
Slit Valve: G67P + Zalak tabs
RF Filter: ASSY, RF FILTER, DZ HEATER, PRODUCER GT
Foreline Combo Valve: 3 inch Heated Combo ISO / TV
RPS: Astron 6L RPS
Divert: TEOS DIVERT
Gas Pallet Type: K1S SURFACE MOUNT VERTICAL
MFCs: Brooks GF125
Gas Pallet: (300XW10)
Line 1: N2 Purge
Line 2: NF3- 5SLM
Line 3: Ar- 10SLM
Line 4: Empty
Line 5: Empty
Line 6: O2 - 15SLM
Line 7: Empty
Line 8: Empty
Line 9: Empty
Line 10: Empty
Line 11: Empty
Line 12: Empty
Line 13: Empty
Line 14: Empty
Line 15: Empty
Line 16: Empty
Line 17: He - 15SLM
Line 18: N2 Purge
Liquid 1: TEOS - 7G
Liquid 2: TEOS - 7G
Liquid 3: N/A
Gas Box: Gas Box
RF Spoon Strap: RF Spoon Strap
Blocker, Silane: Blocker, TEOS HI DEP RATE
Faceplate, Silane: Faceplate, TEOS HI DEP RATE
C-Channel Side 1: C-Channel Side 1, Silane, 300
C-Channel Side 2: C-Channel Side 2, Silane,
Liner, Ceramic Top: Liner, Ceramic Top
Liner, Ceramic Middle: Liner, Ceramic Middle
Liner, Ceramic Bottom: Liner, Ceramic Bottom
Filler, Chamber 1, Producer SE: Filler, Chamber 1, Producer SE
Filler, Chamber 2, Producer SE: Filler, Chamber 2, Producer SE
Pumping Ring, Ceramic C-channel, Side 1 300mm Prod: Pumping Ring, Ceramic C-channel, Side 1 300mm Prod
Pumping Ring, Ceramic C-channel, Side 2 300mm Prod: Pumping Ring, Ceramic C-channel, Side 2 300mm Prod
Centering Ring, Liner, Bottom, 300mm SE: Centering Ring, Liner, Bottom, 300mm SE
Liner, Nitch, 300 SE: Liner, Nitch, 300 SE
Liner, Equalization, 300 SE: Liner, Equalization, 300 SE
Liner, Top, 300 SE: Liner, Top, 300 SE
Ceramic Isolator: ISOLATOR, CERAMIC, CVD LOW K, 300MM PRODUCER
CH AC Box: SPECIFICATION, CH AC BOX, DUAL ZONE HEATER, PECVD, PRODUCER GT PV R0016
Heater Lift: ASSY, SHASTA NON-CAST RIGID HEATER LIFT, PRODUCER SE/GT
Kit, Lift Pin: Kit, Big Foot Lift Pin
Damage/Missing parts list
Please inspect tool to reconfirm
Dry pumps and customer provided items not included on sales
