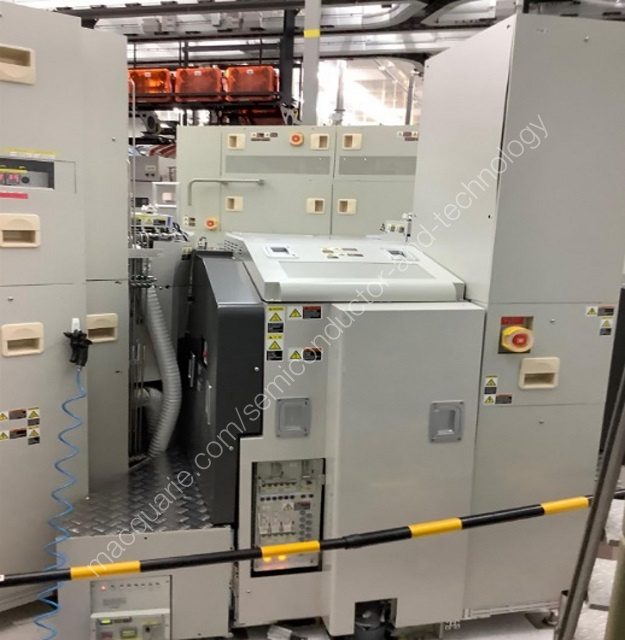

Metal CVD (Chemical Vapor Deposition)
Date of Manufacture: 2018-03-14
Currently Configured for: 300mm
Current Equipment Status: Available
Asset HDD not included
Location of Equipment: Taoyuan, Taiwan
Available date: Currently Available
CVD - 11-3TEL_TRIASEX2PL_HTTIN_04 - HTTN
Tool config is based on original PO, please verify tool details at tool inspection
Micap #: 1324438
Micron MISTI/LID #: ATTRB7TC00

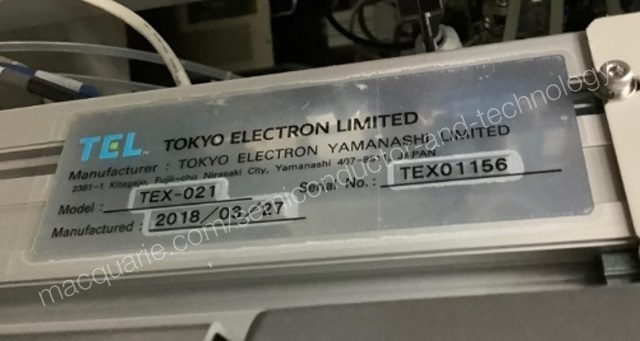

Vendor Tool Serial #: T15719
Any defective or missing parts: No
Any modification/conversion/refrofit was perform to the tool? No

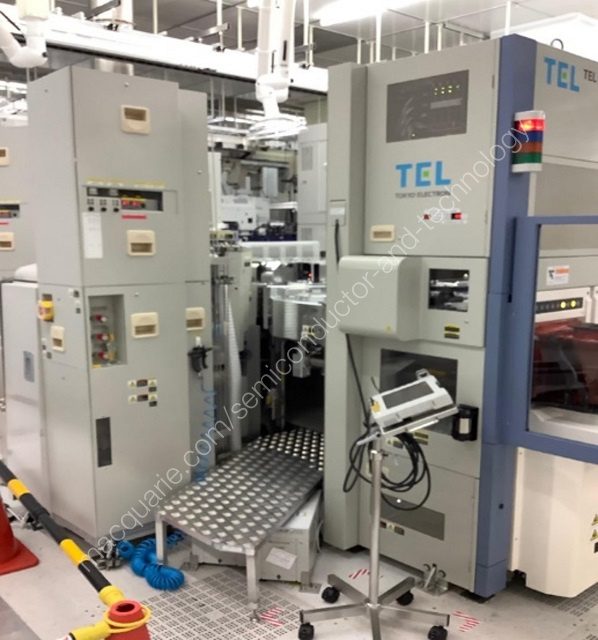

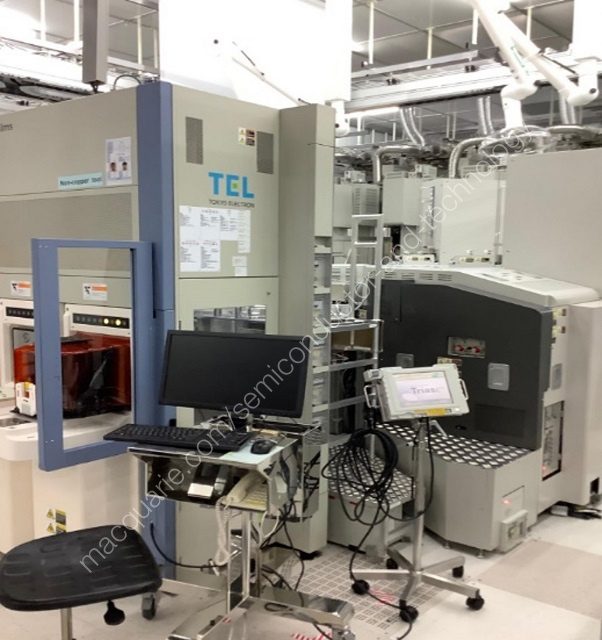

OEM: TEL
Tool Model: TRIASEX2PL
Software Version (include revision #): V5.670R1

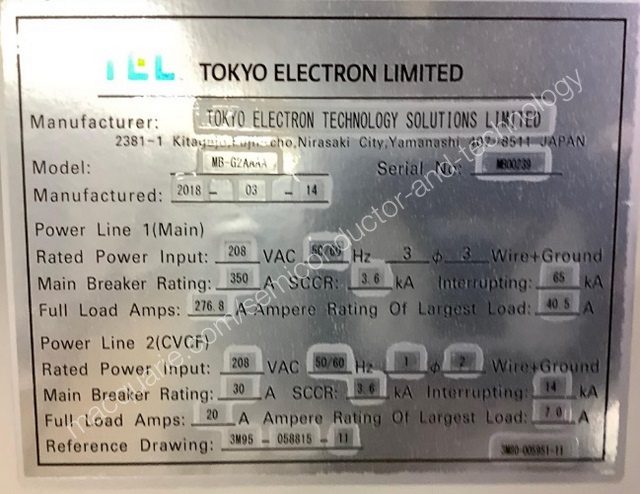

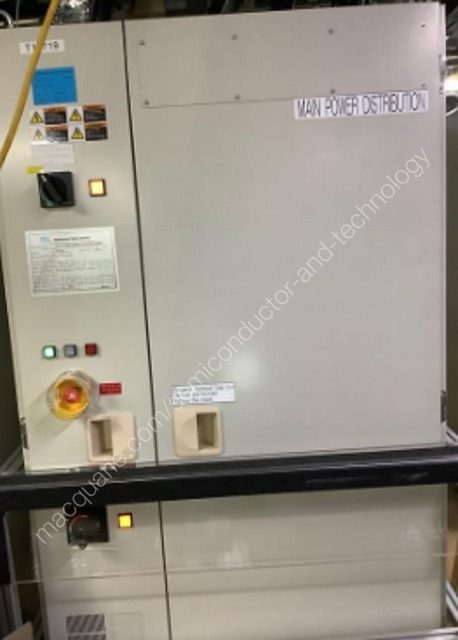

System Power Rating: 208V AC 3-Phas

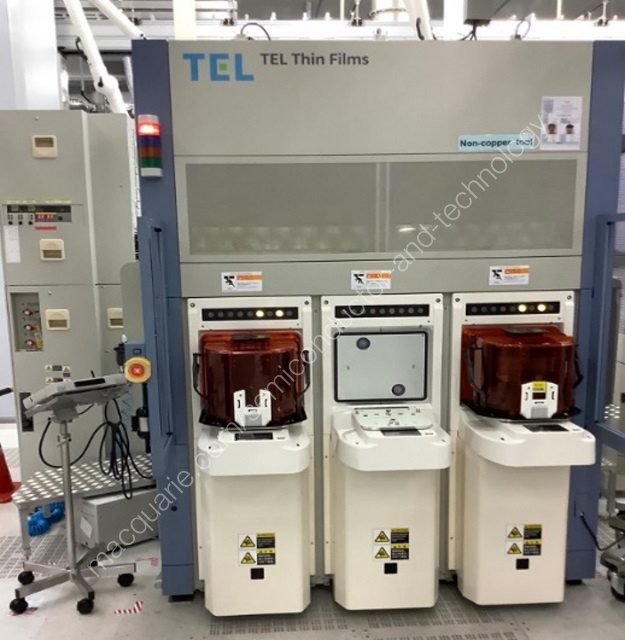

Loading Configuration: 3 lot loading
Retrofit Part Type 1: NA
Retrofit Date of Change 1: 10/09/2022 16:00

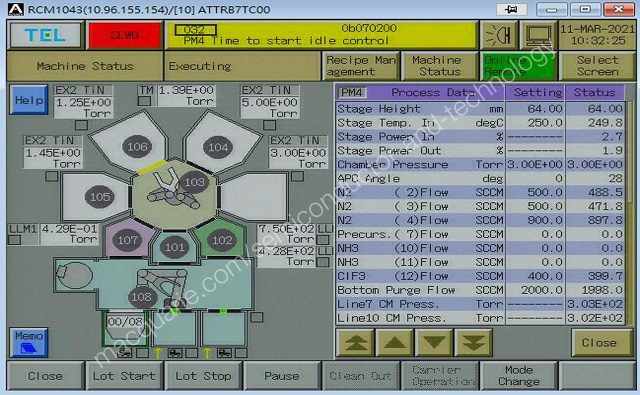

Chamber Name 1: PM1
Chamber Name 2: PM2

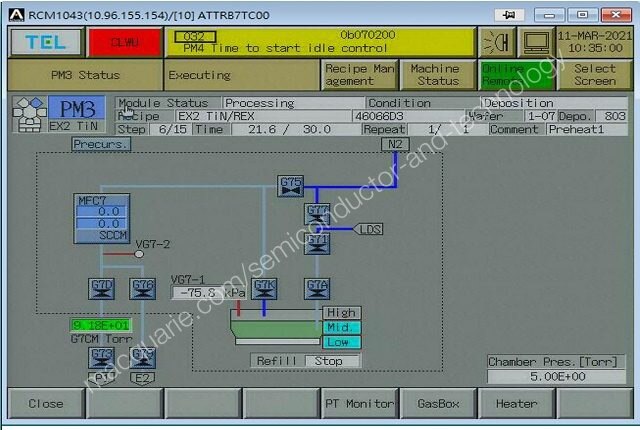

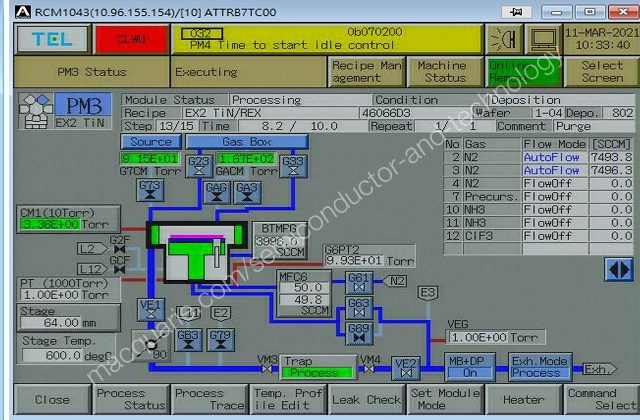

Chamber Name 3: PM3
Chamber Name 4: PM4
Chamber 1 Description: EXII TIN
Chamber 2 Description: EXII TIN
Chamber 3 Description: EXII TIN
Chamber 4 Description: EXII TIN

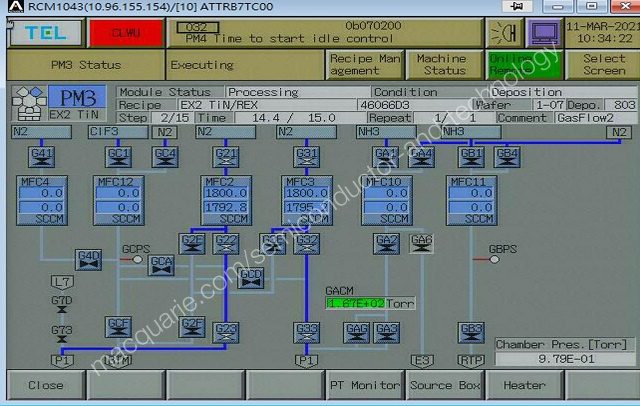

Chamber 1 Chemicals Gases Used: TiCl4/NH3/ClF3/N2
Chamber 2 Chemicals Gases Used: TiCl4/NH3/ClF3/N2
Chamber 3 Chemicals Gases Used: TiCl4/NH3/ClF3/N2
Chamber 4 Chemicals Gases Used: TiCl4/NH3/ClF3/N2
OEM Cable 1: Fab to Sub-FAB cable (25m)
OEM Cable Length 1: 25000
Not Sold with Tool Description 1: NA
N2 Load Port Exists 1: No
N2 Load Port Exists 2: No
N2 Load Port Exists 3: No
Optional Gas 1: N2 5slm HORIBA STEC
Optional Gas 2: N2 10slm HORIBA STEC
Optional Gas 3: N2 10slm HORIBA STEC
Optional Gas 4: N2 2slm HORIBA STEC
Optional Gas 5: empty
Optional Gas 6: N2 300sccm HORIBA STEC
Optional Gas 7: TiCl4 300sccm HORIBA STEC SEC-8000F/D series
Optional Gas 8: empty
Optional Gas 9: empty
Optional Gas 10: NH3 10SLM HORIBA STEC
Optional Gas 11: NH3 2SLM HORIBA STEC
Optional Gas 12: ClF3 500sccm HORIBA STEC
Custom Gas Lines 1: NA
Gas TOR 1: NA
Damage/Missing parts list
Please inspect tool to reconfirm

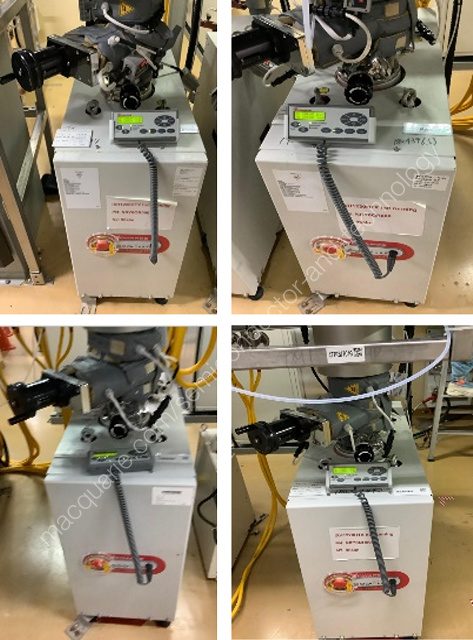

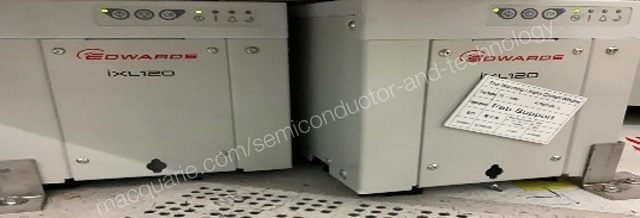

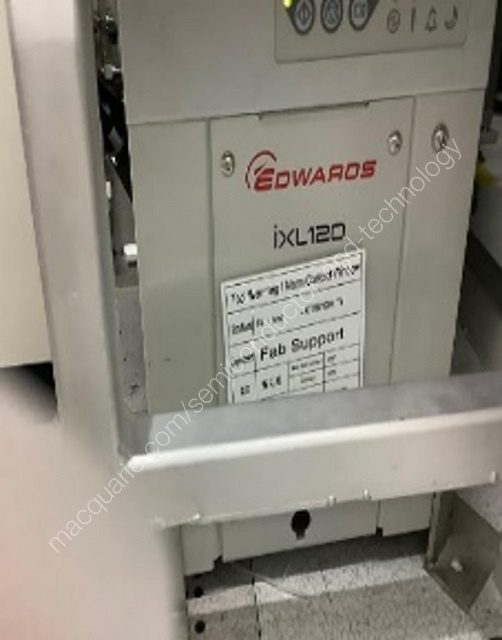

Dry pumps and customer provided items not included on sales
