Asset ID: 210194

Enquire about this product Print spec sheet

Novellus Systems Inc.

Concept Three Speed

HDP CVD (Chemical Vapor Deposition)

Deposition Equipment

Equipment details:

Date of Manufacture: 2003-01-01

Currently Configured for: 300mm

Current Equipment Status: Available

Asset HDD not included

Location of Equipment: Singapore, Singapore

Available date: Currently Available

Equipment IDHDPCVD-01
Date of Audit17-Feb-22
Electrical RequirementsAC 208V
Original Ship Date from Novellus27-Nov-03
QNX Platform Version1
Software Version5.1
Date of Last PMJun-21
Is System On-Line?No
Off-Line Date (if applicable)Jun-21
CE Mark Certified?Yes
OEM Audit Available?Yes
Decontamination Report Exists?Yes
Can Produce Wafers AS IS?Yes
Any Known Field Modifications?Yes
All Cables Present?Yes

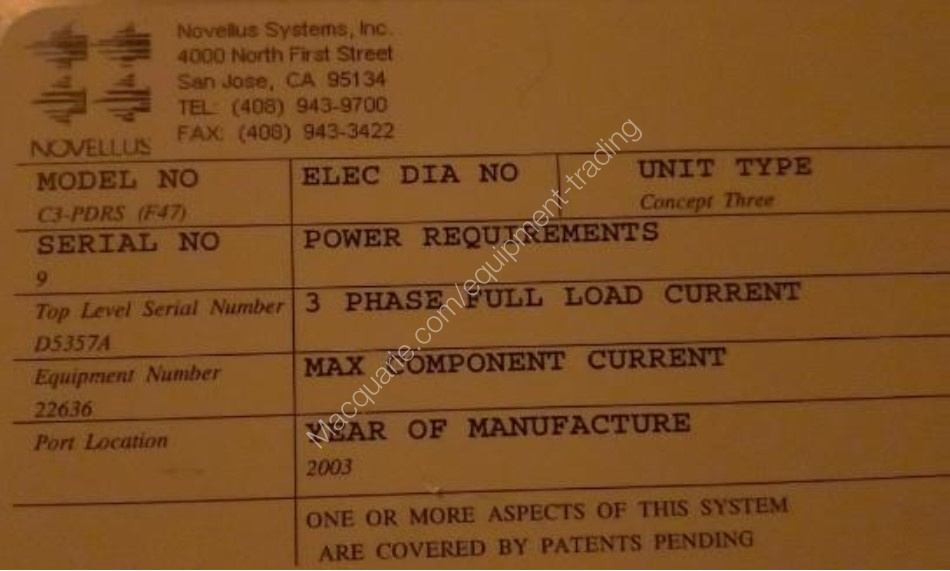

 Serial Number
Module A2
Module B8
Module C7
Module AC3
Module BC3
Module CC3
Speed, Speed xT, Speed NEXT, Speed MAXSTI, IMD

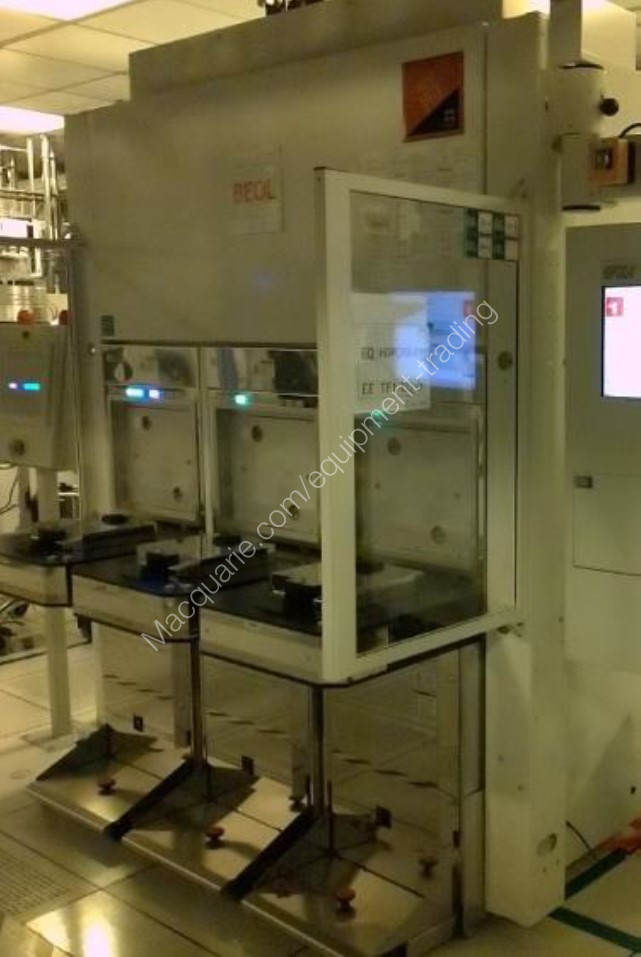

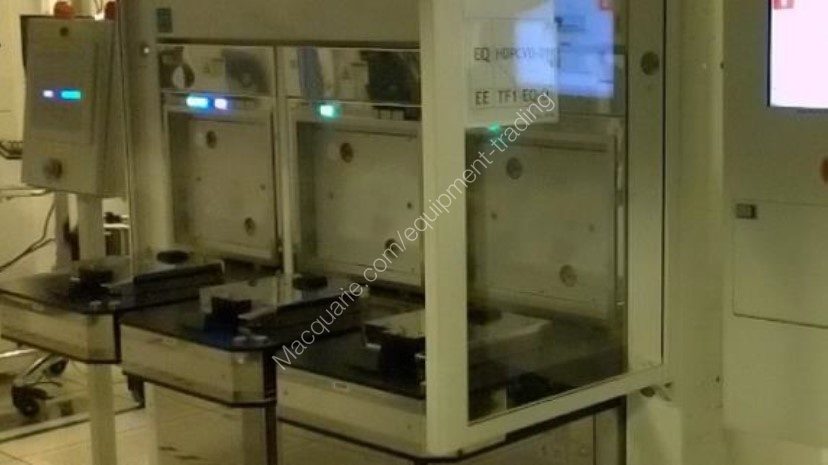

Front-End Interface3 LPs
FOUP RF ID ReaderYes
Signal Lamp TowerYes
Factory AutomationOHT

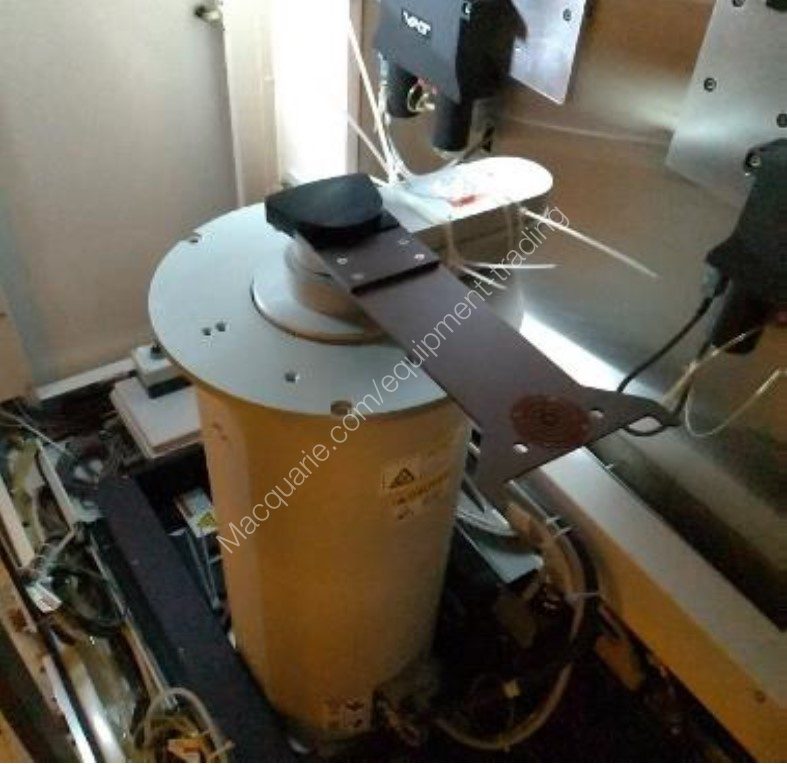

ATM Robot TypeBrooks
Vacuum Robot TypeBrooks/Magnatran 7
TM Turbo PumpYes
Facilities LocationBottom
Remote Interconnect Cable Length10m
WTS Vacuum PEC LocationPEC Station

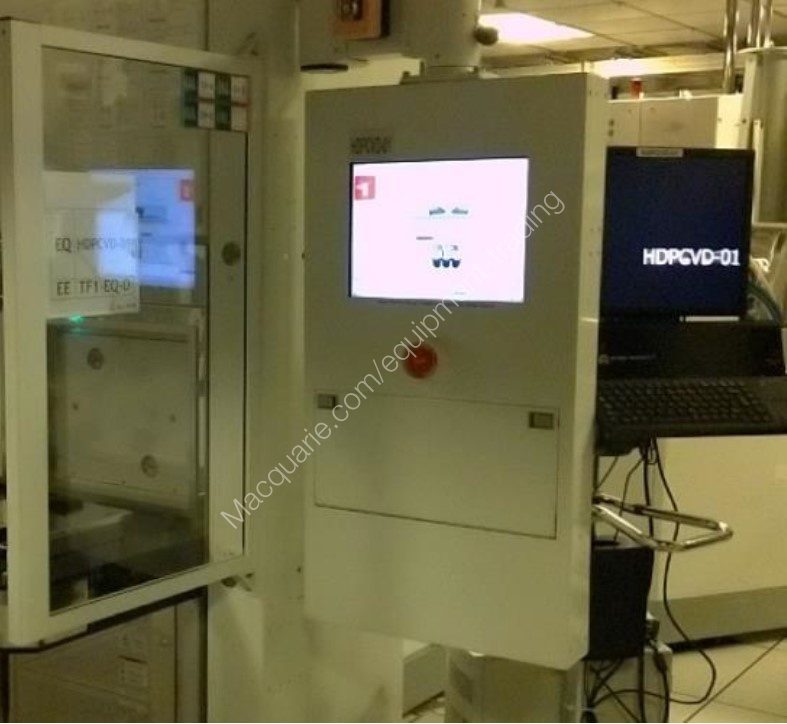

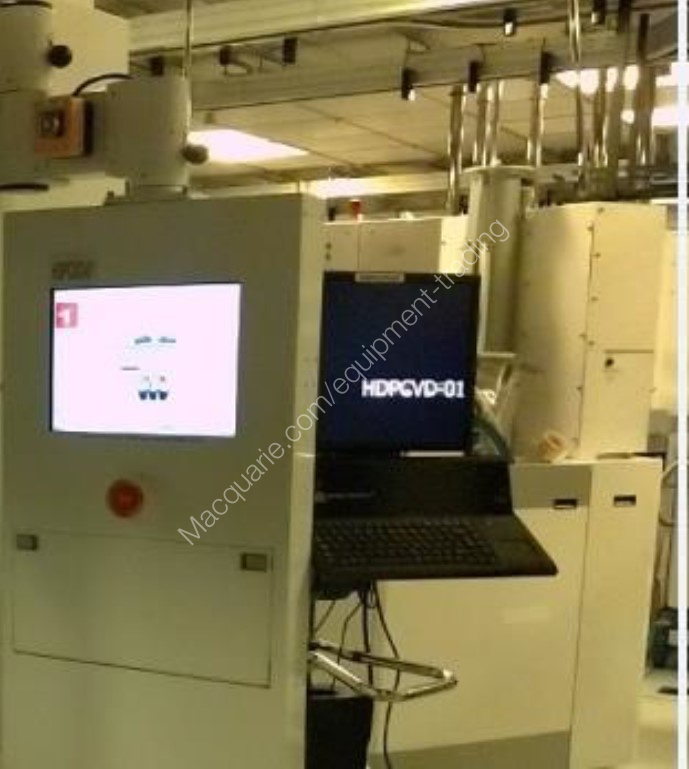

Primary User Interface Loc.Right  /  Left
     Nanofill 1Yes
RF Match TypeENI MWH-100
Heated ForelineNo
Active Temperature ControlNo
Gate Valve Mfg & ModelVAT
Pedestal Lift TypeDual Position
Temp MonitoringNTM 500C
Remote CleanNo

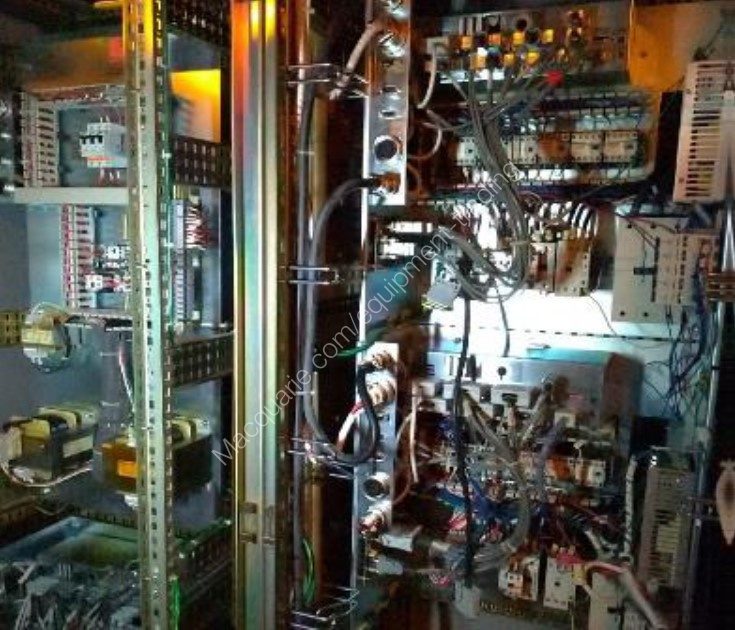

RF Generator RackYes
Chamber PositionTurbo Mfgr.Turbo Model
Module ALeybold VacuumMag2000C
Module BLeybold VacuumMag2000C
Module CLeybold VacuumMag2000C
Module A AEAE
Module A ENIENI8000
Module B AEAE
Module B ENIENI8000
Module C AEAE
Module CENIENI8000
Quantity Required3
Included With SystemYes
Included With SystemYes

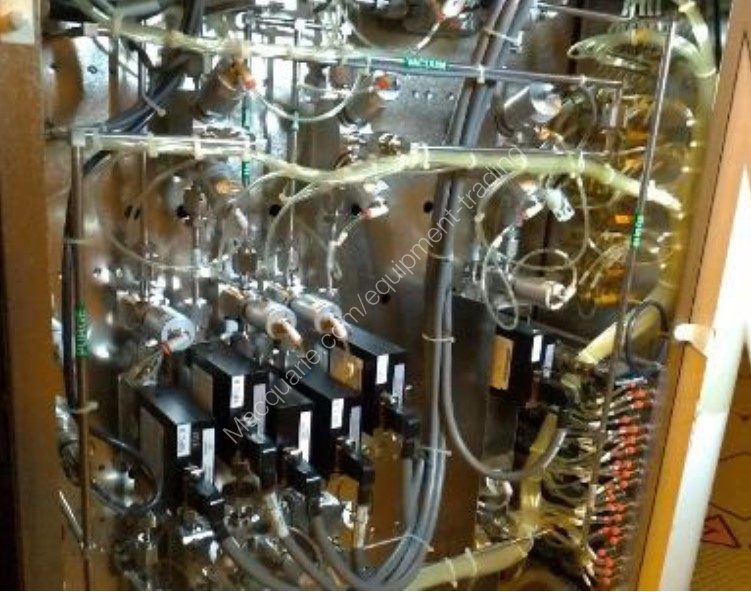

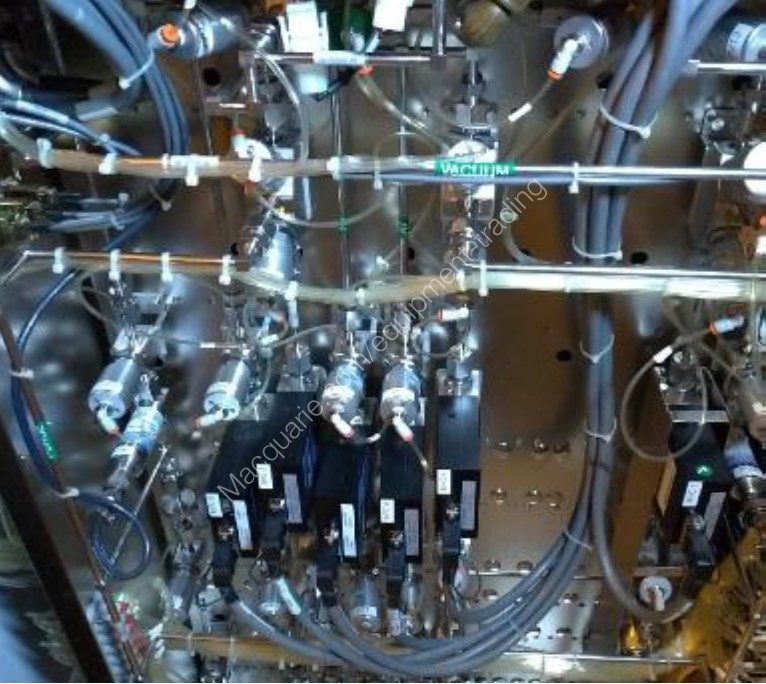

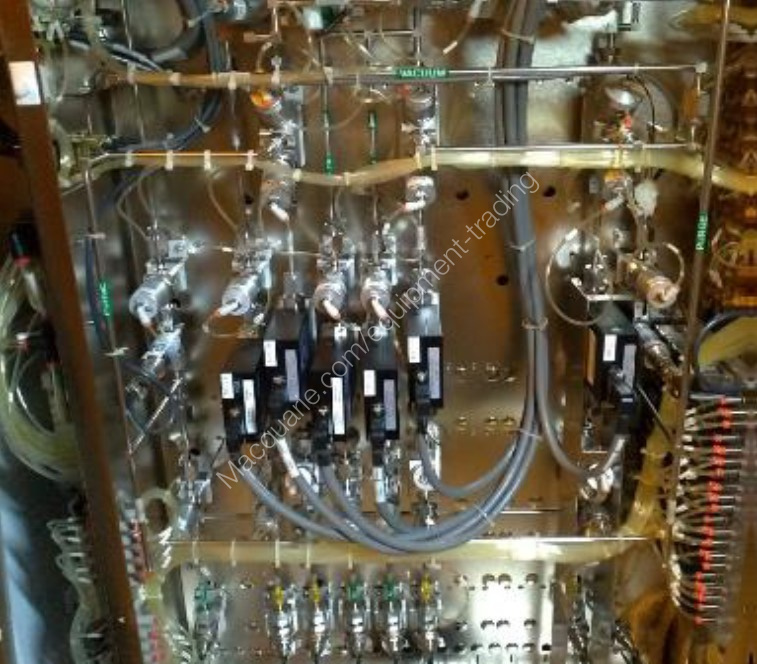

Gas Box Part Number79-264173-00
Maximum # of Lines8
Gas Line #GasFlow (sccm)MFC Mfgr.MFC Model
1N2 purgeNANANA
8N2 purgeNANANA
Nanofill 1:  Toggle Clean, Pfeiffer 2100 TMP, AE Match at Pedestal box
Nanofill 2:  Multi-position Pedestal, Manual Tune Match at Top, Nanofill Two dome.
Speed NeXT:  Two sections on top of the RF Enclosure, RPC on the side

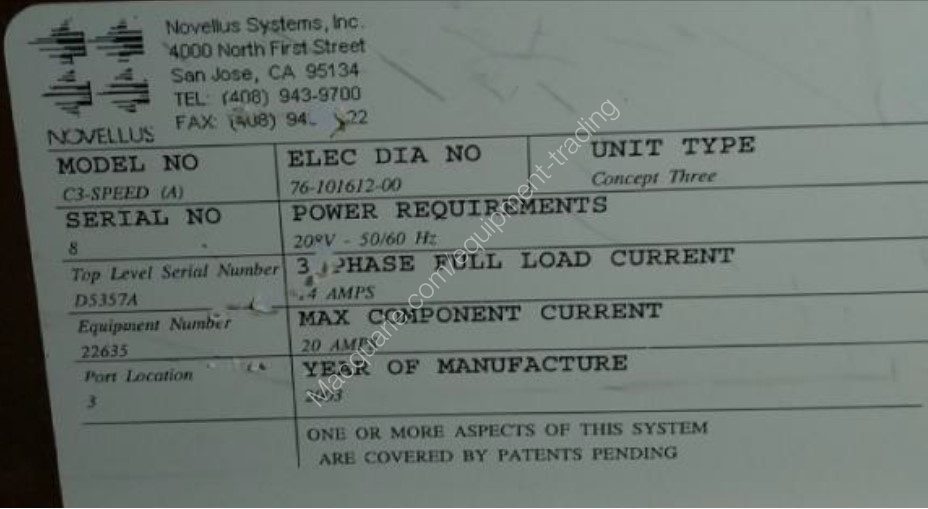

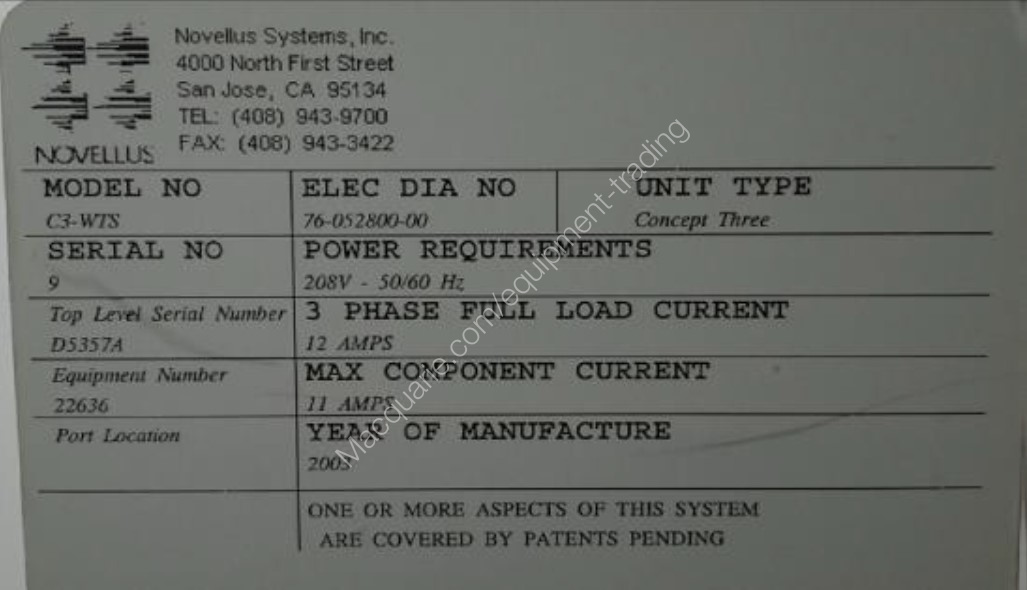

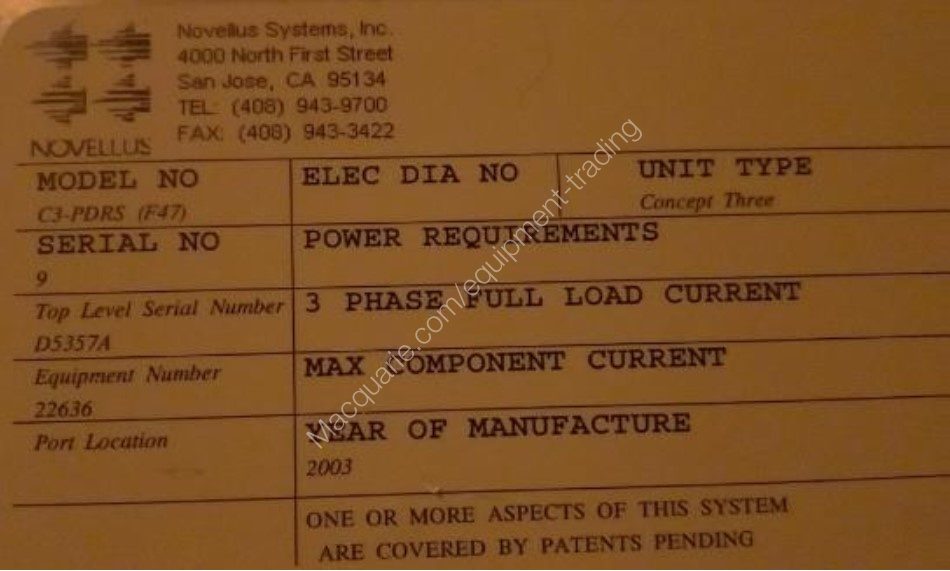

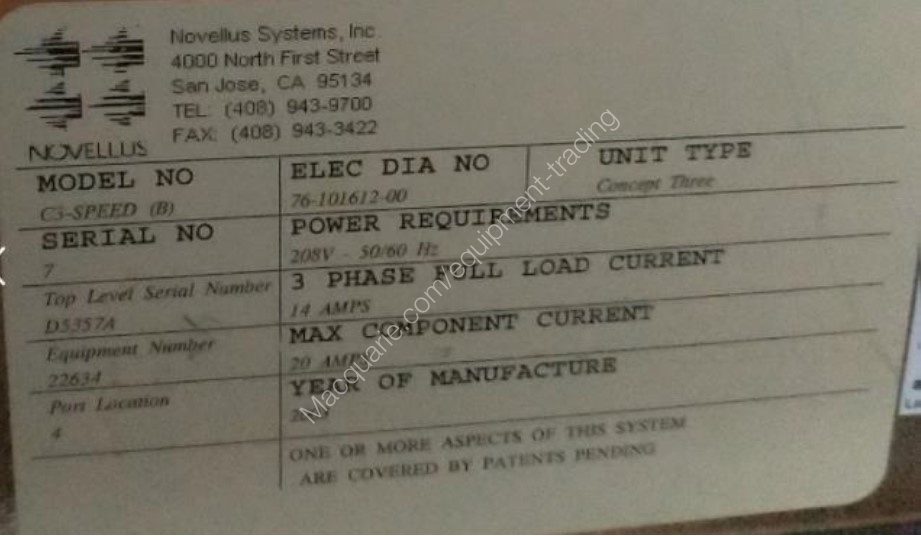

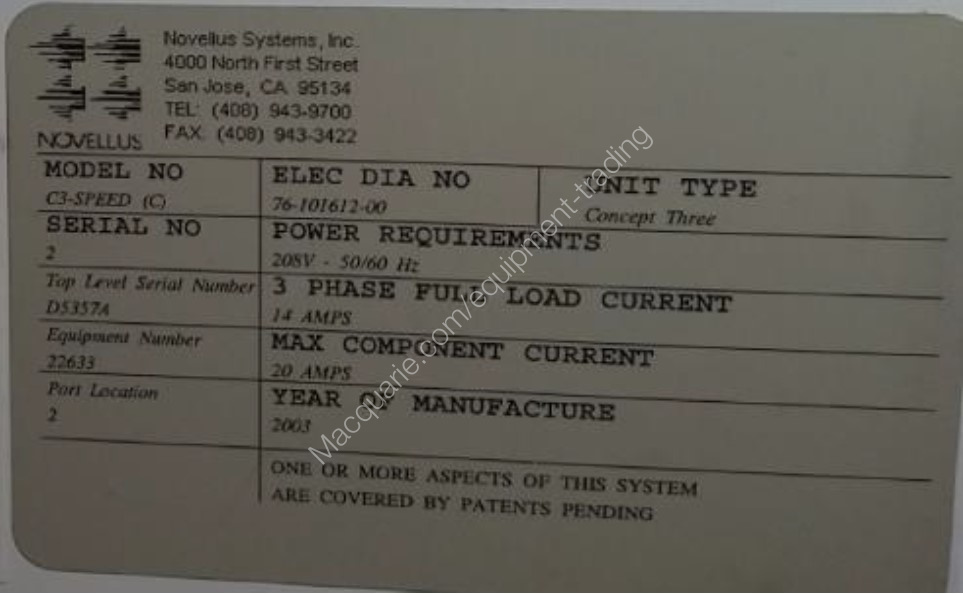

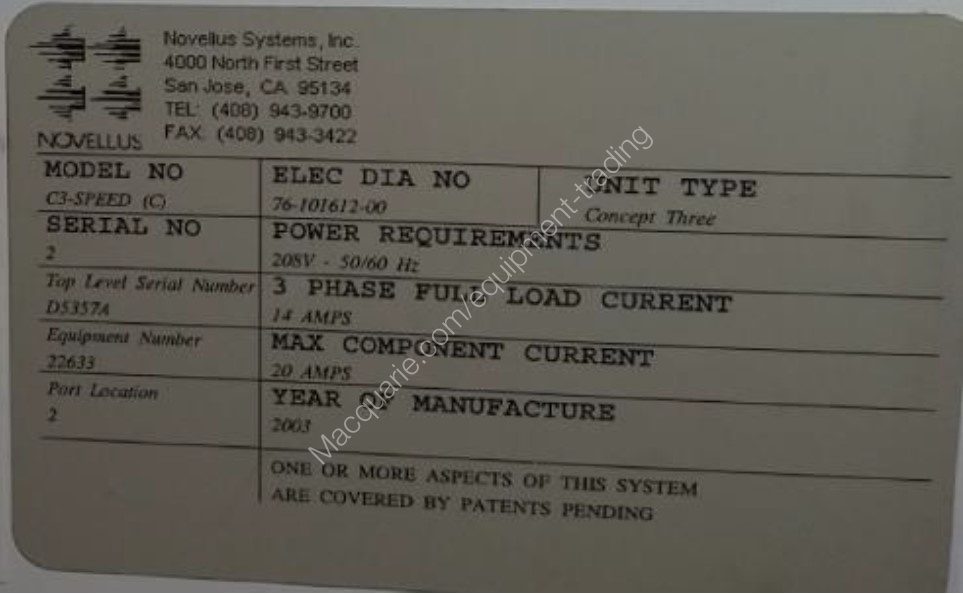

Product images
